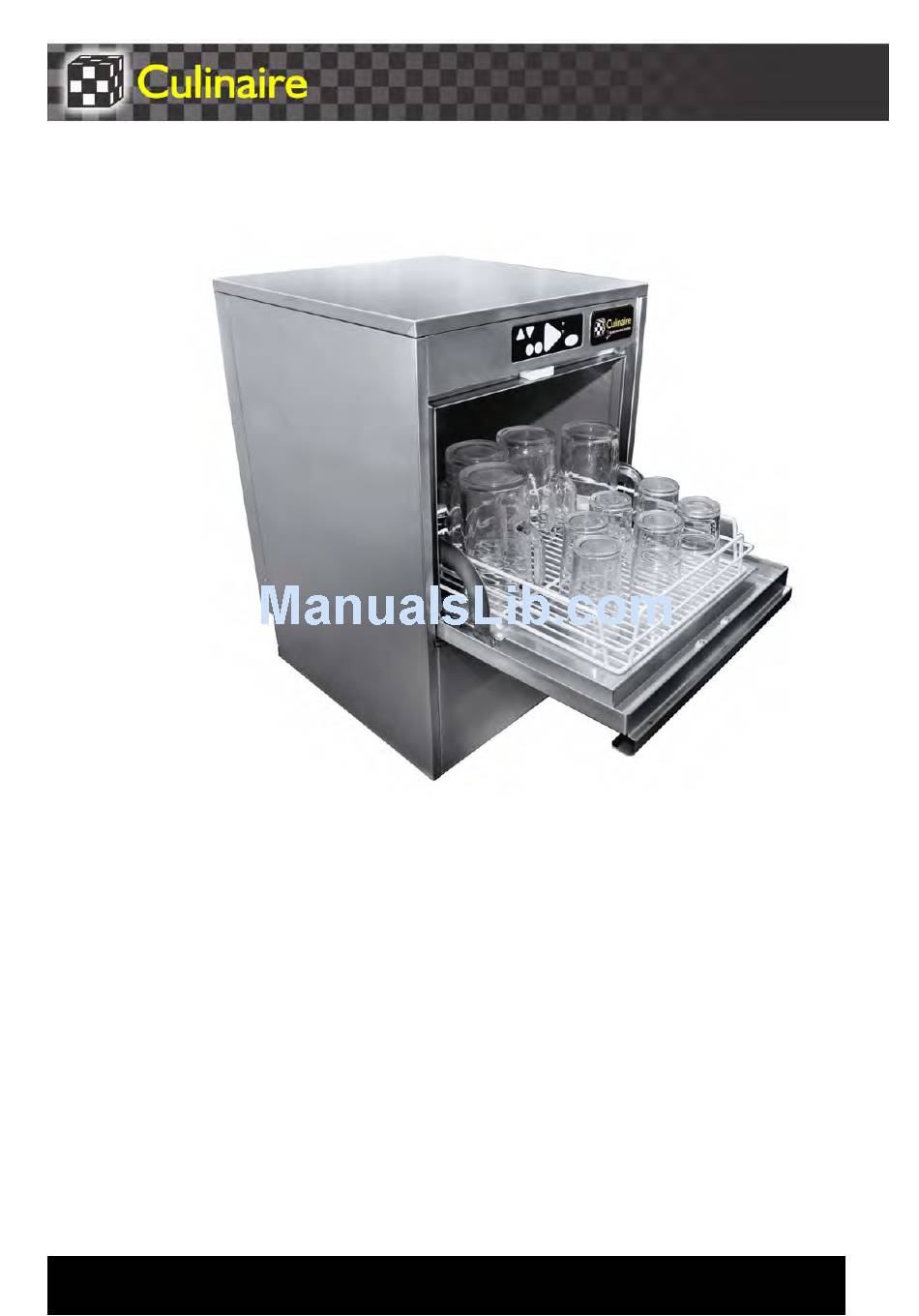

INSTALLATION,OPERATION &
MAINTENANCE

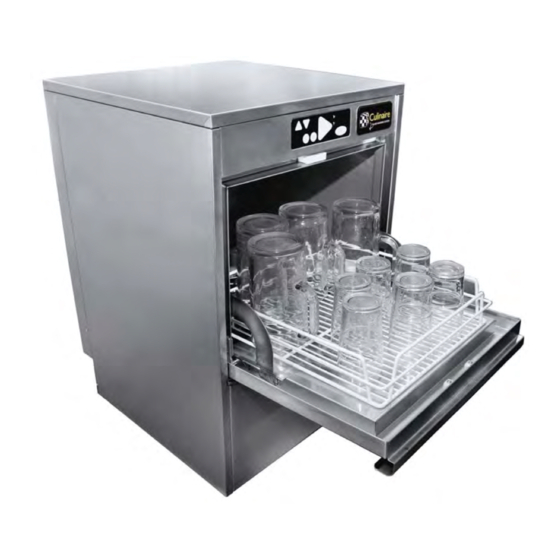

Culinaire Glass Washer Model AT40ST
Culinaire Glass Washer Model: AT40ST
Due to continuous product research and development, the information contained herein is subject to change without notice
Tel: 1300 79 1954 Web: www.stoddart.com.au
Email: fse@stoddart.com.au
Revision Date 16/02/2012
Advertisement
Table of Contents
Summary of Contents for Culinaire AT40ST
- Page 1 INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Culinaire Glass Washer Model: AT40ST Due to continuous product research and development, the information contained herein is subject to change without notice Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Revision Date 16/02/2012...
-
Page 2: Table Of Contents
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Table of Contents Table of Contents....................1 General Recommendations .................2 Handling..........................3 Unpacking ......................... 3 Disposal ..........................3 Technical Data ........................3 Connection Diagram....................4 Water Connection ....................5 Electrical Connection ....................5 Operating Environment .................. -
Page 3: General Recommendations
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST General Recommendations ATTENTION Carefully read this instruction booklet, as it contains important advice for safe installation, operation and maintenance. Keep this booklet on hand in a safe place for future reference by other operators or service technicians. -
Page 4: Handling
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Handling Use suitable means to move the appliance: eg. A lift truck or fork pallet trucks (the forks should reach more than halfway beneath the appliance). Unpacking Check the machine for damage before and after unpacking. If machine is damaged, contact the dealer. -
Page 5: Connection Diagram
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST WARNING! This machine must be installed in accordance with AS/NZS 3500.1 This machine must be operated on potable water. If the water has a high mineral content, pretreatment will be necessary or warranty may be voided. -
Page 6: Water Connection
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST WARNING! The following data must be complied with otherwise poor washing results will occur and warranty may be voided. Water Connection Temperature ºC ºF 200-500 Pressure 29-72 Lt/min 20-30 Flow ºF 7-14 Hardness ºDH... -
Page 7: Rating Plate
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Rating Plate The rating plate of the appliance contains identification and technical data and is located as per diagrams below. To access the lower front panel extract the front panel with an Allen key tool or similar by inserting it inside the holes on the under side of the panel. -
Page 8: Installation
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Installation ATTENTION Ensure that a trained person installs this machine. Ensure the customer is trained on how to use the machine. Ensure the customer is given the manual Position the dishwasher and level the appliance by turning the relative height-adjustable •... -
Page 9: Drain Connections
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Drain Connections Connect the drain hose (supplied) to a suitable drainage point. Typically, this will be the • dishwasher connection spigot on a P or S Trap. Electrical Connection WARNING! This machine must be installed in accordance with AS/NZS 60335.1 The electrical supply shall comply with the rating plate data. -
Page 10: Detergent Installation And Adjustment
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Detergent Installation and Adjustment. Locate the correct hose/tube on the rear of the machine. Detergent Hose (Clear) Place the correct hose/tube into the detergent bottle. Open the front panel with Allen tool or similar by inserting it inside the holes on the under side of the panel. - Page 11 INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Locate the peristaltic detergent pump. Detergent Pump Adjustment Screw Locate the adjustment screw as in the photo below. Reduce the amount of detergent by screwing the needle valve anticlockwise. Increase the amount of detergent by screwing the needle valve clockwise.
-
Page 12: Rinse Aid Installation And Adjustment
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Rinse Aid Installation and Adjustment. Locate the correct hose/tube on the rear of the machine. Rinse Aid Hose (Blue) Place the correct hose/tube into the rinse aid bottle. Open the front panel with Allen tool or similar by inserting it inside the holes on the under side of the panel. - Page 13 INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Locate the rinse aid pump. Rinse Aid Pump Adjustment Screw Locate the adjustment screw as in the diagram above. Reduce the amount of rinse aid by screwing the needle valve anticlockwise. Increase the amount of rinse aid by screwing the needle valve clockwise.
- Page 14 INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST INSTALLER REMARKS INSTALLATION DATE:________________________ INSTALLATION PLACE:_______________________ INSTALLATOR NAME:________________________ MACHINE SERIAL NUMBER:___________________ SIGNATURE:_______________________________ Due to continuous product research and development, the information contained herein is subject to change without notice Revision Date 16/02/2012 Tel: 1300 79 1954 Web: www.stoddart.com.au...
-
Page 15: Operation
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Operation General Recommendations Our appliances have been designed to give high performance. Hence, the appliance must be used exclusively for the purpose for which it has been designed, i.e. for washing of dishes with water and specific detergent. Any other use is to be considered improper. -
Page 16: Suggestions Before Using The Dishwasher
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Suggestions Before Using The Dishwasher Do not allow food to dry on the dishes before washing. Remove large food scraps from the dishes to prevent clogging the filters. Pre-wash the dishes by spraying them with cold or lukewarm water, without using any detergent. -
Page 17: Starting The Machine
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Starting the Machine Open the door and verify that all filters are in the correct position. Open main water supply cock. Switch on at the mains. Close the door and press button “A” to turn ON the machine. -
Page 18: Washing Cycle
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Washing Cycle The wash cycle includes one wash with hot water and detergent at 60°C (140°F) and one rinse cycle with hot water and rinse aid at 85°C (185°F). To start a wash cycle follow the steps below. -
Page 19: Final Cold Rinse
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST In the event that the rinse water temperature is below the required temperature, the machine will continue to wash until the rinse water temperature reaches the correct level. During thermo stop-washing cycle the control panel will display “SAFE” until final rinse temperature is reached and the cycle is finished. - Page 20 INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST WARNING! The appliance will not remove burnt food deposits from dishes. Dishes with burnt- on food deposits should be cleaned mechanically/chemically (for example, pre- wash under running water) before putting them in the dishwasher.
-
Page 21: Daily Cleaning And Shutdown
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Daily Cleaning and Shutdown In order to have excellent washing results, it is recommended to change the water in the machine at least twice a day and properly clean all the filters inside the tank. -
Page 22: Cleaning The Filters
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Cleaning the Filters Drain Pump Filter Wash Pump Filter Turn OFF the machine by pressing button “A” On/Off. • Manually remove the drain pump filter in the rear of the washing chamber by unscrewing the •... -
Page 23: Cleaning The External Surfaces
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Cleaning the External Surfaces Turn off the power at the mains. • Wipe the external surfaces of the machine with a damp soft cloth rinsed in warm soapy • water. Care should be taken to avoid wetting the electronic controller. -
Page 24: Maintenance
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Maintenance Control Panel Warning Messages WARNING! Messages will be only be displayed with the machine turned on. Trouble shooting Message Error Fault Check Booster Temperature Booster temperature probe Verify that the probe is correctly and... -
Page 25: Machine Events Following A Warning Error
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Message Error Fault Check Drain Anomaly Drainage not completed on Verify that the overflow device is the maximum programmed completely removed and no E-06 timing. obstructions are present on the water drain line. - Page 26 INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Trouble Shooting The Dishwasher Does Not Work? Verify inlet main water supply is correctly connected, open and free from any obstructions. Verify main electrical supply is working. Verify the door is properly closed.
-
Page 27: Maintenance Schedule
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Ensure the tank has not been cleaned with unsuitable cleaners. Drain the tank and rinse thoroughly before new wash cycles. If foaming detergent has been used, drain and refill the tank with water until the foam disappears. -
Page 28: Electrical Diagram
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Electrical Diagram Due to continuous product research and development, the information contained herein is subject to change without notice Revision Date 16/02/2012 Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 27 of 33... -
Page 29: Hydraulic Diagram
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST Hydraulic Diagram Due to continuous product research and development, the information contained herein is subject to change without notice Revision Date 16/02/2012 Tel: 1300 79 1954 Web: www.stoddart.com.au Email: fse@stoddart.com.au Page 28 of 33... -
Page 30: Warranty
Warranty Appendix 1 – Australian Warranty and Contact Details As the exclusive manufacturer and distributor of Culinaire products in Australia, Stoddart Manufacturing (Stoddart) would like to congratulate you on your purchase of a Culinaire product. It should be noted by users of the product that it is not designed for household or domestic use and should not be used for this purpose. -
Page 31: Due To Continuous Product Research And Development, The Information Contained Herein Is Subject To Change Without Notice
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST III Certain components have a finite expected life, especially in a commercial or high-use environment. For example components such as refrigeration compressors, elements, thermostats/simmerstats, switches, fans, and temperature controllers can be expected to last up to 12 months when used in accordance with the instructions;... -
Page 32: Due To Continuous Product Research And Development, The Information Contained Herein Is Subject To Change Without Notice
INSTALLATION,OPERATION & MAINTENANCE Culinaire Glass Washer Model AT40ST 4.0 Warranty Claim Procedure The following procedure must be followed to claim under Stoddart's warranties: Refer to the trouble-shooting section of the Instructions to establish the nature of the fault. Check the equipment is plugged-in, turned-on or has no other valid reason for not operating.
