JJC MT-636 Instruction Manual

Multi-exposure timer & infrared remote
Hide thumbs

Advertisement

Quick Links

Download this manual

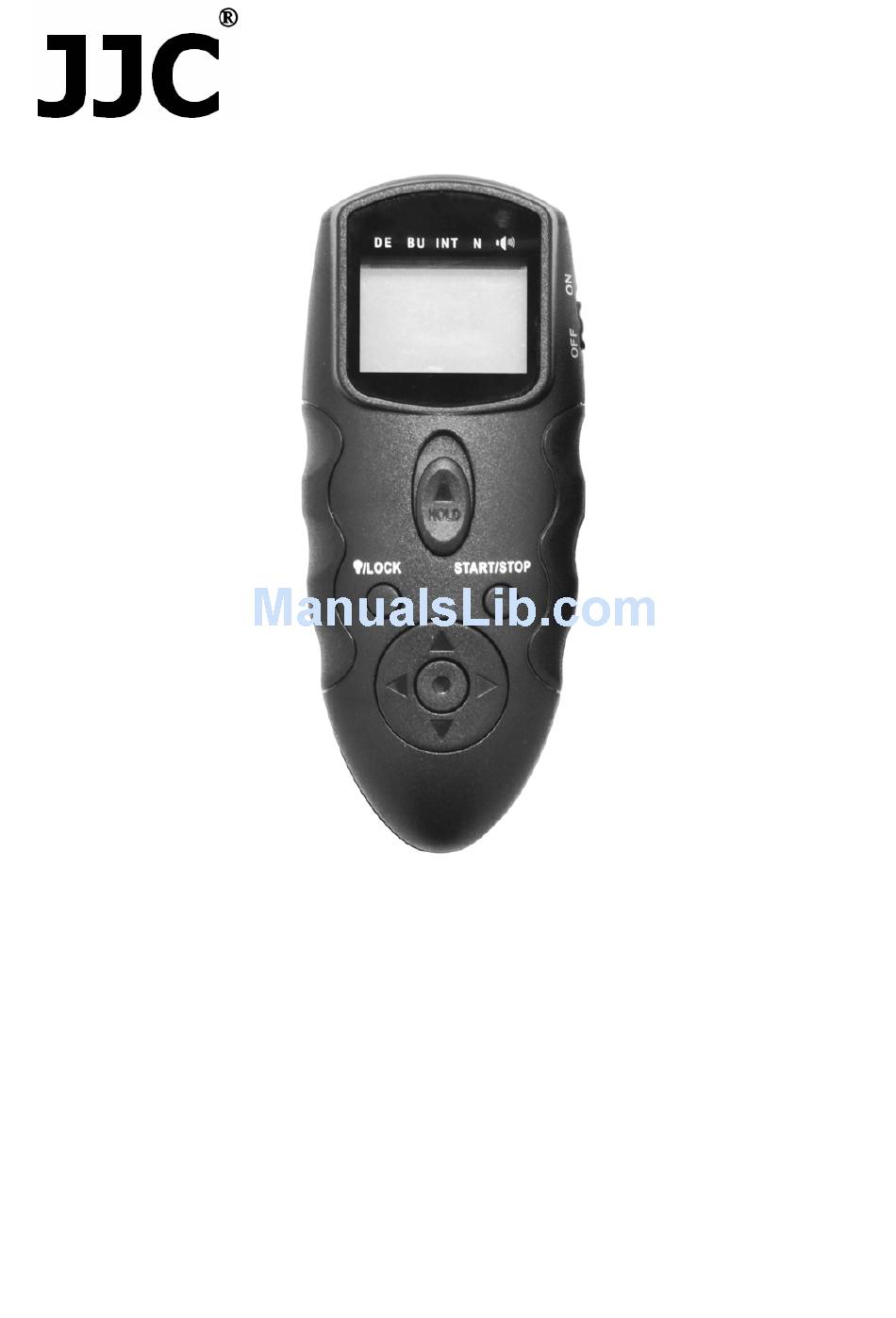

Model: MT-636
Multi-Exposure Timer & Infrared Remote
English Instruction Manual
Thank you for purchasing JJC MT-636 Multi-Exposure Timer & Infrared Remote control. For the best
performance, please read this manual instruction carefully before using. You must read it throughly and
fully understand this manual to avoid improper operation lead to damage of the product.

Advertisement

loading
Need help?

Need help?

Do you have a question about the MT-636 and is the answer not in the manual?

Questions and answers

Summary of Contents for JJC MT-636

  • Page 1 Multi-Exposure Timer & Infrared Remote English Instruction Manual Thank you for purchasing JJC MT-636 Multi-Exposure Timer & Infrared Remote control. For the best performance, please read this manual instruction carefully before using. You must read it throughly and fully understand this manual to avoid improper operation lead to damage of the product.
  • Page 2 Parts of MT-636 controller: Control Panel Shutter Release Button LED Light / Lock Button Arrow Button Release Lamp Timer Start/Stop Button SET Button Infrared Signal Output ACC Socket 10. Power Button 11. Selection cursor 12. Timer display 13. LOCK indicator 14.

  • Page 3: For Your Safety

    20. Multi Exposure indicator 21. Infrared Signal indicator For Your Safety Do not disassemble or modify Keep Dry Keep out of reach of children Do not use in the presence of flammable gas Do not expose to high temperatures...
  • Page 4 Install and replace the battery:...
  • Page 5 MT-636 connected with the camera using as wired timer *Wired operation requires the use of a JJC Shutter Release Cable to fit your camera. (NOT INCLUDED. SEPARATE PURCHASE REQUIRED.)
  • Page 6 2. Remove the remote socket cover from the camera. 3. Insert the shutter release plug into the remote socket of camera. 4. Insert the input plug into the ACC socket of MT-636 controller. 5. Turn ON the camera and MT-636 controller.

  • Page 7: Camera Setting

    Timer (INT) and number of shots for time interval photography exposure (Exposure Count (N)). Following table is the setting about the camera shutter speed. 1. Camera Setting a) Connect the MT-636 controller to the camera and turn ON. b) Adjust the camera setting Exposure Mode...

  • Page 8: Setting The Timer

    Setting the Timer Use the arrow button to set the timer. Press left or right to select, up or down to change. The current selection is indicated by the selection cursor. Press the SET button at any time to complete the operation and display the new setting for the selected item.
  • Page 9 5.Speaker To ensure correct operation, choose an interval at least two seconds longer than the exposure time. When using autofocus, set the delay to two seconds or more and choose an interval at least two seconds longer than the exposure time to ensure that the camera has time to focus. When using long exposure noise reduction, the interval should be at least twice the exposure time.
  • Page 10 Adjust Camera Settings Turn OFF the MT-636 controller. Remove the remote socket cover from the camera. Connect the MT-636 controller to the camera and turn ON the camera. Select the M function and choose BULB of the camera. Half press the shutter button for focus Fully press the shutter button for release shutter Slide the shutter button to the HOLD position.
  • Page 11 Multi-Exposure (High Dynamic Range) Function Description: Setting the Multi-Exposure Use the arrow button to move selection cursor under BU, press the SET button and go into BU time section ①. Press the LEFT arrow button to get into multi-exposure selection②, press UP or DOWN to change from single exposure -1- to nine exposures -9-.
  • Page 12 Infrared Signal Function Description: The following is a list of the infrared code for different cameras, following page will tell you how to set the right infrared code for your camera. Quick Response remote for CANON Delayed Remote for CANON Quick Response remote for Quick Response remote for PENTAX Quick Response remote for...
  • Page 13 2) Adjust the MT-636 Setting When you using the Infrared signal function in BULB mode, MT-636 sends the first Infrared Signal to lock the shutter for BULB, the second is for unlock the shutter. Now please SET “N” to a even value, such as 2,4,6..etc.
  • Page 14 The following illustration shows when the infrared signal send out ( ) and frame taken with DE=5s, BU=0s, INT=6s, N=4. The exposure time will be the same as the interval time.The frame number you will get is N/2. NOTE: Infrared cannot be seen by human eyes so you will see no visible light from the LED on the front of the remote control during operation.
  • Page 15 Longer than camera shutter speed Any Value When you using the Infrared signal function in Non-BULB mode, a picture will be taken once the MT-636 sends the Infrared Signal. The following illustration shows when the infrared signal send out ( ) and frame taken with DE=5s, BU=0s, INT=6s, N=4.

  • Page 16: Specifications

    JJC products are guaranteed for ONE FULL YEAR against defects in workmanship and materials. If at any time after one year, your JJC product fails under normal use, we invite you to return it to JJC for evaluation.
