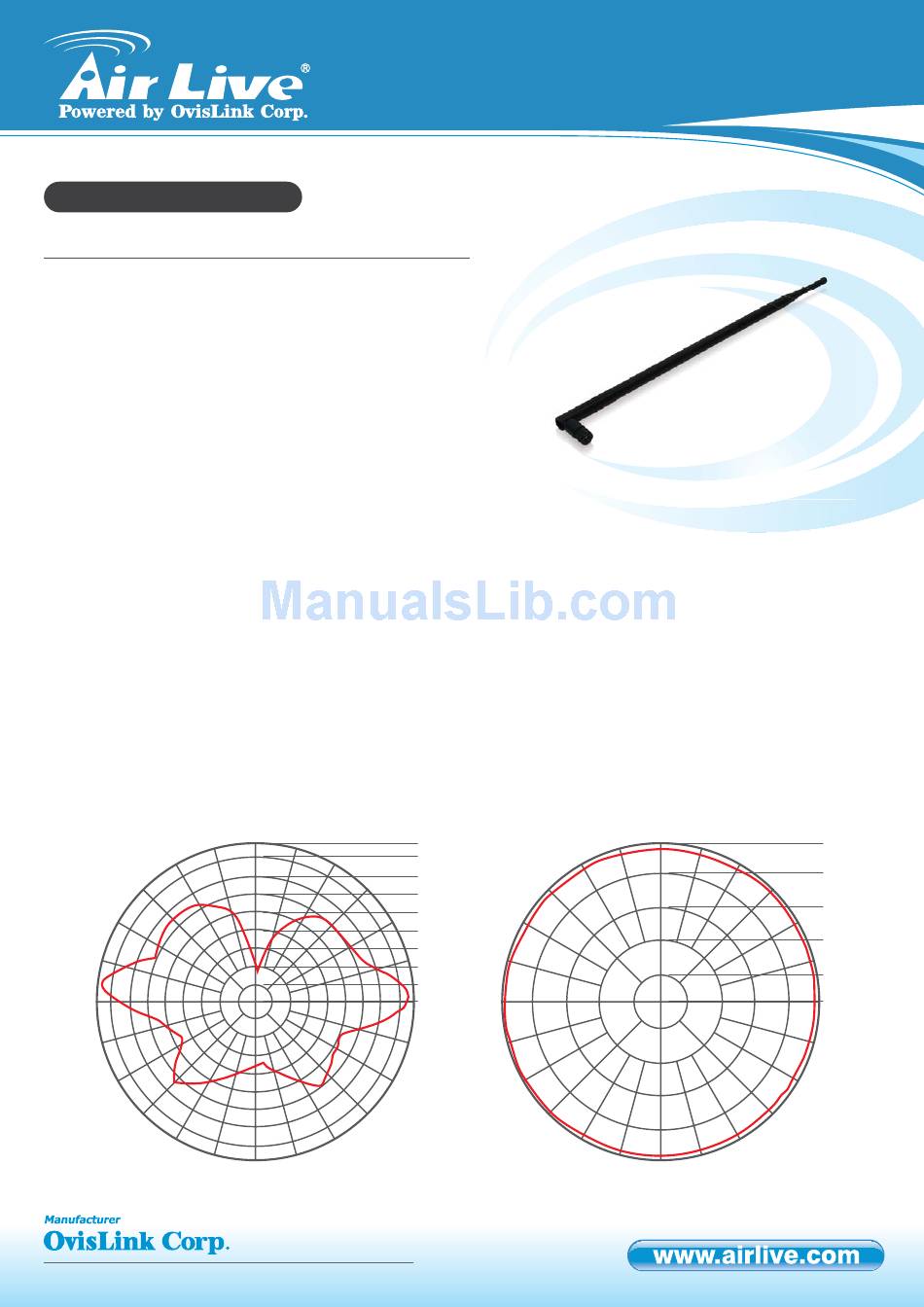

Air Live WAI-090 Installation Manual

WAI-090
9dBi Rubber Dipole Antenna
Triple Transmission Power
he WAI-090 is a 9dBi antenna wireless
T
antenna that connects directly to AP or
Card's male Reversed SMA connector. Standard
AP antennas are usually in the 2dBi to 3dBi
range; therefore, the WAI-090 can effectively
triple the signal strength of most wireless
products. The WAI-090 is unlike other low quality
dipole antennas in the market that typically
provide almost unusable narrow degree of
vertical coverage
Simple Installation
The Antenna comes with female reversed SMA connector which connects directly to the AP. This
eliminates the need for extension cables which reduce signal strength. In addition, the antenna's head
can be adjusted to upright or angled position for better reception. In sum, the WAI-090 provides the
easiest way for users to upgrade the range of their wireless device.
E-Plane @ Horizontal Polarization
Excel XY Plot
180
5F, No.96, Min-ChuanRd, Hsin-tien City, Taipei, Taiwan
90
270
H-Plane @ Veritical Polarization
Excel XY Plot
9
0
-5
-10
-15
-20
-25
-30
-35
180
90
270
9
0
-10
-20
-30
-38
