DLH6330
Matrix Keyboard
Installation and Operations Manual
Model Number: DLH6330
Description: PTZ Dome/Receiver/Driver and
Matrix Switcher Keyboard/Controller

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DLH6330 and is the answer not in the manual?

Questions and answers

Summary of Contents for Dante DLH6330

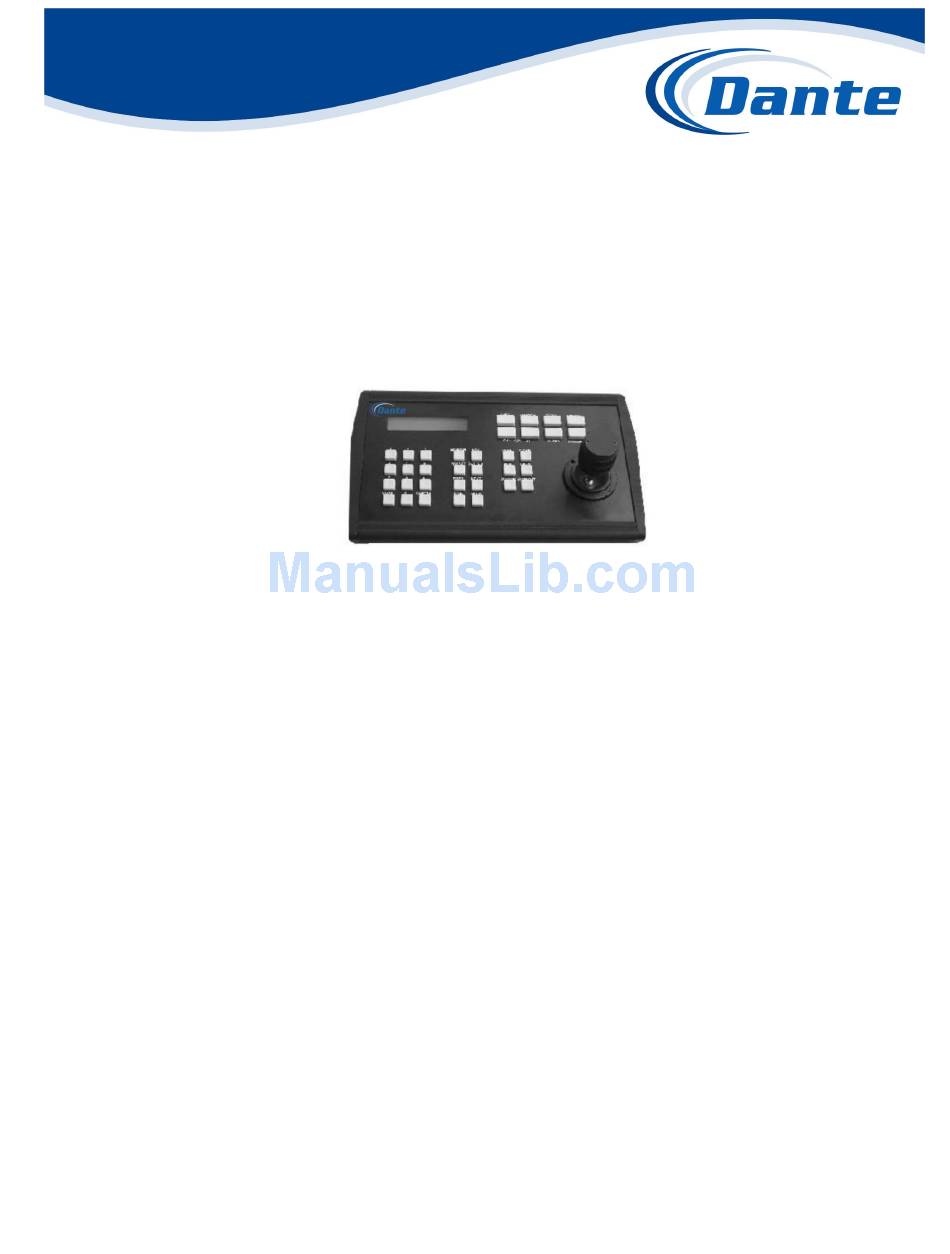

  • Page 1 DLH6330 Matrix Keyboard Installation and Operations Manual Model Number: DLH6330 Description: PTZ Dome/Receiver/Driver and Matrix Switcher Keyboard/Controller...
  • Page 2: Table Of Contents

    INSTALLATION - PELCO MODE CM6700 Mode CM6800Mode CM6700ASCII Mode CM6800 ASCII Mode DIRECT MODE DLH6330 KEYBOARD SETTINGS Switch Settings LCD Display DLH6330 KEYBOARD OPERATION DLH6330 CONNECTION TO CPU OF DLH4400E ENTERPRISE MATRIX CONTROL OF PTZ DOME CAMERA SPECIFICATIONS IMPORTANT SAFEGUARDS/WARNINGS...
  • Page 3: Description

    DESCRIPTION The DLH6330 Universal Keyboard has many operational features with a fix/variable speed joystick. The joystick can control pan (tilt) the fix/variable speed decoder. Twist the joystick clockwise/counterclockwise to zoom in/out. Using the keyboard to select the camera and monitor, set the preset、 mode、...
  • Page 4: Installation - Dlh4200B Mode

    INSTALLATION – DLH4200B Mode User may program and operate the DLH4200B Matrix Switcher/Controller unit on DLH4200B Mode. User may connect up to eight DLH6330 keyboards to any of the following ports: DLH4200B: COM 5: one direct-powered keyboard or up to eight remotely connected keyboards.DLH4200B supports 12VDC power supply.
  • Page 5 DLH6330 DLH6330 VPK-101 VPK-101 DLH4200B KEYBOARD DATA CABLE VPMX-2004 VPMX-2004 COM 5 & 6 VPK-101 DLH4200B COM 5 & 6 DLH6330 RJ-45 PIN-OUTS RJ-45 PIN-OUTS RJ-45 Pinouts RJ-45 Pinouts 1 RX+ 1 TX+ 2 RX- 2 TX- 3 VPK 12V...
  • Page 6 MAXIMUM NUMBER OF KEYBOARDS: 8 PER PORT MAXIMUM NUMBER OF KEYBOARDS: 8 PER PORT NOTE: THE TOTAL NUMBER OF DLH6330 SERIES KEYBOARDS CONNECTED NOTE: THE TOTAL NUMBER OF VPK-101 SERIES KEYBOARDS CONNECTED TO THE VPMX-2004 CANNOT EXCEED 16. TO THE DLH4200B CANNOT EXCEED 16...
  • Page 7: Installation Dlh4200 Ascii Mode

    Refer to the manual 《 DLH4200B Matrix Switcher 》 for the detailed connecting and operation. The DLH6330 connects to DLH4200B by Straight Cable. Set the address of DLH6330keyboard before connecting. Refer to the DLH6330 KEYBOARD SETTING section for details please.
  • Page 8 Figure 3 Connecting Keyboards to the DLH4200B on DLH4200B ASCII Mode DLH4200B VPMX-2004 8-RJ45 COM PORT 7,8 RS-485 (PROGRAMMABLE TO RS-232) COM PORT 5,6 COM PORT 2 RS-232 RS-485 RS-232 RS-485 1-----RX+ 1-----RX 1-----RX+ 1-----RX 2-----RX- 2-----NC 2-----RX- 2-----NC 3-----VPK 12V 3-----NC 3-----NC 3-----NC...
  • Page 9: Installation - Pelco Mode

    There are two keyboard ports on the CM6700, the LOCAL KEYBOARD port and REMOTE KEYBOARD(S) port. The DLH6330 connects to CM6700 by Straight Cable. Set the address of DLH6330 keyboard before connecting. Refer to the DLH6330 KEYBOARD SETTING section for details please.
  • Page 10: Cm6700Ascii Mode

    CM6700 ASCII Mode Refer to the manual《CM6700 Matrix Switcher》for the detailed connecting and operation. Set the address of DLH6330 keyboard before connecting. Refer to the DLH6330 KEYBOARD SETTING section for details please. User may operate the CM6700 Matrix Switcher/Controller Unit, no Programming on CM6700 ASCII Mode.
  • Page 11: Direct Mode

    Direct D Mode:can control the front-end device of Pelco-D protocol (eg. receivers, dome) Set the switches according to the working mode for DLH6330 keyboard. Refer to the SWITCH SETTINGS section for details please. Baud rate is optional on Direct Mode, and its setting will display on LCD.
  • Page 12: Dlh6330 Keyboard Settings

    Baud rate (Switches 4-5). This function is only used in Direct Mode. DLH6330 Baud rate 1200bps 2400bps 4800bps 9600bps Switches Mode (Switches 6-8) DLH6330 CM6700/CM6800 CM6700 CM6800 Direct P Direct D DLH4200B ASCII ASCII Switches Note: After rebooting the DLH6330 keyboard, the set parameters become effective.
  • Page 13: Lcd Display

    LCD display The DLH6330 keyboard can display corresponding working Status. CM6700/CM6800 or DLH4200B Mode:when keyboard connected with SCU abnormally, the LCD will appear , UNCONNECTED Once become normal, the LCD appears MON: CAM: : INPUT CM6700 ASCII Mode: when keyboard connected with SCU abnormally,...
  • Page 14 LCD can only be reference. The actual relation stands on monitor display. The major problem as follow: 1. The DLH6330 keyboard wouldn't record the relation of MON and CAM when power off. The CAM on LCD display is null when power on. If you want to display the relation of MON and CAM, re-switch according to the relation of MON and CAM at the moment.
  • Page 15: Dlh6330Keyboard Operation

    DLH6330KEYBOARD OPERATION DLH6330Keyboard Functions 11 10 Figure 7 DLH6330Keyboard Functions LCD display With Shift on the icon S appears on the top right of LCD. Shift key. Function keys F1/Latch, F2/Off, F3/Mom control auxiliaries. With Shift on 3A-3C they control multiplexer display. LED backlight key Macro sequence key Joystick...
  • Page 16 Clear key Keypad (numbers 1 through 0) The AUX ON and AUX OFF keys control receiver auxiliaries. With Shift on 19A-19B they control multiplexer display. Select Monitor: LED display shows monitor number in run mode. Enter ① monitor number and press MON to select. Select Camera: Enter camera number and press CAM to select.
  • Page 17 Auxiliaries/ Relays: Enter the auxiliary number and press the F1、F2、 F3、AUX ON、AUX OFF key to operating. Acknowledge: Press ACK key to acknowledge an alarm (or to halt pattern programming). Program: To program the switcher, press PGM. Refer to your switcher manual for programming.
  • Page 18: Dlh6330 Connection To Cpu Of Dlh4400E Enterprise Matrix

    Keyboard Connection to the CPU of DLH4400E 1. keep the keyboard switch all “OFF” as follow photo 2. use RJ-45 connect the keyboard to the port 17 of the CPU (port 17 is one of the default ports, for keyboard only without setting) as follow photo 3.
  • Page 19 4. apply power for monitor and CPU 5. the monitor screen display information like follow photo 6. pick up button “PGM” on the keyboard, the monitor screen display as follow photo 7. input default password, the screen turn to follow photo...
  • Page 20 8. the default parameter as follow photo, and if you want to use port 4, port 5, port 6 and port 7 connect to the keyboard, the port parameter need to set like this photo, then you can take off the RJ-45 from port 17, and connect to the port 4, port 5, port 6 and port 7.
  • Page 21: Control Of Ptz Dome Camera

    Control the PTZ Dome Camera 1. Set port parameter(FOUR PARAMETER ARE VERY IMPORTANT) PORT 1 DEVICE:Pelco D PIN NUM: 01 BAUD RATE:2400 PARITY:NONE DATA BITS:8 MODEL:RS-485 TRANSMIT: YES OUT LIST: SET RETURN a. DEVICE: you can choose Pelco-D or Pelco-P b....
  • Page 22: Specifications

    SPECIFICATIONS Keyboard Keypad: Electromechanical Joystick: 3-axis, vector-solving, with twisting, return-to-center head Digital Display: LCD, 7-segment, 2 cells Input Voltage: 12 VAC or ±12 VDC Power Consumption: 5 watts Connector Type: RJ-45, 8-pin. Interface: RS422 Protocol: DLH4200B / CM6800 / CM6700 CM6700 ASCII、...
  • Page 23: Important Safeguards/Warnings

    IMPORTANT SAFEGUARDS AND WARNINGS 1、 Read these instructions. 2、 、 、 、 Keep these instructions. 3、 、 、 、 Heed all warnings, and follow all instructions. 4、 、 、 、 WARNING: To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture.
