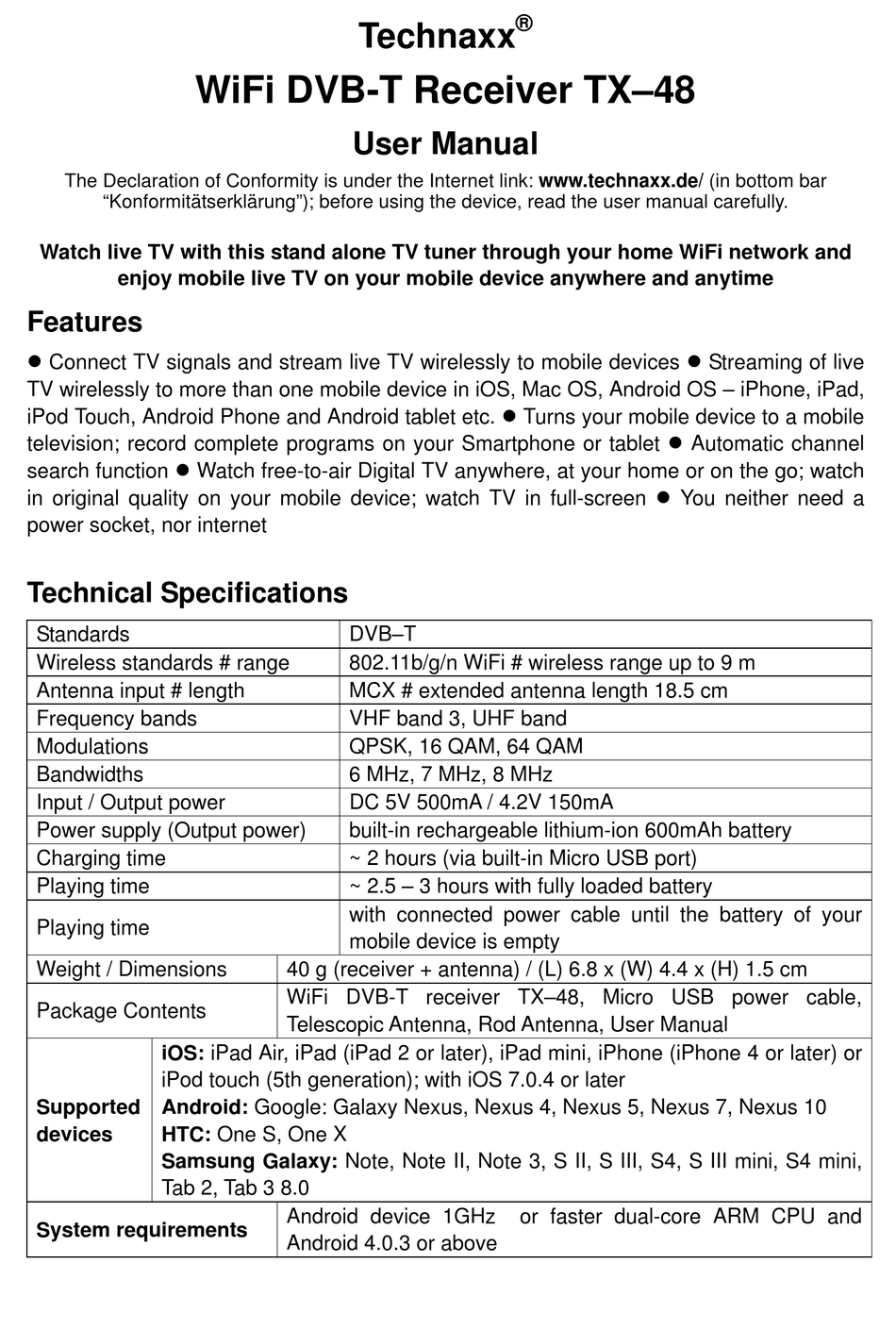

WiFi DVB-T Receiver TX–48
The Declaration of Conformity is under the Internet link: www.technaxx.de/ (in bottom bar
"Konformitätserklärung"); before using the device, read the user manual carefully.
Watch live TV with this stand alone TV tuner through your home WiFi network and
enjoy mobile live TV on your mobile device anywhere and anytime
Features
Connect TV signals and stream live TV wirelessly to mobile devices Streaming of live
TV wirelessly to more than one mobile device in iOS, Mac OS, Android OS – iPhone, iPad,
iPod Touch, Android Phone and Android tablet etc. Turns your mobile device to a mobile
television; record complete programs on your Smartphone or tablet Automatic channel
search function Watch free-to-air Digital TV anywhere, at your home or on the go; watch
in original quality on your mobile device; watch TV in full-screen You neither need a
power socket, nor internet
Technical Specifications
Standards
Wireless standards # range
Antenna input # length
Frequency bands
Modulations
Bandwidths
Input / Output power
Power supply (Output power)
Charging time
Playing time
Playing time
Weight / Dimensions
Package Contents
iOS: iPad Air, iPad (iPad 2 or later), iPad mini, iPhone (iPhone 4 or later) or
iPod touch (5th generation); with iOS 7.0.4 or later
Supported
Android: Google: Galaxy Nexus, Nexus 4, Nexus 5, Nexus 7, Nexus 10
devices
HTC: One S, One X
Samsung Galaxy: Note, Note II, Note 3, S II, S III, S4, S III mini, S4 mini,
Tab 2, Tab 3 8.0
System requirements
Technaxx
User Manual
DVB–T
802.11b/g/n WiFi # wireless range up to 9 m
MCX # extended antenna length 18.5 cm
VHF band 3, UHF band
QPSK, 16 QAM, 64 QAM
6 MHz, 7 MHz, 8 MHz
DC 5V 500mA / 4.2V 150mA
built-in rechargeable lithium-ion 600mAh battery
~ 2 hours (via built-in Micro USB port)
~ 2.5 – 3 hours with fully loaded battery
with connected power cable until the battery of your
mobile device is empty
40 g (receiver + antenna) / (L) 6.8 x (W) 4.4 x (H) 1.5 cm
WiFi DVB-T receiver TX–48, Micro USB power cable,
Telescopic Antenna, Rod Antenna, User Manual
Android device 1GHz
Android 4.0.3 or above
®
or faster dual-core ARM CPU and
Advertisement
Table of Contents
Summary of Contents for Technaxx TX–48
-
Page 1: User Manual
WiFi DVB-T Receiver TX–48 User Manual The Declaration of Conformity is under the Internet link: www.technaxx.de/ (in bottom bar “Konformitätserklärung”); before using the device, read the user manual carefully. Watch live TV with this stand alone TV tuner through your home WiFi network and... - Page 2 1. Charging Before first use, fully charge the battery with the included original Micro USB cable. Plug in the Micro USB cable* (*included) into the Micro USB slot of the device. Then connect the USB port to the USB slot of your PC or a USB charging adapter** (**not included). Charging time is approx.
- Page 3 4 Go to Setting. 5 Choose the country where you are located. 6 Scan from SianoTV application your TV channels. You will get all digital channels. 7 Go to Live TV to see live TV and select your channel.
- Page 4 Click the panel and push the red button start recording. During recording the RED icon is blinking. To stop recording you must the RED icon again. To see the recorded video, go to “Recordings” and select “PLAY”. 10 ATTENTION: When you are watching TV on your mobile and a call is incoming, the TV will be paused until you finish the conversation.
- Page 5 Protect the device from contamination and pollution. Avoid using rough, coarse-grained materials, solvents or other aggressive cleaner. Wipe the cleaned device. Important Notice: Should battery fluid leak from a battery, wipe the battery-case with a soft cloth dry. Distributor: Technaxx Deutschland GmbH & Co.KG, Kruppstr. 105, 60388 Frankfurt a.M., Germany...
