M 7-C / M 17-C / M 27-C
Service Manual
Zusätzlich erforderliche
Unterlagen für den Komplettservice
Additionally required
Service Manuals for the Complete Service
Service
Service
Manual
Manual
sonoclock 900
Sicherheit
Safety
Sach-Nr./Part No.
Sach-Nr./Part No.
72010-754.45
72010-800.00
GRUNDIG Service
Audio
sonoclock 900
p
Btx * 32700 #
Sachnummer
Part Number 72010-754.45
Änderungen vorbehalten
Subject to alteration
Printed in Germany
VK231 0797
Allgemeiner Teil / General Section
1 - 1
Advertisement
Summary of Contents for Grundig Audio sonoclock 900

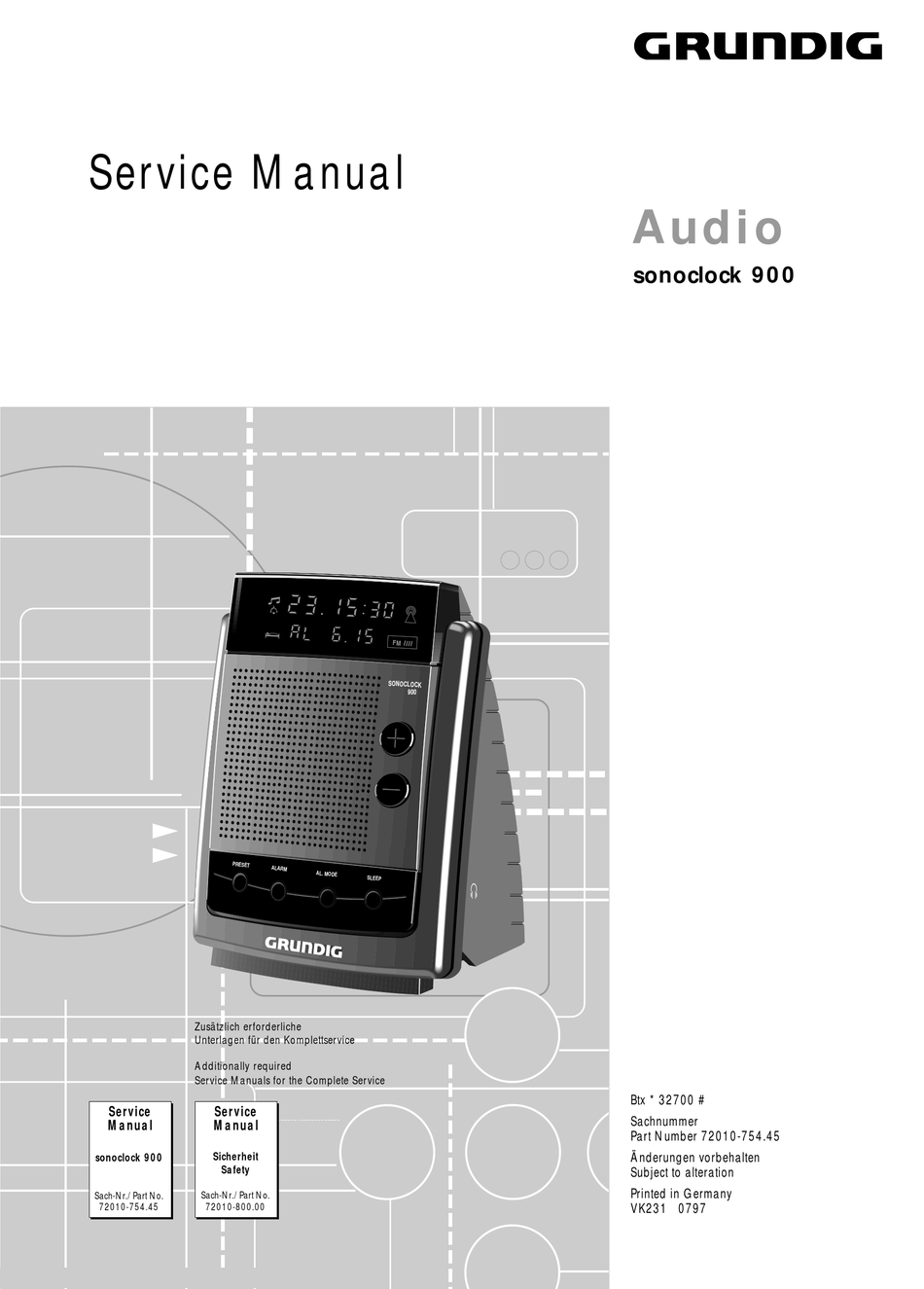

- Page 1 Service Manuals for the Complete Service Btx * 32700 # Service Service Sachnummer Manual Manual Part Number 72010-754.45 sonoclock 900 Sicherheit Änderungen vorbehalten Safety Subject to alteration Printed in Germany Sach-Nr./Part No. Sach-Nr./Part No. 72010-754.45 72010-800.00 VK231 0797 GRUNDIG Service 1 - 1...
-
