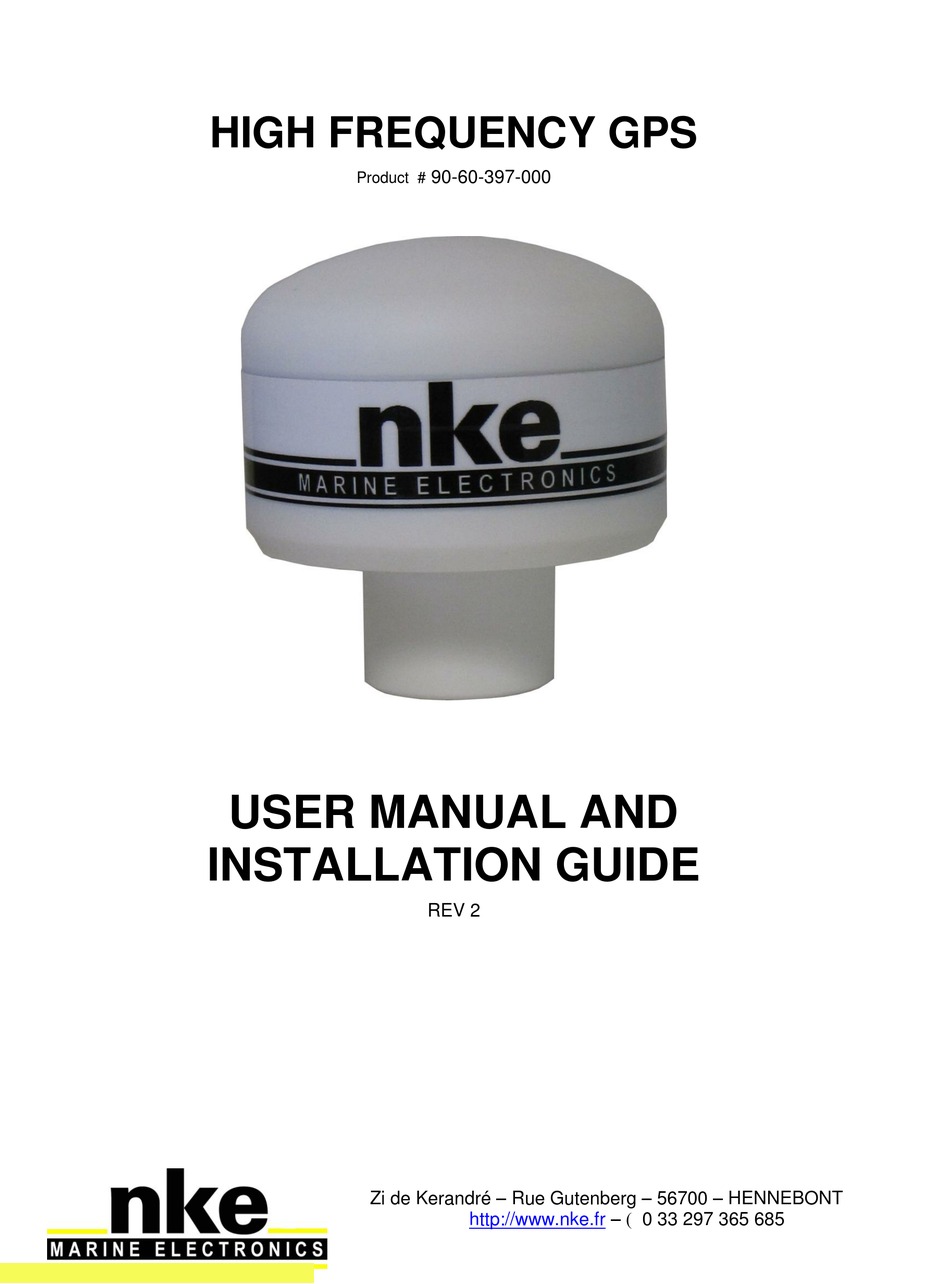

- Page 1 HIGH FREQUENCY GPS 90-60-397-000 Product # USER MANUAL AND INSTALLATION GUIDE REV 2 Zi de Kerandré – Rue Gutenberg – 56700 – HENNEBONT – 0 33 297 365 685 http://www.nke.fr...
-
Page 2: Table Of Contents
Electromagnetic compatibility ..............7 1.12 level trouble shooting................7 Installation ......................8 Preparing installation ..................8 Mounting on a small mast or pushpit ............. 8 Connection to the nke bus ................9 NMEA connection ..................9 33-60-056-000 High frequency GPS – user manual... -
Page 3: Operation
1.1 Introduction Thank you for purchasing the nke High Frequency GPS. The nke High Frequency GPS, WAAS/EGNOS enabled (differential system which enhances the accuracy of GPS), is connected directly to the Topline bus and delivers data at high frequency, up to 10Hz. -
Page 4: Technical Specification
-10° à +50° NMEA version : 3.01 Weight : 500g 1.4 List of channels displayed When the nke High Frequency GPS is connected to the Topline bus, the following channels are created on your system. CHANNEL DISPLAY UNITS Latitude... -
Page 5: Damping The Channels
In this specific situation, only the NMEA0183 is active. 1.7 NMEA 183 output The nke High Frequency GPS has a NMEA 183 output (yellow wire) that can be set up. This is done via the Topline bus with the Toplink software. Your specialist dealer can set this up: ... -
Page 6: High Speed Rate
1.9 Audible alarm An embedded buzzer is used to warn the users about the various working modes the nke High Frequency GPS antenna is using: Satellites search: repeated short bips (at 1Hz) 2D fix mode: 2 long and unique bips ... -
Page 7: Magnetic Variation
The Magnetic Variation channel is updated every 10 minutes. 1.11 Electromagnetic compatibility The nke High Frequency GPS complies with CEM regulation which are compulsory for CE certification. Relevant regulation: NF EN 60945 regarding all navigation systems and marine radio communication. -
Page 8: Installation
Choosing the right location for the antenna is very important in order to receive an accurate GPS signal. The nke High Frequency GPS antenna can be mounted on a pushpit or a specific small mast. Think about the following requirements when choosing the location: ... -
Page 9: Connection To The Nke Bus
Figure 2: Connection of the Topline bus 2.4 NMEA connection Yellow + NMEA White + Braid - 12V Braid -NMEA Do not connect and isolate red, green and black Figure 3: NMEA connection 33-60-056-000 High frequency GPS – user manual... - Page 10 NOTES __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ __________________________________________________________ _________________________________________________________ 33-60-056-000 High frequency GPS – user manual...
