Owner Handbook
Fireball Par 64S
Colour Mixing Slimline Par Can

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Fireball Par 64S and is the answer not in the manual?

Questions and answers

Summary of Contents for Lanta Fireball Par 64S

  • Page 1 Owner Handbook Fireball Par 64S ™ Colour Mixing Slimline Par Can...
  • Page 2 If  the  product  is  going  to  be  unused  for  long  periods,  unplug  from  the  mains. Fireball Par64S Owner Handbook ™ © Lanta Lighting™ 2011. Terms Apply. All trademarks are the property of their respective owners. E&OE. All specifications and details are correct at time of print. Revision 1...
  • Page 3: Unpacking And Inspection

    Our  website  can  be  found  at  www.lantalighting.com  and  is  available  for  the  benefit  of customers worldwide. Please consult for information, advice and support on this and  other high quality products from Lanta. Fireball Par64S Owner Handbook ™ © Lanta Lighting™ 2011. Terms Apply. All trademarks are the property of their respective owners. E&OE. All specifications and details are correct at time of print. Revision 1...
  • Page 4 Recent  advances  have  reduced  the  costs  of  Lasers,  made  them  more  portable  and  brought  improved  performance  and  reliability.  With  step  and  animation  lasers  in  multi  and  single  colour  formats  for  mobile  DJs  and  static  installs,  Lanta  promise  Lasers  that  won’t burn a hole in your pocket. ...

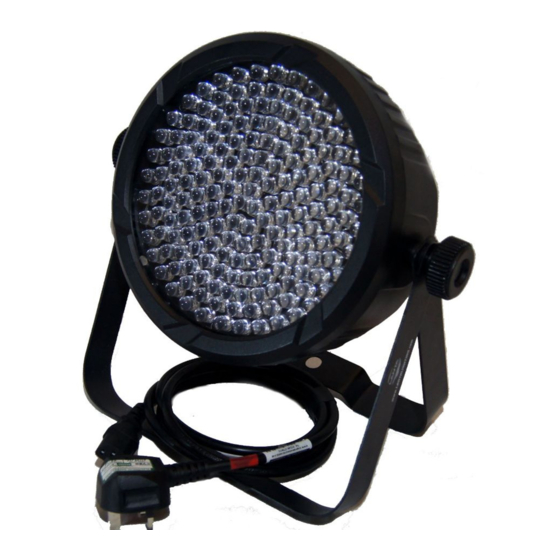

  • Page 5 Features of the Lanta Fireball Par64S™ The  Lanta  Fireball  Par  64S™  lighting  fixture  features  Single  colour  Red,  Green  and  Blue  10mm LEDs. It has a built in colour switching, fading and pattern sequencing facilities and  can also be sound activated. A range of features can be DMX controlled from any of the  LANTA DMX controllers or equivalent products. 59 x Red, 59 x Green, 59 x Blue LEDs DMX Control User selectable: 1, 3, 4  or 6 Channel Control Connections 3 Pin Female XLR socket, 3 Pin Male XLR socket Power Requirement 240 Volt AC 50/60Hz Power Consumption 30 Watts Dimensions W x D x H 290mm x 295mm x 10mm...
  • Page 6: Built-In Program Mode

    Program  “PR02”  to  “PR10”  are  pre-programmed  patterns  that  either  colour  switch  or  colour fade. After selecting the desired pattern, the special effects shown in (1) and (2)  can be selected.  Fireball Par64S Owner Handbook ™ © Lanta Lighting™ 2011. Terms Apply. All trademarks are the property of their respective owners. E&OE. All specifications and details are correct at time of print. Revision 1...
  • Page 7: Auto Mode

    “d”  followed  by  a  3-digit  number  (e.g.  d007).  The  “UP”  and  “DOWN”  buttons  allow  the  selection of the DMX address and can be selected between 001 and 512. The  Lanta  Fireball  Par  64S™  uses  several  adjacent  CHANNELs  of  DMX  and  the  first  will be determined by the DMX address setting - as described above - and the second  CHANNEL  will  be  one  CHANNEL  higher  and  so  on.  E.g.  if  the  DMX  address  has  been ...
  • Page 8 In  addition,  the  Lanta  Fireball  Par  64S™  can  operate  in  a  number  of  different  DMX  modes. This facility will make the Lanta Fireball Par 64S™ compatible with a huge range  of controllers and applications. The Lanta Fireball Par 64S™ can operate in 1 channel, 3,4  and 6 channel modes, each offering a wealth of functionality. The following tables explain what the Lanta Fireball Par 64S™ will do when the value of  each CHANNEL are set:- DMX Mode 1: 1-channel DMX Value Function 1-22 23-45 Green 46-68 Blue 69-91 Cyan 92-114 Yellow 115-137 Orange 138-160 Pink...
  • Page 9 R(255) B(255) 153-161 R(220) B(50) 162-170 R(150) G(50) B(100) 171-179 R(50) G(180) B(220) Fireball Par64S Owner Handbook ™ © Lanta Lighting™ 2011. Terms Apply. All trademarks are the property of their respective owners. E&OE. All specifications and details are correct at time of print. Revision 1...
  • Page 10 Pr03 (three colours  50-74 gradual change) Pr04 (seven colours step  75-99 change) Fireball Par64S Owner Handbook ™ © Lanta Lighting™ 2011. Terms Apply. All trademarks are the property of their respective owners. E&OE. All specifications and details are correct at time of print. Revision 1...
  • Page 11: Sound Mode

    “SU”  followed  by  two  digits.  The  numbers  represent  the  microphone’s  sensitivity  setting.  This will range from SU00-SU31. The louder the music, the lower the sensitivity required to  operate the sound function – and the lower the number the operator needs to select.  If set too high, the Lanta Fireball Par 64S™ will seem to run continuously and not in time  with the beat. Fireball Par64S Owner Handbook ™ © Lanta Lighting™ 2011. Terms Apply. All trademarks are the property of their respective owners. E&OE. All specifications and details are correct at time of print. Revision 1...
  • Page 12 www.lantalighting.com...
