Summary of Contents for HDI Advanced 3D Scanner
-

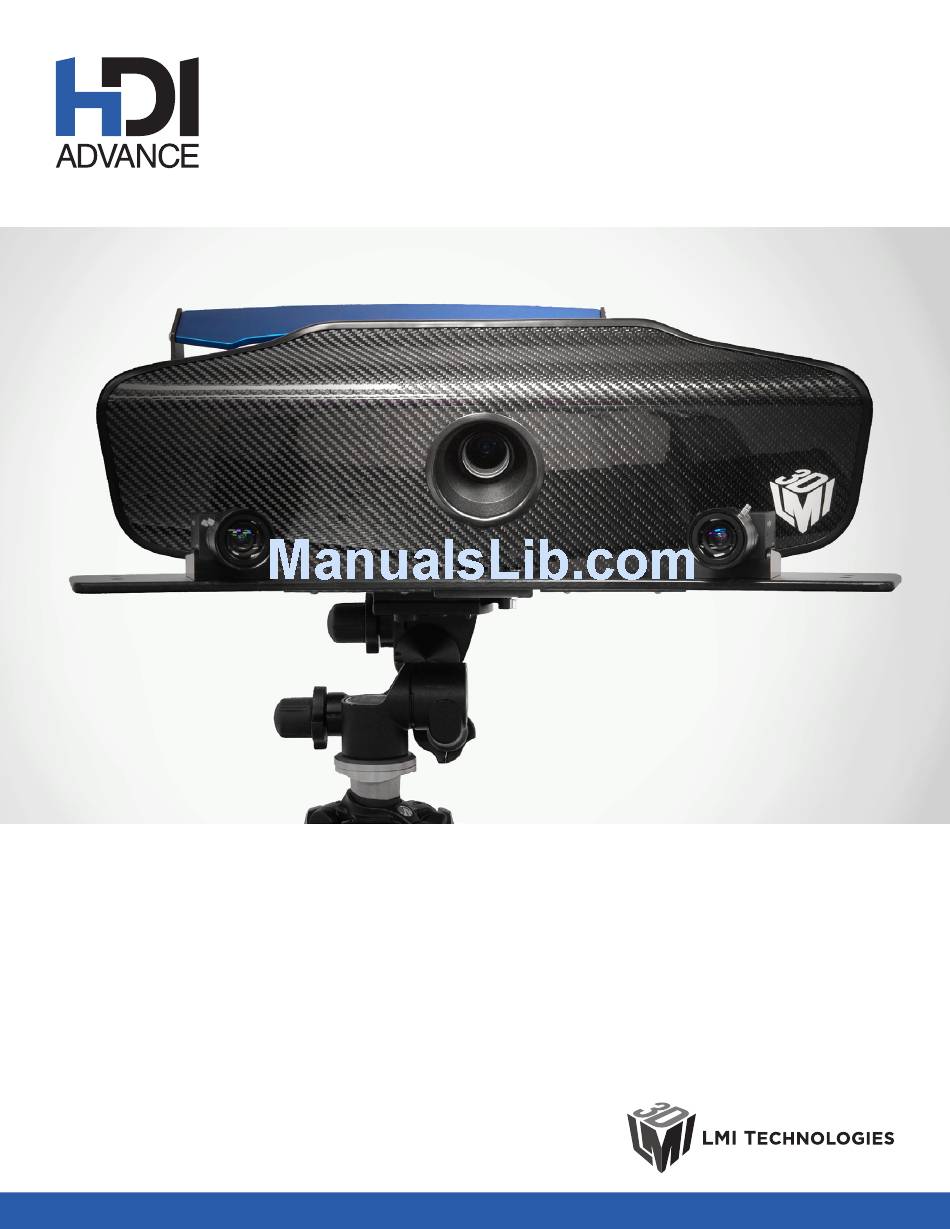

Page 1: Quick Start Guide
Quick Start Guide 15190-2.3_MANUAL_Quickstart-HDI-Advance.pdf... - Page 2 Getting Started with the HDI Advance 3D Scanner This quick start guide provides you with the resources to get you started on 3D scanning. The HDI Advance 3D Scanner comes with: • 3D scanning software, FlexScan3D • Physical capturing unit for capturing 3D data (some assembly is required) Downloading FlexScan3D Software The HDI Advance 3D Scanner is powered by FlexScan3D. You can download the software from the Download Center (downloads.lmi3d.com). To create a download account, please send your contact name, email address, company name, and scanner model to orders@lmi3D.com.
- Page 3 Congratulations on purchasing the HDI Advance 3D Scanner. Here are the steps to set up the capturing unit for 3D data acquisition. In this tutorial the HDI Advance R3x 3D Scanner was used. There are slight variations to the instructions depending on which model you have purchased. Please see the following instructions to assemble your 3D scanner, most of which will be pre-assembled. When you receive your HDI Advance 3D Scanner, check that all components are included: Number Item Carbon Fiber Mount with Projector and Remote 2 x USB 3.0 Cameras 2 x Lenses (12mm) Tripod Leg Tripod Head 15mm Calibration Board 1 sheet of Photogrammetry Dots FlexScan3D Dongle Power cable, VGA cable, USB 3.0 cable (3m) Hex Key, 2mm, 16x83mm Hex Key, 5/32" Short Arm Key 4 x Screws...
- Page 4 Tripod Setup Simply open up the tripod legs and place them firmly on the ground. Attach the tripod head to the legs by firmly twisting the tripod head until it is hand tight. Connect the Scanner to the Tripod Carefully lift up your pre-assembled scanner and locate mount adapter. Gently place the scanner onto the tripod head. This will snap into place when the scanner rests on top of the tripod head.
- Page 5 Attach the Cameras to the Scanner Attach the two cameras onto the scanner on both sides using the screws. Tighten screws until they are firm but do not over tighten.
- Page 6 Attach the Lenses to the Cameras Carefully remove the lenses from the packaging and take off the camera lens cap from each camera. The lenses will need to be screwed onto the cameras until they are hand tight. Connect the VGA and Power Cables to the Projector Locate the back of your projector and attach the VGA and power cables.
- Page 7 Connect the USB 3.0 Cables to the Cameras Attach the USB 3.0 cables to the back of the cameras, and lock the cables with the locking screws. Connect USB 3.0 cables and VGA cable to your computer. Plug the power cable into an electrical outlet. The physical assembly of the HDI Advance 3D Scanner is now complete.
- Page 8 Copyright © 2014 LMI Technologies Inc. All rights reserved.
