Installation and Operating Instructions
Model MS Chroma
Box Contents
The MS Chroma includes
all of the following:
1 Installation and Operation Manual
1 Light Fixture, Lens & LED Cluster
1 Tube of Silicone
1 30 Ft. cable for use with eTEMPO/PLUS
IMPORTANT NOTE: Only one MS
CHROMA light may be connected to the
control board in the steam generator.
IMPORTANT NOTE: Chromasteam
System is for mood lighting only and not
a substitute for general illumination.
IMPORTANT NOTE: The Chromasteam
System is rated 14.4 watts.
IMPORTANT NOTE: As you read
these instructions, you will notice warning
and caution symbols. This blocked information
is important for the safe and efficient installa-
tion and operation of this Chromasteam.
These are two types of potential hazards
that may occur during this installation and
operation:
!
WARNING
States a hazard which may cause serious injury
or death if precautions are not followed.
!
CAUTION
Signals a situation where minor injury or
product damage may occur if you do not
follow instructions.
IMPORTANT NOTE:
This highlights information
that is especially relevant to a
problem-free installation.
.
mr
steam
®
Sussman-Automatic Corporation
43-20 34th Street, Long Island City, NY 11101
9410 S. La Cienega Blvd. Inglewood CA 90301
ChromaSteam
®

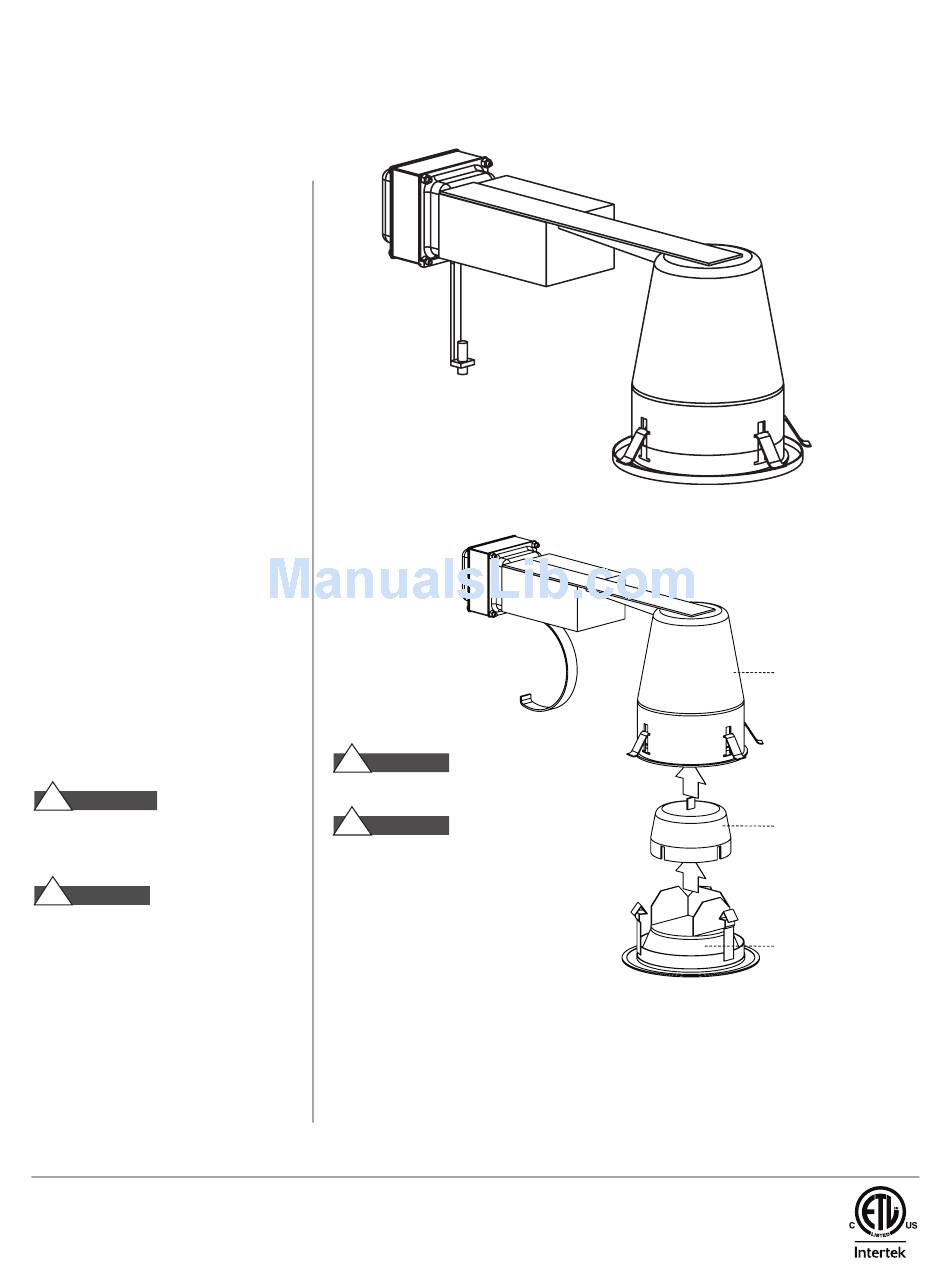

Assembled View
™
™
Exploded View
!
CAUTION
For recessed ceiling mounting only.
!
CAUTION
Suitable for operation in ambient
not exceeding 60˚C (140˚F)
IMPORTANT SAFETY INSTRUCTIONS:
1. Read all instructions
2. Do not install this LED lighting system in
damp or wet locations.
3. Luminaire is for Non-IC applications only.
No insulation on or within 3 inches of
any part of the luminaire assembly.
4. Not investigated for use in suspended ceilings.
If intended for this application then listed
clips, investigated for this use, must be
properly installed to hold the can in place.
• www.mrsteam.com • hello@mrsteam.com
®
: 1 800 76 STEAM
TEL
FAX
: 1 800 72 STEAM
TEL
FAX
: 718 472 3256
: 310 216 2944
™
Light Fixture
LED cluster
Fixture Lens
PUR 100404 Rev 10/12
