Summary of Contents for VOIspeed V-6017

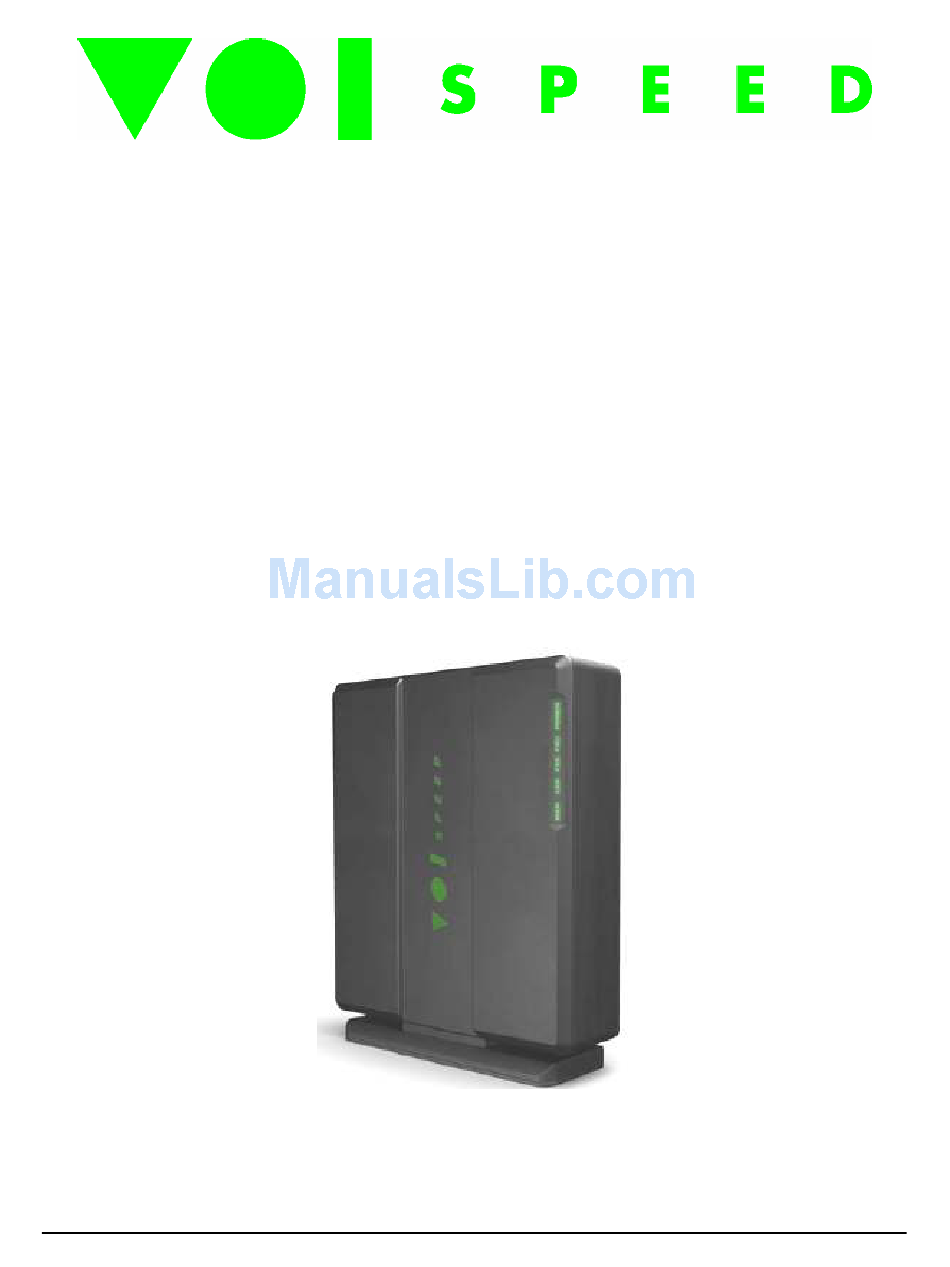

- Page 1 NALOGUE DAPTER V-6017 SPEED User Manual V-6017 SPEED...
- Page 2 © 2007 Voispeed Ltd. – All rights reserved. Total or partial reproduction of this document is prohibited without prior written consent of the publisher. Such consent will only be granted in those instances when the source of the document is clearly stated.
-
Page 3: Table Of Contents
7.3 - Network ......................13 Call System ..........................16 7.4 - Admin Options....................16 Upgrade..........................16 System ..........................16 Reset default ........................17 7.5 - FXO Port ......................17 Account ..........................17 Voice 20 PSTN & Dial ........................21 V-6017 SPEED © VOI SPEED... -
Page 4: Introduction
2 - Introduction Welcome to VOIspeed V-6017 user manual. We would like to thank you for your purchase and for having chosen one our products. This manual provides general guidelines for a correct use of the product. In case you require further information on this product or to receive technical assistance please visit our website: www.voispeed.com. -
Page 5: Product Disposal
In order to have access to the warranty the user must fill out the online form that can be found on www.prontopbx.com www.voispeedltd.com (please also contact the customer support department on 01727 848186). The user must provide a valid invoice to claim warranty on the product. V-6017 SPEED © VOI SPEED... - Page 6 Exclusions. The warranty will be invalidated in the following cases: • Damages to any parts that are meant to ware out with time. No support, maintenance or replacement will be provided for these components. • Damages resulting from using a wrong power supply. •...
-
Page 7: General Information
The V-6017 is also provided of an additional switch port that is particularly useful in case of multiple V-6017 installations or it can be used to connect another network device to the LAN. The V-6017 is reliable and extremely easy to configure. -
Page 8: Main Functionalities
• Two supports for installation and stack configuration. • One power supply 9V 600mA. • User manual. 5 - Getting started 5.1 - Mounting Instructions Together with the V-6017 you will find two plastic supports in the package. These are: ANUAL © VOI SPEED... -
Page 9: Requirements
In this case the adapters should be connected by plugging the LAN port of one adapter into the PC port of the next one. 5.2 - Requirements Before connecting the V-6017 adapter to the network, please make sure that both your network and VOIspeed server are working correctly. 5.3 - Installation Firstly, you will need to configure the network interface in order to configure the adpater from web. -
Page 10: Emergency Line
6 - Manual Setting It is possible to setup the V-6017 adapter using an analogue telephone connected to the FXS port. You will need to enter ‘***’ at the phone in order to access the configuration menu followed by the desired option. -
Page 11: Web Interface
In order to access the web interface you will need to enter the string ‘http://’ followed by the adapter’s IP address. It is important to note that the PC from which you intend to access the web interface and the V-6017 adapter need to be connected to the same V-6017 SPEED ©... -
Page 12: Current Status
network. Please consult section 6 -Manual Setting in order to find out the adapter’s IP address. The default password to access the web interface is ‘voip’. We reccommend changing this password at the first access. 7.1 - Current Status By pressing on current status the system will show a summary of the adapter’s settings. Here you can also find the firmware’s version and when the adapter’s was restarted last. -
Page 13: Basic Options
7.2 - Basic Options This option includes all main settings for the V-6017 including network and call interfaces. 7.3 - Network In this section you can configure the LAN interface. This setting can be done automatically by the DHCP server or entered manually. Browising the vocal menu (section 6 -Manual Setting) you can determine the adapter’s IP address. - Page 14 In case of absence of or problems with the DHCP server, it is possible to configure the V-6017 adapter manually. In this case you will need to select a static IP address and configure all the fields reported below (please contact your network administrator to determine the right settings for your network).
-
Page 15: Call
NOTE: we strongly suggest assigning a static IP address to the V-6017 Here you can also define other important settings: • Web Server Port: is the port used by the adapter to display the web interface. You will need to specify the port number only if this is different from 80: http://_IPaddress_:_Port_/ in which ‘Port’... -
Page 16: System
System In this section you can find system time settings: Time Zone and Daylight Saving Time. 7.4 - Admin Options This section lists all main functionalities set by the system administrator. Upgrade Here you can configure the adpater to automatically update its firmware using a remote TFTP or HTTP server. -
Page 17: Reset Default
Extension number to give to the adapter. SIP User ID Note: the extension number is used by some PBXs to carry out the registration. Account ID Username for the extension. Authentication Password used to authenticate the extension at the PBX. Password V-6017 SPEED © VOI SPEED... -
Page 18: Sip
You can alternatively configure the adapter to be considered by the PBX as a traditional SIP carrier. In this case you should enter ‘No’ in SIP Registration together with the server IP address. At the VOIspeed server PBX you should create a new SIP carrier following these criteria: The Proxy IP address should be the socket number of the FXO Port: the adapter’s IP address followed by semicolon (‘:’) and the FXO Port (as... - Page 19 Code to be included in the payload of DTMF packets. DMTF Payload Note: this parameter needs to be set to 101 when the adapter is Type used with a VOIspeed PBX. DTMF settings: Select ‘In Audio’ to send DTMF signals within the audio Send DTMF band.
-
Page 20: Voice
standard. Select ‘Via SIP INFO’ to send DTMF signals within SIP INFO messages (outdated). The settings below should be considered only if the SIP adapter is being used as a SIP carrier. When the PBX begins routing an outgoing call over the PSTN network, it sends a request signal to the FXO port. -
Page 21: Pstn & Dial
10 ms of audio signal. Voice Frames Note: this parameter needs to be set to 4 when connecting the per TX adapter to a VOIspeed PBX. VOIspeed technology operates with 40 ms audio frames. Microphone Audio level on the analogue line. Volume Speaker Audio level on the PBX line. - Page 22 PSTN AC Determines the impedance on the PSTN line connected to the FXO Termination port. PSTN Depending on the Country, audio signals over the PSTN line can be Disconnect / Dial transmitted using either two frequencies (MF) or only one (SF). Tone Amongst these signals is the Disconnection Tone.
