JBJ Lighting Varyscan 4 1200 HMI User Manual

Jbj lighting varyscan 4 1200 hmi

Advertisement

Quick Links

Bedienungsanleitung

User Manual

english
JB-lighting Lichtanlagentechnik GmbH
Sallersteigweg 15 D-89134 Blaustein-Wippingen
Telefon ++49(0)7304-9617-0
Telefax ++49(0)7304-9617-99
http://www.jb-lighting.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Varyscan 4 1200 HMI and is the answer not in the manual?

Questions and answers

Summary of Contents for JBJ Lighting Varyscan 4 1200 HMI

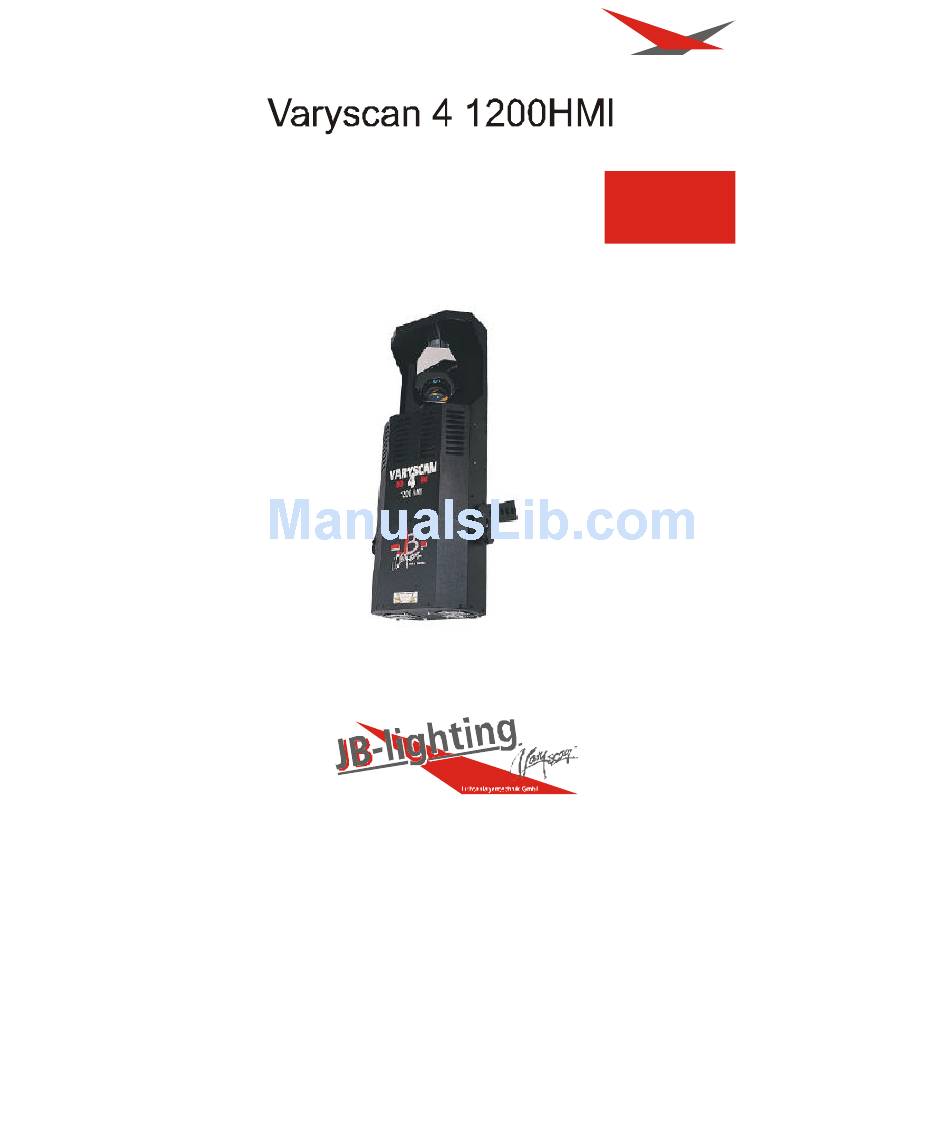

  • Page 1: User Manual

    Bedienungsanleitung User Manual english JB-lighting Lichtanlagentechnik GmbH Sallersteigweg 15 D-89134 Blaustein-Wippingen Telefon ++49(0)7304-9617-0 Telefax ++49(0)7304-9617-99 http://www.jb-lighting.de...
  • Page 2: Table Of Contents

    ® Varyscan 4 1200 HMI Illustration of VS 4 1200HMI ..........................3 Back view and position of operating sections ...................4 ® Unpacking of the Varyscan Equipment.....................4 Put in/ Exchange of the Bulb .........................5 Starting the Equipment ..........................5 ® 1. Hang up of Varyscan ........................5 ®...
  • Page 3: Illustration Of Vs 4 1200Hmi

    ® Varyscan 4 1200 HMI Illustration of VS 4 1200HMI...
  • Page 4: Back View And Position Of Operating Sections

    ® Varyscan 4 1200 HMI Back view and position of operating sections Occupation of DMX-sockets DMX-in DMX-out Pin No. signal Colour of wire Pin No. Signal Colour of wire Ground black Ground black DMX - white DMX - white DMX + DMX + free not connected...
  • Page 5: Put In/ Exchange Of The Bulb

    ® Varyscan 4 1200 HMI Put in/ Exchange of the Bulb Warning: Before opening pull out mains plug! Loosen the screws at the lid of your Varyscan ® with a suitable screw-driver and lift the lid (label Varyscan ® 1200 HMI). You can see the bulb holder in the back third of your Varyscan ®...
  • Page 6: Initialisation Mode

    ® Varyscan 4 1200 HMI ? optional channels of Varyscan ® ? reset on DMX ? DMX-address Initialisation Mode This mode serves for adjustment and basic initialisation of the Varyscan ® (carrying-out by producer). Test Mode To see the variety of functions of your Varyscan ®...
  • Page 7: Channel Drive Mode (Clay Paky - Goldenscan 3 Compatible)

    ® Varyscan 4 1200 HMI channel 2 y-axis channel 3 gobo channel 4 colour channel 5 shutter/dimmer channel 6 iris channel 7 rotating gobos; positioning and rotation channel 8 effect wheel DIP-switch position: DIP-switch No.2 switch 2 and 3 off 2.
  • Page 8 ® Varyscan 4 1200 HMI Adjustment of DMX-addresses : DIP-switch No.1 switch 1-9 Depending on the optional drive mode, you have to adjust DMX-addresses as follows. The addressing works by a binary numeral system and in 6 channel drive mode it has to follow in six steps. ®...
  • Page 9: Definition Of Dip-Switch Positions For Defined Dmx-Addresses

    ® Varyscan 4 1200 HMI ® Varyscan DMX address Dip switch setting Definition of DIP-switch positions for defined DMX-addresses Every single DIP-switch responds to the above designated figures. If you would like to adjust a defined DMX- address, you have to add up the single figures to get it. For example: DMX-address "45"...
  • Page 10: Changing Of Gobos

    ® Varyscan 4 1200 HMI All remaining DIP-switches SW9 SW8 SW7 SW5 SW2 stay in position "OFF". Changing of gobos ® Open the lid with the label Varyscan 4 1200 HMI, by screwing off the six screws. Now you are able to press the gobos at the gobo wheel out of their holder and then put in other gobos.
  • Page 11: B Service Instructions

    ® Varyscan 4 1200 HMI B Service instructions Repair of defects Defect Reparation The appliance does not work at all (you can Exchange 16 Ampere fuse of the appliance not hear any noise from the ventilator) The bulb of the appliance does not shine, but 1.
  • Page 12: Regular Maintenance Performances

    ® Varyscan 4 1200 HMI Part no. 1. motor Part no. 2. Tellerfedern Part no. 3. Stahllaserteil Part no. 4. Kunststoffscheibe Part no. 5. zu montierendes Teil Part no. 5 has to be pushed on the axis of the stepper motor until the parts no.
  • Page 13: Oiling Of Rotating Gobos

    ® Varyscan 4 1200 HMI Attention: Take care that you do not twist or damage any parts while cleaning your scan! 3. Oiling of rotating gobos Procure a syringe with a thin needle, customary in trade (grind off the tip, so it will be blunt - no risk of injury!!), and fill it with our special oil.
  • Page 14 ® Varyscan 4 1200 HMI channel 1 = x (pan) 170° channel 2 = y (tilt) 90° channel 3 = gobo gobo 0 (Beam) 000 - gobo 1 032 - gobo 2 064 - gobo 3 096 - gobo 4 128 - if at DIP-switch No.2 switch 4 is "ON"...
  • Page 15 ® Varyscan 4 1200 HMI rotation left (slow) rotation stop 223 - rotation right (slow) rotation right (fast) channel 8 = effect wheel open 000 - artificial light filter 032 - daylight filter 064 - prism 096 - floodfilter 128 - infinitely variable from flood to open 160 - 2.
  • Page 16 ® Varyscan 4 1200 HMI colour 12 colour 13 colour 14 colour 15 colour wheel rotation speed (slow) colour wheel rotation speed (fast) channel 3 = gobo and effect wheel white artificial light filter daylight filter prism floodfilter gobo 1 white gobo 1 artificial light filter gobo 1 daylight filter gobo 1 prism...
  • Page 17 ® Varyscan 4 1200 HMI channel 5 simmer shutter channel 6 iris and goborotation channel 1 = x (pan) 170° channel 2 = y (tilt) 90° channel 3 = gobo and effectwheel white artificial light filter daylight filter prism floodfilter gobo 1 white gobo 1 artificial light filter gobo 1 daylight filter...
  • Page 18: Occupation Dmx-In / Dmx-Out

    ® Varyscan 4 1200 HMI colour wheel rotation speed (fast) channel 5 = dimmer / shutter dimmer shutter closed --> blackout (BO) dimmer: you can perceive some light dimmer dimmer completely open 128 - shutter immediatelly closed 138 - shutter sequence 1 flash/sec upto 10 flashes/sec 140 - shutter open 244 -...
  • Page 19: Change Of Eprom/ Software Update

    ® Varyscan 4 1200 HMI Change of Eprom/ Software Update To change the Eprom proceed as follows: Remove the cover sheet for the electronic board below the mirror by taking out the 4 screws (see sketch page 36). By comparing the electronic board with the plan of electronic parts you can see the Eprom at the right side (IC U2).
  • Page 20: Plan Of Current Circuits For Varyscan

    ® Varyscan 4 1200 HMI ® Plan of current circuits for Varyscan 4 1200HMI...
  • Page 21: Occupation Of Connectors And Jumper

    ® Varyscan 4 1200 HMI Occupation of connectors and Jumper colour colour Pin colour colour connector x-motor blue green yellow y-motor blue white yellow effect wheel blue green yellow colour wheel blue green yellow shutter/dim.1 blue orange yellow shutter/dim.2 blue orange yellow gobo wheel...
  • Page 22 ® Varyscan 4 1200 HMI 150R 0,6W 150R 0,6W 0,6W 0,6W 0,6W 0,6W 300R 0,6W 150R 0,6W 750R 0,6W 250R 0,6W 1,2R 1,2R 1,5R 1,5R 1,2R 1,2R 1,2R 1,2R 18pF 220nF 18pF 2,2nF 4,7uF 220uF 100nF 220nF 100nF 2,2nF 100nF 100nF 22uF 470uF...
  • Page 23 ® Varyscan 4 1200 HMI 220nF 2,2nF Q1-Q32 BC337B P1,P2 Connector DB15 Header5 JP3,JP4,JP5 Header4...
  • Page 24 ® Varyscan 4 1200 HMI D1,D2 Bridge M68HC11F1FN Eprom 27C256 AM26LS32 IC DMX-IN PAL22V10 74HC245 PBL3771 driver x-motor PBM3960 PBL3771 driver y-motor PBM3960 TCA3727 driver for goborotation 74HC574 74HC574 74HC574 TCA3727 driver for iris TCA3727 driver for gobowheel LM317 TCA3727 driver for colour wheel TCA3727 driver for effect wheel...
  • Page 25: Plan Of Electronic Parts For Electronic Board Of Varyscan

    ® Varyscan 4 1200 HMI ® Plan of electronic parts for electronic board of Varyscan 4 1200 HMI...
