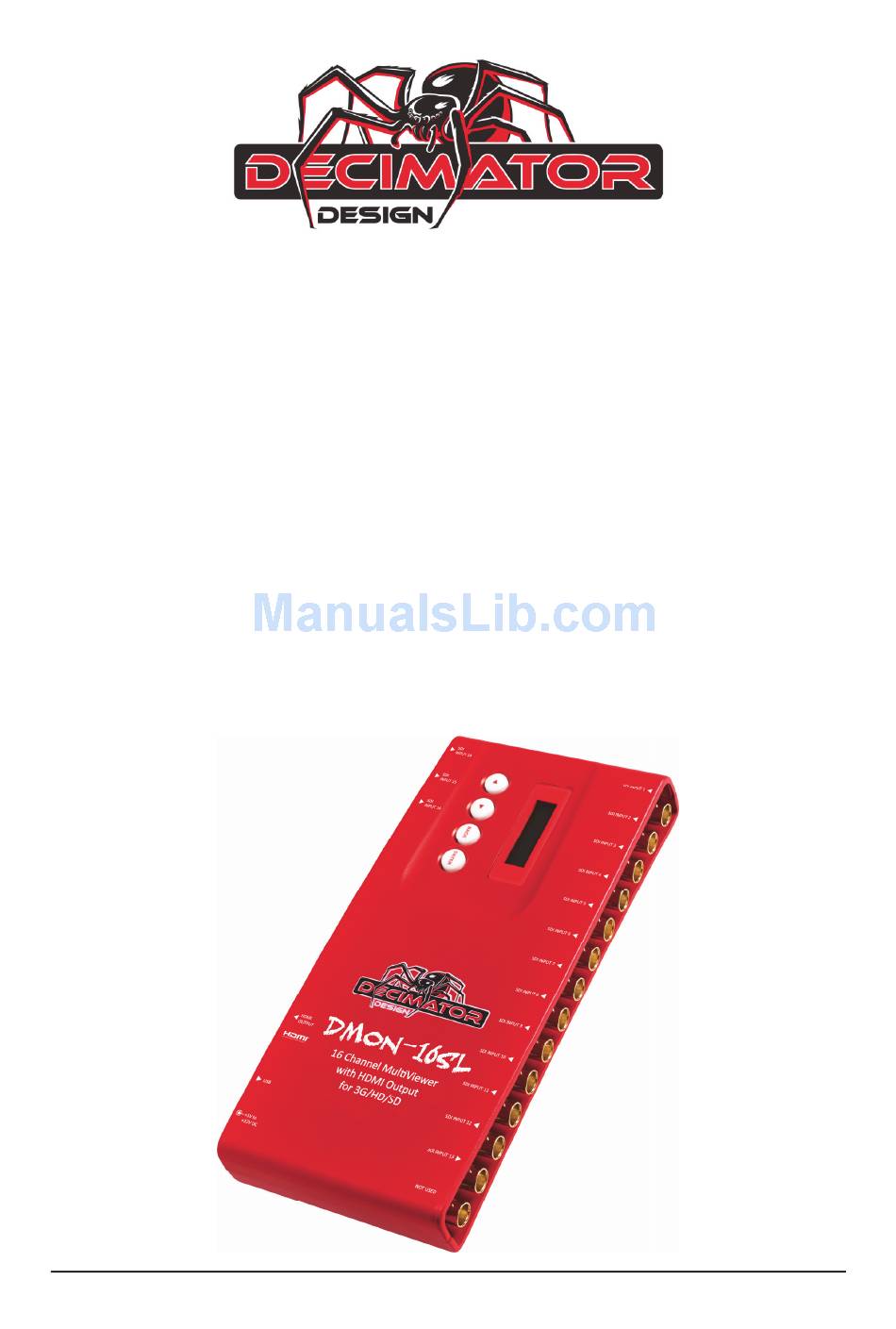

- Page 1 DMON-16SL 1 to 16 Channel (3G/HD/SD)‐SDI Multi‐Viewer with HDMI Output Operating Manual for Firmware Version 1.1 DMON‐16SL Hardware Manual for Firmware Version 1.1 Copyright © 2015 Decimator Design Pty Ltd, Sydney, Australia...
- Page 2 USB port for control and firmware updates ‐ Heavy duty metal box ‐ Metal Thread Locking DC Power Socket ‐ Power Supply, HDMI Cable and USB Cable Main Menus Upon power up the unit will start in the Main Menu pointing to Input Status. The Main Menus are: 1. Input Status 2. Control 3. Routing 4. Colours 5. Setup Press the < and > buttons to move left or right through the menus. To enter into a menu press the ENTER button. Notes: 1. Defaults are highlighted in yellow. 2. When an option is changed, a highlighted S will appear in the top right of the LCD screen and will disappear when the options are saved after 10 seconds. Avoid powering down the unit during this time. 3. You can always return to the Main Menu by pressing the BACK button twice. 4. As you move through the menus changing parameters, they will be instantly applied to the output signal. DMON‐16SL Hardware Manual for Firmware Version 1.1 Copyright © 2015 Decimator Design Pty Ltd, Sydney, Australia...
- Page 3 HDMI Output Type Sub Menu HDMI RGB444 2C Parameter Window When highlighted in the Main Menu, press the ENTER button to enter this sub‐menu. Press the < and > buttons to move left or right respectively through the 10 menus below and press the BACK button to go back to the Main Menu when finished. The current value for each Sub Menu is shown in the Parameter Window. 1. Control / HDMI Output Type (Parameter) This is the current HDMI output type for output 1. When the sub menu is highlighted, press ENTER to toggle through the following types: DVI‐D RGB 4:4:4 1.) DVI RGB444 HDMI RGB 4:4:4 with 2‐Channels of Audio 2.) HDMI RGB444 2C HDMI YCbCr 4:4:4 with 2‐Channels of Audio 3.) HDMI YCbCr444 2C HDMI YCbCr 4:2:2 with 2‐Channels of Audio 4.) HDMI YCbCr422 2C HDMI RGB 4:4:4 with 8‐Channels of Audio 5.) HDMI RGB444 8C HDMI YCbCr 4:4:4 with 8‐Channels of Audio 6.) HDMI YCbCr444 8C HDMI YCbCr 4:2:2 with 8‐Channels of Audio 7.) HDMI YCbCr422 8C DMON‐16SL Hardware Manual for Firmware Version 1.1 Copyright © 2015 Decimator Design Pty Ltd, Sydney, Australia...
- Page 4 18. HD 1280x720p29.97 5. HD 1920x1080i50 12. HD 1920x1080p24 19. HD 1280x720p25 6. HD 1920x1080p60 13. HD 1920x1080p23.98 7. HD 1920x1080p59.94 14. HD 1280x720p60 4. Control / MV Windows (Parameter) This is the current number of windows shown on the multi‐view output. When the sub menu is highlighted, press the ENTER button to enter this sub‐menu. Press the < and > buttons to move left or right through the number of windows displayed from 1 to 16. Default Windows displayed is 16 windows. 5. Control / MV Layout (Parameter) This is the current layout of the multi‐viewer, there are 32 layouts selectable per format and multi‐viewer window number. 10 of these are predefined layouts. When the sub menu is highlighted, press the ENTER button to enter this sub‐menu. Press the < and > buttons to move left or right through the following layouts: 1.) 100% 2.) 100% with Border 3.) 90% 4.) 90% with Border 5.) 100% with Gap 6.) 100% with Border + Gap 7.) 90% with Gap 8.) 90% with Border + Gap DMON‐16SL Hardware Manual for Firmware Version 1.1 Copyright © 2015 Decimator Design Pty Ltd, Sydney, Australia...
- Page 5 14.) Window 14 15.) Window 15 16.) Window 16 7. Control / MV Reference (Parameter) This is reference for the Multi‐Viewer. When the sub menu is highlighted, press ENTER to toggle through the following sources: 1.) Window 1 2.) Free‐Run 8. Control / Pass Scaled (Parameter) When the Output Select is changed to window 1 to 16, this parameter determines whether the output is scaled or passed through unchanged from the selected window. When the output is scaled, the selected layout for window 1 is used. When the sub menu is highlighted, press ENTER to toggle through the following selections: 1.) Yes 2.) No 9. Control / Format Status (Parameter) When an input is detected the DMON‐16SL will display the format detected in the top left of each window by default unless the location has been modified via the USB Control Panel. When the sub menu is highlighted, press ENTER to toggle through the following selections: 1.) Show for 5 sec 2.) Show Always 3.) Off DMON‐16SL Hardware Manual for Firmware Version 1.1 Copyright © 2015 Decimator Design Pty Ltd, Sydney, Australia...
- Page 6 10.) Input 10 (default for Window 10) 11.) Input 11 (default for Window 11) 12.) Input 12 (default for Window 12) 13.) Input 13 (default for Window 13) 14.) Input 14 (default for Window 14) 15.) Input 15 (default for Window 15) 16.) Input 16 (default for Window 16) Please note that Windows 2 to 16 sources are the same as above. Colours: (Has SUB‐MENUs) Colours Main Menu <== Background Color Sub Menu Black Parameter Window When highlighted in the Main Menu, press the ENTER button to enter this sub‐menu. Press the < and > buttons to move left or right respectively through the 6 menus below and press the BACK button to go back to the Main Menu when finished. The current value for each Sub Menu is shown in the Parameter Window. DMON‐16SL Hardware Manual for Firmware Version 1.1 Copyright © 2015 Decimator Design Pty Ltd, Sydney, Australia...
- Page 7 17. White (Transparent 25%) 9. White (Transparent 50%) 18. Black (Transparent 0%) 4. Colours / UMD Background (Parameter) This is the UMD colour and transparency setting for the background of the UMDs. When the sub menu is highlighted, press the ENTER button to enter this sub‐menu. Press the < and > buttons to move left or right through the following colours: 1. None 10. Black (Transparent 25%) 19. Blue (Transparent 0%) 2. Black (Transparent 50%) 11. Blue (Transparent 25%) 20. Green (Transparent 0%) 3. Blue (Transparent 50%) 12. Green (Transparent 25%) 21. Cyan (Transparent 0%) 4. Green (Transparent 50%) 13. Cyan (Transparent 25%) 22. Red (Transparent 0%) 5. Cyan (Transparent 50%) 14. Red (Transparent 25%) 23. Magenta (Transparent 0%) 6. Red (Transparent 50%) 15. Magenta (Transparent 25%) 24. Yellow (Transparent 0%) 7. Magenta (Transparent 50%) 16. Yellow (Transparent 25%) 25. White (Transparent 0%) 8. Yellow (Transparent 50%) 17. White (Transparent 25%) 9. White (Transparent 50%) 18. Black (Transparent 0%) DMON‐16SL Hardware Manual for Firmware Version 1.1 Copyright © 2015 Decimator Design Pty Ltd, Sydney, Australia...
- Page 8 16. Yellow (Transparent 25%) 25. White (Transparent 0%) 8. Yellow (Transparent 50%) 17. White (Transparent 25%) 9. White (Transparent 50%) 18. Black (Transparent 0%) IDs: (Has SUB‐MENUs) Main Menu <== All On Sub Menu Parameter Window When highlighted in the Main Menu, press the ENTER button to enter this sub‐menu. Press the < and > buttons to move left or right respectively through the 3 menus below and press the BACK button to go back to the Main Menu when finished. The current value for each Sub Menu is shown in the Parameter Window, unless it is an action Sub Menu. 1. IDs / All On (Action) Pressing ENTER when this submenu is selected will turn all UMD overlays on. 2. IDs / All Off (Action) Pressing ENTER when this submenu is selected will turn all UMD overlays off. 3. IDs / ID Justify (Parameter) This parameter determines whether the text is centred, left or right justified. When the sub menu is highlighted, press ENTER to toggle through the following options: 1.) Centre 2.) Left 3.) Right DMON‐16SL Hardware Manual for Firmware Version 1.1 Copyright © 2015 Decimator Design Pty Ltd, Sydney, Australia...
-
Page 9: Load Defaults
3. SETUP / BACK2STATUS TIME (Parameter) This is the time before the main menu is returned to Input Status after the last button press. When the sub menu is highlighted, press ENTER to toggle through the following times: 1.) 5 seconds 2.) 15 seconds 3.) 30 seconds 4.) 1 minute 5.) 5 minutes 4. SETUP / AUTO SAVE (Parameter) This parameter will determine if any changes will be saved to memory when changes are made. When the sub menu is highlighted, press ENTER to toggle through the following selections: 1.) Yes 2.) No 5. SETUP / Demo Cycle (Parameter) The Demo cycle setting is used for cycling through multiple layouts, windows or inputs on a time delay. When the sub menu is highlighted, press the ENTER button to enter this sub‐menu. Press the < and > buttons to move left or right through the following cycle types: 1.) None 2.) Output Select 3.) MV Windows 4.) MV Layouts Note: The parameter will only be updated when leaving this sub‐menu. DMON‐16SL Hardware Manual for Firmware Version 1.1 Copyright © 2015 Decimator Design Pty Ltd, Sydney, Australia... -
Page 10: Service / Warranty
SERVICE WARRANTY Decimator Design warrants that this product will be free from defects in materials and workmanship for a period of 36 months from the date of purchase. If this product proves to be defective within this warranty period, Decimator Design, at its discretion, will either repair the defective product without charge for parts and labour, or will provide a replacement product in exchange for the defective product. In order to service under this warranty, you the Customer, must notify Decimator Design of the defect before the expiration of the warranty period and make suitable arrangements for the performance of service. The Customer shall be responsible for packaging and shipping the defective product to a designated service centre nominated by Decimator Design, with shipping charges prepaid. Decimator Design shall pay for the return of the product to the Customer if the shipment is to a location within the country in which the Decimator Design service centre is located. The Customer shall be responsible for paying all shipping charges, insurance, duties, taxes, and any other charges for products returned to any other location. ...
