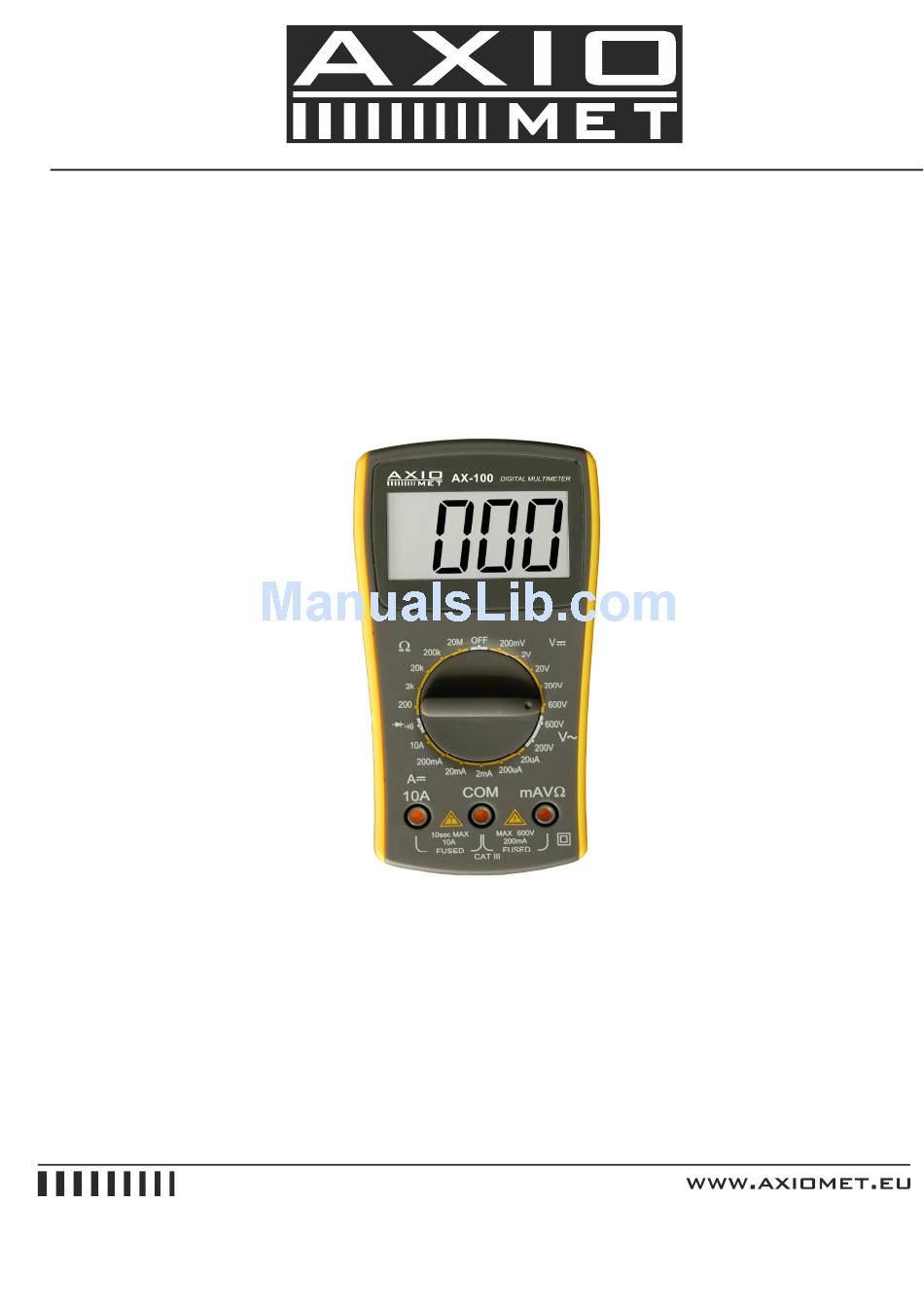

- Page 1 DIGITAL MULTIMETER AX-100 INSTRUCTION MANUAL...
- Page 2 1. Safety Notes 1. Do not input a limit value over the range when measuring. 2. When measuring voltage higher than 36V DCV, 25V ACV, check the connection and insulation of the test leads to avoid electric shock. 3. Keep the test leads away from the testing point when converting function and range. 4.
- Page 3 Max. Input current: 10A (no more than 6 seconds) Overload Protection: 0.2A/250V; 10A/250V fuse. Range Accuracy Resolution ±(0.8%+5) ±(0.8%+3) 200k ±(1.0%+15) 2.4 Resistance Overload Protection: 250V DC/AC peak value Note: At range 200 , first short-circuit the meter pens to measure the wire resistance. Then subtract it from the real measurement.
- Page 4 Note: 1. Firstly, the knob should be set to the highest range if users have no idea about the range of voltage under test. Then select the proper range based on display value. 2. If MSD displays “1", it means the meter is over range. Please set the knob to a higher range. 3.
- Page 5 Note: 1. The LCD displays "1" when the resistance is over the selected range. The knob should be adjusted to a higher range. When resistance under test is over 1M , the reading shall be stable in a few seconds, which is a normal status when measuring high resistance. 2.
