Summary of Contents for SNR SNR-VP-6020

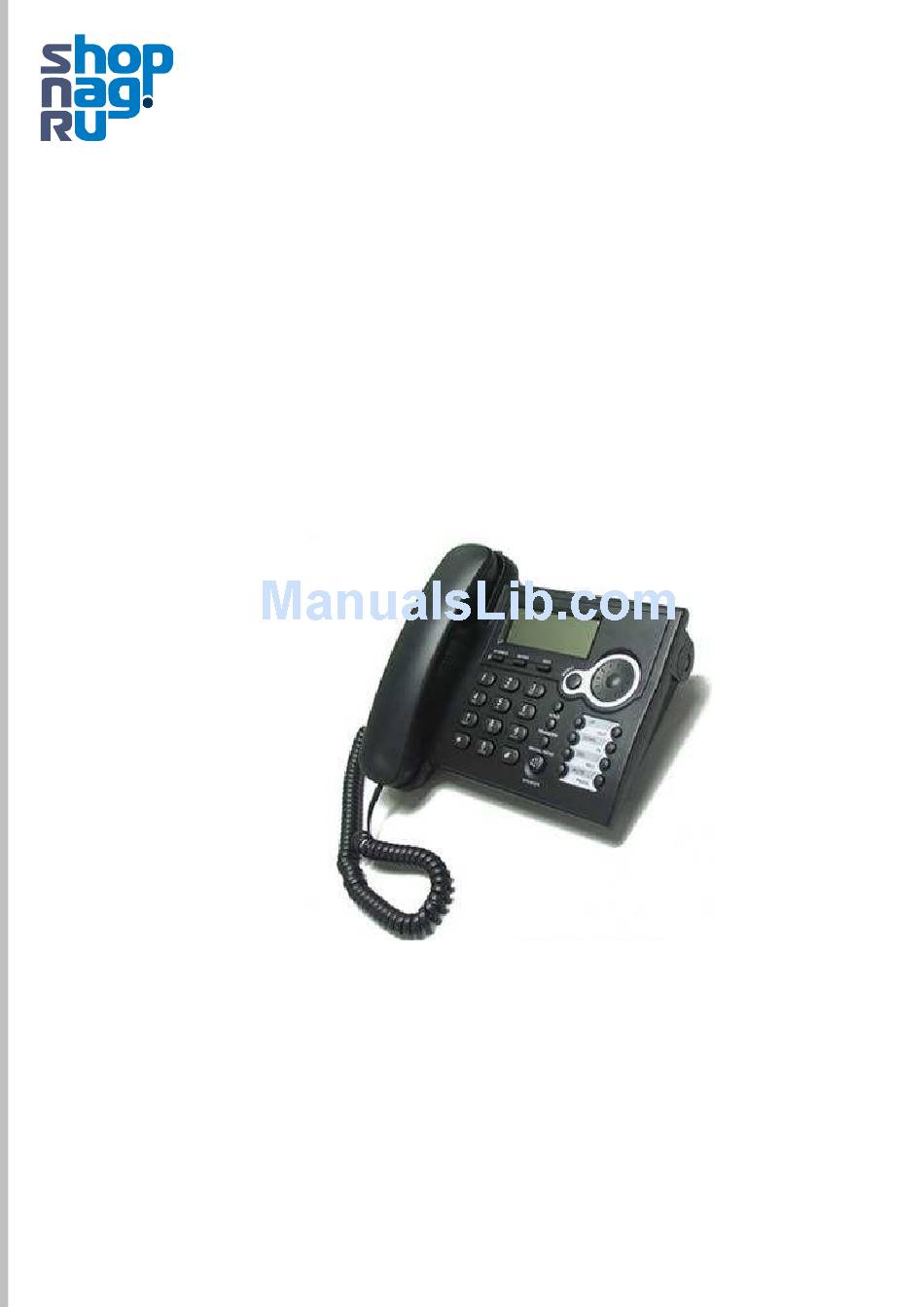

- Page 1 SNR-VP-6020 User Manual...
-
Page 2: Safety Notices
Safety Notices Please read the following safety notices before installing or using this phone. They are crucial for the safe and reliable operation of the device. Please use the external power supply that is included in the package. Other power supplies may cause damage to the phone, affect the behavior or induce noise. -
Page 3: Table Of Contents
Table of Content 1.Introducing FV6020 VoIP Phone…………………………………………………………..5 1.1. Thank you for your purchasing FV6020 ................. 5 1.2. Delivery Content ........................5 1.3. Keypad ............................6 1.4. Port for connecting ........................7 2.Initial connecting and Setting………………………………………………………………8 2.1. connect the phone…………………………………………………………………8 2.2. Initial Setting .......................... - Page 4 4.2.8.3. Phone Book ......................41 4.2.8.4. Time Config ......................41 4.2.8.5. Logout &Reboot ...................... 42 4.3. Settings via phone’s keyboard....................42 4.3.1. How to set via the phone’s keyboard................ 42 4.3.2. Phone menu ......................... 43 5. Appendix…………………….…………………………………………………. ………...43 5.1.
-
Page 5: Introducing Fv6020 Voip Phone

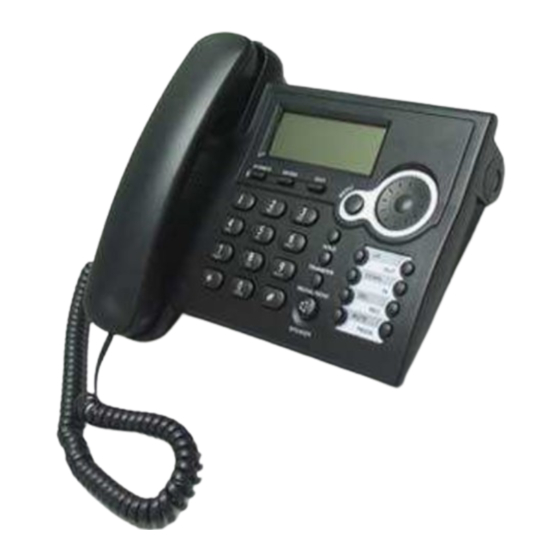

1. Introducing FV6020 VoIP Phone 1.1. Thank you for your purchasing FV6020 Thank you for your purchasing FV6020, FV6020 is a full-feature telephone that provides voice communication over the same data network that your computer uses. This phone functions not only much like a traditional phone, allowing to place and receive calls, and enjoy other features that traditional phone... -
Page 6: Keypad
1.3. Keypad The numeric keypad with the keys 0 to 9, *, and # is used to enter Digits and letters, additionally, the following keys are available: Key mapping: Description call up the menu In idle state，press the MENU key to The phone can realize the following features by the UP key or the DOWN key. -
Page 7: Port For Connecting
Press the TRANSFER key during call, can realize blind transfer and attended transfer. Press the REDIAL/SEND key to dial the last dialed number. Select contact name or telephone number in Phone book, Then press this key to send the number. Switch to hand-free mode and back. -
Page 8: Initial Connecting And Setting
2. Initial connecting and Setting 2.1. connect the phone Step 1: Connect the IP Phone to the corporate IP telephony network. Before you connect the phone to the network, please check if your network can work normally. You can do this in one of two ways, depending on how your workspace is set up. Direct network connection—by this method, you need at least one available Ethernet port in your workspace. -
Page 9: Initial Setting
2.2. Initial Setting This VoIP Phone provides you with rich function and parameters setting. If you have enough knowledge about network and SIP protocol, it is better for you to understand many parameters. But if you know little about network and SIP protocol, you can also easily make initial setting according to the following steps to enjoy rapidly high quality voice and low cost from this VoIP Phone. -
Page 10: Dhcp Mode
display “DNS”. Press the ENTER key then the DEL key, input your DNS address and confirm it by pressing the ENTER key, and then the LCD will display the input DNS address. 7. Press the EXIT key to return to the previous menu, and then press the DOWN key, the LCD screen will display “GATEWAY”. -
Page 11: Basic Functions
3. Basic Functions 3.1. Basic operation 3.1.1. Accepting a call There are four methods to accept an incoming call: Pick up handset to accept incoming calls. Press the SPEAKER button If you need switch from a hands-free call to handset, please pick up the handset directly. If you need switch from a handset call to hands-free, please press the SPEAKER button, and then hang up the handset. -
Page 12: Calling Hold And 3 Ways Call
3.1.5. Calling Hold and 3 ways call There are two modes to enjoy hold function: 1. Press the HOLD key during a call, and the call will be on hold. While a call is on hold, you can establish another call by dialing your desired number and confirm it by the # button. Pressing the HOLD key again will resume the first call. -
Page 13: Setting
4. Setting 4.1. Setting methods VoIP Phone is different from the traditional phone; it need be set to make it active. If your VoIP service provider asks you to set this phone, you can do it easily according to the following methods. This VoIP Phone can be set via three different setting methods: The phone key The web browser on PC... -
Page 14: Current Status
4.2.1. Current Status Click on the first submenu “Current status”, you will enter in the following web interface. In this web interface, you will see current set parameters, status, and the firmware version. Current Status Shows the configuration information on WAN and LAN port, including the connect mode of WAN port (Static, DHCP, PPPoE), Network MAC address, the IP address of WAN port and LAN port, ON or OFF... -
Page 15: Network
4.2.2. Network 4.2.2.1. WAN Config WAN Config Active IP The current IP address of the phone Current Netmask The current Netmask address MAC Address The current MAC address of the phone Current Gateway The current Gateway IP address Set the corresponding authenticating code of MAC. If you don’t Mac Authenticating pass the authentication, then it will show “invalid MAC”, at this Code... -
Page 16: Lan Config
Gateway Input the Gateway address distributed to you. Set DNS domain postfix. When the domain which you input can DNS Domain not be parsed, gateway will automatically add this domain to the end of the domain which you input before and parse it again. Primary DNS Input your primary DNS server address. -
Page 17: Voip
Select the DHCP server of LAN port or not. After you modify the LAN IP address, gateway will amend and adjust the DHCP Lease DHCP Service Table and save the result amended automatically according to the IP address and Netmask. You need restart the phone and the DHCP server setting will take effect. - Page 18 Local SIP Port Set your Local SIP port, the default is 5060. Set the sip domain if needed, otherwise this VoIP Phone will use the Domain Realm proxy server address as sip domain automatically. (Usually it is same with registered server and proxy server IP address). Input the phone number assigned by your VoIP service provider.
-
Page 19: Iax2 Config
4.2.3.2. IAX2 Config IAX2 Config Register Status Shows if the phone has been registered the IAX2 server or not. IAX2 Server Addr Input your IAX2 server address. IAX2 Server Port Set your IAX2 server port, the default is 4569. Account Name Input your IAX2 register account name. -
Page 20: Advance
4.2.4. Advance 4.2.4.1. DHCP Service DHCP Service Select DNS Relay, the default is enable. Click the Apply button to DNS Relay become effective. Shows the DHCP Lease Table， the unit of Lease time is Minute. Lease Table Name Specify the name of the lease table Start IP Set the start IP address of the lease table Set the end IP address of the lease table, the network device... -
Page 21: Nat Configuration
4.2.4.2. NAT Configuration NAT is abbreviated from Net Address Translation; it’s a protocol responsible for IP address translation. In other word, it is responsible for transforming IP and port of private network to public, also is the IP address mapping which we usually say. DMZ config：... - Page 22 NAT Configuration It is an encryption technology. Select it to enable IPSec ALG, the IPSec ALG default is enable FTP is a service of connection layer which can transform intranet IP FTP ALG into extranet IP when intranet IP is sending out packet. Select it to enable FTP ALG, the default is enable PPTP ALG Select it enable PPTP ALG, the default is enable...
-
Page 23: Net Service
Shows the outside WAN port IP address and the inside LAN port IP address. Outside IP Set the outside Wan port IP address of DMZ. Inside IP Set the inside LAN pot IP address of DMZ Click the Add button to add new table; click the Delete button to delete the selected mapping table. -
Page 24: Firewall Config
4.2.4.4. Firewall Config Firewall Configuration In this web interface, you can set up firewall to prevent unauthorized Internet users from accessing private networks connected to the Internet (input rule), or prevent unauthorized private network devices from accessing the Internet (output rule). Firewall support two type of rules: input_access rule and output_access rule. -
Page 25: Qos Config
Set the destination address. It can be IP address, network address, Des Addr complete address 0.0.0.0, or network address similar to *.*.*.* source address’ mask. For example, 255.255.255.255 means Set the Src Mask just point to one host; 255.255.255.0 means point to a network which network ID is C type. - Page 26 In chart 1, there is a layer 2 switch without setting VLAN. Any broadcast frame will be transmitted to the other ports except the send port. For example, broadcast information is sent out from port 1 then transmitted to port 2, 3 and 4. In chart 2, red and blue indicate two different VLANs in the switch, and port 1 and port 2 belong to red VLAN, port 3 and port 4 belong to blue VLAN.
-
Page 27: Advance Sip Configuration
packets will add voice VLAN ID. Other data packets will not use VLAN Select it or not to Enable or disable DiffServ。 DiffServ Enable Set DiffServ value, the common value is 0x00. 0xb8, which is the DiffServ Value highest priority Voice 802.1P Priority Specify 802.1P Priority of voice/signal data packet. - Page 28 Advance SIP Configuration Public Sip Status shows that the phone registered or unregistered Public Server Private Sip Status shows that the phone registered or unregistered Private Server Set Private Server parameters: Expire Time Set the expired time for registering the Private Server. STUN NAT Transverse Shows STUN NAT Transverse estimation, true means STUN can penetrate NAT, while False means not.
-
Page 29: Digital Map Configuration
If some server refuse to register with too short interval time, and has no packets sending to device in private network to keep NAT alive, user could set this function ON. It need set the keep alive interval time less than the NAT server’s. Enable/Disable system to support RFC3581. -
Page 30: Call Service
x Match any single digit that is dialed. Match any arbitrary number of digits including none. Tn Indicates an additional time out period before digits are sent of n seconds in length. n is mandatory and can have a value of 0 to 9 seconds. Tn must be the last 2 characters of a dial plan. - Page 31 Enable Call Transfer Enable Call Transfer by selecting it. Call transfer has several ways to realize: 1. When A talks to B, B may press the HOLD key and dial to C phone number. After B talks to C ( or B hear alert from C ), B presses the TRANSFER key; B could hang up, and A will get through to C.
-
Page 32: Mmi Filter
4.2.4.9. MMI Filter MMI Filter User could make some devices own IPs, which are pre-specified, access to phone to config and manage phone. Select it or not to enable or disable MMI Filter. Click Apply to MMI Filter make it effective. MMI Fileter IPs Table list: Add or delete the IP address segments that access to phone. -
Page 33: Vpn Config
Ring Type Select Ring Type Handfree Volume Specify Handfree Volume grade Specify the least reflection time of Handdown, the default value is Handdown Time 200ms. Ring Volume Specify Ring Volume grade G729 Payload Length Set G729 Payload Length DTMF Payload Type Set DTMF Payload Type Select it or not to enable or disable VAD. -
Page 34: Dial-Peer Setting
VPN IP Shows the current VPN IP address VPN Server Addr Set VPN Server IP Address VPN Server Port Set VPN Server Port Set VPN L2TP Server IP address VPN Server Addr VPN User Name Set User Name access to VPN L2TP Server VPN Password Set Password access to VPN L2TP Server Select UDP Tunnel (VPN Tunnel) or VPN L2TP. - Page 35 Dial-Peer There are two types of matching conditions: one is full matching, the other is prefix matching. In the Full matching, you need input your desired phone number in this blank, and then you need dial the phone number to realize calling to what the phone number is Phone number mapped.
-
Page 36: Config Manage
You need set Phone number and Alias. Phone number is XXX and When you dial “2”, Alias is all:xxx the SIP1 server will receive 33334444 This setting will realize speed dial or memory key functionality. You need set Phone Number and Alias. -
Page 37: Clear Config
4.2.6.2. Clear Config If you login as Admin, the phone will reset all configurations and restore factory default; if you login as Guest, the phone will reset all configurations except for VoIP accounts (SIP, advance SIP and IAX2) and version number. 4.2.6.3. -
Page 38: Ftp/Tftp Update
4.2.7.2. FTP/TFTP Update FTP/TFTP Update Set the FTP/TFTP/HTTP server address for download/upload. The Server address can be IP address or Domain name with subdirectory. Username Set the FTP server Username for download/upload. Password Set the FTP server password for download/upload. Set the name of update file or config file. -
Page 39: System Manage
Auto Provisioning Current Version show the current config file’s version. Server Address Set FTP/TFTP/HTTP server IP address for auto update. Set FTP server Username. System will use anonymous if username Username keep blank. Password Set FTP server Password. Set configuration file’s name which need to update. System will use Config File Name MAC as config file name if config file name keep blank. -
Page 40: Syslog Config
4.2.8.2. Syslog Config You can enable or disable the syslog function and config syslog server IP address & port via this page. Syslog is a protocol which is used to record the log messages with client/server mechanism. Syslog server receives the messages from clients, and classifies them based on priority and type. Then these messages will be written into log by some rules which administrator can configure. -
Page 41: Phone Book
4.2.8.3. Phone Book You can input the name, phone number and select ring type for each name here. Phone Book Shows the detail of current phonebook. Name Shows the name corresponding to the phone number. Number Shows the phone number. Ring Type Shows the ring type of the incoming call. -
Page 42: Logout &Reboot
Time Configuration Set SNTP Server IP address. Server Time Zone Select the Time zone according to your location. Time Out Set the time out, the default is 60 seconds. Daylight If your time zone supports daylight, you can select it. Select the SNTP, and click Apply to make the SNTP Times SNTP effective. -
Page 43: Phone Menu
4.3.2. Phone menu Phone main menu: 5. Appendix 5.1. Specification 5.1.1. Device specification this VoIP Phone Item Adapter(Input/Output) Input：100-240VAC 50～60Hz Output：5V/1A WAN 10/100Base- T RJ-45 for LAN Port LAN 10/100Base- T RJ-45 for PC Power Consumption Idle：1.5W/Active：1.8W LCD size 3in.（74 x 28mm） Operation Temperature 0～40℃... -
Page 44: Network Features
DTMF：SIP info，DTMF Relay，RFC2833 SIP application: contain SIP call forward/transfer/holding/waiting/3 way conference Call control features: Flexible dial map, support hotline, empty calling no. reject server, black list for reject authenticated call no disturb, caller ID support conference call and voice record ...
