Operating Manual

Hausted

all purpose Chair (apC)

Hydraulic all purpose Chair

Models: apC 150 & 250

V1 03.11

068032

HauSteD® patient HanDling SySteMS, llC

Table of Contents

Need help?

Do you have a question about the APC 150 and is the answer not in the manual?

Questions and answers

Summary of Contents for Hausted APC 150

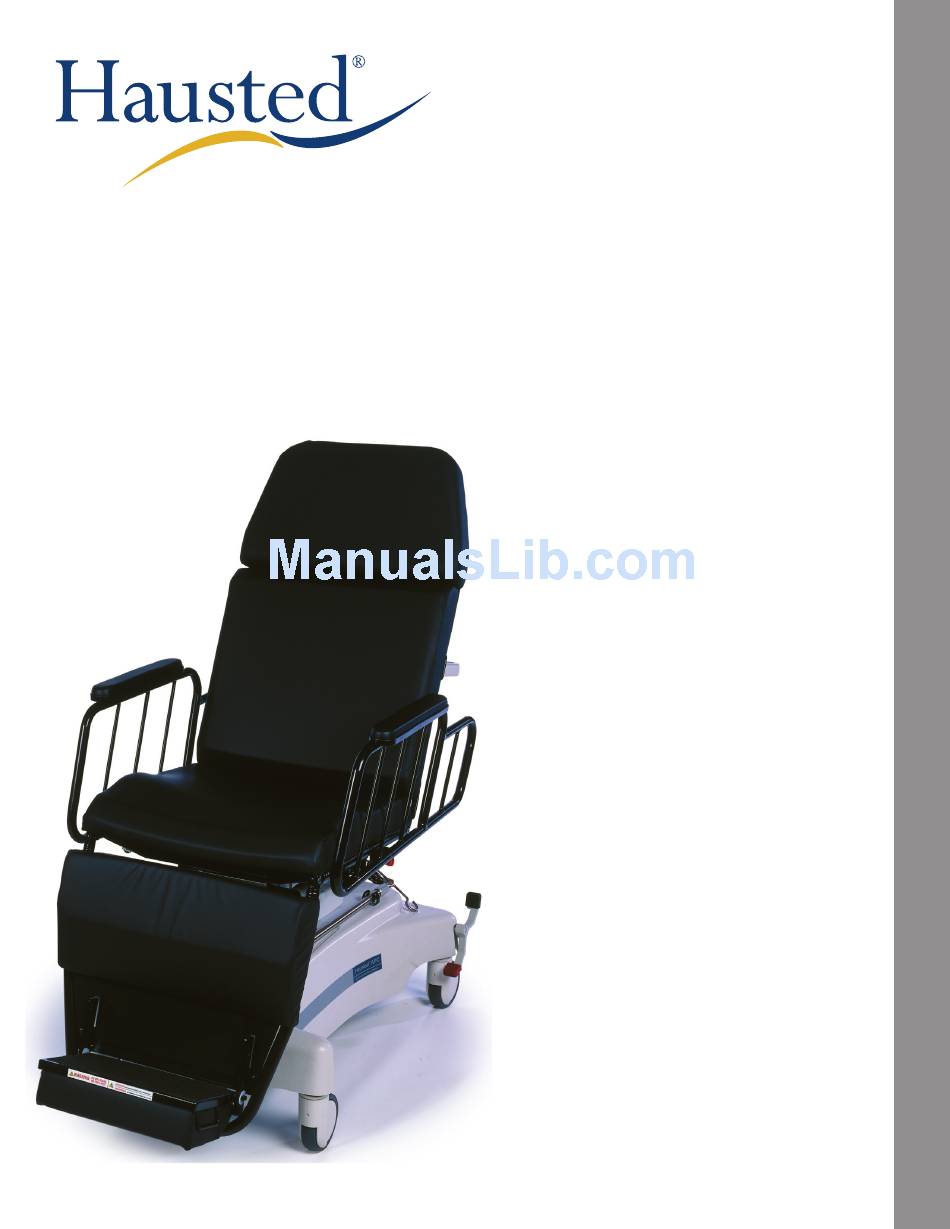

Page 1 Operating Manual Hausted all purpose Chair (apC) ® Hydraulic all purpose Chair Models: apC 150 & 250 V1 03.11 068032 HauSteD® patient HanDling SySteMS, llC...
Page 2 WARNING - COPYING PROHIBITED this manual is protected by Federal Copyright law, which provides for damages of up to uSD $20000, as well as criminal fines and imprisonment, for unauthorized copying.
Page 3: Indications For Use
Hausted Hausted carries a complete line of accessories for use engineering Service which could affect its operation with this chair. a Hausted representative will gladly will void the warranty, could violate national, state, review these with you.
Page 4 EC Authorized Representative Cepartner4u BV eSDOOrnlaan 13 3951DB Maarn the netherlands +31(0)6 516 536 26 Manufactured by: Hausted® patient Handling Systems, llC 2511 Midpark road Montgomery, al 36109 334.215.5151 Main 877.706.5151 toll Free 334.215.5150 Fax www.Hausted.com Class 1 equipment type B equipment...
Page 5: Table Of Contents
taBle OF COntentS 1 liSting OF warningS anD CautiOnS ....................2 unCrating inStruCtiOnS ..........................3 Operating inStruCtiOnS ..........................3.1 Braking and Steering Operation ..........................3-2 3.1.1 applying the Brakes ..............................3-2 3.1.2 releasing the Brake ..............................3-2 3.1.3 applying the Steer lock ............................3-2 3.1.4 releasing the Steer lock ............................3-2 3.2 Height &...
Page 6: Listing Of Warnings And Cautions
liSting OF warningS anD CautiOnS the following is a listing of the safety precautions which must be observed when operating and servic- ing this equipment. warningS indicate the potential for danger to personnel, and CautiOnS indicate the potential for damage to equipment. these precautions are repeated (in whole or in part), where applicable, throughout the manual.
Page 8: Uncrating Instructions
- leave carton intact. leave the equipment in the receiving your Hausted equipment has been carefully packed area until inspection is complete. at our manufacturing plant to ensure safe shipment CautiOn - pOSSiBle eQuipMent to your medical facility.
Page 10: Operating Instructions
Hausted offers a complete product line for your specialty needs. Hausted’s apC has a warning label located at the head and foot ends of the chair’s frame, stating: Do not sit on end: tipping may occur.
Page 11: Braking And Steering Operation
Operating inStruCtiOnS 3.1 BraKing anD Steering OperatiOn 3.1.1 applying the Brakes the four wheel central braking system is activated by depressing the reD pedal, (to approximately 45° at any corner of the unit. this locks all four of the caster wheels from rotating and swivelling.
Page 12: Height & Top Adjustment
Operating inStruCtiOnS 3.2 HeigHt anD tOp aDJuStMent 3.2.1 Height adjustment to elevate the unit, pump the up pedal, using smooth full strokes to insure patient comfort. (See Figure 3-3) nOte: pedals are located on both sides of the unit. when the unit reaches the desired height, stop the pumping action.
Page 13: Independent Foot Section Operation
Operating inStruCtiOnS 3.3 inDepenDent FOOt SeCtiOn OperatiOn 3.3.1 independent Operation to adjust the foot section separately from the back section, support the foot section with one hand, pull out the release lever then turn it clockwise. adjust the foot section to desired position and release the lever.
Page 14: Foot Pan & Side Rail Operation
Operating inStruCtiOnS 3.4 FOOt pan & SiDe rail OperatiOn 3.4.1 Foot pan adjustment to adjust the foot pan, rotate the pan to a parallel position with the ratchet plate. Move the foot pan to the desired position. rotate the foot pan to a perpendicular position to the ratchet plate.
Page 16: Trouble Shooting Guide
SHOOting guiDe nOte: the following is a list of recommended inspections and customer serviceable items to perform, prior to calling Hausted for service. problem Cause Solution unit doesn’t lower when pedal Column is adjusted too tight adjust column is depressed...
Page 18: Recommended Preventative Maintenance
3 Months Metal File, proper color paint any user developed sharp or (specify Hausted white color when burred areas. apply touch-up ordering). where required. Clean external surface to after each use...
Page 20 illuStrateD partS BreaKDOwn Figure 6 - 1. apC - 150 tOp aSSeMBly nOte: apply instant adhesive to item 21. apply petroleum lubricant to all hinging, moving, and sliding points. apply thread lock to items 18 & 36. apply spray adhesive to item 35. Figure 6 - 1.
Page 21 illuStrateD partS BreaKDOwn Figure 6 - 1. apC - 150 tOp aSSeMBly item no. part no. Description units per assembly 068026 apC-150 top assembly 068039 welDMent, apC 5° Seat Section 067283 aSSeMBly, apC Back Section 068030 welDMent, apC-150 Foot Section 031036 SCrew, phillips Oval Head, .313-24 X .938”...
Page 22 illuStrateD partS BreaKDOwn Figure 6 - 2. apC - 150 tOp aSSeMBly nOte: apply thread lock to item 7. Figure 6 - 2. apC - 150 tOp aSSeMBly 068032...
Page 23 illuStrateD partS BreaKDOwn Figure 6 - 2. apC - 150 tOp aSSeMBly item no. part no. Description units per assembly 068026 apC-150 top assembly not used 061062 pan, apC Head Support 061057 pan, apC Back Support 061139 COVer, apC Back 061142 HOlDer, apC Chart 031500...
Page 24 illuStrateD partS BreaKDOwn Figure 6 - 3. apC - 150 Final aSSeMBly Figure 6 - 3. apC - 150 Final aSSeMBly 068032...
Page 25 illuStrateD partS BreaKDOwn Figure 6 - 3. apC - 150 Final aSSeMBly item no. part no. Description units per assembly 068026 apC-150 Final assembly not used 150830 paD, Head Section 150830 paD, Back & Seat Section 150830 paD, leg Section 150830 paD, Foot Section 031057...
Page 26 illuStrateD partS BreaKDOwn Figure 6 - 4. apC - 250 tOp aSSeMBly nOte: apply instant adhesive to item 21. apply petroleum lubricant to all hinging, moving, and sliding points. apply thread lock to items 18 & 36. apply spray adhesive to item 35. Figure 6 - 4.
Page 27 illuStrateD partS BreaKDOwn Figure 6 - 4. apC - 250 tOp aSSeMBly item no. part no. Description units per assembly 068031 apC-250 top assembly 068039 welDMent, apC 5° Seat Section 067283 aSSeMBly, apC Back Section 068034 aSSeMBly, apC-250 Foot Section 031036 SCrew, phillips Oval Head, .313-24 X .938”...
Page 28 illuStrateD partS BreaKDOwn Figure 6 - 5. apC - 250 tOp aSSeMBly nOte: apply thread lock to item 7. Figure 6 - 5. apC - 250 tOp aSSeMBly 068032...
Page 29 illuStrateD partS BreaKDOwn Figure 6 - 5. apC - 250 tOp aSSeMBly item no. part no. Description units per assembly 068031 apC-250 top assembly not used 061062 plate, apC Head Support 061057 plate, apC Back Support 061139 COVer, apC Back 061142 HOlDer, apC Chart 031500...
Page 30 illuStrateD partS BreaKDOwn Figure 6 - 6. apC - 250 Final aSSeMBly Figure 6 - 6. apC - 250 Final aSSeMBly 6-11 068032...
Page 31 061198 laBel, Head & Foot warning 061141 laBel, Foot rest warning 061228 laBel, pedal, rH 061229 laBel, pedal, lH 075831 laBel, Hausted product 075837 laBel, apC Chair 068113 Mat, Foot rest pan 061358 laBel, Operating 150830 SuppOrt, Back pad w/lumbar 031010 SCrew, Hex Head Cap, (n.S.), .313-18 x .750”...
Page 32 illuStrateD partS BreaKDOwn Figure 6 - 7. apC 5° BaSe aSSeMBly nOte: apply instant adhesive to items 12 & 13 before installing items 21 & 22. nOte: use thread lock on Cam lever Set Screw, typ. 2 places. nOte: use thread lock on item 20, typ.
Page 33 illuStrateD partS BreaKDOwn Figure 6 - 7. apC 5° BaSe aSSeMBly item no. part no. Description units per assembly 068027 apC 5” Base assembly 065398 aSSeMBly, Base Frame 068028 aSSeMBly, Column 031334 SCrew, Hex Head Cap, .313-18 x 2.000” long 031080 waSHer, Flat, .313”...
Page 34 illuStrateD partS BreaKDOwn Figure 6 - 8. apC 5° BaSe COluMn aSSeMBly assemble item 6 with 5° slope to the rear of chair after assembly, item 6 is to be centered within item 3, tighten item 5 down until item 6 is held firmly in place.
Page 35 illuStrateD partS BreaKDOwn Figure 6 - 8. apC 5° BaSe COluMn aSSeMBly item no. part no. Description units per assembly 068028 apC 5° Base Column assembly p61121 Hanger, Hydraulic Jack Support 061122 MeDiJaCK p61117 welDMent, apC Outside Column 066178 SuppOrt, Short glide 061116 SCrew, Column guide 068048...
Page 36 illuStrateD partS BreaKDOwn Figure 6 - 9. apC - 250 FOOt COntrOl aSSeMBly Figure 6 - 9. apC - 250 FOOt COntrOl aSSeMBly 6-17 068032...
Page 37 illuStrateD partS BreaKDOwn Figure 6 - 9. apC - 250 FOOt COntrOl aSSeMBly item no. part no. Description units per assembly 068034 apC-250 Foot Control assembly 061302 aSSeMBly, Foot end Control 068035 welDMent, Foot Frame 061351 pin, leg extension tube 031137 ring, retaining, #5103-37 011318...
Page 38: Warranty
— provided such equipment has been properly installed and maintained and has not been misused and abused. the determination of proper installation, maintenance and use shall rest solely with Hausted. exempt five year...
Page 40 Hausted offers annual maintenance agreements to give your capital equipment planned maintenance agreements that will help correct little problems before they become big ones. Hausted engineering Service combines the precise maintenance program and factory-trained technicians to assure you of maximum productivity.
