Ez One Shot BAR CODE SCANNER User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Ez One Shot
BAR CODE
SCANNER
USER'S
MANUAL
Default
DEFAULT
CHECK VERSION
Version: MAR20041021

Advertisement

loading
Need help?

Need help?

Do you have a question about the BAR CODE SCANNER and is the answer not in the manual?

Questions and answers

Related Manuals for Ez One Shot BAR CODE SCANNER

Summary of Contents for Ez One Shot BAR CODE SCANNER

  • Page 1: Bar Code Scanner

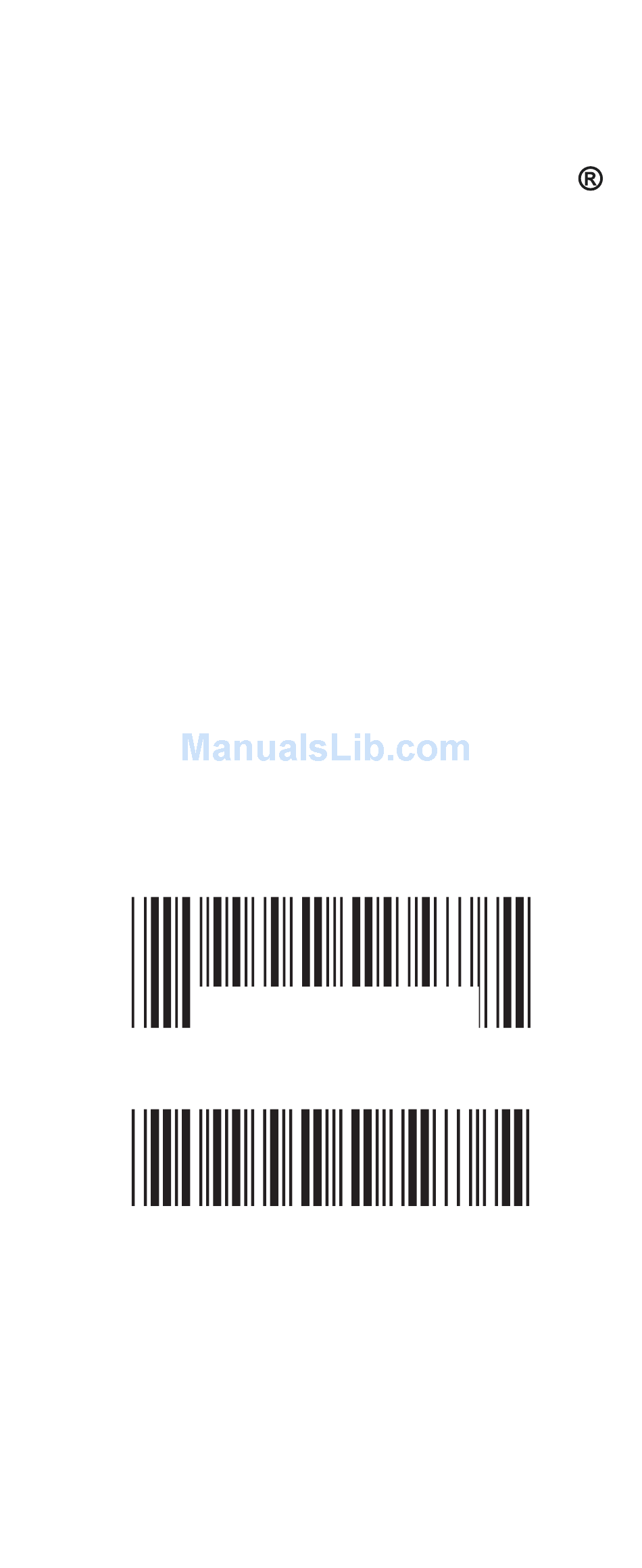

    Ez One Shot BAR CODE SCANNER USER'S MANUAL Default DEFAULT CHECK VERSION Version: MAR20041021...
  • Page 3 CONTENTS GENERAL Table of contents ------- Introduction, Ez Troubleshooting ------- Cloning Mode ------- Getting Started How to fix the scanner to the terminal ------- How to change a cable ------- How to set up t h e parameter ------- SETTING GROUP Interfaces selection, Computer type, Default ------- Reading Mode -------...
  • Page 4 The scanner utilizes exceptional decoding technology. One-time settings are easily made by scanning set-up bar codes in this handy user's manual. This bar code scanner uses CCD or optical diode technology which does not have moving part, provide ragged reliable quality, enables it suit for any harsh environment conditions.
  • Page 6 CLONING MODE WHAT IS CLONING MODE? CLONING duplicates a wand's settings in other wands. It can save time when a number of wands must be programmed to the same settings. HOW SHOULD CLONING WORK? 1. Using this guide, make all the necessary settings for one wand. 2.
  • Page 11 USB INTERFACES The USB Interface supported is compatible with the Apple MAC series, later PCs and Windows 98, 2000, Me, and XP. 1. Connect the USB cable between the scanner and the computer. 2. The scanner will beep. 3. The Scanner will detect the USB driver automatically. (The first time the scanner is connected via the USB port, follow the appropriate instructions for the host computer.) 4.
  • Page 12 HOW TO SET PARAMETERS How do you program a scanner with this user's guide? 1. Use the scanner to scan at the bar code representing the function/ parameter you want to set. 2. When you hear two beeps, the new setting will have been defined or updated into the memory processor.
  • Page 13 GROUP-1 INTERFACES SELECTION, COMPUTER TYPE, DEFAULT. . A001$ DEFAULT . C004$ COMPUTER TYPE PC- AT . C006$ MAC ADB . C007$ NOTEBOOK* SYMPTOMS SOLUTION Scanner seems to be 1. Unplug the cable from the host computer. performing as usual, 2. Plug the cable back into the host computer. but no data is being 3.
