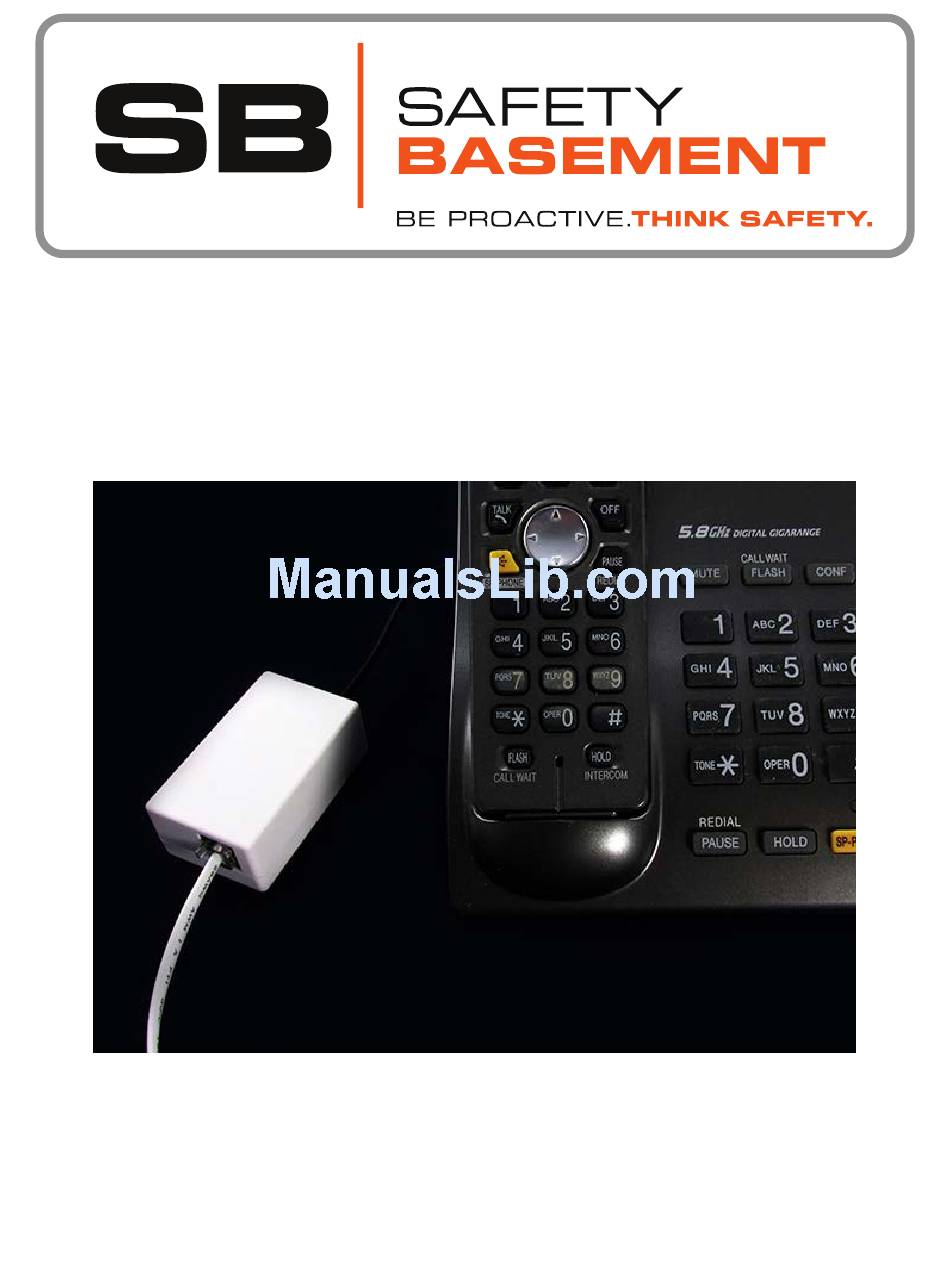

INSTRUCTION MANUAL
Direct Connect Covert Telephone Recorder
SB-TRX20
Revised: June 5, 2013
Thank you for purchasing from SafetyBasement.com! We appreciate your business.
We made this simple manual to help you enjoy your new product as quickly and easily as
possible.
Be sure to check the TECH SUPPORT tab on your product page at SafetyBasement.com
for the latest available manual.
Advertisement
Summary of Contents for SB SB-TRX20
- Page 1 INSTRUCTION MANUAL Direct Connect Covert Telephone Recorder SB-TRX20 Revised: June 5, 2013 Thank you for purchasing from SafetyBasement.com! We appreciate your business. We made this simple manual to help you enjoy your new product as quickly and easily as possible.
-
Page 2: Getting Started
PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 GETTING STARTED Your Direct Connect Telephone Recorder is very easy to use, and it requires just a little setup to get started. You will need to use your PC during setup, to charge your recorder and to download a file from our website. - Page 3 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 CHARGING Your recorder does get power from the phone line to keep it running. However, before you start using it, you should charge it fully using the included USB cable and your PC.
- Page 4 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 TIMESTAMP SETUP Now that your recorder is charged, you should download the TimeStamp file from our website. You will need your SD card, and the included SD card adapter. Your adapter may have a different appearance, but it will work the same way.
- Page 5 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 TIMESTAMP SETUP It is normal for Windows to present you with a pop up when you plug in your card / adapter. Choose to OPEN FOLDER. In these images, we are using Windows 7.
- Page 6 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 TIMESTAMP SETUP RIGHT-CLICK on the file “time.txt” and choose SAVE LINK AS. You are going to SAVE this file to the empty SD card, as shown. Save this file. The time.txt file is now located on your SD card.
-
Page 7: Sd Card Installation
PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 SD CARD INSTALLATION Unplug the USB cable from your recorder. Do not turn it on yet. Insert the SD card into the slot with the Gold Connectors facing DOWN, as shown. Carefully push the card into place. It should click into place. - Page 8 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 CONNECTING Unplug the phone line from your phone that is connecting to your wall. Plug this into one of the phone line ports on your recorder. It does not matter which one you use.
- Page 9 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 POWER ON You may now turn on the recorder using the Power Switch. A white light will appear near the power switch as it starts up. Your datestamp is now being set using the settings you set earlier.
- Page 10 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 LISTENING TO YOUR FILES When you want to listen to your recordings, you will need to POWER OFF the recorder. Then remove the SD card. Insert the SD card into your adapter as you did earlier in the manual.
- Page 11 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 LISTENING TO YOUR FILES Your audio files are in this folder Ignore these 2 files Inside the AUDIO folder are your recordings. These should be named using the timestamp you set earlier. If the timestamp does not look accurate, please redo the timestamp setup.
- Page 12 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 NOTES ABOUT AUDIO You are usually going to use your standard media player to play your audio files, such as Windows Media Player, or Quicktime on the Mac. If you need to BOOST the volume of your recordings, or need to edit your recordings, we recommend using AUDACITY.
- Page 13 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 SUGGESTED SOFTWARE Your Windows PC or Mac has built-in software that will play most of the files created by devices like yours. However, if you are having problems playing your files, or need more options, please download and try these programs.
-
Page 14: Device Specifications
PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 DEVICE SPECIFICATIONS Audio Formats Audio Encoding 64 Kbps WAV Bit Rate Mode Constant WAV Bit Rate 64 Kbps WAV Sampling Rate 16 KHz Page 14 www.SafetyBasement.com Phone: 877-345-2336 Fax: 888-236-2524... - Page 15 PRODUCT MANUAL Direct Connect Phone Recorder : SB-TRX20 DEVICE SPECIFICATIONS Memory Built In Memory Expansion up to 32GB Micro SD card Battery Type Internal Rechargeable, Trickle power via phone line Charger via USB port Please check our site for the latest available manual for this product.
