CLEAN FLOW HEATER (CFH)

CFH-4000 SERIES MANUAL

Rev. 01/2013

Table of Contents

Need help?

Do you have a question about the CFH-4000 and is the answer not in the manual?

Questions and answers

Summary of Contents for MVP CFH-4000

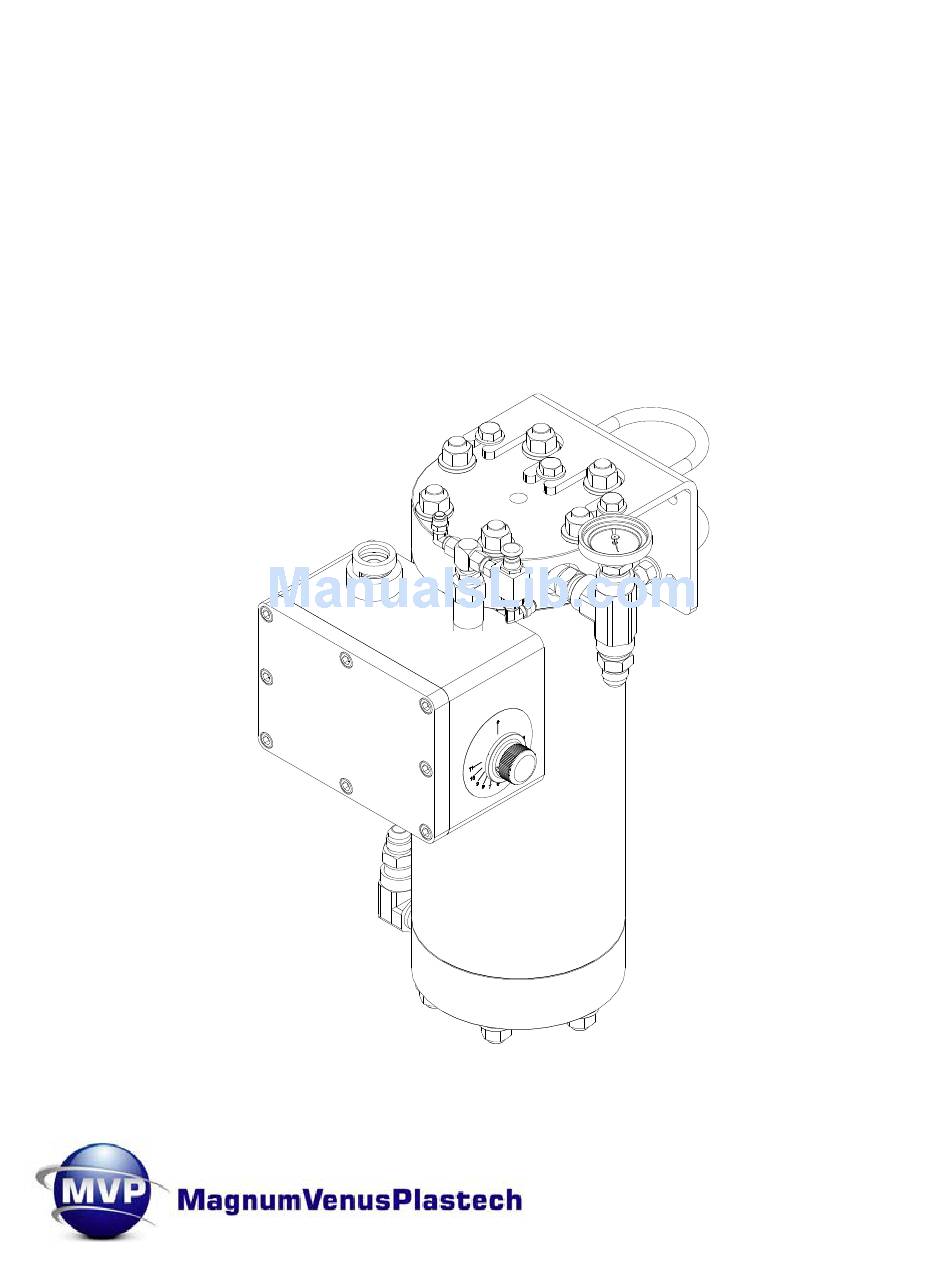

Page 1 CLEAN FLOW HEATER (CFH) CFH-4000 SERIES MANUAL Rev. 01/2013...
Page 2 Court * Clearwater, FL 33760 * Tel 727-573-2955 * Fax 727-571-3636 TECHNOLOGY CENTER and MANUFACTURING 1862 Ives Ave. * Kent, WA 98032 * Tel 253-854-2660 * Fax 253-854-1666 MVP Plastech UK Chilsworthy Beam, Gunnislake, Cornwall, PL18 9AT UK, * Tel: +44 (0) 1822 832621 Fax: +44 (0) 1822 833999 www.mvpind.com...
Page 3: Table Of Contents
CFH -4000 Series Heater Manual TABLE OF CONTENTS: SECTION: Page TERMS & CONDITIONS OF SALE SAFETY & WARNING INFORMATION INTRODUCTION OPERATION MAINTENANCE TROUBLESHOOTING INSTALLATION & CONNECTIONS PARTS DRAWINGS REVISION INFORMATION CERTIFICATE OF CONFORMANCE Rev. 01/2013 Page | 3...
Page 4: Terms & Conditions Of Sale
CFH -4000 Series Heater Manual Terms & Conditions of Sale: ACCEPTANCE: Acceptance of any purchase order from a customer or potential customer (“Buyer”) is subject to credit approval by GSSC, Inc. (“Seller”), acceptance of the purchase order by Seller and, when applicable, any manufacturer, vendor, or other third party that provides goods to Seller for resale to Buyer (“Vendor”).
Page 5 CFH -4000 Series Heater Manual EXCUSABLE DELAYS: Seller shall have no liability if its performance is delayed or prevented by causes beyond its reasonable control, including, without limitation, acts of nature, labor disputes, government priorities, transportation delays, insolvency or other inability to perform by any Vendor, or any other commercial impracticability.
Page 6 CFH -4000 Series Heater Manual JURISDICTION AND VENUE: The parties hereby irrevocably submit to the jurisdiction of the state courts of the State of Florida and to the jurisdiction of the United States District Court for the Middle District of Florida, for the purpose of any suit, action, or other proceeding related to, arising out of or based upon these Terms &...
Page 7: Safety & Warning Information
CFH -4000 Series Heater Manual SAFETY & WARNING INFORMATION: OPERATING YOUR POLYESTER SYSTEM SAFELY 1. Introduction Any tool, if used improperly, can be dangerous. Safety is ultimately the responsibility of those using the tool. In like manner, safe operation of polyester processes is the responsibility of those who use such processes and those who operate the equipment.
Page 8 CFH -4000 Series Heater Manual Extinguishing Media – Foam, Carbon Dioxide, Dry Chemical, Water Fog. Copies of the above bulletins are available, at a nominal charge from: National Fire Protection Association 470 Atlantic Avenue Boston, MA 02210 Research Report No.11 of the American Insurance Association deal with “Fire, Explosion and Health Hazards of Organic Peroxides”.
Page 9 CFH -4000 Series Heater Manual 2.2 Catalyst (Methyl Ethyl Ketone Peroxide) MEKP is among the more hazardous materials found in commercial channels. The safe handling of the “unstable (reactive)” chemicals presents a definite challenge to the plastics industry. The highly reactive property which makes MEKP valuable to the plastics industry in producing the curing reaction of polyester resins also produces the hazards which require great care and caution in its storage, transportation, handling, processing and disposal.
Page 10 CFH -4000 Series Heater Manual E. Avoid contact with skin, eyes and clothing. Protective equipment should be worn at all times. During clean-up of spilled MEKP, personal safety equipment, gloves and eye protection must be worn. Fire fighting equipment should be at hand and ready. F.
Page 11 CFH -4000 Series Heater Manual A. The reaction is unpredictable. Prior use of an HHC solvent without incident (corrosion or explosion) does NOT mean that such use is safe. These solvents can be dangerous alone (as a clean-up or flushing agent) or when used as a component or a coating material. There is no known inhibitor that is effective under all circumstances.
Page 12 CFH -4000 Series Heater Manual 2.4 Catalyst Diluents Magnum Venus Plastech spray-up and gel-coat systems currently produced are designed so that catalyst diluents are not required. Magnum Venus Plastech, therefore, recommends that diluents not be used. This avoids the possible contamination which could lead to an explosion due to the handling and mixing of MEKP and diluents.
Page 13 CFH -4000 Series Heater Manual 2.8 Treatment of Chemical Injuries Great care should be used in handling the chemicals (resins, catalyst and solvents) used in polyester systems. Such chemicals should be treated as if they hurt your skin and eyes and as if they are poison to your body.
Page 14 CFH -4000 Series Heater Manual 3.0 Equipment Safety WARNING Magnum Venus Plastech suggest that personal safety equipment such as EYE GOGGLES, GLOVES, EAR PROTECTION, and RESPIRATORS be worn when servicing or operating this equipment. Ear protection should be worn when operating a fiberglass chopper to protect against hearing loss since noise levels can be as high as 116 dB (decibels).
Page 15 CFH -4000 Series Heater Manual 3.2 Grounding Grounding an object means providing an adequate path for the flow of the electrical charge from the object to the ground. An adequate path is one that permits a charge to flow from the object fast enough that it will not accumulate to the extent that a spark can be formed.
Page 16: Introduction
The CFH-4000-AI Clean Flow Heater – Air Interlock is unique in that it is an on demand type heater and uses electrical power only when there is flow. The heater is controlled by triggering the gun, the system regulator supplies pressure to the gun valve which in turn activates the heater when the trigger is pulled.
Page 17 CFH -4000 Series Heater Manual This page was left blank intentionally. Rev. 01/2013 Page | 17...
Page 18: Operation
Heater is now ready. To preheat the CFH-4000-AI (system with air interlock) press the preheat button and hold until heater block feels warm to the touch. This insures resin is heated from start- up to stop.
Page 19 CFH -4000 Series Heater Manual This page was left blank intentionally. Rev. 01/2013 Page | 19...
Page 20: Maintenance
CFH -4000 Series Heater Manual Maintenance: (Refer to Parts Drawings section in the back of this manual) Periodically, the heater should be flushed out by pumping solvent through, especially with gel coat or filled resin systems. Inspect electrical cord for wear or damage and repair or replace as necessary. Inspect hoses attached to the heater for wear of damage and replace periodically.
Page 21 CFH -4000 Series Heater Manual This page was left blank intentionally. Rev. 01/2013 Page | 21...
Page 22: Troubleshooting
CFH -4000 Series Heater Manual Troubleshooting: Two basic problems may occur with the MVP Resin Heater: • Loss of electrical current or heat • Material flow blockage or leakage. Loss of Electrical Current or Heat: 1. Indicator Light: If indicator light is not sequencing during operation, try preheat button to see if light comes on.
Page 23 CFH -4000 Series Heater Manual CFH-4000-AI Air Interlock units: 7. Air Switch: Disconnect wires and check microswitch to ensure continuity through normally closed contacts when air supply is off. If there is no continuity, inspect air actuator to insure it is disengaging. If air actuator disengages properly, switch is faulty and must be replaced.
Page 24: Installation & Connections
CFH -4000 Series Heater Manual Installation & Connections: NOTE: Because of the variety of electrical codes in various parts of the world, MVP does not supply connections to any of the heaters mentioned in this manual. The electrical connection should be made by a qualified electrician per codes of local jurisdiction.
Page 25: Parts Drawings
CFH -4000 Series Heater Manual Parts Drawings: CFH-4000-AI CLEAN FLOW HEATER – AIR INTERLOCK CFH-4000-AIDS DOUBLE STACK – CFH RESIN HEATERS CFH-4000-B BASIC CLEAN FLOW HEATER CFH-4000-DBS DOUBLE STACK – BASIC RESIN HEATER CFH-5000 BASIC HEATER CORE ASSEMBLY CFH-3050 PNEUMATIC PRE-HEAT SWITCH ASSEMBLY Rev.
Page 26 CFH -4000 Series Heater Manual This page was left blank intentionally. Rev. 01/2013 Page | 26...
Page 27 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 27...
Page 28 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 28...
Page 29 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 29...
Page 30 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 30...
Page 31 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 31...
Page 32 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 32...
Page 33 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 33...
Page 34 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 34...
Page 35 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 35...
Page 36 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 36...
Page 37 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 37...
Page 38 CFH -4000 Series Heater Manual Rev. 01/2013 Page | 38...
Page 39: Revision Information
CFH -4000 Series Heater Manual Revision Information: Updated document format and added Safety & Warning Rev. 11/2010 information. Updated the drawings and added the hose connection diagrams. Also added the Certificate of Conformance and revision information chapter. Updated the manual with the new Logo, Address. Added Rev.
Page 40 Court * Clearwater, FL 33760 * Tel 727-573-2955 * Fax 727-571-3636 TECHNOLOGY CENTER and MANUFACTURING 1862 Ives Ave. * Kent, WA 98032 * Tel 253-854-2660 * Fax 253-854-1666 MVP Plastech UK Chilsworthy Beam, Gunnislake, Cornwall, PL18 9AT UK, * Tel: +44 (0) 1822 832621 Fax: +44 (0) 1822 833999 www.mvpind.com...
Page 41: Certificate Of Conformance
CFH -4000 Series Heater Manual Certificate of Conformance: The Certificates of Conformance on the following pages should be filled in completely then distributed to the correct parties as noted at the top of the page. Rev. 01/2013 Page | 41...
Page 42 CFH -4000 Series Heater Manual This page was left blank intentionally. Rev. 01/2013 Page | 42...
Page 43 ( ) CFH-2220-B REF DOCUMENT: CFH-2220-B RESIN HEATER ( ) CFH-2220-AI REF DOCUMENT: CFH-2220-AI RESIN HEATER ( ) CFH-4000-B REF DOCUMENT: CFH-4000-B RESIN HEATER ( ) CFH-4000-AI REF DOCUMENT: CFH-4000-AI RESIN HEATER ( ) CFH-5000 REF DOCUMENT: CFH-5000 RESIN HEATER...
Page 45 ( ) CFH-2220-B REF DOCUMENT: CFH-2220-B RESIN HEATER ( ) CFH-2220-AI REF DOCUMENT: CFH-2220-AI RESIN HEATER ( ) CFH-4000-B REF DOCUMENT: CFH-4000-B RESIN HEATER ( ) CFH-4000-AI REF DOCUMENT: CFH-4000-AI RESIN HEATER ( ) CFH-5000 REF DOCUMENT: CFH-5000 RESIN HEATER...
