Summary of Contents for aleen Music Tel-60

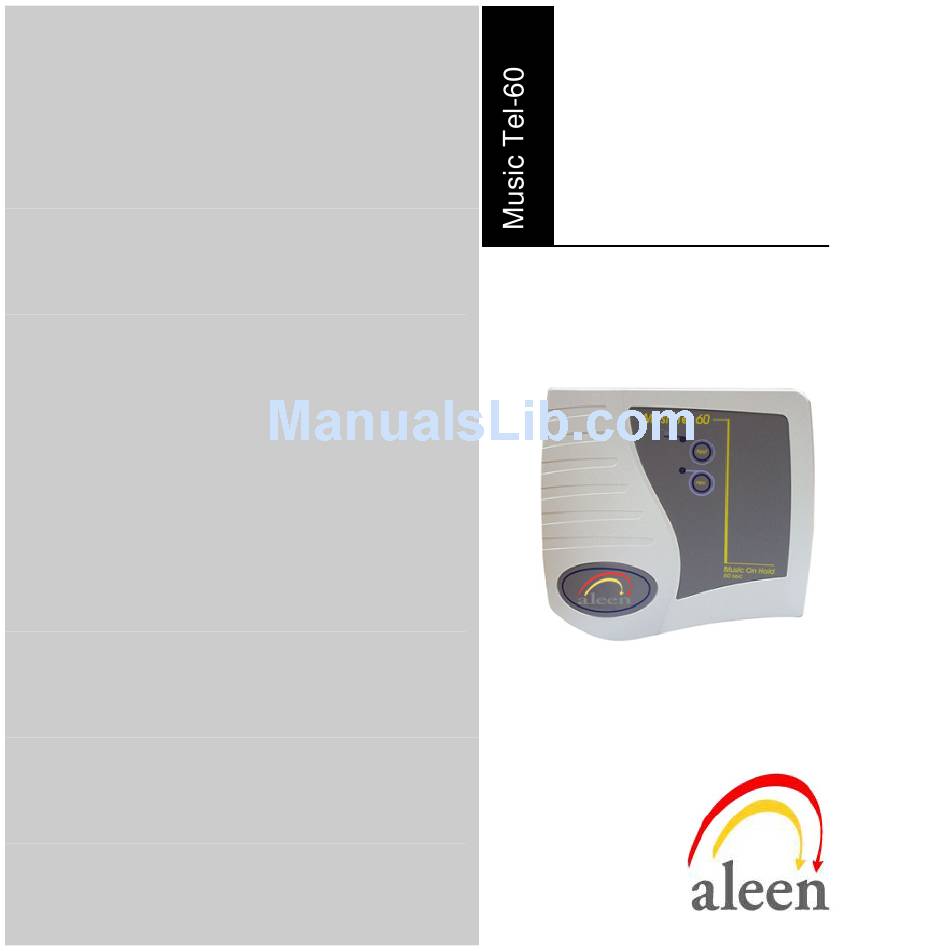

- Page 1 Installation Manual...
-
Page 3: Installation Manual
MusicTel 60 – Music On Hold Installation Manual Release 1 December 2002... - Page 4 In the event that the product proves to be defective in workmanship or materials within a period of one year from date of shipment, Aleen Technologies shall repair or replace the product at its discretion. Transportation will be the responsibility of the dealer/distributor.
-
Page 5: Table Of Contents
TABLE OF CONTENTS 1..INTRODUCTION................1-1 2..DESCRIPTION.................2-1 Physical Description Unpacking 3..INSTALLATION................3-1 3.1 Recording Instructions 3.2 Physical Installation 3.3 MOH Playback Level 4..SPECIFICATIONS ................4-1 4.1 Recording Cable 4.2 Audio Cable 4.3 Technical Specification MusicTel-60 Installation Manual... -
Page 6: Introduction
INTRODUCTION The MusicTel-60 is a digital music-on-hold player. It is built with absolutely no mechanically moving parts. MusicTel-60 allows 60 seconds of stored music in a non- volatile memory. Recording is performed by connecting the MusicTel-60 to an external audio device. Figure 1-1 MusicTel-60 General View The MusicTel-60 has the following features: •... -
Page 7: Description
DESCRIPTION Physical Description The functional components of the MusicTel-60 are located on its front panel. The LEDs and buttons are located on the top panel. test recording Figure 2-1. MusicTel-60 Top Panel MusicTel-60 Installation Manual... -
Page 8: Unpacking
The package includes the following components: MusicTel-60. Power adapter. Audio cable (Standard RJ-11 cable). Recording cable. Packet, containing 2 screws and 2 wall plugs. If any of these components are damaged or missing, please contact your local Aleen Technologies dealer. MusicTel-60 Installation Manual... -
Page 9: Installation
INSTALLATION The MusicTel-60 is delivered with pre-recorded music. New music can be recorded before mounting the MusicTel-60 on the wall and before connecting it to the PBX. If no new music is to be recorded, proceed with installation as described in Paragraph 3.2. Recording Instructions To record music on the MusicTel-60, a special Recording cable must be used (provided). -
Page 10: Physical Installation
Installation To start recording, press the Play button on the CD player, and the button of the MusicTel-60, simultaneously. The recorded music will be heard through the speaker of the MusicTel-60. To stop the recording, press the button again. test Test the recording by pressing the button on the MusicTel-60. -
Page 11: Moh Playback Level
Installation Note: The Music-Tel 60 should be connected to a special MOH input on the PBX only. MOH Playback Level MOH (Music On Hold) playback level must be tested to ensure it is recorded at adequate levels. To test MOH volume levels: Call the PBX from an external line. -
Page 12: Specifications
SPECIFICATIONS Recording Cable RJ-11 pins 1,2 – Audio In. Connected to the P.L. plug, which connects to the music source device (CD player etc). RJ-11 pin 5,6 – Short-Circuited. The short-circuit is applied at the P.L. end of the recording cable (see Figure 4-1). RJ 11 P.L. -
Page 13: Audio Cable
Specifications Audio Cable RJ-11 (MusicTel-60) pin 3,4 – Audio Out. The audio cable is connected to the MusicTel-60 and to the MOH (Music On Hold) jack in the PBX. RJ 11 RJ 11 (MusicTel-60) (PBX) Figure 4-2. Audio Cable MusicTel-60 Installation Manual... -
Page 14: Technical Specifications
Specifications Technical Specifications Recording Time 60 seconds. DC Power Source (included) Input: 110/220VAC, 50/60Hz. Output: 9VDC / 800mA. Output Impedance 600 , 2Vpp Max. Dimensions 6”x 5.7”x 1.18” (HxWxD) 15.25cm x 14.5cm x 3cm (HxWxD) Weight 1.4lb., 675gr. (boxed). MusicTel-60 Installation and Programming Manual... - Page 15 Aleen Technologies www.aleentech.com...
