3.Changing the cutting head
When the blades in the cutting head are damaged or worn, the
cutting head must be replaced.
Note: Only the entire cutting head can be replaced.
3.1 Remove the end cap of the guide rail from the base plate by
pushing it upwards at the lower end at the same time as pushing
it inwards gently.
3.2 Replace the old cutting head with a new one.
3.3 Slide the guide rail back in the device in the base plate and install the new cutting head in the
process
3.4 Place the end cap from above on to the opening at the end of the guide rail.
Technical Data
Style 260C
Style 340C

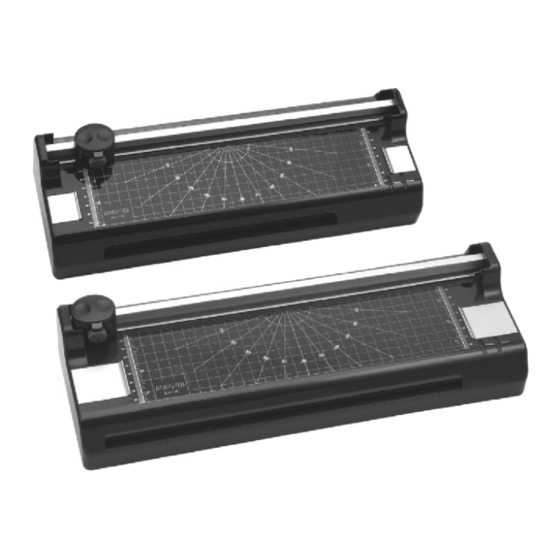

Style 260C / Style 340C
Laminator with Trimmer
Operating Instructions
Advertisement
Summary of Contents for Biosystem Style 260C
-
Page 1: Operating Instructions
3.3 Slide the guide rail back in the device in the base plate and install the new cutting head in the process 3.4 Place the end cap from above on to the opening at the end of the guide rail. Style 260C / Style 340C Technical Data Laminator with Trimmer... - Page 2 Operating Elements 2.3 Insert the document to be laminated in the lamination foil so that there is a margin of approx. 3 - 5 mm to the edge of the foil on all sides. 1.Cutting head 2.4 Guide the laminating foil containing the document to be laminated in the laminator infeed with the 2.Guide rail closed side first.
