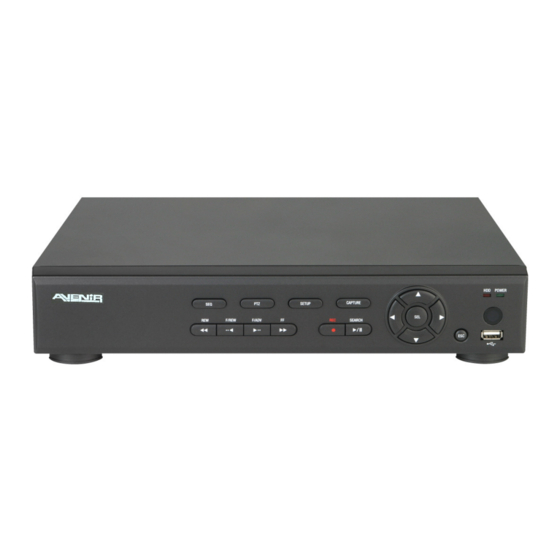

Avenir 4/8CH DVR User Manual

Hd-sdi digital video recorder h.264 video compression
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

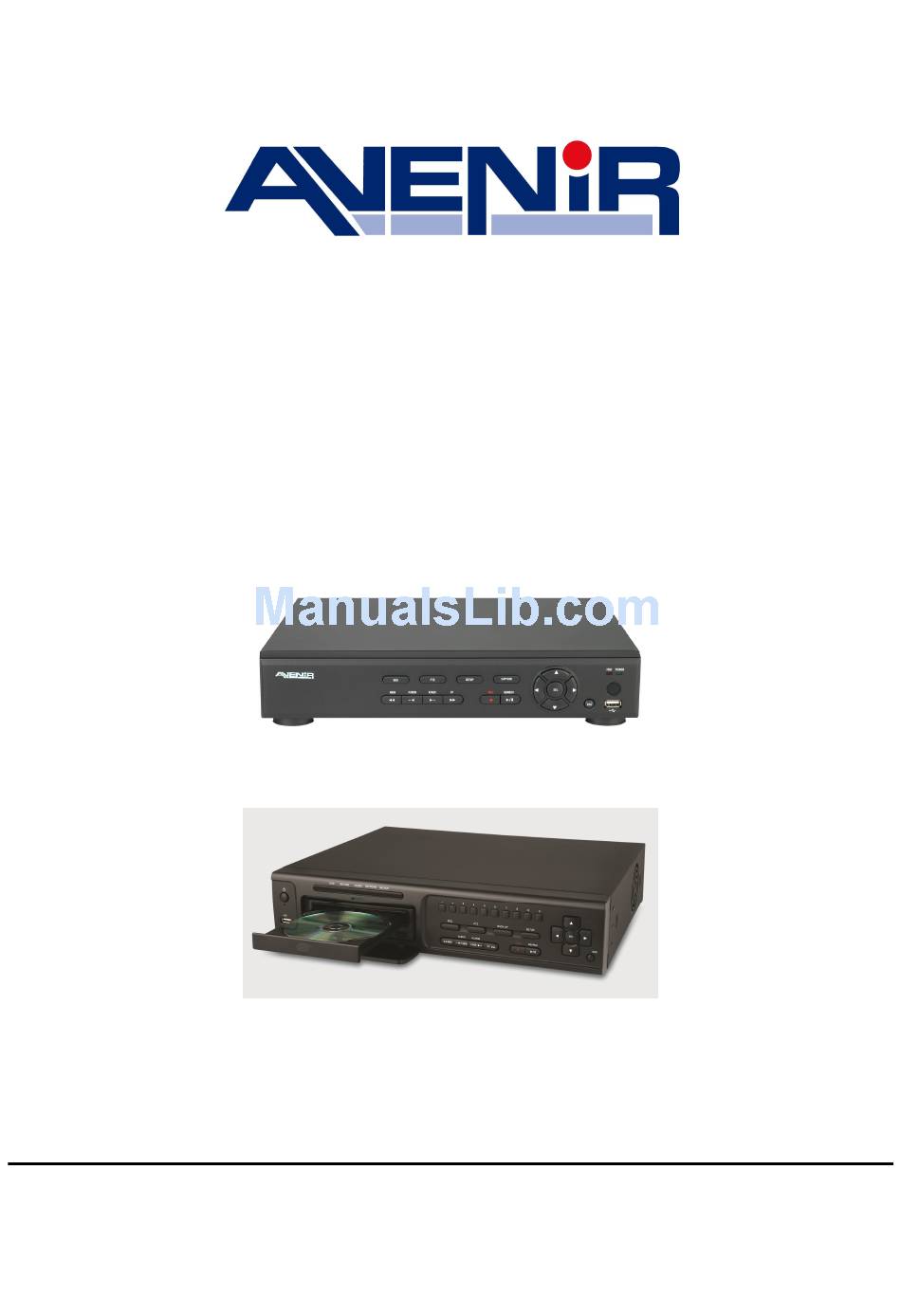

AV- Serisi
HD-SDI Digital Video Recorder
INSTRUCTION MANUAL
H.264 Video Compression
4 Channel
8 & 16 Channel
About this user guide
Before installing and using this unit, please read this user guide carefully.
.
Be sure to keep it handy for later reference

Advertisement

Table of Contents
loading

Summary of Contents for Avenir 4/8CH DVR

  • Page 1 AV- Serisi HD-SDI Digital Video Recorder INSTRUCTION MANUAL H.264 Video Compression 4 Channel 8 & 16 Channel About this user guide Before installing and using this unit, please read this user guide carefully. Be sure to keep it handy for later reference...

  • Page 2: Safety Precautions

    Safety Precautions Explanation of Graphical Symbols This symbol indicates the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product. This symbol indicates the presence of uninsulated ”dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.
  • Page 3 These precautions must be followed for safety reasons. Warning Do not use if the unit emits smoke, strange sounds are heard or odor is emitted. Continued use may cause electrocution and/or fire. Immediately remove the power plug from the outlet. Once the unit stops emitting smoke, consult the dealership where this unit was purchased or factory shop for repairs.
  • Page 4 In the event that a foreign object is inside the unit, turn off and unplug the unit. Consult the dealership where this unit was purchased or factory shop. Continued use may result in fire and/or electrocution. Do not place a container holding water or other liquids above the unit when it is connected to power.
  • Page 5 Doing so may cause the unit to fall, be damaged and/or result in injury. Make sure the cables are connected properly. Connect and install the power cable and connection cable very carefully. Tripping over the cable may result in the unit capsizing or falling and cause injury. Do not place heavy objects on connected units.
  • Page 6 . Areas where the unit will be exposed to constant vibration (in trains, cars, etc.) Cautionary points on condensation Droplets may form on the outside when very cold water is poured into a cup. In the same way, droplets may form around the internal components of his unit. This is called condensation. Do not use this unit if condensation has formed.

  • Page 7: Product Components

    Audio Cable (for screw 16ch) Adaptor(DC 12V 5A) & Power Cable DVDRW (Option) (Power Cable only for 16ch) Items 4/8CH DVR 16CH DVR DVD-RW ver. Basic ver. DVD-RW ver. Basic ver. HDD data power cable HDD mounting bracket 1EA (for 2pcs)
  • Page 8 Mounting HDD (4ch) 1. Before installing, mounting brackets and 2. The mounted HDD(DVDRW) with the screws onto HDD(DVDRW). mounting brackets. 3. Install HDD(DVDRW) with fixing screws onto 4. Install HDD(DVDRW) with fixing screws the inside of the system onto the inside of the system 5.
  • Page 9 Mounting HDD or DVDRW (8 &16 ch) 1. Mount the HDD(DVDRW) into the mounting bracket as specified below. Insert the HDD(DVDRW) bracket and mounting screw as specified below. 3. Connect the HDD SATA and HDD power cable as specified below. NOTE) A system has DATA ports like the above red box.

  • Page 10: Compatible Hdd Models

    Compatible HDD Models Seagate ST32000641AS (Barracuda XT) 2 TB 7200 RPM 64 MB Seagate ST1000DM003 1 TB 7200 RPM 64 MB Seagate ST31000524AS (Barracuda 7200.12) 1 TB 7200 RPM 32 MB Seagate ST31000526SV (Surveillance) 1 TB 7200 RPM 32 MB Seagate ST31000524AS (Barracuda) 1 TB...

  • Page 11: Booting The Dvr And Basic Time Setting

    Storage Estimation Super High Standard Economy Hour(s) Hour(s) Hour(s) Hour(s) Capacity 250GB 23 Hours 1 Days 5 Hours 2 Days 10 Hours 4 Days 20 Hours 500GB 2 Days 2 Days 13 Hours 5 Days 1 Hours 10 Days 2 Hours 4 Days 3 Hours 5 Days 4 Hours 10Days 8 Hours...

  • Page 12: Setting Ntp (Network Time Protocol)

    Go to SETUP>SYSTEM>SET DATE & TIME Select DAYLIGHT SAVING. Setting NTP (Network Time Protocol) 1. When the DVR is connected with internet and the DVR need to be syncronized with NTP (Network Time Protocol), set SETUP>SYSTEM>NTP ON.
  • Page 13 2. Select proper TIME ZONE time. NOTE: If you want the unit to automatically synchronize the local time, the Time Zone must be properly set according to your local Time Zone. Specification ITEM 16ch Channel, 4/8/16CH HD-SDI (1080p25/30, 1080i50/60, 720p25/30/50/60 Input Input Level Auto Detection)
  • Page 14 Multi- Up to x32 Up to x16 Up to x8 channels Capacity of 1 Internal HDD 1 (2: w/o DVDRW) 2 (4: w/o DVDRW) 1 & 2 2 & 2 E-SATA Port & USB Port (Front 1, Rear 1) (Front 1, Rear 1) Storage USB Flash Video &...

  • Page 15: Table Of Contents

    Basic function of the MOUSE Left button: SELECT function Wheel: MOVEMENT function on a drop-down menu Table of Contents Name, Function and Connection ..................17 1-1. Front Panel ........................... 17 1-2. Rear Panel ........................... 20 1-3. Remote control ..........................22 Setting up the DVR ......................
  • Page 16 2-9. Setup - CONFIG Mode ......................... 44 2-10. Quick Setup ..........................45 Saving Setup ........................46 Live, Search, and Playback ....................46 4-1. Live Viewing Screen ........................46 4-2. SEARCH Screen .......................... 48 4-2-1. TIME-LINE Search ........................49 4-2-2. Event Search ..........................50 4-2-3.

  • Page 17: Name, Function And Connection

    9-6-4. OSD ......................... 81 9-6-5. Language ......................82 9-6-6. About ........................ 82 9-7. Remote Setup ..........................83 9-8. Operation ............................. 87 9-8-1. Addition, Delete, and modify of DVR sites ............87 9-8-2. Connect and Disconnect .................. 89 9-8-3. Still-image capture during Live ................. 91 9-8-4.
  • Page 18 During pause - To move the playback position 1 frame backward. F/ADV: During playback - To move the playback position 60 seconds forward. ⑩ During pause - To move the playback position moves 1 frame forward. FF: To fast forward the footage at 1x, 2x, 4x and more speeds during playback. USB PORT: To connect USB Thumb drive to backup data.
  • Page 19 Press to rewind the footage in playback mode. Press to select audio mode such as SINGLE, MIX and MUTE. MUTE- All of 10 channels. SINGLE- Highlighted channel only. MIX- All of 10 channels. Jump/Step backward. In playback mode, the playback position moves 60 seconds backward.

  • Page 20: Rear Panel

    Press to capture video in jpeg format in live or playback mode. ( LEFT) Press to move left or to change the values in Setup mode. ◀ It is also used as the number 4 when entering password. ▲(UP) Press to move up the menu in Setup mode. It is also used as the number 1 when entering password.
  • Page 21 Figure 2.2.1. Rear Panel Table 2.2.1. Rear panel connections Connection Purpose VIDEO IN connectors for video input. HD-SDI 4/8/16 connectors for audio input. AUDIO IN In case of 16ch, an audio cable is needed from ch 5 to ch 16. AUDIO OUT 1 connector for audio output.

  • Page 22: Remote Control

    1-3. Remote control RECORD Manual recording Display of Full, Quad, 9 or 16 split DISPLAY screen F/REW Jump 60 seconds backward PLAY/PAUSE Play/Pause F/ADV Jump 60 seconds forward Rewind Backup still or video data BACKUP Fast Forward ALARM Disable alarm operation SETUP Setup menu screen DVR ID (ID Button + DVR ID number)
  • Page 23 button on the front panel. Then select a user type. User can select one of user types (ADMIN, USER1, ◀ ▲ ▶ ▼ USER2, USER3) using the control button ( ) on the front panel and press SEL button. Input the password by front key panel, mouse or remote controller. Use the Virtual Keyboard when you use front key and mouse.
  • Page 24 Table 2.1.1. Setup menu tree DISPLAY – – SEQUENCE – SEQUENCE-DWELL TIME – CHANNEL NAME COVERT – VIDEO OPTION (HDMI/VGA) RECORD – CHANNEL RECORDING MODE RESOLUTION FRAME RATE QUALITY RECORDING SENSOR RECORDING PRE RECORD POST EVENT RECORD AUDIO SCHEDULE DEVICE –...

  • Page 25: Setup - Display Mode

    – LANGUAGE – DATE FORMAT – SET DATE & TIME – CLIENT ACCESS – – SEND EMAIL SECURITY – USER AUTHENTICATION – USER PASSOWRD – AUTHORITY OF PLAYBACK NETWORK – PORT – NETWORK AUDIO PORT – WEB PORT – NETWORK TYPE (DHCP, STATIC) –...

  • Page 26: Setup - Recording Mode

    Figure 2.2.1. Display mode setup screen Table 2.2.1. Menu items in DISPLAY mode setup Item Description Enable/disable on-screen-display. Select ON: show it on the screen, Select OFF: Disappear on the screen. Enable/disable sequential display of video in full screen mode. SEQUENCE SEQ-DWELL Set the dwell time of each, single channel display in sequential display mode...
  • Page 27 Figure 2.3.1. Recording mode setup screen Table 2.3.1. Menu items in Recording mode setup Menu item Description ◀ ▲ ▶ CHANNEL Select a channel for applying the following settings using the control button ( ▼ ). Press SEL button to change the setting value of all channels at once. Once you select an item, then press SEL to set value for all channels.
  • Page 28 Record Input Resolution Maximum Recording Framerate per ch mode 16ch 720 mode 720/1080 1280x720 12fps 12fps 12fps (1280x720) 640x360 15fps 15fps 15fps 1080 mode 1280x720 10fps 10fps 7fps (1920x1080) 640x360 15fps 15fps 7fps 1080 1920x1080 5fps 5fps 5fps 1920x540 10fps 10fps 7fps 1280x720...

  • Page 29: Recording Schedules

    2-3-1. Recording Schedules To setup a recording schedule, select SCHEDULE in the RECORD menu. Navigate through the items using ◀ ▲ ▶ ▼ the control button ( Once the channel 1 is selected, SCHEDULE-CH1 screen is displayed. Select ALL or each day using the ◀...

  • Page 30: Setup - Device Mode

    The setting of the schedule recording is determined by the admin only. 2-4. Setup – Device Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select DEVICE icon and press SEL button to enter the setup menu item. Navigate through the menu items using ◀...

  • Page 31: Alarm-Out

    SENSOR Select sensor NO from 1 to 4 TYPE Set the type of sensor for the specified channel. Options are: OFF, N/O (normal open), and N/C (normal closed). 2-4-1. ALARM-OUT Figure 2.4.2. ALARM-OUT setup screen Table 2.4.2. Menu item in ALARM-OUT Setup screen Item Description ALARM OUT...

  • Page 32: Motion Zone Setup

    Figure 2.4.3. Controller and PTZ Control Setup Screen Note: For speed dome cameras that support RS-485, connect them directly to the RS-485 port. If the camera is controlled with RS-232C, use an RS-485 to RS-232C signal converter. On the Controller and PTZ control setup screen, you can select or set the protocol type of the camera that is the same as the one installed on the site.

  • Page 33: Setup - Storage Mode

    Figure 2.4.4. Motion Zone selection screen 2-5. Setup – Storage Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select STORAGE icon and press SEL button to enter the setup menu item. Navigate through the menu items ◀...

  • Page 34: Setup - System Mode

    Table 2.5.1. Menu items in STORAGE Setup screen Item Description OVERWRITE When enabled, the DVR will continue recording and overwrite the oldest existing recorded data once the hard drive is full. When disabled, recording will stop once the hard drive is full. You will have an option YES or NO for the hard drive format.
  • Page 35 Figure 2.6.1. SYSTEM Setup Screen Table 2.6.1. Menu items in SYSTEM Setup screen Item Description ◀ ▲ DVR ID Press the SEL button and select DVR ID using the control button ( ▶ ▼ ), and press SEL button. Press OK to apply the selected DVR ID. SPACE / Caps Lock(Select either Capital or Lower letter) BS(Back space: Erase previous character) / Clear(Erase all characters) DESCRIPTION...
  • Page 36 DAY LIGHT SAVING ◀ ▲ Select DAYLIGHT SAVING using the mouse and the control button ( ▶ ▼ ) on the remote control and select the appropriate daylight saving time zone. If choosing EU or OTHERS, set the applicable conditions. The options are: OTHERS 1.
  • Page 37 PRIMARY SNTP SERVER: Input the address of the primary NTP time server. SECONDARY SNTP SERVER: Input the address of the secondary NTP time server. TIME ZONE: Greenwich Mean Time(GMT) is a term originally referring to mean solar time at the Royal Observatory, Greenwich in London.
  • Page 38 TRANSMISSION MODE: Select e-mail attachment format as an image or a video clip of the channel that triggered the alarm when an alarm event is triggered. IP NOTIFICATION: Enable/disable sending e-mail when the IP address of your DVR is changed. MAIL BY SENSOR: Enable/disable sending e-mail reports on the channel that triggered the alarm when a sensor is triggered.

  • Page 39: Setup - Security Mode

    ID: To set the connection user ID for the mail server using a virtual keyboard. (ex.abcd@abcdefg.com) PASSWORD: To set the connection password for the mail server using a virtual keyboard. MAIL TO: Enter the appropriate email address to enable sending e-mail reports using a virtual keyboard.
  • Page 40 USER PASSWORD ADMIN, USER1, USER2, USER3: Options are ADMIN, USER1, USER2 and USER3. ◀ ▲ ▶ ▼ Select USER PASSWORD using control button ( ) and ◀ ▲ ▶ press SEL button. Select user type using the control button ( ▼...

  • Page 41: Setup - Network Mode

    2-8. Setup – Network Mode Press the SETUP button and enter the password. The setup menu is displayed as picture below. Select NETWORK icon and press SEL button to enter the setup menu item. Navigate through the menu items ◀ ▲ ▶ ▼ ◀...

  • Page 42: Port, Network Audio Port And Web Port

    DHCP and STATIC Note. Other parts of the network setup screen change depending on what network type you select. DHCP DVR automatically get IP varying from time to time from network and does not therefore need to be set. STATIC Assigned to an Internet service provider (ISP) to be its permanent address on the Internet.

  • Page 43: Network Types

    2-8-2. Network Types 2-8-2-1. DHCP An IP address is automatically assigned by the DHCP server, which automatically assigns IP address and other parameters to new devices. When ADSL or other network being used adopts variable IP method, not fixed IP. This option is used as a way to automatically get IP address.

  • Page 44: Network Stream

    Figure 2.8.3. Network setup screen – DDNS Server 2 If user wants to use other general-purpose DDNS Server, select a Sever 2. Then, user has to input the server name, ID and password using a virtual keyboard. 2-8-4. NETWORK STREAM User can set the Resolution, the frame rate and the quality for a network stream classified by channel.

  • Page 45: Quick Setup

    Figure 2.9.1. Config setup screen Table 2.9.1. Config setup Item Description SAVE SETUP User can save the current configuration (Setting values) of DVR to the TO A USB USB memory stick. Put the USB stick on the front panel and press SEL to start the saving process.

  • Page 46: Saving Setup

    Figure 2.10.1. Quick Setup Screen The QUICK SETUP has high priority than other setting values on RECORDING and NETWORK menu. The QUICK SETUP also cannot set to classified according to channel. Table 2.10.1. Quick Setup Item Description USE QUICK Select the Checkbox to use the Quick Setup. SETUP When user inputs the DESIRED DAYS to record, the system displays a recommended record mode, resolution, frame rate, quality and recording...
  • Page 47 Figure 4.1.1. Live Viewing Screen Table 4.1.1. Status Indicator Icons in Live Viewing Screen Icon Description Displays the current date and time Remote control ID display. If no remote ID is set the message “ALL” is displayed. Displays the amount of recording on the hard disk from 0-100%. Indicates that HDD is recycled.

  • Page 48: Search Screen

    Indicates that lock activated, this icon will be back to black color when unlock. Audio mute. To set audio mute, press the Audio button on the front panel. Single audio display. To set audio single for highlighted channel only, press the Audio button on the front panel. Indicates that alarm is set.

  • Page 49: Time-Line Search

    4-2-1. TIME-LINE Search The TIME-LINE search window is used to find the stored video by using the time line bar. When it clicks a Timeline menu, user can see a calendar which has recording data. Select a specific date and time. Use a drag-and-drop function of the mouse control. User can select a specific minutes using a button in the above red box.

  • Page 50: Event Search

    4-2-2. Event Search The Event Search window is used to find stored video. Figure 4.2.2. Event Search screen When it clicks an Event menu, user can see a calendar which has recording data. Select a specific date and then user can see all data. Press a PLAY button to playback the data or a SAVE button to save the data at once after selecting a specific data.

  • Page 51: Go To First Time

    4-2-3. Go To First Time You can access from the oldest recorded data on the DVR hard drive by selecting GO TO FIRST TIME on the SEARCH window. Press the PREV to return to the SEARCH window. 4-2-4. Go To Last Time You can access from the last minute recorded data on the DVR hard drive by selecting GO TO LAST TME on the SEARCH window.

  • Page 52: Archive Search

    4-2-6. Archive Search The ARCHIVE Search window is used to find previously stored video or images. Figure 4.2.4. Archive Search Screen When it clicks an Archive menu, user can see a calendar which has recording data. Select a specific date and then user can see all data.

  • Page 53: Play Mode

    press NEXT button. Then user can see all log data. Press SAVE button to save the data and then the data is saved to text file format. 4-3. Play mode During playback of a recorded event, the mode changes from SEARCH to PLAY. While in PLAY mode, you may return to the SEARCH screen by pressing the X button on the status bar or the ESC button of a remote control.

  • Page 54: Ptz Control

    speed is indicated as +1x, +2x and +4x for normal, twice and 4 times of the regular speed at the bottom right of the screen. Press to backup the video. 5. PTZ Control To control the PTZ functions of the camera, select PTZ menu on the screen using the mouse. Select the ◀...

  • Page 55: Back Up

    ▶) Press the right key ( on the control button and set the number (3 digits) to go to the preset number. ▶) TOUR Select the TOUR and press the right key ( on the control button. Then, number input window will appear. Set the number (1 digit) using the number key and press SEL to make the group number work.

  • Page 56: Transferring Still Images Or Video From The Archive List

    Figure 6.1.1. Video Archiving and Backup Screen 6-2. Transferring still images or video from the ARCHIVE list The stored data onto hard drive will be found in the ARCHIVE list in SEARCH window. User can back up still images or video into the storage device from the ARCHIVE list. 1.

  • Page 57: Playback Of Backup Video

    6-3. Playback of Backup Video NSF format: NSF format video can be played back by the player (the HD player) that the DVR copies on USB thumb drive with video. Two folders are copied on USB thumb drive - BACKUP DATA: NSF format video file and INDEX file for a title file of date and time - HD PLAYER: Exclusive video viewer.
  • Page 58 1. Go to Config menu of Setup. 2. You can see the following message when pressing the software upgrade menu after putting the USB memory stick on the system. 3. You can see the following message when pressing the scan button. Please check the current firmware version and the firmware version which you want to upgrade.
  • Page 59 4. You can see the following progressive message when pressing the upgrade button. 5. You can see the following message when finishing the upgrade. After upgrading, the system should be restarted. At that time, the USB memory stick has to be pulled out.
  • Page 60 6. You could see the following warning message if you don’t pull out the USB memory stick. Remote Firmware Upgrade User can upgrade the firmware via Network as follows. 1. Go to the Remote Setup menu on the UMS Multi or Web Viewer.
  • Page 61 2. Press the password for admin. Just admin is possible to connect to the remote setup menu. 3. Go to the Remote Upgrade menu. Then, you can see the current F/W version as follows. To upgrade a new F/W, insert the F/W in your PC and press the UPGRADE button.
  • Page 62 4. Then, you can see the following progress bar and it would be taken around 150 seconds to upgrade.

  • Page 63: Network Access Using The Exclusive Network Viewer, Ums Single

    5. When finishing the upgrade, the network streaming would be connected again automatically and you can see the following screen. Please check the current F/W version if the upgrade is succeeded. 8. Network access using the Exclusive network viewer, UMS single The DVR provides a live remote monitoring feature.

  • Page 64: Live Monitoring Mode And Functions

    2. Select a destination folder and click “Next”. 3. Select the type and click “Next”. 4. Select the program folder and click 5. The setup status screen is displayed. “Next”. After the installation is completed, “UMS Client” icon is displayed on the desktop. 8-3.
  • Page 65 SEARCH Switches the live mode to search mode. DISPLAY MODE Select a channel and screen display mode. PAN/TILT/ZOOM/ FOCUS Control the PAN/TILT/ZOOM/FOCUS features on the remote camera. Capture a still image from live screen. CAPTURE PLAY/PAUSE Play/pause live video. ALARM The ON/OFF button of the alarm output of the DVR.

  • Page 66: Bi Directional Audio

    QUAD/-screen display - Click the QUAD button to switch to quad-screen display Full screen display - Click the maximize button to display only screen and hidden the operation panel. Image capture of live screen Still-image of live screen can be captured and saved as BMP or JPEG file. 1.

  • Page 67: Remote Search Mode And Functions

    8-5. Remote search mode and functions Button Function Description DATE & TIME Displays the recording time of the data selected on the time bar at the bottom of the main user interface. DISCONNECT Disconnect network connection.. LIVE Switches the search mode to live mode. CAPTURE Capture a still image from live screen.
  • Page 68 PLAYBACK The playback buttons. BUTTON DISPLAY MODE Select a channel and screen display mode. Searching and playing video in the remote DVR Video recorded in the remote DVR or Video recorded on the PC can be searched and played back. 1.

  • Page 69: Pc System Configuration

    Backup of video in the remote DVR Video recorded in the remote DVR cab be backed up on the PC HDD as AVI format. 1. Connect the network to the remote DVR and play the video recorded in the remote DVR. 2.
  • Page 70 Setting General Set the Security Option, Save Path, and Miscellaneous. Security Option: Set a password for security options. When you access any of the selected functions, you will need to enter the password. Save Path: Specify the location to record for backup and still image capture. Automatic reconnection: If a user selects this function, the client S/W will automatically try to connect to the previously connected IP address if the network connection is lost.
  • Page 71 LOG – Select to save event log into ‘log file’. ICON – Select to display the event on live video. EVENT LIST – Select to show the event in the ‘Event List” window of live mode. Search and check the recorded log data. Setting Record Set the recording conditions and select channels to record.

  • Page 72: Network Access Using The Exclusive Network Viewer, Ums Multi

    Select the local disk to use and the amount of disk space you want to allow the program to use for recording. 9. Network access using the Exclusive network viewer, UMS multi 9-1. Overview The UMS Multi-Client is a multiple site monitoring client software with; video, audio, and alarm signals from the DVRs over networks.

  • Page 73: Installing The Program

    Disk space Windows 2000, XP Professional, XP Home, Vista (Some versions of Vista has problem in installation. Please contact your vendor for more information.) Network 10/100Base T Others Direct X 8.1 or Higher Before installing the program, check the PC specifications. The DVR remote software may not perform correctly if the PC does not meet the minimum requirements.

  • Page 74: Live Window

    4. The setup status screen is displayed. 5. After the installation is completed, “UMS Multi Client” icon displays on the desktop screen. 9-4. Live Window When installation is completed, double click the “UMS Multi Client” icon on your desktop to start the program.
  • Page 75 THUMBNAIL REFRESH: Click this icon to refresh and renew thumbnail image of every connected site. SITE ADDITION: Click this icon to open ‘Site Addition’ window. SITE DELETE: Click this icon to delete site from the index window, after disconnect a site. NET FINDER: Select the site from the index window and SITE MANAGEMENT click this icon to modify the information of specific site.

  • Page 76: Search And Playback Window

    To select the numbers of DVR/DVRs (1 DVR, 4 DVRs, 9 DVRs, 16 DVRs) on main display screen. DVR SITE SPLIT 9-5. Search and Playback Window 9-5-1. Main user interface You can access to search window by clicking the search icon (Local Playback / Remote Playback) on the upper left of Live Window.
  • Page 77 Directory window shows site/sites that are pre-registered. Click this icon to connect the selected site/sites. CONNECT Click this icon to disconnect the selected site/sites. DISCONNECT Click this icon to setup configuration of UMS MULTI CLIENT. SETUP Click this icon to capture a still image. CAPTURE EVENT LIST Click this icon to set the beginning time for backup of the...

  • Page 78: Setup Of Ums Multi Client

    The calendar shows dates with recorded video in color. To display the recorded data of selected channel or all channels on a time line scale. To change a time line scale from 24 hours to 60 minutes or vise versa. The timeline shows recorded data in color on the bar.

  • Page 79: General

    9-6-1. General 9-6-1-1. Security Option: Set a password for security options. Select security options and set a password. Then when you access any of selected functions, you need to enter the password. You can also set the save path for capturing and backup. 9-6-1-2.

  • Page 80: Record

    9-6-2-2. Archiving Event Log: Event log can be searched from selected time. 9-6-3. Record 9-6-3-1. Record setup: You can set the recording conditions for Always, Event, or Auto record. And you can also select target DVR/DVRs and channel/channels. When you set the recording condition to event, you can set event for motion or alarm with duration.

  • Page 81: Osd

    9-6-3-2. Record local storage setup: You can select the local disk to use and the amount of disk space you want to allow the program to use for recording. You can also select the option to overwrite data or stop recording when the maximum amount of disk space is full.

  • Page 82: Language

    9-6-5. Language You can select a language to be display. 9-6-6. About “About” provides network client version information.

  • Page 83: Remote Setup

    9-7. Remote Setup The menu settings for the DVR unit can be set from a PC, via network. Put the cursor of the mouse on the channel which is connected to the site and press the right. Then the following window is displayed. Select the Remote Setup. Then the setup window is displayed as follows to check the password for admin.
  • Page 84 9-7-1. Display User can set the value on this remote setup page. After setting the value, please press the APPLY button. Then the value would be applied to the system without the system rebooting. RELOAD button is used when user want to bring the value in the system. 9-7-2.
  • Page 85 9-7-3. DEVICE 9-7-4. STORAGE...
  • Page 86 9-7-5. SYSTEM 9-7-6. NETWORK...

  • Page 87: Operation

    9-7-7. UPGRADE Please refer to page 54 for the Remote Upgrade. 9-8. Operation 9-8-1. Addition, Delete, and modify of DVR sites 9-8-1-1. Addition of sites 1. Click SITE ADDITION button. And then the following window displays. o Model: User has to select surely a suitable type. SDVR series, H series DVR N series DVR, HD DVR IP Camera...
  • Page 88 o Site Name: Input a name that properly describes a site. o IP Address: Input IP address (Public IP address of a router that DVR is connected.) or Domain name that is registered at www.okddns.com (for Korea), www.ddnscenter.com (for USA) or www.bestddns.com (for other area including EU) o Port No.: Input port number of DVR.

  • Page 89: Connect And Disconnect

    2. Click NET FINDER button. And then the following window displays. 3. Click MODIFY button. And then the modified information is applied. 9-8-2. Connect and Disconnect 9-8-2-1. Connect 1. Select site/sites to connect from the directory window.
  • Page 90 2. Click CONNECT button, and then site/sites displays/display as connected. 9-8-2-2. Disconnect 1. Select site/sites to disconnect from the directory window. 2. Click DISCONNECT button, and then selected site/sites disconnected.

  • Page 91: Still-Image Capture During Live

    9-8-3. Still-image capture during Live 1. Double-click a channel to capture from the display screen. (Otherwise all channels will be captured.). 2. Click CAPTURE button. And then a Capture window displays. 3. Set Save path, File Name, and File Format. And then click OK button. 4.

  • Page 92: Recording Video On Local Pc During Live

    9-8-4. Recording video on local PC during Live 1. Click SETUP button. And then a setup window display. 2. Select Record and set the values. 3. Select Disk and set the values. 4. Click RECORD ON button. And the color of button is changed.

  • Page 93: Local Playback And Remote Playback

    5. Live video data is recorded as set in Record and Disk setup. These video data can be searched and play-backed with Local Playback. 9-8-5. Local Playback and Remote Playback 9-8-5-1. Playback of recorded video on local PC 1. Click LOCAL PLAYBACK button.
  • Page 94 9-8-5-2. Playback of recorded video on remote DVR 1. Click REMOTE PLAYBACK button. And then Playback Window display over Live Window. 2. Select site to connect from the directory window. 3. Click CONNECT button. And then Green bar displays on Search calendar and slide window. 4.

  • Page 95: Avi Backup During Playback

    9-8-6. AVI Backup during playback You can back up the recorded videos in AVI format during playback. 1. Double-click the target channel to backup. 2. Select the beginning time by using the search calendar and slide bar. 3. Click MARK IN button, when the scale of the timeline is located on the target time as the beginning time of backup.
  • Page 96 6. You can also set the beginning time and ending time on this window. After selecting a channel for backup, click the OK button. The backup will begin. 7. AVI video data is recorded as set in AVI Backup window. AVI format video can be played back by Window Media Player™...

  • Page 97: Network - By An Web-Browser Viewer

    10. Network – By an web-browser viewer The DVR provides a live remote monitoring feature by web-browser viewer. 1. Check the IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS. 2. Input the IP address or Domain name address that you pre-registered on www.bestddns.com on the address field and press “Go”.
  • Page 98 6. Click CONNECT button on the Left upper corner of web-viewer. Then “Connect” dialog is displayed. Enter IP address (or Domain name address that you pre-registered on www.bestddns.com, www.okddns.com or www.ddnscenter.com, Port number and Password and click “Connect” Server address: Input IP address of the DVR from SETUP>SYSTEM>DESCRIPTION>IP ADDRESS or Domain name address that you pre-registered on www.bestddns.com, www.okddns.com or www.ddnscenter.com, Port: Input Port number (The number is set on SETUP>NETWORK>PORT.)
  • Page 99 ID: Input ID of DVR. Password: Input network password of DVR. (The number is set on SETUP>SYSTEM>NETWORK PASSWORD.) 7. Then the cameras connected to the DVR are displayed on the screen. 9. SETUP: The menu settings for the DVR unit can be set from a PC, via network. Refer to the detail of Remote Setup description of UMS Multi Client.

  • Page 100: Appendix: How To Connect Network

    APPENDIX: How to connect network A. How to set IP address of the DVR and open TCP port of the router? The port forwarding is dependent on the brand and model of the router. The port forwarding is required to allow access to the DVR beyond a router.
  • Page 101 4. Enter the user name and password (admin is default) and press the OK button. 5. Select the Port Range Forwarding tab. 6. Enter the each field. Application: Enter a description of the DVR (Example: store1) Start: Enter the first number of the port you need to port forward (Example: 5445) iii.

  • Page 102: How To Access Dvr From Remote Pc

    You can learn how to port forward many kinds of Routers from the bellow site. http://www.portforward.com/english/routers/port_forwarding/routerindex.htm B. How to access DVR from Remote PC? LAN Connection – Using a switching hub Connect to the system, using a hub (Switching hub) and an Ethernet cable (10BASE-T/100BASE-TX CAT 5 LAN cable) 1.
  • Page 103 Internet (ADSL) Connection using DDNS Connect to the system, using an Router or ADSL modem and an Ethernet cable (10BASE-T/100BASE-TX CAT 5 LAN cable) 1. Go to SETUP>NETWORK. Set NETWORK TYPE as DHCP and DDNS SERVER as ON. And select one type among bestddns.com, okddns.com and ddnscenter.com after setting to DDNS1. 2.
  • Page 104 Model: Select one type surely among SDVR series, H DVR series DVR / N series DVR, HD DVR / IP Camera. Site Name: Input the name of the DVR. Site Address: Input the Domain Name that is registered on http://www.bestddns.com. Please log on http://www.okddns.com in Korea and http://www.ddnscenter.com in USA.

  • Page 105: How To Access Dvr With Iphone

    C. How to access DVR with iPhone? 1. Connect to App Store in iPhone and search “iUMS” to the search menu. Then, download the iUMS application. 2. Register your DVR and input the IP address or domain name, ID and password. Then, press Live or Playback mode.

  • Page 106: How To Access Dvr With Android

    D. How to access DVR with Android? 1. Connect to Market in Android and search “iUMS” to the search menu. Then, download the iUMS application. 2. Register your DVR and input the IP address or domain name, ID and password. Then, press the specific channel.
  • Page 107 MESA GÜVENL K MALZ. TH. HR. SAN. VE T C. - MEHMET SAL H KELEŞ ADRES: H.Rıfatpaşa Mah. Darülaceze Cad. Perpa Ticaret Merkezi A Blok Kat.8 No.800/1 Şişli – stanbul - TÜRK YE TEL: 00902122201131- 2229988 Fax: 00902122201201 www.avenir..com.tr www.kamerasepeti.com MALATÇI F RMA: NADATEL CO. LTD.
  • Page 108 Kaşesi MAMÜLÜN C NS : GÜVENL K AMAÇLI KAYIT C HAZI MODEL : AV- SER S MARKASI: AVENIR AZAM TAM R SÜRES : 30 Ş GÜNÜ GARANT SÜRES : 2 ( K ) YIL SATICI F RMANIN ÜNVANI:...
  • Page 109 3- Garanti etiketinin yırtılması veya işaretinin bozulması halinde. NOT: Garanti belgesinin satıcı tarafından eksiksiz olarak doldurulmuş, kaşelenmiş ve imzalanmış olması gerekmektedir. Garanti belgesi ile birlikte cihaza ait fatura veya resmi ödeme makbuzunun ibraz edilmesi gerekmektedir. EEE yönetmeliğine uygundur. Görüntü Teknolojisinde Lider www.avenir.com.tr www.kamerasepeti.com...
