WaterGroup Aquaflo H-PR-10BV-34 Installation And Operating Instructions

Cartridge Selection (For Filter Housing Model # H-PR-10-34,H-10-34, WCT34SS & WVIH34SS)
Cartridge Filter Size 2.5" X 10"
WSW30 or WSW05 or
Select the Cartridge Filter PCP-5-10 RF-10 PC-20-10 SW-10-10 SW-30-10 SW-5-10
for your water needs (Part# 26175) (Part# 26254) (Part# 26008) (Part# 26246) (Part# 26010) (Part# 26011)
Pleated Radial Flow
Cellulose Granular Pleated
Cartridge - Activated Cellulose String Wound String Wound String Wound
Filter Type Polyester Carbon Cartridge Polypropylene Polypropylene Polypropylene
Scale and Rust Particles X X X X X
Coarse Sand X X X X X
Sand/Dirt/Silt X X X X X
Fine Dirt/Silt/Sand X X X
Extra Fine Dirt/Silt/Sand X X
Bad Taste & Odor X
Aethetic Chlorine: Taste & Odor X
Filter Life (in months)* 6 6 6 6 6 6
Micron Rating (Nominal) + 5 20 10 30 5
Service Flow Rate gpm (lpm)** 5 (18.9) 1 (3.7) 5 (18.9) 10 (37) 10 (37) 10 (37)
*NOTE: Filter cartridge life varies depending on usage and water conditions
**NOTE: Flow rates measured at 60psi (4.1 bar)
The smaller the micron rating, the smaller the size particle the cartridge will filter. For comparison purposes, the human hair has a diameter of ap-
proximately 70 microns. Particles smaller than 40 microns are not visible with the human eye
Cartridge Selection (For Filter Housing Model # H-PR-20-34 & H-20-34)
Select the Cartridge Filter PCP-5-20 RF-20 PC-20-20
for your water needs (Part# 26177) (Part# 26253) (Part# 26182)
Pleated Cellulose Radial Flow Granular Pleated Cellulose
Filter Type Cartridge - Polyester Activated Carbon Cartridge
Scale and Rust Particles X X
Coarse Sand X X
Sand/Dirt/Silt X X
Fine Dirt/Silt/Sand X
Extra Fine Dirt/Silt/Sand X
Bad Taste & Odor X
Aethetic Chlorine: Taste & Odor X
Filter Life (in months)* 6 6 6
Micron Rating (Nominal) + 5 20
Service Flow Rate gpm (lpm)** 7 (26) 2 (7.4) 7 (26)
*NOTE: Filter cartridge life varies depending on usage and water conditions
**NOTE: Flow rates measured at 60psi (4.1 bar)
The smaller the micron rating, the smaller the size particle the cartridge will filter. For comparison purposes, the human hair has a diameter of ap-
proximately 70 microns. Particles smaller than 40 microns are not visible with the human eye
Troubleshooting
Leaks between cap and bottom of housing:
1. Turn off water supply and depress pressure-relief button.
2. Clean and lubricate O-ring with silicone grease. Also, clean the groove where the
o-ring seats. Replace o-ring back in groove above threads. Screw bottom of housing
back on cap securely by hand. Do not overtighten.
3. Turn on water supply. If leaks persist, or if there are other leaks on the system, turn
off water supply. Call your dealer.
WC-10 or WT10 or SPB-1-10 Leaks on inlet/outlet connections:
CGAC-10 ICDP-5-10 SPB-5-10 (Part#
1. Turn off water supply. For brass fittings, tighten nut 1/2-turn with wrench.
(Part# 26006) (Part # 26009) (Part# 26222) 26213)
2. Turn on water supply. If leaks persist, or if there are other leaks on system, turn off
Dual Purpose
water supply. Call your dealer.
- Carbon
Granular Acti- Impregenated Spun Poly Spun Poly
Replacement Parts
vated Carbon Cellulose Bonded Bonded
X X X
X X X
Housing # Housing Model #
X X X
26262 H-PR-10BV-34
X X X
26258 H-PR-10BV-1
X X X
26261 H-PR-20BV-34
X X
26259 H-PR-20BV-1
X X
26263 H-PR-20BV-15
6 6 6 6
26264 H-PR-10-34
– 5 5 5
1.5 (5.6) 1.5 (5.6)
26066 WCT34SS
26065 WVIH34SS
26265 H-PR-20-34
SPB-5-20
(Part# 26221)
Spun Poly
Bonded
X
X
X
X
X
SOLD BY:
6
5
2 (7.4)
Replacement Part – WVI34SS
Item # Item Description
1 & 2 26057 Clear Sump C/W O-Ring
2 26055 O-Ring, Sump
4 3 26056 Wrench
4 26059 O-ring Cap,Side
2
3
WARNING: Do not use with water that is micro-
1 biologically unsafe or of unknown quality without
adequate disinfection before or after the system.
CAUTION: The filters must be protected from freez-
ing. Failure to do so may result in the cracking of
the filter and water leakage.
1 2 3
O-Ring, Bracket with Sump
Sump Wrench Hardware + O-ring
92512 92509 92514 -
1
92512 92509 92514 -
1
2
92512 92509 92514 -
92512 92509 92514 -
92512 92509 92514 -
92513 92508 92515 -
3
92060 26007 26023 26049
92060 26007 92516 26049
92513 92508 92515 -
2
Limited Warranty
This warranty is valid for twelve months from the date of purchase as verified by a bill of sale.
If this product is found to be defective in the judgment of the manufacturer, a replacement or
equivalent replacement product will be provided at no charge. The manufacturer assumes no
responsibility for consequential damage, labor or expense incurred as a result of a defect or
for failure to meet the terms of this warranty because of circumstances beyond its control.
Retain this document for your records along with your proof of purchase.
Date Installed:_________________
WaterGroup Companies Inc.
Regina, SK; Cambridge, ON; Fridlley, MN
www.watergroup.com

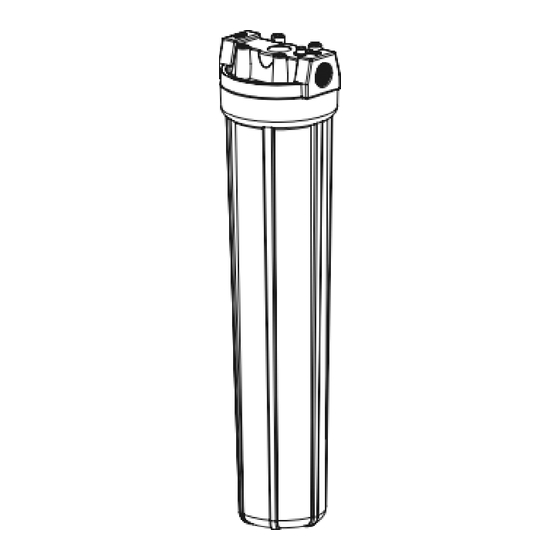

Aquaflo Filter Housing
InStALLAtIOn AnD OperAtIng InStructIOnS
Model# H-PR-10BV-34, H-PR-10BV-1,
H-PR-20BV-34, H-PR-20BV-1, H-PR-20BV-15,
H-PR-10-34, WCT34SS, WVIH34SS, H-PR-20-34
NOTE: This filter housing does NOT include a filter cartridge.
Choose the appropriate filter cartridge for your needs and install in hous-
ing according to the Cartridge Replacement instructions before proceed-
ing with installation. See cartridge selection chart.
Specification
Pressure Range 30–100 psi (2.1–6.9 bar)
Temperature Range: 40–100°F (4.4–37.7°C)
Housing Material Polypropylene (blue) & AS (clear)
3
Housing O-Ring Material EPDM
Parts Included
• filter housing
• housing wrench
• bracket with mounting hardware
Filter Housing Specifications (Table 1)
Housing # Housing Model # Filter Size
26262 H-PR-10BV-34 4.5" X 10"
26258 H-PR-10BV-1 4.5"X10"
26261 H-PR-20BV-34 4.5"X20"
26259 H-PR-20BV-1 4.5"X20"
26263 H-PR-20BV-15 4.5"X20"
26264 H-PR-10-34 2.5"X10"
26066 WCT34SS 2.5" x 10"
26065 WVIH34SS 2.5" x 10"
26265 H-PR-20-34 2.5" x 20"
54997.0312
Tools Required
• 2 adjustable wrenches • file • pipe threader
• 2 pipe wrenches • pencil • pipe cutter or hacksaw
Materials Required (not included)
Depends on type, size, and location of pipe on which filter will be
installed. Measure the pipe to determine what size nipples, union,
and valve you will need. Depending on the pipe size, you will also
need to purchase the appropriate size fittings. Consult your local
hardware store to learn more about your particular installation needs.
NOTE: Galvanized fittings must be used with galvanized pipe.
Optional Materials
• jumper wire
Inlet/Outlet Dimension Dimension
Size (Inches) (inches) A (inches) B
3/4" 7.25" 14" A
A
1" 7.25" 14"
3/4" 7.25" 24"
1" 7.25" 24"
1.5" 7.25" 24"
B B
3/4" 5.25" 12.25"
3/4" 5.25" 12.25"
3/4" 5" 13.5"
3/4" 5.25" 22.5"
