XVST MAGIC 04 User Manual

Digital video recorder
Hide thumbs
Table of Contents

Advertisement

Quick Links

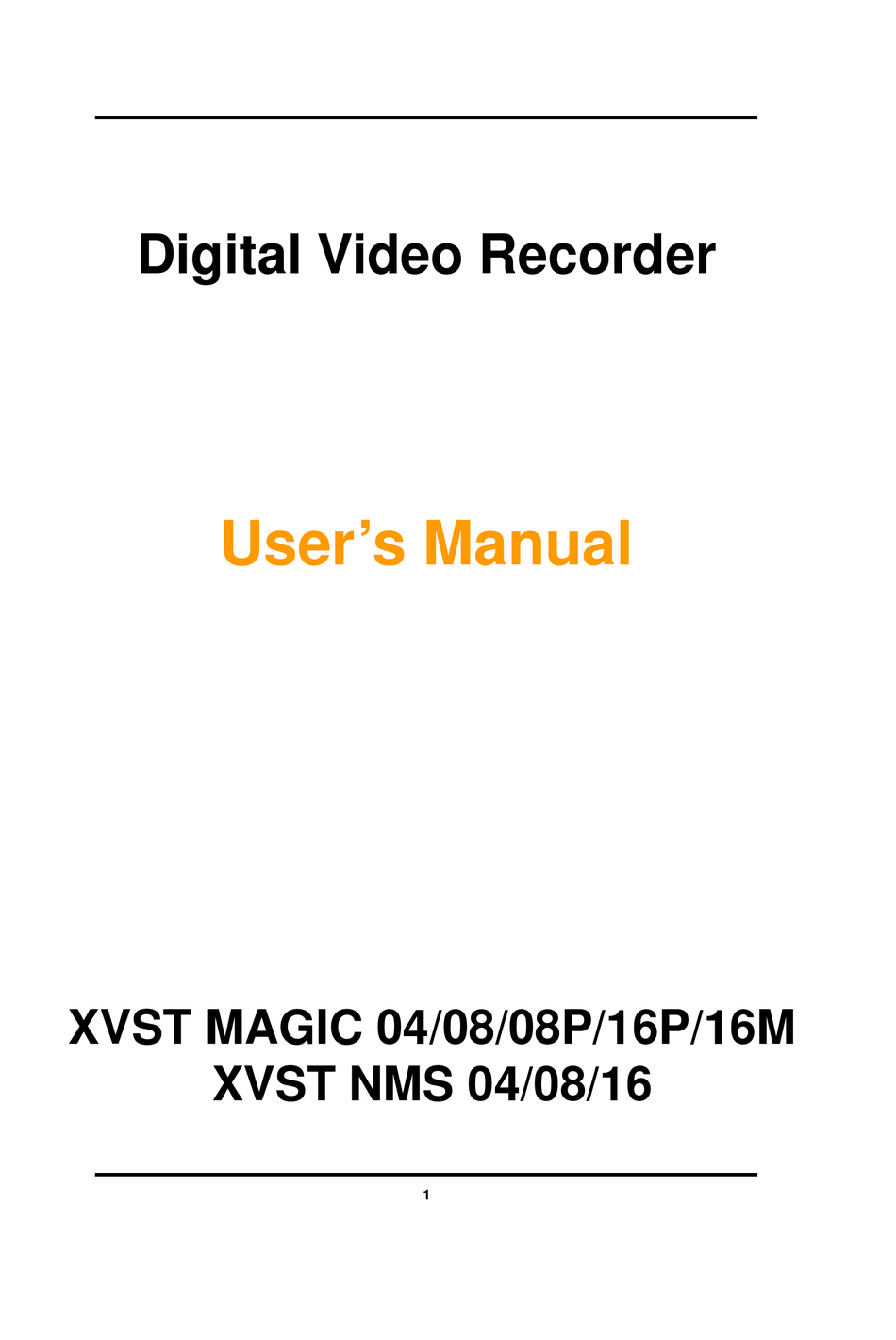

Digital Video Recorder
User s Manual
User's Manual
XVST MAGIC 04/08/08P/16P/16M
XVST NMS 04/08/16
XVST NMS 04/08/16
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XVST MAGIC 04 and is the answer not in the manual?

Questions and answers

Summary of Contents for XVST XVST MAGIC 04

  • Page 1 Digital Video Recorder User’s Manual User s Manual XVST MAGIC 04/08/08P/16P/16M XVST NMS 04/08/16 XVST NMS 04/08/16...
  • Page 2 Thank you for using our product. 1. This is user's manual for H.264 HD DVR (Digital Video Recorder). 2. This manual contains product specification and introduction, installation guide, operating guide and other necessary matters for easy understanding. Users should read this user's manual carefully for proper use. 3.

  • Page 3: Table Of Contents

    CONTENTS Contents CH 1. Product Introduction` 1-1. Product Contents 1-2. Specifications 1-3. Product Characteristics 1-4. Name of Each Part 1 4. Name of Each Part CH 2. Installation Guide and Cautions 2-1. Cautions 2-2. Product Installation 2-2-1. Power Connection 2-2-2. Connecting External Device CH 3.
  • Page 4 CONTENTS Contents Trouble Shooting Warranty Appendix A Appendix A CMS(Client Management Software) CMS(Client Management Software) Appendix B Catcheye for Android mobile Appendix C Catcheye for iPhone Appendix D How to Connect xbox1...

  • Page 5: Ch1. Product Introduction

    CH 1 Product Introduction CH1. Product Introduction 1-1. Product Contents(MAGIC 04/08, NMS 04/08) After removing packing materials of this product, check whether all following contents are included. Main Body (DVR): This converts the analog video and audio signal to the digital signal and saves on HDD. Adapter: Thi 12V d t This 12V adapter supplies power to the product.
  • Page 6 CH 1 Product Introduction 1-1. Product Contents(MAGIC 08P/16P/16M, NMS 16) After removing packing materials of this product, check whether all following contents are included. Main Body (DVR): This converts the analog video and audio signal to the digital signal and saves on HDD. Adapter: Thi 12V d t This 12V adapter supplies power to the product.

  • Page 7: Specifications

    CH 1 Product Introduction 1-2. Specifications(MAGIC) MAGIC Series Model MAGIC 4 MAGIC 8 MAGIC 8P MAGIC 16P MAGIC 16M Compact case 19” rack type Camera input 4 BNC 8 BNC 8 BNC 16 BNC 16 BNC Individual HD/Analog sel All Hybrid(Patent) ectable Video Available source...
  • Page 8 CH 1 Product Introduction 1-2. Specifications(MAGIC,continued) MAGIC Series Model MAGIC 4 MAGIC 8 MAGIC 8P MAGIC 16P MAGIC 16M Compact case 19” rack type Network Interface Gigabit Ethernet Speed 15fps@1080p 60fps@1080p 120fps@1080p Protocol TCP/IP, HTTP, DHCP Network Application Windows 2000 / XP / Vista / 7 / 8 (PC Client system& IE)/MAC Web Browser Internet Explorer, Safari, FireFox, Chrome Smart phone App...
  • Page 9 CH 1 Product Introduction 1-2. Specifications(NMS) Model NMS 4 NMS 8 NMS 16R Compact case 19” rack type Camera input 4 BNC 8 BNC 16 BNC Individual HD/Analog sel HD-SDI only ectable Video Available source 720p25,30,50,60/1080p25,30,50,60/1080i50,60/960H/Mixed Output 1 HDMI+1 VGA (simultaneously) / 1 Programmable SPOT with OSD Audio input 4 RCA 16 RCA...
  • Page 10 CH 1 Product Introduction 1-2. Specifications(NMS, continued) Model NMS 4 NMS 8 NMS 16R Compact case 19” rack type Network Interface Gigabit Ethernet Speed 15fps@1080p 60fps@1080p 120fps@1080p Protocol TCP/IP, HTTP, DHCP Network Application Windows 2000 / XP / Vista / 7 / 8 (PC Client system& IE)/MAC Web Browser Internet Explorer, Safari, FireFox, Chrome Smart phone App...

  • Page 11: Product Characteristics

    CH 1 Product Introduction 1-3. Product Characteristics 1) Full HD real time and All Hybrid (Hybrid is MAGIC series only) This DVR can record HD and Full HD video with extreme quality. Also it displays real HD(1920X1080) resolution, and therefore it provides the most clear image quality and the best security level.
  • Page 12 CH 1 Product Introduction 11) Display information in easy-to-understand information method This enhanced convenience of user by displaying information (date, time, recording b di l i (d t ti method, recording frame number, HDD capacity and others) in monitoring, recording and playing mode in easy-to-understand way.

  • Page 13: Name Of Each Part 1 4. Name Of Each Part

    CH 1 Product Introduction 1-4. Name of Each Part [Front Panel] <MAGIC 04/08, NMS 04/08> 3. STATUS RAMPS 1. IR WINDOW 2. USB 1. IR Window : the window for remote controller 2. USB ports : These USB ports are for mouse and USB devices. You should connect correctly the USB devices and mouse as picture directed.
  • Page 14 CH 1 Product Introduction [Front Panel] <MAGIC 08P/16P/16M, NMS 16> 2. Enter & Arrow Keys 1. Playback Buttons 3. Number Buttons 6. Jog Shuttle 4. Backup Device 5. IR Window 7. Status Ramps 8. USB 9. Function Keys 1. Playback buttons : It will be used on playback. If you press these buttons in live mode, it will be automatically changed to the Instant Play mode.
  • Page 15 CH 1 Product Introduction 6) ZOOM : It will go to the digital zoom directly. 7) PTZ : It will change to the pan, tilt and zoom control mode from the live mode. 8) LOCK/EXIT : If you want move to the upper menu or exit without saving, press 8) LOCK/EXIT : If you want move to the upper menu or exit without saving, press this button.
  • Page 16 CH 1 Product Introduction [Rear Panel] <MAGIC 08, NMS 08> 9.SENSOR IN 10. AUDIO IN 11.AUDIO 8.RELAY 7.RS485 3. LAN 12.HDMI 4.SPOT 5. VGA 1.FAN 13.Xbox 6. POWER 2.VIDEO IN Extender (option) 1. Cooling Fan 2. Video In: This receives images from analog/960H/SDI cameras. 3.
  • Page 17 CH 1 Product Introduction [Rear Panel] <MAGIC 08P> <MAGIC 08P> 2.Audio Out 14.Spot Out 12. Sensor, Alarm, RS485 13. Extend 3. Switch 4.Adapter 5. RS232C 7. LAN 6. e-SATA 9. Audio In 1.Video In 10.HD Out 8. USB 11. VGA 1.
  • Page 18 CH 1 Product Introduction [Rear Panel] <MAGIC 16P/16M NMS 16> <MAGIC 16P/16M, NMS 16> 2.Audio Out 14.Spot Out 12. Sensor, Alarm, RS485 13. Extend 3. Switch 4.Adapter 5. RS232C 7. LAN 6. e-SATA 9. Audio In 1.Video In 10.HD Out 8.

  • Page 19: Cautions

    CH 2 Installation Method and Cautions CH2. Installation Method and Cautions 2-1. Cautions WARNING Risk of electric shock. Do not open the cover of the product. Servicing of this product by unauthorized personnel is prohibited and will result in a void of warranty. In order to ensure the most stable conditions for power, the use of a UPS (Uninterrupted Power Supply) is recommended.
  • Page 20 CH 2 Installation Method and Cautions - Keep the power cord untwisted. (May cause fire or electric shock.) - Use proper adapter. (Using too much electric power may cause fire or electric shock.) - Do not install it at where exposed to rain and wind and water drop. (May cause fire, electric shock and transformation.) - Keep away from fire.
  • Page 21 CH 2 Installation Method and Cautions Note : This equipment has been tested and found to comply with the limits for a Class A digital device pursuant to part 15 of the FCC Rules These limits are designed to digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.

  • Page 22: Product Installation

    CH 2 Installation Method and Cautions 2-2 Product Installation This product may be composed of camera and monitor in default, and additionally i d f lt d dditi the sensor, microphone, speaker and PC for network can be connected if necessary. 2-2-1.
  • Page 23 CH 2 Installation Method and Cautions Read this notice before connecting HD-SDI cameras. You cannot mix NTSC and PAL cameras with DVR products. t i NTSC d PAL ith DVR 1. Please check the type(NTSC or PAL) of cameras. NTSC : 30fps, 60fps PAL : 25fps, 50fps •...
  • Page 24 CH 2 Installation Method and Cautions 2) How to connect external sensor Sensor terminal is composed of 1 input channel and 1 output channel. Sensor out terminal is relay output with 1A 24V or 0 5A 125V terminal is relay output with 1A, 24V or 0.5A,125V. SIREN SENSOR POWER...
  • Page 25 CH 2 Installation Method and Cautions 4) Connection Using PTZ camera In case of using pan and tilt cameras, connect PAN/TILT DRIVE to product as shown at following figure. t f ll VIDEO CABLE SPEED RS485 CABLE DOME 5) Installing Hard disk drive In case of installing the hard disk drive open the upper case and install the hard disk In case of installing the hard disk drive, open the upper case and install the hard disk drive on the hard bracket.

  • Page 26: Ch3. How To Use

    CH 3 How to Use CH3. How to Use 3-1. General Usage Information The MAGIC series and NMS DVR can be operated with a mouse or remote controller under the four main modes listed below: Live Mode – This is the “main or default” mode. From this mode you can view in real time all currently operating cameras, information regarding camera status, and have access to Pan/Tilt camera controls.

  • Page 27: Live Mode

    CH 3 How to Use 3-2. LIVE Mode I hi In this section you will know how to split the video mode into 1, 4, 6, 8, 9, 12, 16, as ill k li h 1 4 6 8 9 12 16 well as auto sequencing, PTZ Control, Mouse control, Setup configurations, Backup 3-2-1.
  • Page 28 CH 3 How to Use Date Time Screen Split mode change Sequence activation Hard drive usage Lock/ Unlock indicator Scheduler activation indicator Network connection indicator Audio out channel indicator 3) Live Popup Menu By Right-Clicking anywhere on Live Screen, you may view the Live Popup Menu. By using the Live Popup Menu, you can quickly jump to the necessary configuration and settings.

  • Page 29: Live Mode Feature F

    CH 3 How to Use 3-2-2. LIVE Mode Feature 1) Setup : refer to 3-4 2) Split Change video split mode for Live View. 3) Audio Out You can choose the audio out from this menu. 4) Instant Replay This is very convenient function to catch the abrupt accident. During live viewing, you can go directly to the playback screen.
  • Page 30 CH 3 How to Use 6) Backup There are two ways to enter the backup. The first one is that right click on the live t th b k Th fi t i th t i ht li k th li screen, and the second one is that enter directly from ‘Search’...
  • Page 31 CH 3 How to Use 7) Snapshot You can save the live snapshot by this menu. All channel will be saved individually to the USB memory by JPG format . You should put in USB memory before saving. 8) PTZ (Pan, Tilt and Zoom) It is possible to control the pan and tilt camera by itself.
  • Page 32 CH 3 How to Use • Preset : You can enter the preset number using the keypad appearing the preset button or ‘Enter’ button on the remote controller. Run[Enter] Move to preset number Set[Menu] Set a position and name of a preset number Clear[Stop] Clear a preset set Exit[Exit]...
  • Page 33 CH 3 How to Use • [Menu] : Set the preset mode from the menu at the bottom of the screen. You can set PTZ speeds, preset dwell time, name and tour of 32 presets. Pan Speed Set pan speed 1~7 Tilt Speed Set tilt speed 1~7 Preset dwell time...
  • Page 34 CH 3 How to Use 9) Zoom Digital zoom of live screen for selected channel. It can be 8x zoom and also control the position by mouse dragging the position by mouse dragging. CH 1 (x2) 10) Sequence Sequence Mode On /Off: Switches screens as set on Dwell time under Screen Setup 11) OSD 11) OSD This feature shows current settings of product through GUI (Graphic User...

  • Page 35: Search Mode

    CH 3 How to Use 3-3. Search Mode Search mode consists of two different modes of searching. The video data can be selected by 5 modes. Time : Search by Month / Day / Time selection. Event : Select from Event Log POS : Search by POS transaction data Thumbnail : Play the specific channel by user defined interval Panorama : Play the specific channel continuously...
  • Page 36 CH 3 How to Use 2) Event Based Search Selection • Select search date from calendar • Event log will be displayed according to the chosen date • Preview pane above the Event Log will show preview of currently selected video 3) POS Search •...
  • Page 37 CH 3 How to Use 4) Thumbnail Search • Select search date from calendar • Choose the channel and interval, then select the time from bar or typing • The selected channel will be played individually by interval time difference 5) Panorama Search •...
  • Page 38 CH 3 How to Use 6) Search Related buttons • You may click on Refresh, Option, Backup, Import, Exit , Full Screen for additional features and options Reload all data list. Search option. Backup recorded data to external USB device. Playback recorded data from external USB device.

  • Page 39: Play Mode

    CH 3 How to Use 3-3-2. Play Mode If you choose ‘Full Screen’, the full screen appear. You can control the play speed in here. ▶ Play Screen GUI 1. Split Screen 2. Sequence 3. FB (Fast Backward): FB×2, 4, 8, 16, 32, 64 times faster 4.

  • Page 40: Setup Mode

    CH 3 How to Use 3-4. SETUP Mode Access Setup menu from Right Clicking mouse button to Popup Menu. Ri ht Cli ki b tt Configure Display, Record, Device, Network, System which is navigated by clicking on corresponding tab menu at the top of the screen. Apply Apply changes Default...
  • Page 41 CH 3 How to Use 2) Display • You can use dual monitors that show same image by setting VGA+HDMI. • Configure and view Resolution, Sequence Dwell Time and Display control settings. 1280x720(60Hz), 1280x720(50Hz), Resolution 1280x1024(60Hz),1920x1080(60Hz), 1920x1080(50Hz) Device VGA+HDMI, VGA, HDMI Sequence dwell time 1 sec ~ 60 sec Brightness...
  • Page 42 CH 3 How to Use 3) HD Spot • If you are not using VGA+HDMI for display you can use HD Spot • If you are not using VGA+HDMI for display, you can use HD Spot. 1280x720(60Hz), 1280x720(50Hz), Resolution 1280x1024(60Hz),1920x1080(60Hz), 1920x1080(50Hz) Device VGA, HDMI, None...
  • Page 43 CH 3 How to Use 4) SPOT Control • Set the SPOT output • Set the SPOT output . CVBS Choose NTSC or PAL Mode 1, 4, 9, 16 Screen Sequence dwell time 1 ~ 60 sec S it hi Switching You can program the sequence time.
  • Page 44 CH 3 How to Use 5) Analog Color • Adjust color of analog cameras • Adjust color of analog cameras. Brightness Adjust brightness Contrast Adjust contrast Saturation Adjust saturation Adj t h Adjust hue Default Return to factory default settings. Apply All Apply changes to all channels.

  • Page 45: Record

    CH 3 How to Use 3-4-2. Record Configure and view Event In, Record, Group, Holiday settings 1) Record Rec type None, Conti, Event, C/E Audio Rec To select audio recording or not. ALL Apply Apply the setting to whole channel. Resolution 1920x1080, 1280x720, 960x540 Continuous...
  • Page 46 CH 3 How to Use Event recording has priority in recording In C/E recording the recording will Event recording has priority in recording. In C/E recording, the recording will follow conti recording setup in normal condition while it would follow event recording setup in event generation.
  • Page 47 CH 3 How to Use 3) Schedule • In recording, Schedule recording setting is most preferred. So if you activate the weekly scheduler, you cannot record manually. • Schedule On : The weekly scheduler is activated. • Holiday On : The holiday that set by user is activated. •...
  • Page 48 CH 3 How to Use 4) Holiday With this menu you can add the holidays Use the ‘Add’ button for adding the With this menu, you can add the holidays. Use the ‘Add’ button for adding the holiday and use the ‘Delete’ or ‘Delete All’ buttons for removing the existing holidays.
  • Page 49 CH 3 How to Use 5) Event In • With this menu, you can set sensor input, motion detection setup. You can also set each channel individually. • Although you set Motion Detection and Sensor Setting to On in Event menu, if Event Input in Rec Menu is set to None, it only detects and does not record.

  • Page 50: Device

    CH 3 How to Use 3-4-3. Device • Configure and view Camera, Private Zone, Audio, Motion Detection, Alarm Out, PTZ settings and Controller. 1) Camera Signal type All video input is detected automatically/ Detected Detected camera video type You can set the camera name You can set the camera name.
  • Page 51 CH 3 How to Use 2) Private Zone If you want to hide some part of the picture for privacy you can choose the area by If you want to hide some part of the picture for privacy, you can choose the area by dragging the mouse.
  • Page 52 CH 3 How to Use 3) Audio MAGIC 04/08 Audio 1~4 NMS 04/08 MAGIC 08P Audio 1~8 Assign audio input to a video channel. MAGIC 16P/16M Audio 1~16 NMS 16 Select which channel will be heard during All Series All Series Audio Out Audio Out Live View.
  • Page 53 CH 3 How to Use 4) Motion Detection • Change settings for Motion Grid selection and Sensitivity Level You can set • Change settings for Motion Grid selection and Sensitivity Level. You can set multiple area. Sensitivity Low, Mid, High This will activate the motion detection of the all area This will activate the motion detection of the all area.
  • Page 54 CH 3 How to Use 5) Alarm Out • There are 4 types trigger such as sensor input, motion detection, POS and video There are 4 types trigger such as sensor input, motion detection, POS and video loss. This setting is related that which trigger will be activate the action such as Relay, Popup, and Buzzer Alarm Out.
  • Page 55 CH 3 How to Use 5-2) Sensor In • You can choose the action after sensor in between relay, buzzer sound, pop up, You can choose the action after sensor in between relay, buzzer sound, pop up, spot pop up and HD spot pop up. Also you can choose more than one action. •...
  • Page 56 CH 3 How to Use 5-3) Motion Detection • You can choose the action after motion detection between relay, buzzer sound, You can choose the action after motion detection between relay, buzzer sound, pop up, spot pop up, and HD spot pop up. •...
  • Page 57 CH 3 How to Use 5-4) POS • You can choose the action after POS transaction or video loss between relay, You can choose the action after POS transaction or video loss between relay, buzzer sound, pop up, spot pop up and HD spot pop up. •...
  • Page 58 CH 3 How to Use 5-5) Video Loss • You can choose the action after motion detection between relay, buzzer sound, You can choose the action after motion detection between relay, buzzer sound, pop up, spot pop up, and HD spot pop up. •...
  • Page 59 CH 3 How to Use 5-6) Duration • You can choose the duration time from 5 to 60 seconds after motion detection You can choose the duration time from 5 to 60 seconds after motion detection between relay, buzzer sound, pop up, spot pop up, HD spot pop up, and preset.
  • Page 60 CH 3 How to Use 6) PTZ Configure Pan/Tilt/Zoom camera for control via DVR System and Remote client. Driver Choose Driver to be suitable for PAN/TILT Camera manufacturer. Address Choose address to be suitable for PAN/TILT Camera manufacturer. Baudrate Choose baudrate to be suitable for PAN/TILT Camera manufacturer. •...
  • Page 61 CH 3 How to Use There are more kinds of camera which can be supported. Please contact the tech support to want to know the other cameras. Driver Baudrate PELCO D type 2400~9600 PELCO P type 2400 PANASONIC 2400~19200 ORIENTAL 2400(Fixed) LPT-A100L 9600(Fixed)
  • Page 62 CH 3 How to Use 7) Controller This sets the ID of remote control. If you have many DVRs in the same place, you can control separately the DVR by different remote control ID can control separately the DVR by different remote control ID. Remote controller ID setup Use the ID setup and number key to set the ID of remote control on the remote controller.
  • Page 63 CH 3 How to Use 8) POS This sets the POS interface(text inserter) with the DVR and cash register. ※ If you are using a USB hub, you can use up to 4 USB POS. ※ MAGIC 8P/16P/16M and NMS 16 have a 1 serial port. Channel Select a Channel of POS Baudrate...
  • Page 64 CH 3 How to Use How to Connect POS 1. Connect the USB between POS and DVR. *POS *POS *DVR *DVR 2. To set manually, at first you should know the setting values of the POS. You can get the information from the POS setting screen. 3.

  • Page 65: Network

    CH 3 How to Use 3-4-4. NETWORK Configure and view Address, Port, DDNS, E-mail, Control and Status settings. 1) Address Configure Network information for Remote client connection. DVR Name Type the URL of DVR using virtual keyboard. Type It can be supported only Ethernet. Set whether you want to use DHCP or not (On/Off).
  • Page 66 CH 3 How to Use 2) Port There are 4 kinds of ports for the case such as watch search setup and web You can There are 4 kinds of ports for the case such as watch, search, setup and web. You can individually set the port number of the DVR.
  • Page 67 CH 3 How to Use 3) DDNS This is the function to automatically change the IP of DVR to URL. This product supports the automatic DDNS service using manufacture’s internal server. Also you can choose Dyndns. If you choose 3R DDNS, the domain name is http://xxxxxx.3-global.com.
  • Page 68 CH 3 How to Use 4) E-mail You can send the event with snapshot by email. Fill all the information correctly and push the ‘Email Test’. Also you can select each event individually by ‘Event Set’. Receiptor Type the email address of the receiptor. Sender Type the name of the sender.
  • Page 69 CH 3 How to Use Event Set Set events to send the email. Sensor Detect a sensor input. Motion Motion Detect a motion detection. Detect a motion detection. Video Loss Detect a video loss. Send inserted text of POS to the email. S.M.A.R.T.
  • Page 70 CH 3 How to Use 5) Control CMS will use the ‘High resolution’ setting in the case of full screen or quad screen, and will use the ‘Low resolution’ setting in the case of more than 4 split You can and will use the Low resolution setting in the case of more than 4 split.
  • Page 71 CH 3 How to Use 6) Status This shows the information how many connections and what is the action of each This shows the information how many connections and what is the action of each connection. MAC Address This displays MAC address of DVR. Connected IP This displays all the connected IP.

  • Page 72: System

    CH 3 How to Use 3-4-5. SYSTEM Configure and view system Date/Time, User Authority, Storage, System Log and Configure and view system Date/Time, User Authority, Storage, System Log and Configuration settings 1) Date/Time Choose the time zone of your site. If you using the NTP Timezone function, it must be set correctly to your zone.
  • Page 73 CH 3 How to Use 2) User Authority This sets User authority individually You can give to each users the authorities such This sets User authority individually. You can give to each users the authorities such as setup, search, backup, PTZ, network and camera control. Type an ID.
  • Page 74 CH 3 How to Use 3) Storage Display the information and usage of the hard disk drives. MAGIC 04/08 NMS 04/08 MAGIC 04/08, NMS 04/08 You can install 2 Hard disk drives You can install 2 Hard disk drives. MAGIC 08P/16P/16M, NMS 16 You can install 4 Hard disk drives and 1 eSATA Display all the HDD usage being used for the product.
  • Page 75 CH 3 How to Use 4) S.M.A.R.T :Self-Monitoring Analysis and Reporting Technology This function lets you probe the hard disk drives and investigate the status of the drivers automatically automatically. S.M.A.R.T. S.M.A.R.T. On Set whether you want to use S.M.A.R.T. or not (On/Off). Determine the date to perform the S.M.A.R.T.
  • Page 76 CH 3 How to Use 5) System Log You may view all System administration log from Setup System System Log. Also you can export the system log and easily send it to technical support for trouble shooting. Refresh Refresh the system log. Export Export the system log.
  • Page 77 CH 3 How to Use 6) Configuration Shown at the following screen from Setup Shown at the following screen, from Setup System System Firmware you may view Firmware, you may view the current firmware version as well as Upgrade the firmware and additionally, Export, Import, and Default DVR Configuration.

  • Page 78: Firmware Upgrade

    CH 3 How to Use 3-5. Firmware Upgrade If you want to upgrade, please follow that; f ll th t 1. Download the latest firmware to USB memory root directory. 2. Put this memory to USB slot. 3. Choose ‘Upgrade’ button in MENU->SYSTEM->Configuration. 4.
  • Page 79 CH 3 How to Use If you choose OK, you can see the below download window on the DVR screen. ☞ WARNING!!! Do not turn off the power during download procedure. If you power ff h off manually, all memory will be deleted ! ※...

  • Page 80: Trouble Shooting

    Trouble Shooting Trouble Shooting Symptom Checkpoint Countermeasure ● Can't turn on power ● Is DVR connected to power ● Connect power cable supply cable? ● Are DVR and monitor turned ● Turn on power. ● There is no image on monitor ●...

  • Page 81: Warranty

    Warranty Warranty This product guarantees free repair based on guarantee regulations only if the malfunction is caused while customers were using it properly. Warranty Period Warranty period begins from the day this product is delivered to customer. Model Name Warranty From .
  • Page 82 Appendix. A Appendix A. CMS(Client Management Software) A-1. Install CMS for Windows PC CMS is a program for communication between DVR and PC to control signal and video. Insert the enclosed CD and go to CD-ROM Drive and operate installer file CMS Installer Insert the enclosed CD, and go to CD ROM Drive and operate installer file, CMS Installer 32(64).msi, to operate the installer program.
  • Page 83 Appendix. A ▶ System Minimum Requirements •CPU : intel core 2 duo 3.0MHz processor or better •RAM : 1GB or more •LAN : support network adapters 100Mbps or better If there are many connected channels more and more in case of Favorite, CPU share will be more occupied.
  • Page 84 Appendix. A ① Insert the enclosed CD, and go to CD-ROM Drive and operate installer file, CMS Installer 32(64) msi to operate the installer program 32(64).msi, to operate the installer program. ② Click the Next for installation. If you don’t choose a directory to install program, it will be located at C:\ProgramData\CMS.
  • Page 85 Appendix. A ③ Click the Next for installation. ④ When CMS installation program is processing, you can see the message that CMS is being installed on the screen.
  • Page 86 Appendix. A ⑤ Click the Close after done with all installation tasks. ⑥ CMS installation is completed.
  • Page 87 Appendix. A A-2. Mac CMS Installation This CMS supports Mac OS X 10.6.8 or later. For the first installation, you have to log in your Mac with an administrator account. If you log in with other account, it would be not installed t ①...
  • Page 88 Appendix. A ③ Type your password to install CMS program. ④ Configuring the installation.
  • Page 89 Appendix. A ⑤ After the installation, click the close button.
  • Page 90 Appendix. A . CMS Web installation (CMS for windows) CMS web is a client program using web browser. It supports IE8 or higher. ① Open internet browser on PC ② Type the internet address to connect the DVR you want to connect.
  • Page 91 Appendix. A ③ When you try to connect it at first, Plug-in message will be pop up. Click the Ok. ④ Click run or save to install the set up file.
  • Page 92 Appendix. A ⑤ After done with Plug-in installation, close the internet browser and open it again.
  • Page 93 Appendix. A A-4. CMS Web installation (CMS for Mac) CMS web is a client program using web browser. It supports latest versions of safari and Firefox., but it doesn’t support chrome. ① Open internet browser on PC ② Type the internet address to connect the DVR you want to connect.
  • Page 94 Appendix. A ③ When you try to connect it at first, Plug-in message will be pop up. Click the Ok. ④ Click save to install the set up file.
  • Page 95 Appendix. A ⑤ Move to the path the file is downloaded from Finder. Double click the file. ⑥ Click Continue for installation.
  • Page 96 Appendix. A ⑦ Type your password to install CMS plug in and click Install Software. ⑧ Configuring the installation.
  • Page 97 Appendix. A ⑨ Click Restart to finish installing the software.
  • Page 98 Appendix. A A-5. How to use CMS After done with CMS installation tasks, it created a CMS icon on the desktop. In order to run the CMS, double click the icon on the desktop. Type ID and password to log in. There is no limit the number of concurrent connections on CMS in theory.
  • Page 99 Appendix. A The initial screen of CMS (Live view) The initial screen of CMS (Search view)
  • Page 100 Appendix. A <CMS Composition> Toolbar View Screen Widget Status bar...
  • Page 101 Appendix. A A.5.1 Widgets You can load many functions of widgets to this area freely, and delete them. • DVR List Widgets: add and connect to DVR devices. Current connected DVR Show a DVR List Disconnected DVR devices d DVR d i Connect a DVR List Connected DVR devices Add DVR devices...
  • Page 102 Appendix. A • Device Monitor Widget : Show the information of the added DVR devices. - Show the information of the connected DVR devices. - The information is updated automatically depend on it’s status connected or disconnected. • Calendar Widget : Show the recorded data of date. Calendar shows the recorded data of date on a DVR Device.
  • Page 103 Appendix. A • Pan tilt Control Widget : Control a video of pan tilt camera. 1. Pan tilt Control Zoom Control Focus Control Iris Control Panning and Tilting Control 2. Preset Preset is a function that memorize the temporary position of camera. Set : Memorize a position of a number that you want to use from 1 to 256 with the Set button.
  • Page 104 Appendix. A A.5.2 Tab (Live Tab / Search Tab) You can create taps for live or search video You can create taps for live or search video. 1. How to make a new tab Click button on the tab, it will make a Empty tab.
  • Page 105 Appendix. A 2 Play Time Line 2. Play Time Line You can check and change the time of recorded video on Search tab. mode (24 mode (24 hour hour M mode(60 minute) Change the mode of Time Line - The time is loaded as shown in the figure when you choose the date of existed data from Calendar.
  • Page 106 Appendix. A • Instance Backup Widget : Backup a video. Backup Data information Selected DVR S l t d h Selected channel of Select time and date Get Estimate capacity Recording stop Recording start - Instance Backup is the function that save the recorded video on the PC from DVR device.
  • Page 107 Appendix. A • Time navigation Widget: Control the playback with Time navigation Widget that Time navigation Widget: Control the playback with Time navigation Widget that can play, pause, play speed, and so on. Set up play speed Play individual frames Play / Pause - Set up play speed (-16 ~ + 16).
  • Page 108 Appendix. A A.5.3 Tool Bar Screen Capture Favorite List Go to Page Add to Previous Favorite Page User Settings Rotate Pages Audio Split Screen Switch to full screen Next Page Change Live/Search View of split mode. (from 1 to 144 ) Capture screen of the current View.
  • Page 109 Appendix. A Rotate pages the current split screen to click the icons, but only the number of current split screen has less than video channels. Rotate pages the current split screen to click the number of page, but only the number of current split screen has less than video channels.
  • Page 110 Appendix. A A.5.4 Configuration Click the icon and Configuration window will be pop up. 1. Localization Language settings will apply after CMS program restart if you change to other language.
  • Page 111 Appendix. A 2. Device - Connect • Device-Connect shows the information of connected devices and is able to add and delete. • Add devices with Add button as Device Tree Widget. • If you change setting on Device-Connect, Device Tree Widget is also immediately updated.
  • Page 112 Appendix. A 3. Device – OSD - Device-OSD : Select options and colors used for Event Status, Date/Time, Frame Rate, Device Camera Name, and Resolution. - If you change setting on Device-OSD, it is immediately updated on screen.
  • Page 113 Appendix. A 4. Rotation / Touring - Rotation/Touring : Set the rotate time of pages. - It skips empty pages, if you check Skips empty pages.
  • Page 114 Appendix. A 5. Export. Import - Export, Import is a function that make other users use the same setting to have Device, Favorite, View, and Client Configuration when other users import the exported setting. - Export : Export a set file to path. - Import : Import a exported file.
  • Page 115 Appendix. A 6. Account - Account : Add / Delete a user account. - You can modify added account when you double click it. - Auto Login : Connect a account that connected account at the last.
  • Page 116 Appendix. A 7. Snapshot Directory - Snapshot Directory : Set a path to be saved a Screen Capture. - Image format : Set a image format BMP or PNG...
  • Page 117 Appendix. A 8. Backup Directory - Backup Directory : Set a path to be saved a backup file. - Backup format : Set a backup format Avi or Exe. If you choose Auto, it will be Exe.
  • Page 118 Appendix. A 9. Change Streaming • Change Streaming : Set a change streaming by number of split screen. • if you set a change streaming to 4 split screen as default, you will see a video with high resolution supporting devices up to 4 spit screen. If you set a split screen more than 4 split, you will see a video with low resolution.
  • Page 119 Appendix. A A.5.5 Status Bar • Status Bar : Show a status of CMS, current connected account, kind of view, Language, date, and time from the left.

  • Page 120: Appendix B Catcheye For Android Mobile

    Appendix B Appendix B Catcheye for Android mobile The Catch Eye allows for you to monitor DVRs. It now supports Live mode. Playback mode will be added soon. It is easy and convenient to use. The functions of Catch Eye: •...
  • Page 121 Appendix B 2. Server Management Enter the appropriate data of your DVR server. Server Name : Name that you want to associate with the DVR server. IP address : IP address or a DDNS name. Server Port : Port number(watch port in DVR setup). User Name : Username(default is "admin").
  • Page 122 Appendix B Tap the DVR information for a few second in order to modify the sever setting. 3. Live Viewing Tap the DVR server information. The app will show “Please wait” as below. ** Wait Until it receives DVR channel data, it will take a few seconds depending on the network environment.
  • Page 123 Appendix B The next screen shows the first channel on DVR live view. 4. Multi Channel Viewing If you tap buttons, sliding view will appear in live view so that you can change the channel or division that you want. Max channel depends on server’s max channel, and division type is 1,4 and 16 division mode.(16 division mode works on products support over 16channels.
  • Page 124 Appendix. B 5. Image Saving If you push the left button of phone, ‘Save Image’ will be appeared on bottom screen. If you save a snapshot, you can find in the phone’s Gallery menu. fi d i h ’ G ll 6.
  • Page 125 Appendix. B 7. Digital-Zoom Mode Digital zoom in and zoom out will be done by two finger touch and dragging like a smart phone zooming. 8. Search If you tap the button, you can search the recorded file. - Select the wanted date. - Drag the blue time bar as you wanted time Also you can see the multi channel playback by choosing the ‘Division’...

  • Page 126: Appendix C Catcheye For Iphone

    Appendix C Appendix C Catcheye for iPhone The Catch Eye allows for you to monitor DVRs. It now supports Live mode. Playback mode will be added soon. It is easy and convenient to use. The functions of Catch Eye: • Live View •...
  • Page 127 Appendix C 2. Server Management Enter the appropriate data of your DVR server. Title : Name that you want to associate with the DVR server. IP address : IP address or a DDNS name. Port : Port number(watch port in DVR setup). Username : Username(default is "admin").
  • Page 128 Appendix C The "Edit“ button modifies the information of the selected DVR Server. 3. Live Viewing Go ahead and tap the DVR server item in Catcheye screen when you register DVR server. The app will show “loading circle icon” as below. ** Until it received DVR channel data, it takes a few seconds(it depends on network environment.
  • Page 129 Appendix C The next screen shows DVR live view for first channel. 4. Multi Channel Viewing If you tap button, you can choose 4, 8 and 16ch viewing in live view and you can change channel and division mode. Max channel depends on server’s max channel, and division type is 1 channel, 4 channel and 16 channel mode.
  • Page 130 Appendix C 5. Image Saving You can save the snapshot by tapping button. If you capture image by tapping "Save Image" button, you can find image file in iPhone's photo album "S " b fi d i fil i iPh menu.
  • Page 131 Appendix C 8. Search If you tap the If you tap the button you can search the recorded file button, you can search the recorded file. - Select the wanted date from the calendar. - Drag the blue time bar as you wanted time Also you can see the multi channel playback by choosing the ‘Division’...
  • Page 132 Appendix D Appendix D How to Connect xbox 1 1. Connect EXTEND FTP cable to Receiver (upto 350ft/100m). Refer to http://en.wikipedia.org/wiki/Twisted_pair about the FTP cable. Connect Monitor and Wired/Wireless Mouse to the Receiver FTP(Foiled Twisted Cable) Receiver 2. Because all the case has different cable length, you should adjust the GAIN and PHASE in Receiver to get a most proper VGA output.
  • Page 133 Appendix E 3.This is the whole diagram.
