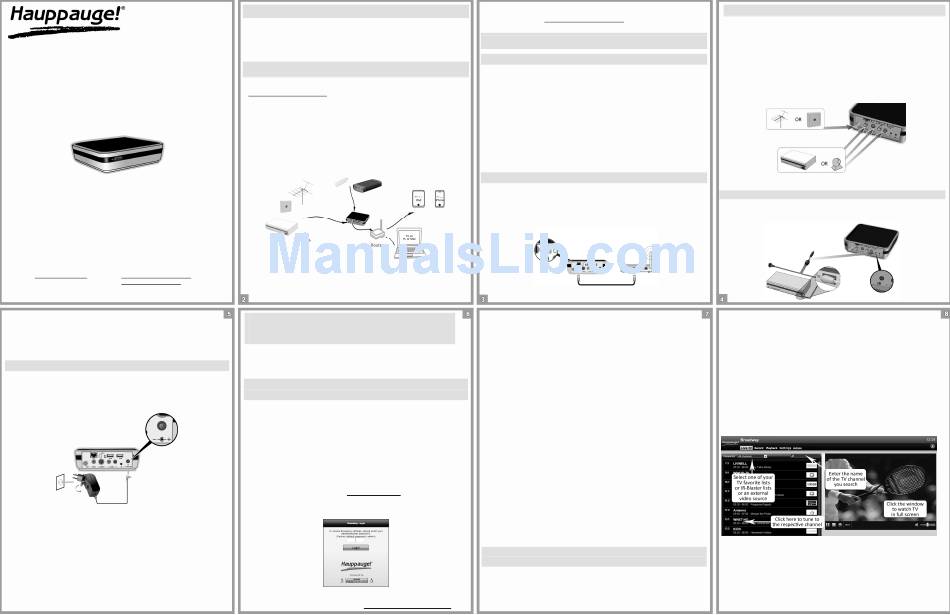

Hauppauge Broadway Quick Install Manual

Broadway
Quick Install Guide
© 2010-2012 Hauppauge Computer Works, Inc. QI-BROADWAY-V6
Hauppauge Computer Works, Inc. Hauppauge Digital Asia, Pte. Ltd.
Blk 1093, Lower Delta Road #04-05
91 Cabot Court
Hauppauge, NY 11788 Tiong Bahru Industrial Estate
Telephone: 631-434-1600 Singapore 169204
Fax: 631-434-3198
Telephone: (+65) 276 9163
Tech Support: 631-434-3197 Fax: (+65) 276 9167
Hours: M-F 9:00AM to 6:30PM EST Tech Support: (+65) 276 4412
Web site: www.hauppauge.com support@hauppauge.com.sg
www.hauppauge.com.sg
Specifications are subject to change without notice or obligation.
N
ote
: Make sure the IR-transmitter is close to the
IR-receiver window of your set top box but does not
cover it completely (see previous image).

Step 4: Connect Power and Turn on

• Insert the included power supply adapter into the body of
the power supply unit.
• Connect your Broadway box to a wall socket using the
provided power supply unit.
C
aution
: You may use Broadway only with the
provided power supply unit.
• Broadway starts.
The white indicator light on the front panel will start to blink.
• Wait until the indicator light stops blinking.
• Broadway is now connected to your router and ready for
use.
N
ote : If the light continues to blink, it means that you
have not connected Broadway to your home router
with a Ethernet cable.

Welcome!

Thank you for purchasing Broadway by Hauppauge Digital.
Please follow these instructions to quickly start streaming live
TV or TV recordings to virtually any PC and handheld device in
your network.

What is Broadway?

Broadway brings TV to your iOS or Android device (see
www.pctvsystems.com for an up-to-date list of supported
devices). In addition you can record the TV program to a
connected USB mass storage device.
Broadway needs two things in order to operate:
1. A TV source for live TV – can come from an over-the-air
TV antenna (ATSC/ClearQAM transmission) or your cable
TV or satellite set top box for pay TV.
2. A connection to a network router in your home.
The connection can be wireless (Wi-Fi) or
wired (Ethernet).
When you are at home, you can watch the video signal
streamed by Broadway over a Wi-Fi connection. When you
/
travel, you need to have an Internet connection (Wi-Fi or
3G/4G) in order to receive the video signal from Broadway.
Broadway Setup in your
Home Network (Wi-Fi/LAN)
The setup of Broadway is done from your client device.
As part of the initial setup, you will need to go through the
setup procedure from our website.
Step 1: Access Broadway and follow
the instructions of the Setup Wizard
For this step an Internet connection is required.
N
ote
: Make sure your router is connected to the
Internet and your Wi-Fi network is WPA/WPA2
encrypted. Broadway does not support WEP encryption.
• Make sure your client device is connected to your home
network over Wi-Fi or wired.
• Open an Internet browser window. Use Safari on your
Apple product or any web browser on your PC.
• In the address field type: http://distan.tv.
• You will see the Broadway login screen.
• Enter the default Administrator Password: admin.
N
ote
: More information can be found in the online
Broadway User's Guide at: http://distan.tv/manuals
Additional information on the setup and use of Broadway
can be found at: http://distan.tv/manuals.

Broadway Hardware Setup

Step 1: Unpack

Check that your package includes the following:
•
Broadway ATSC/ClearQAM receiver box
•
Power supply unit with plug adapter
• Ethernet cable
•
IR-Blaster cable
• 6 (4 + 2 spare) rubber feet
•
Wall mounting kit (2 screws / 2 wall plugs)
•
Quick Install Guide
Depending on the version of your product, package contents
may vary. Images are samples.

Step 2: Connect to the Router

N
ote
: For the initial setup, the connection must be
wired.
• Use the provided Ethernet cable to connect Broadway to the
router of your home network.
Important: Make sure the router is connected to the
• The Broadway Setup Wizard opens.
• Follow the instructions of the Broadway Setup Wizard.
It will guide you through the setup procedure helping you to
configure the wireless device connection to the router and
run a channel scan.
• Select the way you want to operate Broadway, wired or
wireless.
N
ote
: for the initial setup, you must select the
wired operation mode.
• Click Next and select your TV source out of the following
choices:
• AV-in with connected set top box and IR-Blaster
support: this is used, when connecting Broadway to a
cable TV / satellite set top box for pay TV.
• AV-in with connected camcorder: this can be used if
you have a security camera and want to watch the video
via Broadway.
• TV tuner with connected TV antenna or cable: if you
are using an ATSC antenna or a TV coax cable.
N
ote : You cannot use the integrated TV tuner(s) and
the AV-input simultaneously.
Scanning for TV Channels
(if you have connected a ATSC Antenna or cable)
If you have chosen TV tuner with connected TV antenna or
cable as your TV source, you will now be taken through the
channel scan procedure.
.

Step 3: Connect a TV Source

You can connect the following video sources to Broadway:
• Cable TV or satellite set top box
Use S-Video or composite video and stereo audio cables
(none included in the scope of delivery).
• ATSC outdoor antenna or a TV coax cable for ClearQAM
channels.
• Security camera
Use the S-Video or composite video and audio inputs
Note: cameras with USB plug only are not supported.

Connect the IR-Blaster cable (optional)

• Connect the IR-Blaster cable as shown in the image below
to control selected channels on your set top box.
Internet.
• Make sure the Location is set to your country correctly.
• Select ATSC or QAM (not both).
• Click Start Scan.
• When the scan is complete, Broadway will inform you how
many channels were found and show you a list of channels.
N
ote
: If Broadway did not find any channels, please
check your antenna and make sure it is plugged in
well to the connector on the back of Broadway.
Use an outdoor antenna if you are in a region with weak
ATSC signal.
• After the channel scan is complete, click Quit to exit the
Setup Wizard and start watching live TV.
N
ote : In order to display the Broadway TV-stream the
web browser of your PC or Android device must
support the Adobe® Flash® video format.
If you have chosen: AV-in with connected set top box and IR-
Blaster support the IR-Learning Wizard will guide you through
the IR-Blaster configuration (for further details turn the page).
