Sanijet PIPELESS SFB2-S115-XX Owner's Manual

Sanijet PIPELESS SFB2-S115-XX Owner's Manual

(115v, 60hz) 2 jet – dual speed pipeless portable foot bath with seal-less jet technology

Advertisement

PIPELESS™ PORTABLE FOOT BATH WITH SEAL-LESS JET TECHNOLOGY
OWNER'S MANUAL
Models: SFB2-S115-XX (115v, 60Hz) 2 Jet – Dual Speed
Purity is Premium

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PIPELESS SFB2-S115-XX and is the answer not in the manual?

Questions and answers

Summary of Contents for Sanijet PIPELESS SFB2-S115-XX

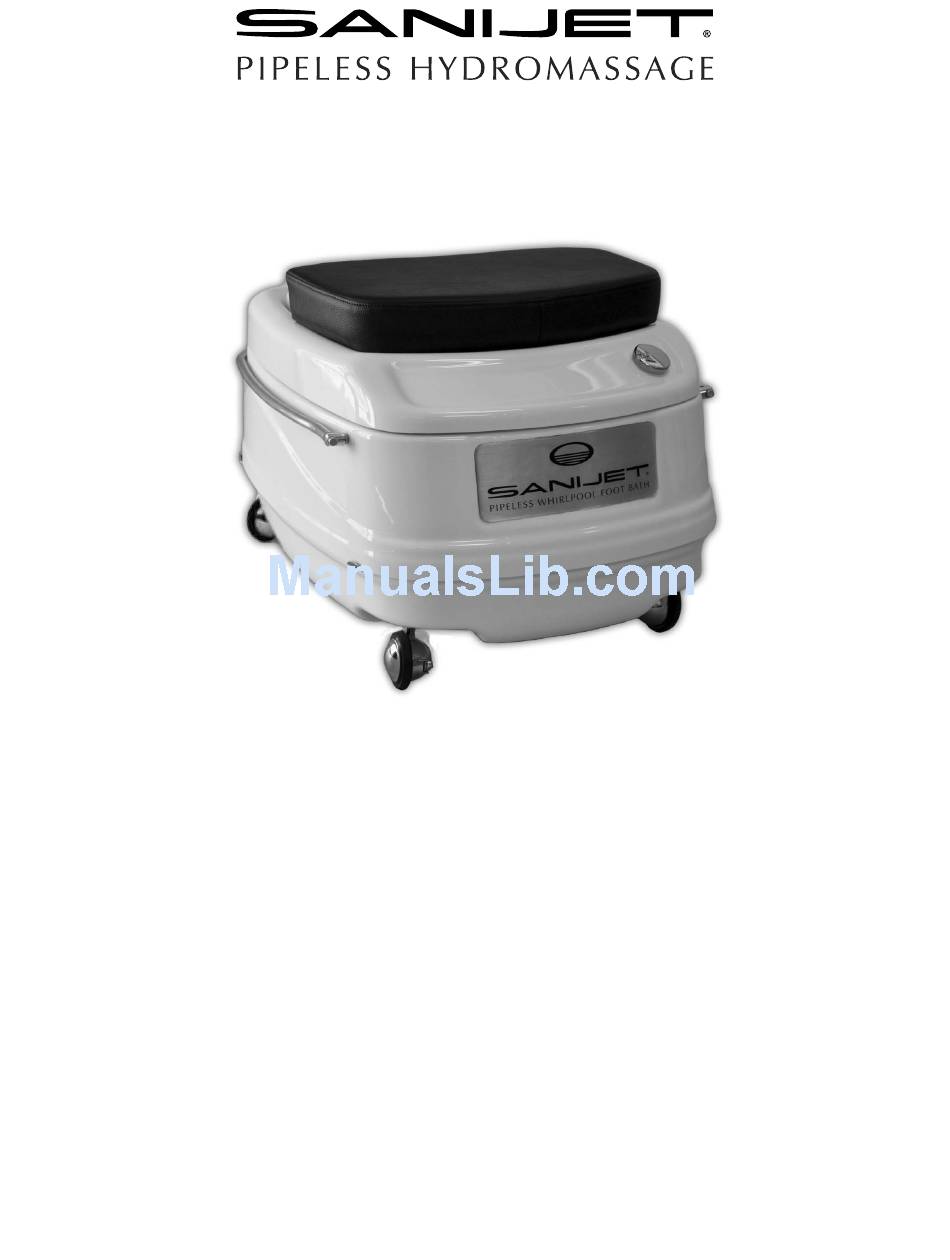

  • Page 1 PIPELESS™ PORTABLE FOOT BATH WITH SEAL-LESS JET TECHNOLOGY OWNER’S MANUAL Models: SFB2-S115-XX (115v, 60Hz) 2 Jet – Dual Speed Purity is Premium...
  • Page 2 Dear Valued Customer: Thank you for purchasing the SANIJET Pipeless™ Portable Foot Bath. As the innovator of Pipeless™ hydromassage, SANIJET was founded on the principle that, in spa bath and pedicure bath systems, ® purity is premium. SANIJET’s Reflexology Foot Baths, Pedicure Sinks and Portable Foot Baths provide safe hydromassage, quiet operation, and the ability for quick and easy system disinfection.
  • Page 3: Table Of Contents

    Table of Contents General Information .......................1 Limited Commercial Warranty ..................2 Safety ........................... 3 Electrical ........................4 Features and Specifications ..................5 Operating Instructions....................7 Dry Run Protection ......................8 How To Drain ......................... 9 Cleaning and Care......................10 Troubleshooting ......................12...
  • Page 4: General Information

    SANIJET’s responsibility for shipping damage ceases upon delivery of the product in good condition to the carrier. It is the responsibility of the recipient to inspect the packaging for damage. Any damage claims must be filed with the carrier within 2 business days from receipt of shipment.
  • Page 5: Limited Commercial Warranty

    SUBJECT TO the exclusions below. If a tub shell manifests a defect or fails to properly perform under ordinary use within the warranty period, SANIJET will repair or replace it at SANIJET’s election, but shall have no responsibility with respect to removal, reinstallation or transport of the tub shell.
  • Page 6: Safety

    13. SANIJET recommends a qualified plumber and electrician install your Pipeless™ Pedicure Bath. 14. Water supply temperature to the Pipeless™ Pedicure Bath MUST NOT exceed 106° F (41° C). Water temperature in excess of 106°...
  • Page 7: Electrical

    Electrical INSTRUCTIONS PRIOR TO USE WARNING: When using this unit, basic precautions should always be followed, including the following: 1. IMPORTANT: Read complete instructions before use. Each Pipeless™ Foot Bath arrives ready for use. 2. This unit requires a 115 VAC, 60 Hz, 2 Amp service and is provided with a 10 ft (3 m) cord with an integral Ground Fault Circuit Interrupter (GFCI) and NEMA 5-15 Plug.
  • Page 8: Features And Specifications

    Features and Specifications Pipeless™ Portable Foot Bath FEATURES • Two Patented, High Performance, Ultra-Quiet Pipeless™ Jets • Advanced Seal-less Technology Designed for Maintenance-Free Use • Complete Hygiene with Simple Five Minute Disinfection Protocol • Two Piece Lid with Client Foot Rest for Comfort • Rolling Casters and Easy to Use Handle • Discharge Pump and Fill Hose • Durable, High Gloss Acrylic Construction in White or Biscuit Product Specifications Are Subject To Change Without Notice.
  • Page 9 Features and Specifications Continued Pipeless™ Portable Foot Bath DIMENSIONS 20” [51 cm] 27” [69 cm] 15” [38 cm] SPECIFICATIONS • Width: 20.0” (51 cm) x Length: 27.0” (69 cm) x Height: 15.0” (38 cm) • Material: Structurally reinforced cast acrylic • Operating Capacity: 4.5 Gallons (17 L) • Approximate Ship Weight: 42 lbs (19 kg) • Water Flow Rate: 14 gallons per minute (53 L) • Electrical Requirements 115 VAC, 60 Hz, 15 amp, dedicated GFCI service 10 ft (3 m), 16/3 power cord included Product Specifications Are Subject To Change Without Notice.
  • Page 10: Operating Instructions

    4. To start or stop this appliance turn the dial switch to the ON or OFF position. Quarter-turn Counter Clockwise 5. Bath additives , including oil based products , can be used in a SANIJET Pipeless™ Pedicure Bath, since their residue can be easily cleaned.
  • Page 11: Dry Run Protection

    Dry Run Protection IMPORTANT • BEFORE USE check the magnetic impeller rotor is properly installed in the case motor assembly. • BEFORE USE make sure that water is filled to at least 1 in (3 cm) above the jets for proper operation. • DO NOT attempt to activate the jets on the Pipeless™ pedicure bath without water present. DRY RUN PROTECTION The Pipeless™ Pedicure Foot Bath is equipped with an advanced Dry Run Sensor to ensure water is present for proper jet operation. When the motor is turned ON and no water is present, the motor will run in the “no load” condition for 30 seconds then shut off for 15 seconds .
  • Page 12: How To Drain

    How To Drain To maintain your SANIJET® Pipeless™ Portable Foot Bath at a maximum level of hygiene, thoroughly clean the tub shell and jets after each use with a nonabrasive antibacterial cleaner, rinse thoroughly, and dry completely. See Page 10 for complete cleaning procedure.
  • Page 13: Cleaning And Care

    • Disinfectant with Bleach. SANIJET’s Pipeless™ pedicure baths do not require a “fill and drain cycle” during disinfection, for improved water conservation. • For applications requiring quick cleaning between treatments, we recommend a second set of “clean” jet assemblies for quick replacement.
  • Page 14 Cleaning and Care Continued WARNING: Do not release magnetic impeller rotor prior to seating properly into jet. SNAPPING INTO PLACE WILL CAUSE DAMAGE. WARNING: Do not place nail care products on the Pipeless™ Pedicure Bath WARNING: Extended exposure to chemicals can damage the Pipeless™ Pedicure Bath basin, foot rest and/or fabric.
  • Page 15: Troubleshooting

    Troubleshooting NO POWER / NOT OPERATING 1. Power Supply Note: Recommended that all electrical service connections be made by a licensed electrician. a. Ensure switch box power cord is properly plugged into an operational 115 VAC, 60 Hz GFCI power supply. b.
  • Page 16 SANIJET Customer Service Department ® Toll Free: 877-934-0477 Toll Free Fax: 214-352-0348 E-mail: info@sanijet.com 6200 Maple Avenue Dallas, Texas 75235 sanijet.com 120125...
