Summary of Contents for WallyHome 810-00008

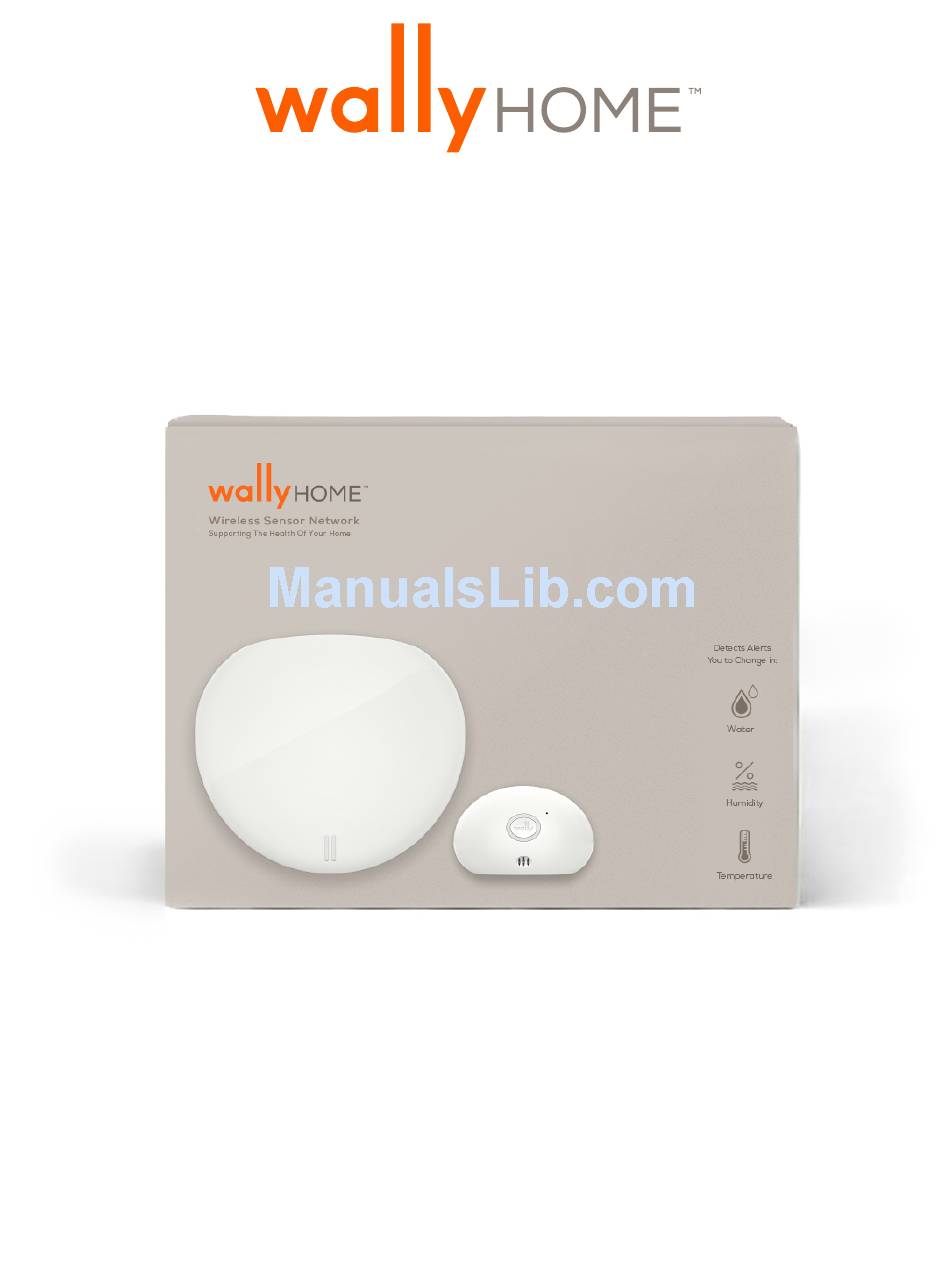

- Page 1 Product Manual Version 1.0...
-
Page 2: System Includes
YOUR WALLYHOM SYSTEM INCLUDES: Hub x 1 Sensor x 6 Model: 810-00008 Model: 810-00011 Power cord x 1 Ethernet cord x 1 These pieces are all you need to get started. If you wish to purchase additional Hubs or sensors, visit... - Page 3 Compatibility: Wallyhome is compatible with Internet Explorer 10+ and the most recent versions of Chrome, Firefox and Safari. To download the most recent version of your browser, visit www.wallyhome.com/unsupported Requirements: This Requirements Policy is part of the Terms of Use between you and SNUPI (the “Terms”).
- Page 4 To Begin: Open a web browser on your computer and go to https://my.wallyhome.com/. You will be presented with the following page: Click on the “Create an Account” button. Enter in your information and then continue by clicking the “Create an...
- Page 5 Set Up Alert List Add any additional contacts that you would like alerted should Wally detect a hazard or conditions that require maintenance. You have the option to designate contacts as “Primary” or “Emergency.” Primary contacts: may be alerted via email, text or push notification for both urgent and preventative care.
- Page 6 Plan of Attack Next, you will have the opportunity to “Plan Your Attack.” On this set-up page, you will be able to designate where each sensor will go within your home. Simply click on the icon of each area where you’d like to place a sensor and then use the drop down menus to designate the floor and room for each sensor.
-
Page 7: Ethernet Installation
Connect Your Hub Now that you have planned your attack, you are ready to connect your Hub to your network. Ethernet Installation Click on the “Wired” tab and follow the step-by-step instructions. WiFi Installation Click on the “Wireless” tab and follow the step-by-step instructions. - Page 8 WiFi Installation (cont’d) Once you’ve connected to the Wally Network, a screen will pop up and prompt you to connect to your Hub’s WiFi network.
- Page 9 If you continue to be unsuccessful, try some of the tips in the troubleshooting section of the support page (http://www.wallyhome.com/support/) or contact customer service (support@wallyhome.com). After your computer is connected to your home network and both of the hub lights are solid orange, click the orange “Continue”...
- Page 10 Successful Hub Installation Once you have completed either the wired or wireless installation, you will see the following screen. At this point, you may continue installation on a mobile device. If you prefer not to move to a mobile device, simply press the button labeled “Continue” and proceed as directed.
- Page 11 Once you have established your plan of attack and connected your Hub, you will need to activate all of your sensors. Each grey tile represents an inactive sensor on your dashboard. Activate your Sensors To activate a sensor, click on the “Activate This Sensor”...
- Page 12 SIGNOUT NEED HELP ? Activate a sensor for Dishwasher To activate a sensor, press and hold the button until the light turns off and then realease. The sensor will flash quickly for a minute. Cancel Animation Press the button on the sensor so that the lighted ring stays illuminated for one second and then continues to flash in one-second intervals.
- Page 13 Place a Sensor You will then be directed to a page that displays the recommended location for the sensor. Once you place the sensor in the desired location, press the orange “Continue” button to proceed to the next page. Repeat this step for Animation your remaining sensors...
- Page 14 Dashboard Once you have installed all sensors, you can view the overall health of your home using your dashboard.
- Page 15 Installing With The iOS App At this point, you can continue installation using the Wally app on a mobile device. In order to proceed using your mobile device, visit the Apple Store or Google Play store and download the Wally iOS App or Android App for your phone. When the application launches, remember to accept push notifications from Wally.
- Page 16 Wally iOS App 2:38 PM 2:38 PM Place Sensor Done Press the button on the sensor so An animation will display how that the lighted ring stays best to place the sensor in the illuminated for one second and desired location. then continues to flash in one-second intervals.
- Page 17 Wally iOS App 2:38 PM 2:38 PM The sensor you have just activated Once all of your sensors have been will appear under the “Active activated, you can tap on any one Sensors” banner on the dashboard. of your active sensors to see the The remaining sensors will remain “Sensor Detail”...
- Page 18 Wally Alerts WallyHome has three levels of alerts to better reach you and those on your contact list. High-priority alerts: Wally will send a high-priority alert should any of the following circumstances be detected: One of your Wally sensors detects water.
- Page 19 Wally Alerts (cont’d) Medium-priority alert: Wally will send a medium-priority alert should any of the following circumstances be detected: • A sensor reads temperature and humidity that is outside of your established thresholds. • Your Hub stops communicating with the sensors. •...
-
Page 20: Alert Thresholds
Alert Thresholds: Location Temp Temp Humid Humid Notes Appliance Outdoor 100%* Any heated indoor 100%* Recommended range location (bathroom, for preventing freezing pipes bedroom, etc.) based on indoor temp Attic 100%* Freezing pipes, overheating attic (can shorten life of shingle) Crawlspace/basement 100%* Garage... - Page 21 Optimal Sensor Placement From the sensor detail page, click on the Sensor Strength navigation item at left. (from the mobile app, click Edit and then Check Signal Strength). Follow the on-screen instructions, making sure that the green light is flashing (this indicates that the sensor is transmitting and allows the Hub to determine the signal strength).
- Page 22 Select the Nest Home corresponding to the WallyHome property where your Nest is. You will then be directed to a Nest-specific dashboard. In order for WallyHome to control your Nest thermostat, Nest’s internal schedule and learning behavior must be disabled so that they don’t try to modify your temperature at the same time.
- Page 23 Follow the on-screen instructions in the center pane to build up a scene to control your Nest. The screen below shows how this appears on the final step of scene creation. 4. Select the days of the week and the time for scene to run...
- Page 24 Add scenes as desired by clicking on the orange “Add Scene” button. Edit your current scenes by clicking on the orange “Edit” text in the “Scene summary” pane. To return to your WallyHome dashboard, click on the icon at upper left.
- Page 25 Federal Communications Commission (FCC) Compliance Notice model: 810-00008 model: 810-00011 This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
-
Page 26: Canada Notices
Canada notices This Class B digital apparatus complies with Canadian ICES-3 (B) Cet appereil numérique de la classe B est conforme à la norme NMB-3(B) du Canada. CAN ICES-3 (B)/NMB-3(B) Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 27 SNUPI Technologies 1415 NE 45th Street Seattle, WA 98105 t: (206) 673-2707 e: support@wallyhome.com https://www.wallyhome.com/support/...
