Summary of Contents for ConvergeAV CPNTTOSHDMI

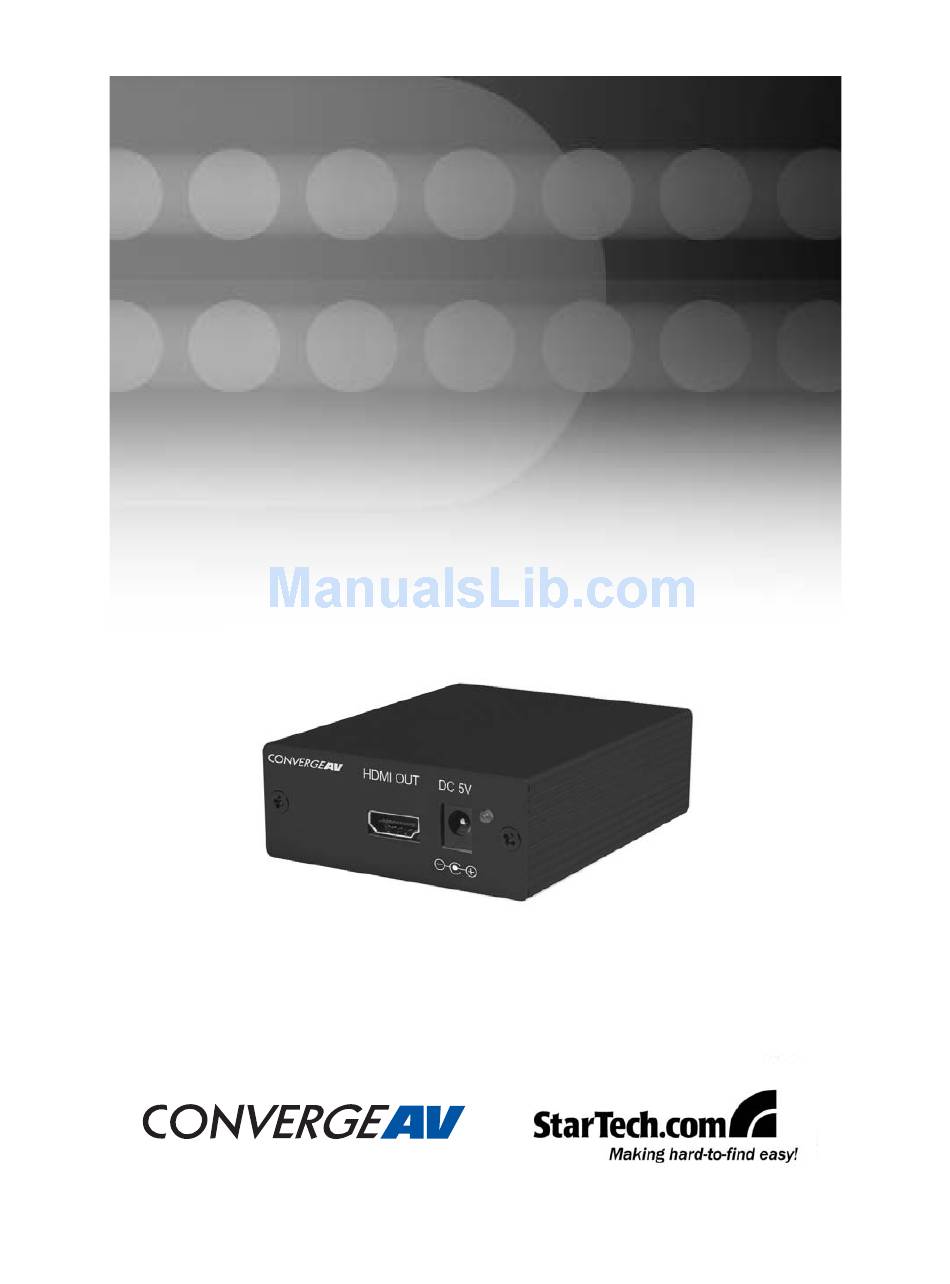

- Page 1 Component and Toslink to HDMI Converter CPNTTOSHDMI Instruction Manual Actual product may vary from photo...
- Page 2 FCC Compliance Statement This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.
- Page 3 Instruction Manual Table of Contents Introduction ........... . .1 Features .
- Page 4 Instruction Manual Introduction Thank you for purchasing a StarTech.com Component and Toslink to HDMI Converter. A perfect solution for consolidating A/V connections into a single, convenient HDMI connection, CPNTTOS2HDMI allows you to connect the YCbCr/YPbPr output from a DVD or Set-top box to an HDMI capable display, and features optimized bandwidth capability to provide HDTV resolutions of up to 1080p.
-
Page 5: Operating Controls And Functions
Instruction Manual Operating Controls and Functions Front Panel Rear Panel HDMI Output Connector: Connect to the HDMI input of your display using HDMI Cable DC Power Supply: 5V (1A) Power LED Light Toslink digital audio input: Connects the Toslink output of your DVD or STB Analog YPbPr/YCbCr input connector: Connects to the YPbPr or YCbCr output of your DVD or STB. -
Page 6: Connection And Installation
Instruction Manual Connection and Installation PC/YPbPr to HDMI Format Converter HDMI Cable HDMI Display 3 RCA to 3 RCA DVD Player / Set cable top box Accessory Products from StarTech.com Contact your local StarTech.com dealer or visit www.startech.com for cables or other accessories that will help you get the best performance out of your new product. -
Page 7: Specifications
Instruction Manual Specifications Power 5V 1A Center positive HD Input Analog YCbCr/YPbPr through 3 RCA Connectors 1 Vp-p 75Ω, Input Signal Cb/Cr or Pb/Pr: 0.7 Vp-p, 75Ω Audio Input Digital Toslink audio Operating Frequency Up to 165MHz Dimensions 76(W) x 30(H) x 105(D)mm Regulatory FCC, CE, ROHS, WEEE Certifications... - Page 8 About StarTech.com StarTech.com is “The Professionals’ Source for Hard-to-Find Computer Parts”. Since 1985, we have been providing IT professionals with the quality products they need to complete their solutions. We offer an unmatched selection of computer parts, cables, server management solutions and A/V products and serve a worldwide market through our locations in the United States, Canada, the United Kingdom and Taiwan.
