Page 1: Package Contents

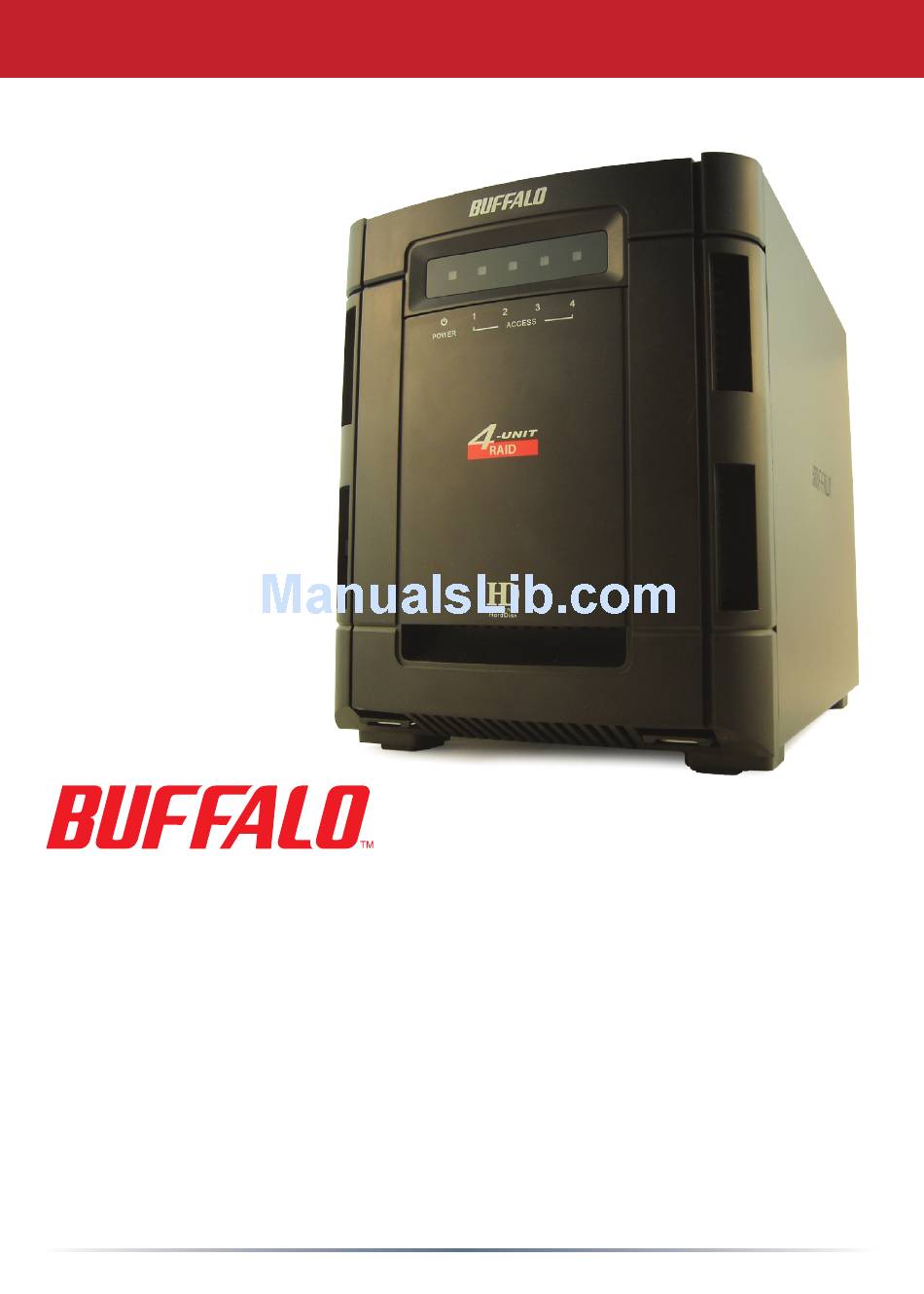

Mac User Guide DriveStation Quattro Package contents: • Main Unit (DriveStation) • Power Cord • USB Cable • PCI eSATA Card • eSATA Cable • eSATA Backplate • DriveNavigator Installation CD • User Guides v1.1... -
Page 2: Back Panel Layout
Back Panel Layout Socket for Power Cord Power On eSATA Auto On/Off Manual On/Off Note: Changing between RAID modes is done with the RAID Utility, included with the software on your DriveNavigator CD. - Page 3 DriveStation Setup Flip the power switch on the back of the DriveStation to the OFF position. Plug DriveStation’s power cord into the power socket as shown, as well as a power outlet or surge protector. Then, connect a USB or eSATA cable into a matching port on the back of the DriveStation.
- Page 4 DriveStation Setup Flip the power switch on the back of the DriveStation to the ON (“I”) position. Your Mac will detect the new drive and place an icon on your desktop. Your DriveStation is now ready for use! Double-click on the icon to open the hard drive.
-
Page 5: Installing The Raid Utility
The RAID Utility only runs on PCs and G4 and G5 based Macs! You may use the DriveStation Quattro with an Intel Mac, but you will not be able to change the RAID settings from it. You must use a Windows PC or a PowerPC based Mac to run the RAID Utility! Also, the DriveStation must be connected to your Mac with a USB cable while using the utility. - Page 6 Using the RAID Utility Double-click the RaidSetting icon on your desktop. Once launched, the RAID utility will briefly scan for your DriveStation Quattro. This may take a few seconds. The initial screen will show your current configuration. If your Quattro is new, it will probably be in RAID 0 mode, with all four disks in one high-performance partition.
- Page 7 Using the RAID Utility Select the drive structure that you’d like to use. Click OK, Yes, and Yes. Understand that this will erase any data on the drive! After changing the RAID mode, you will need to use the Disk Utility to format the new partition.
-
Page 8: Technical Specifications
Technical Specifications Standard Compliance: USB 2.0; eSATA Seek Time: Max. 11 milliseconds Transmission Speed: Max. 1.5 Gbps (eSATA), Max. 480 Mbps (USB 2.0) Power Consumption: Max. 86W, Average 40W Power Supply: AC100~120V 50/60Hz Dimensions: 6.5” x 8” x 9.5” (165 x 203 x 241 mm) Weight: 12.8 lbs. -
Page 9: Environmental Information
Environmental Information • The equipment that you have purchased has required the extraction and use of natural resources for its production. • The equipment may contain hazardous substances that could impact health and the environment. • In order to avoid the dissemination of those substances in our environment and to diminish the pressure on the natural resources, we encourage you to use the appropriate take-back systems. - Page 10 Toll-Free: 866-752-6210 email: info@buffalotech.com Europe Technical Support is available between 9am-6pm (Monday-Thursday) (GMT) and 9am-4:30pm on Fridays. Phone (UK only): 08712 50 12 60* Phone: +353 61 70 80 50 Email: helpdesk@buffalo-technology.ie *Calls cost 8.5p per minute ©2005-2006, Buffalo Technology Inc.
