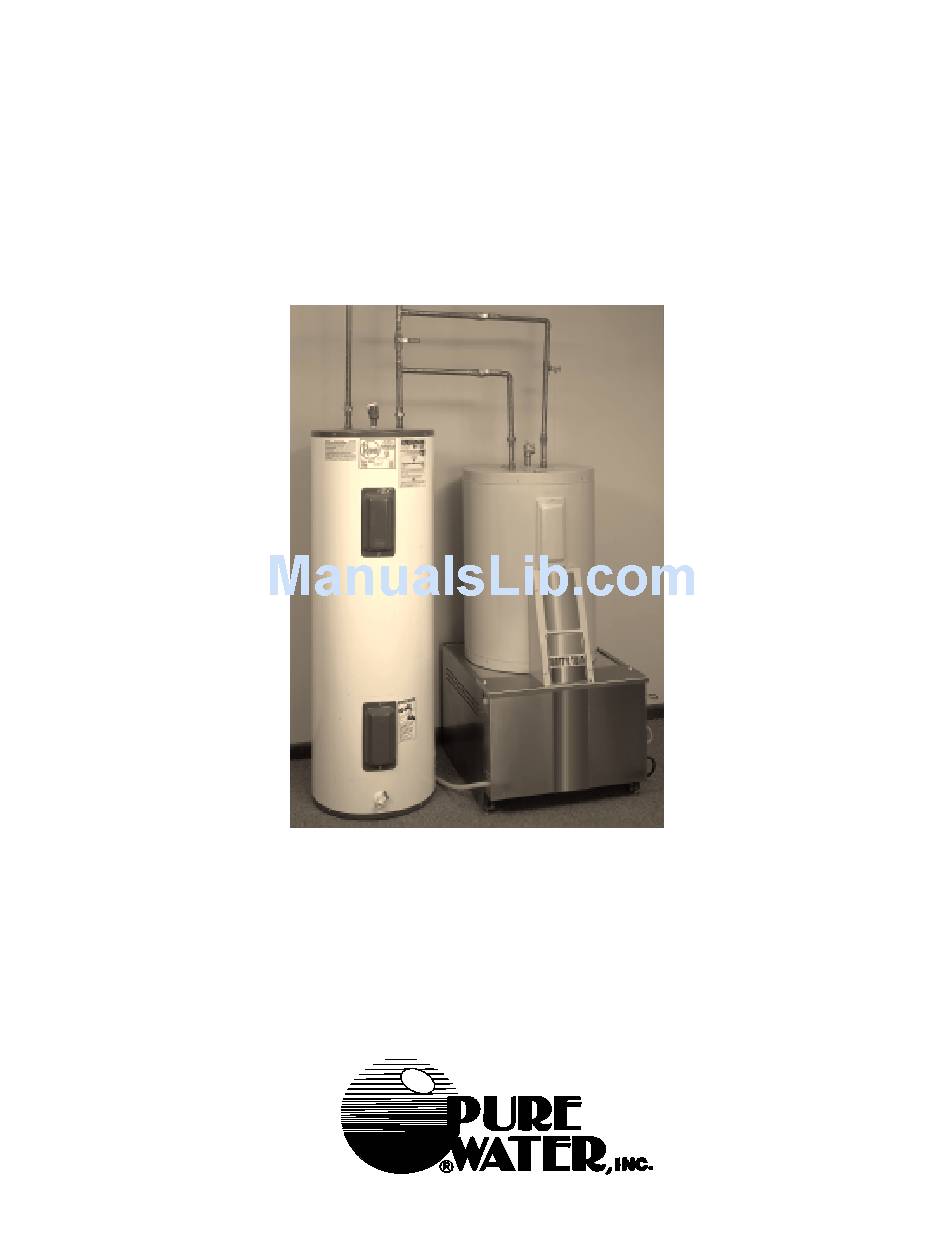

- Page 1 WATT’R TWIN ™ Energy-Efficient Home Water System Owner and Installation Manual 3725 Touzalin Avenue • Lincoln, NE 68507 USA Tel: 402.467.9300 • Toll Free in the USA: 800.875.5915 • Fax: 402.467.9393 www.purewaterinc.com...
-
Page 2: Table Of Contents
Table of Contents Important Safety Information ............3 Introduction ..................4 Record Important Information ............4 Included With Your Distiller ............. 5 Optional Accessories ..............5 How Your Distiller Works ..............6 Getting to Know Your Distiller ............7 Preparing for Installation ............... 10 Installation and Initial Start-up ............ -
Page 3: Important Safety Information
Always turn the electrical power off before opening the drawer or removing the protective cover for any reason while the equipment is operating. • IMPORTANT: This distiller is designed to be used only with Pure Water, Inc. accessories and replacement components. •... -
Page 4: Introduction
TWIN. Record Important Information The serial number is found on the back panel. You should record all of the infor- mation below for future reference. Date of Purchase: Pure Water WATT’R TWIN Model: Serial Number: Purchased from: Maintenance Supplies These maintenance supplies can be purchased from your dealer, or directly from Pure Water, Inc. -
Page 5: Included With Your Distiller
Included With Your Distiller The WATT'R TWIN is shipped in 3 boxes: BOX #1 The Drinking Water Purification System Box Includes: • The water purification system built on a removable tray that is inserted into a stand for the hot water tank. •... -
Page 6: How Your Distiller Works
How Your Distiller Works The WATT'R TWIN is designed to produce approximately 1/2 gallon of high- quality, pure distilled water per hour, provided that hot water is needed. The WATT'R TWIN is a fully automatic unit. The water level in the boiling tank and storage tank are controlled by individual probes and floats. -
Page 7: Getting To Know Your Distiller
Getting to Know Your Distiller Refer to the diagrams on pages 7, 8 and 9 and follow the numbers on the dia- grams with those listed here. Your WATT’R TWIN consists of two main components: A hot water tank which absorbs heat from the steam produced by the Note: The hot water drinking water treatment system (Item B) and in which, hot water is system and the drinking... - Page 8 The quickconnect fitting for the plastic tubing bringing raw water from the saddle-tapping valve (Item 5). The WATT’R TWIN has a power cord which plugs into a standard grounded wall outlet. When the steam from the distiller rises, it goes up through the silicone tubing (Item 8) into a patented hollow stainless steel condenser which screws into the hot water tank where the heating element is normally placed.
- Page 9 3 months or 90 days. This enclosure houses all of the electronic controls for the entire distilla- tion unit. This housing should only be opened by a Pure Water, Inc. certified service person. This automatic valve drains the boiling chamber periodically to reduce buildup of scale and contaminants in the boiling chamber.
-
Page 10: Preparing For Installation
Preparing For Installation Selecting a Location: The ideal location for the WATT’R TWIN will have: • Level area near the existing home water heater (gas, electric, or oil-fired). • At least 25 inches clearance in front of the unit so the drawer can be opened or removed for maintenance. -
Page 11: Installation And Initial Startup
Installation and Initial Startup Note: Installation Should Be Done by a Qualified Installer CAUTION • The WATT'R TWIN is heavy. Please use care when removing it from the carton to prevent injury. • DO NOT use a hot water line for your supply line. DANGER DO NOT PLUG THE UNIT INTO THE POWER SOURCE UNTIL INSTRUCTED. - Page 12 Connecting the Drinking Water System to the Hot Water Tank 1. Pull the Water Treatment drawer out about 5 inches. 2. Connect the silicone tube from the top of the boiling chamber to the (top) tube of the condensing coil. Clamp the hose. 3.
- Page 13 Connect the outlet side of the strainer to the raw water inlet of the distiller unit. Turn the saddle tapping valve handle clockwise until you feel it is firmly seated. Note: You have now pierced the copper tube and the valve is closed. Turn the handle counterclockwise to open the valve.
- Page 14 Connect the steam tube from the boiling chamber to the top tube on the condenser. Connect the tube from the lower condenser tube to the Align for securing the storage tank inlet. cover to the base unit with screws Place the protective cover on the unit and secure it with the screws provided.
-
Page 15: Overall Maintenance Requirements
Routine Maintenance and Cleaning Overall Maintenance Requirements The following guide should be used for the maintenance of your distiller. The timing will vary according to your local water conditions. Without proper maintenance, your distiller may not produce optimum results. The following is an average guide to maintenance: Cleaning the Boiling Tank CAUTION: UNDER NO... -
Page 16: Changing The Post Filter
Changing the Post Filter (Every 3 months.) 1. Unplug the distiller from the wall. 2. Open the faucet at the sink to release pressure from the line. Then close the faucet. 3. Allow the unit to cool. 4. Remove the protective cover. 5. -
Page 17: Troubleshooting
Troubleshooting Lack of Distilled Water at the Faucet For the WATT’R TWIN system to operate successfully, there needs to be a demand of both hot water and drinking water. The WATT’R TWIN system has the ability to meet the drinking water requirements of the people living at the location where it is installed, but does not have an unlimited capacity. - Page 18 Drain Valve Not Closing Properly To correct, apply power to the drain valve so it will open. Blow through the drain tubing to clear the debris that is preventing it from closing. If a large piece of residue is stuck in the drain valve, it can prevent it from closing, which allows the feedwater to go straight to the drain and never reaches the boiling point to generate steam.
- Page 19 the electrical enclosure. e) remove the drain tubing from the drain solenoid. Lift the Boiling chamber out of the distiller tray. Put the boiling chamber in the sink. Remove the lid. g) Dump the boiling chamber until the water level is 2 inches above the heating ele- ment.
-
Page 20: Electrical Schematic
Electrical Schematic Page 20... -
Page 21: Exploded View
Exploded View Page 21... -
Page 22: Parts List
6 0 ....2 1 9 - 0 2 7 ......Hour Meter, 120V 6 1 ..... 2 2 1 - 9 0 0 0 ....... 1/4” Union Bulkhead 6 2 ..... 2 2 1 - 9 0 0 6 ....... Elbow, Push 1/4” Form #8305, ©1999, Pure Water, Inc. Page 22...
