Summary of Contents for Spatz DPSCALE

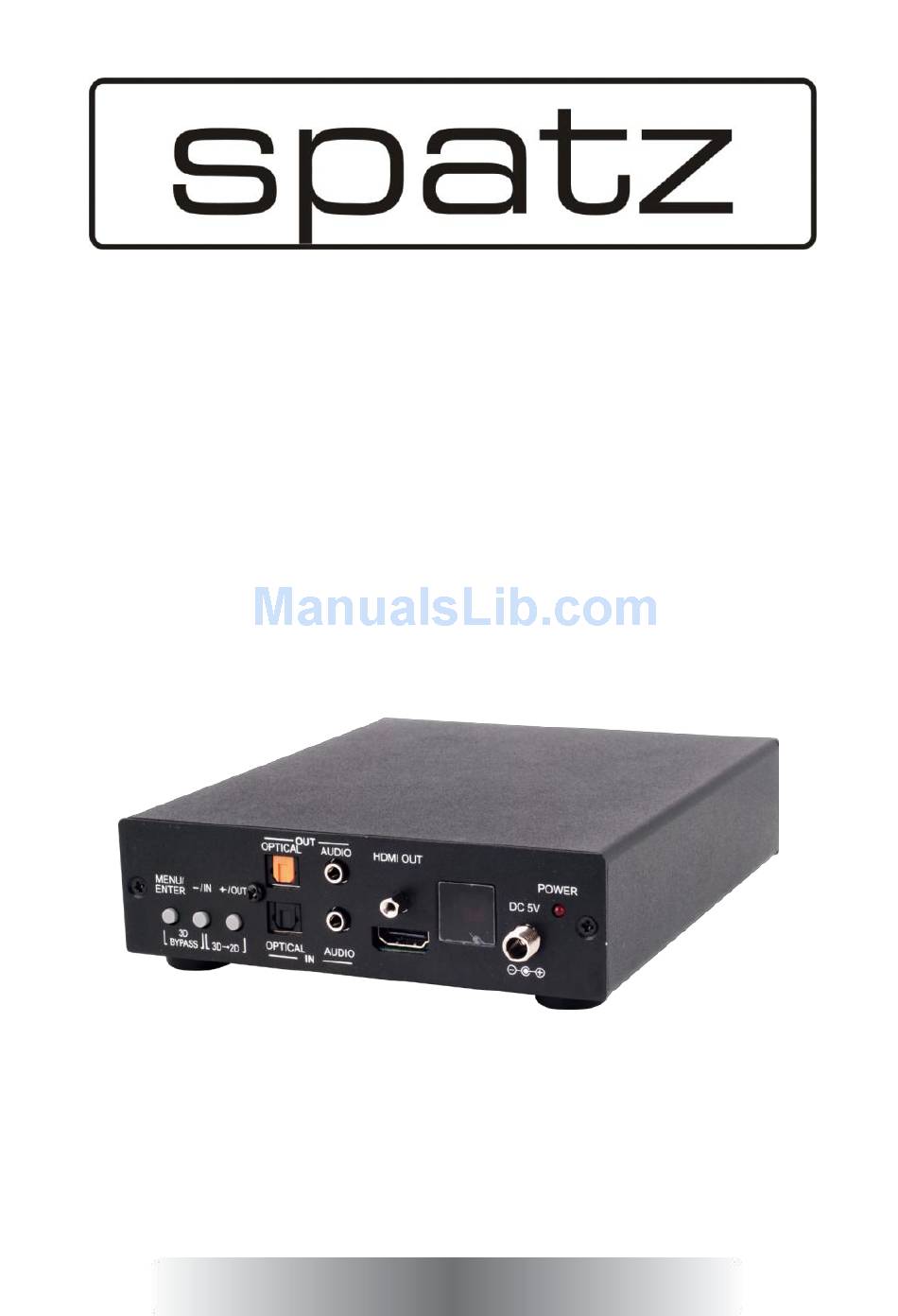

  • Page 1 DPSCALE Ultra High Resolution Scaler with 3D...
  • Page 2: Copyright Notice

    DISCLAIMERS The information in this manual has been carefully checked and is believed to be accurate. SPATZ assumes no responsibility for any infringements of patents or other rights of third parties which may result from its use. SPATZ assumes no responsibility for any inaccuracies that may be contained in this document.
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons.
  • Page 4: Table Of Contents

    CONTENTS 1. Introduction..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements......1 5. Features ..........1 6. Operation Controls and Functions..2 6.1 Front Panel ........2 6.2 Rear Panel......... 4 7.OSD Menu and Function List....5 8.
  • Page 5: Introduction

    1. INTRODUCTION This high performance video processor which allows 3D movies to be watched on a 2D display. With HDMI, DisplayPort and PC/Component inputs to its HDMI output and the associated audio signal processed synchronously. The operation of both 3D-to-2D and scaling features can be handled easily through on-panel buttons, IR remote control, or RS-232 protocol.
  • Page 6: Operation Controls And Functions

    6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel AUDIO OPTICAL HDMI OUT POWER DC 5V MENU/ ENTER OPTICAL AUDIO → BYPASS MENU/ENTER Press this button to ENTER the OSD menu. Press again to confirm the selection. -/IN a. “-“: When in OSD page, sequentially press this button to move down the OSD selection.
  • Page 7 OPTICAL OUT This slot is where you connect the amplifier with OPTICAL cable and from amplifier to speaker. AUDIO L/R OUT This slot is where you connect the speaker or amplifier with audio phone jack to the display. OPTICAL IN This slot is where you connect the input OPTICAL audio source.
  • Page 8: Rear Panel

    6.2 Rear Panel RS232 HDMI 1 HDMI 2 PC/COMP SERVICE DisplayPort RS232 This slot is to connect with D-Sub 9pin cable from the PC/NB device for RS-232 control. SERVICE This slot is to connect with USB cable for manufacturers’ firmware update only.
  • Page 9: Osd Menu And Function List

    7.OSD MENU AND FUNCTION LIST Input Video COMP HDMI 1 HDMI 2 Exit Input Audio AUDIO Optical HDMI/DP Mute Exit Output Resolution 720x480P 1280x720P 1920x1080P 640x480 800x600 1024x768 1280x1024 1600x1200 1920x1200 By Native 3D Bypass Exit Output Format 3D→2D 3D Bypass Exit...
  • Page 10: Remote Control

    Main Menu 2nd Layer 3rd Layer Misc. Setup EDID Mode Internal / External / Exit Info. OSD Mode Off / On / Exit About CS-801H FW Ver. Factory Reset System Reset Exit Exit 8. REMOTE CONTROL VIDEO IN Press to select HDMI 1/HDMI 2/DP/PC/Component input source.
  • Page 11: Rs-232 Protocols

    3D→2D Press to switch from 3D to 2D. 3D Bypass Press to switch to 3D bypass. Native Press to switch to Native resolution. 8.1 RS-232 Protocols RS-232 modem cable. Pins definition of modem cable CS-801H Remote Controller Definition Definition → ←...
  • Page 12: Rs-232 Commands

    8.2 RS-232 Commands User Command Code Description POWER ? Power Status POWER ON Power On POWER OFF Power Off 3D ? 3D Status 3D TO 2D 3D In, 2D Out 3D BYPASS 3D In, 3D Bypass Out VIDEO ? Video Input Source HDMI 1 Video Input in HDMI1 HDMI 2...
  • Page 13 INFO OFF Info.OSD Off OUTPUT ? Output Status 480P Output in 480P 720P Output in 720P 1080P Output in 1080P Output in VGA(640x480) SVGA Output in SVGA(800x600) Output in XGA(1024x768) SXGA Output in SXGA(1280x1024) UXGA Output in UXGA(1600x1200) WUXGA Output in WUXGA(1920x1200) NATIVE Output by Native EDID ?
  • Page 14: Connection And Installation

    HD TV Amplifier D-Sub15pin Optical HDMI RS232 OU T OPTICAL AU DIO HDMI OU T HDMI 1 HDMI 2 VG A POWER DC 5V MEN U/ EN TER SERVICE DisplayPort OPTICAL AUD IO → BYPASS Optical 3.5Ø audio HDMI HDMI Blu-ray Dell PC...
  • Page 15: Specifications

    10. SPECIFICATIONS Video Bandwidth 255MHz/6.75Gbps DP Input Frequency 2.7Gbps & 1.62Gbps/Lane Bandwidth Input Port 2 x HDMI (Female type), 1 x DisplayPort, 1 x VGA Audio Input Port 1 x L/R, 1xOptical Output Port 1 x HDMI, 1 x L/R, 1 x Optical Power Supply 5V DC/ 2.6A (US/EU standards, CE/FCC/ UL certified)
  • Page 16 COMP 2D Input Resolution HDMI DP Input Resolution 640*350@85 ˇ ˇ 640*400@85 ˇ ˇ 720*400@85 ˇ ˇ VGA640*480@60/72/ ˇ ˇ ˇ 75/85 SVGA800*600@56/60/72/ ˇ ˇ ˇ 75/85/120 848*480@60Hz ˇ ˇ XGA1024*768@43i/60/ ˇ ˇ 75/85/120 XGA+1152*864@75 ˇ ˇ 1280*720@60 ˇ ˇ 1280*768@60R/ ˇ...
  • Page 17: Pc, Hdmi, Dp Input Timing

    10.1 PC, HDMI, DP Input Timing 1600*900@60R ˇ ˇ UXGA1600*1200@60/ ˇ@60 only ˇ ˇ 65/70/75/85/120R WSXGA1680*1050@60R/ ˇ@60CVT/60 ˇ 75/85 1792*1366@60/75 ˇ 1856*1392@60 ˇ 1920*1080@60 ˇ ˇ 1920*1200 ˇ@60 ˇ ˇ (@60R/60/75Hz) 1920*1440@60 ˇ 720*480I/P ˇ ˇ ˇ 720*576I/P ˇ ˇ 720I/P@50/60 ˇ...
  • Page 18: Output Resolution

    720p@50 / 60Hz Frame ˇ packing 720p@50 /60Hz Top-and- ˇ Bottom 10.2 Output Resolution HDMI 3D to 2D and 2D to 2D output Resolution@60Hz 640*480 800*600 1024*768 1280*1024 1600*1200 1920*1200RB 480P 720P 1080P HDMI 3D to 3D Bypass Output Resolution Frame Packing: 720p@50/60Hz, 1080i@60Hz, 1080p@24/30Hz Top-and-Bottom: 720p@50/60Hz, 1080i@60Hz, 1080p@24/30Hz Side-by-Side: 720p@50/60Hz, 1080i@60Hz, 1080p@24Hz...
  • Page 19: Acronyms

    11. ACRONYMS ACRONYM COMPLETE TERM HDMI High-Definition Multimedia Interface...
