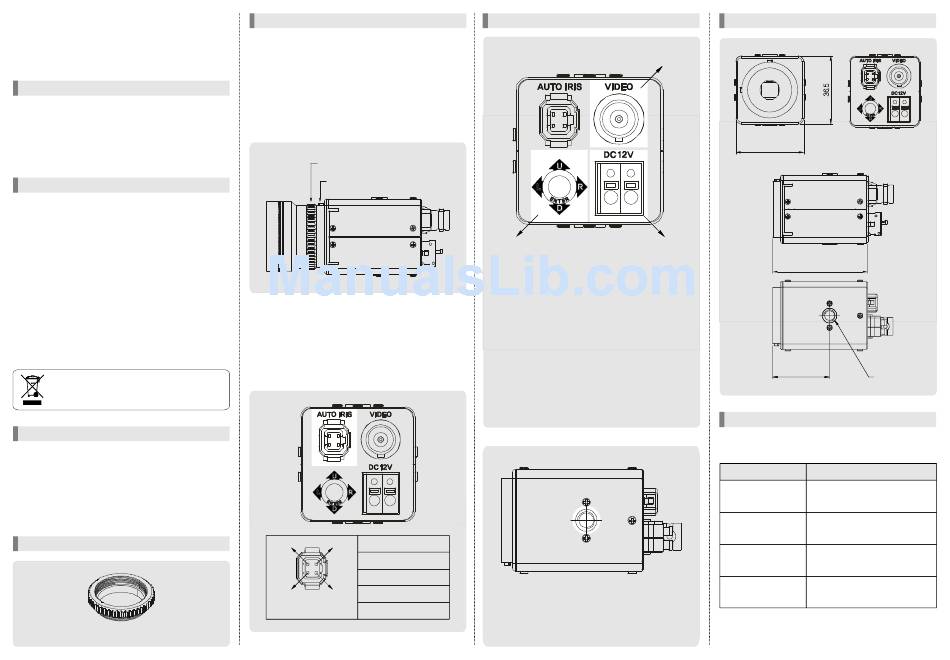

Huviron SK-B280 Manual

MINI BOX CAMERA
SK-B280
MANUAL

FEATURES

1. This camera supports supreme resolution(650TVL).
2. You can adjust all functions by OSD.
3. This camera has "non-polarity" function.
You can connect 12V DC regardless polarity.
4. Practical small size.

CAUTION AND WARNING

1. Do not install the camera outdoors.
Use weatherproof housing for outdoor.
2. Choose an ideal location for the camera, since the
camera unit must be protected against moisture
and vibration.
3. Be careful not to scratch the camera unit, especially
lens glass.
4. Use the camera under proper temperature.
(-10° C ~ +50° C)
5. Handle with care. Dropping it can cause serious
damage to the camera.
6. Avoid any direct sun light into the lens.
7. Use the adaptor regulated 12V DC, 300mA.
If the product is to be put out of operation definitively,
take it to a local recycling plant for a disposal which
is not harmful to the environment.

DESCRIPTION OF OPERATION

1. Remove the protective rubber before installing a
CS mount lens.(If you use a C mount lens, add a
C mount ring.-option)
2. Connect the video output jack to the monitor video
in jack.
3. Connect power supply. Check the voltage.

ACCESSORIES

C MOUNT RING -(option)

LENS CONNECTION

1. Manual iris lens
1) Before mounting a lens, please check whether
it is a C mount or CS mount lens.
2) CS mount lens : After removing the protective
rubber, attach the lens.
3) C mount lens : Before installing the lens, attach
the C mount ring to the camera.
4) Set the LENS mode to "manual" by OSD.
C-MOUNT RING(option)
CS-MOUNT
2. Auto iris lens
1) Attach a DC lens as like the manual lens connection.
2) Connect the lens plug to the auto iris lens connector
on the rear panel of the camera.
3) Set the LENS mode to DC and adjust DC level
by OSD.
DC-TYPE
④ ②
① DAMP COIL -
② DAMP COIL +
③ ①
③ DRIVE COIL +
AUTO IRIS LENS
CONNECTOR ④ DRIVE COIL -
※The lens is not supplied with this camera.

OVERVIEW

①
③ ②
①Video output :
Used to connect the video monitor.
② Power input terminal :
Used to connect a 12V DC power supply only.
(Non-polarity)
③ Menu setup jog lever :
ㆍENTER : Used to access the menu and confirm
selection.
ㆍUp, Down : Used to move the cursor to up or
down.
ㆍ Left, Righ
t : Used to move the cursor to left
or right and change the value.
Mouting hole
1/4"-20UNC(20THREAD)
L : 4.5mm 0.2mm(ISO standard) ±

DIMENSION

36.5
51
30.5
1/4" -20UNC

TROUBLESHOOTING GUIDE

Before calling service, check the following points for
possible misuse.
Problem Check point
Too dark or bright Readjust the contrast or brightness
picture controls on the monitor.
Check for power connection
No Power
Clean the camera lens.
Poor picture quality
Readjust lens focus.
Check the condition of the power
Shrinking picture
sources.
If you can't correct the problem after going through
this chart, contact a service professional for further
assistance.
.
