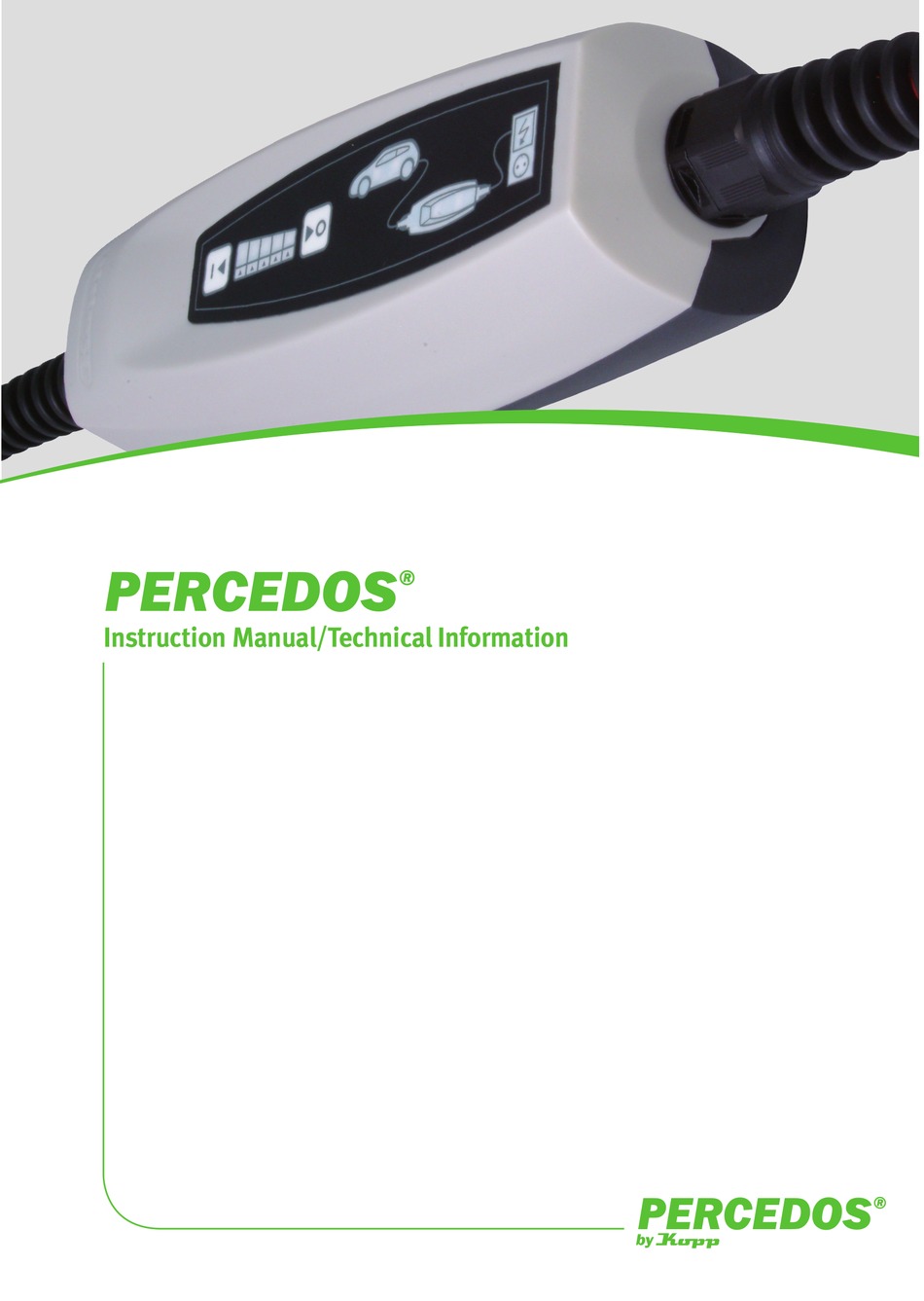

- Page 1 PERCEDOS ® Instruction Manual/Technical Information PERCEDOS ®...
-
Page 2: Function Description
An inactive PERCEDOS status ® ® is the equivalent of a standby function. Without PERCEDOS , it is impossible to ® charge the vehicle in mode 2. When connected to an outlet, the device automatically recognizes whether mains voltage is present at the feed point. - Page 3 • No protective ground monitoring possible. • No external voltage detection possible. Possible results of the protective ground monitoring - external voltage detection: • There is no protective ground connection between the PERCEDOS ® and the outlet (mains connection). • Charging procedure is not activated.
-
Page 4: Battery Charging Procedure
® vehicle and the mains connection. • Vehicle operation can be resumed. Charging procedure not possible: • Communication error between the PERCEDOS and the electrical vehicle. ® • Ventilation required by the vehicle electronics is not present, not activated, or faulty Display vehicle blinks red. - Page 5 16A. Parameterization of the maximum possible charging current is only possible inactive operating status. To manually parameterize the maximum possible charging current, pro- ceed as follows: • Check the operating status of the PERCEDOS and switch from ® active to inactive, if necessary.
-
Page 6: Temperature Monitoring
• If the charging procedure has been permanently switched off automatically by the temperature monitoring, this must be manually reset after elimina- ting the fault. For this, proceed as follows: • Switch the operating status of the PERCEDOS from active to inactive. ® • This resets the temperature monitoring. -
Page 7: Fault Current Circuit Breaker
Automatic switch-off in case of detected differential fault current: • In case of detected differential fault current IVn 30 mA, the PERCEDOS ® initially switches off the charging procedure temporarily. -
Page 8: Service Functions
Display PERCEDOS illuminates red. ® For this, proceed as follows: • Switch the operating status of the PERCEDOS from active to inactive. ® • This resets differential fault current monitoring. Display PERCEDOS blinks green. - Page 9 Reset operating hours meter: The operating hours meter can be manually reset in inactive operating status. For this, proceed as follows: • Check the operating status of the PERCEDOS and switch from ® active to inactive if necessary. • Then, press the button (0) again for approx. 2-3 seconds.
- Page 10 Residual Current Device (RCD Type A) Protection Conductor Presence (PCP) Protection Conductor Monitoring (PCM) Operation recognition Automatic restart after power failure. The PERCEDOS must be previously activated and not switched off through residual current. No automatic restart after manual switch off Undervoltage release...
-
Page 11: Dimensional Drawing
PERCEDOS ® PERCEDOS ® Indications on the PERCEDOS display: No displays: no mains voltage Charging station: 1. No display (off): no mains voltage. 2. Illuminates green: charging procedure possible. 3. Blinks red: charging procedure not possible. Outlet fault. PERCEDOS: 1. No display (off): no mains voltage or outlet fault. - Page 12 PERCEDOS ® Heinrich Kopp GmbH GmbH Alzenauer Straße 68 Theodor-Simoneit-Straße 2 63796 Kahl/Main A-4160 Aigen Telefon: +49 6188 40-0 Tel: +43 7281 6566-0 Technische Beschreibungen, Abbildungen und Leistungsangaben Telefax: +49 6188 8669 Fax: +43 7281 8790 stellen keine zugesagten Eigenschaften dar, sondern sind nur Vertrieb, Telefax: +49 6188 40-369 unverbindliche Informationen.
