Summary of Contents for PBI DCH-5000P

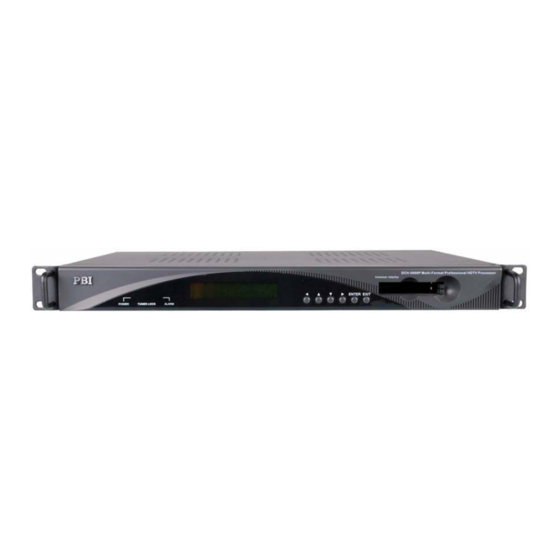

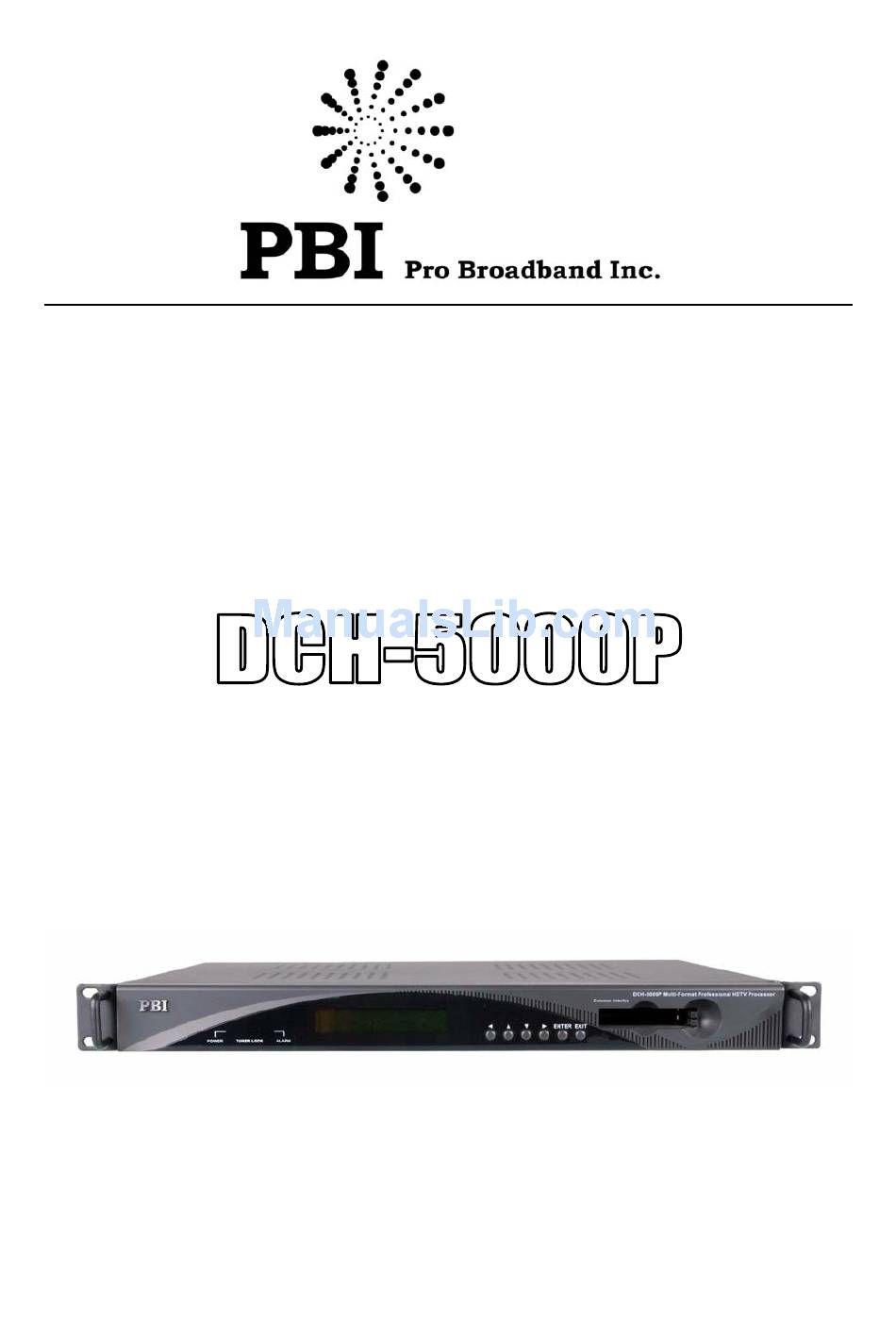

- Page 1 Multi-Format Professional HDTV Processor User Manual http://www.pbi-china.com...
-
Page 2: Table Of Contents
CONTENT 1. Safety ............................1 2. Overview...........................2 2.1 Features ..........................2 2.2 Models..........................3 3. Installation ..........................3 3.1 Inspection and Test ......................4 3.2 Functional Self Test......................5 4. Structure ...........................5 4.1 Front Panel ........................5 4.2 Rear Panel........................5 5. Menu Structure and Operation ....................6 5.1 Inputs Menu........................7 5.1.1 Status Menu ......................7 5.1.2 DVB-S2 Menu .......................7 5.1.3 Ethernet Menu.......................8... -
Page 3: Safety
DCH-5000P DCH-5000P Multi-Format Professional HDTV Processor 1. Safety Please read this chapter before installation and use of the device This equipment is provided with a protective earthing ground incorporated in the power cord. The main plug shall only be inserted in a socket outlet provided with a protective earth contact. -
Page 4: Overview
DCH-5000P 2. Overview As the latest version of PBI’s flagship professional IRD, the DCH-5000P’s capability to decode all video formats, coupled with a wide choice of input options for all transmission mediums, the DCH-5000P provides significant benefits and the maximum flexibility for professionals who wish to migrate their operations from MPEG-2 SD to MPEG-4 AVC HD. -
Page 5: Models
DCH-5000P 2.2 Models There are many models of DCH-5000P basing on different functions DCH-5000P Multi-Format Professinal HDTV Processor DCH-5000P-30xx DCH-5000P-42xx DCH-5000P-44xx ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ ﹣ DVB-S Input/Loop through ●... -
Page 6: Inspection And Test
DCH-5000P The mounting environment should be relatively dust free, free of excessive vibration and the ambient temperature between 0 ℃ to 40 ℃. Relative humidity of 20% to 80% (non-condensed) is recommended. Air intake for cooling is achieved via holes at the side of the device and the fans inside. -
Page 7: Functional Self Test
DCH-5000P IP: 10.10.60.148 (factory default IP Address) If no message is shown in the display or there is not light in the display, the device is defective and has to be returned for servicing. 3.2 Functional Self Test No specific functional self test is needed. -
Page 8: Menu Structure And Operation
DCH-5000P TS/IP IP input/output port RS-232 serial port for printing information MANAGEMENT Interface as network management and software upgrading B4,B7 ASI2 OUT ASI2 output port B5,B8 ASI1 OUT ASI1 output port(independently from ASI 1) ASI1 IN ASI1 input port ASI2 IN... -
Page 9: Inputs Menu
DCH-5000P (1) Input Setup Set input parameters (2) Output Setup Set output parameters (3) System Set system parameters 5.1 Inputs Menu There are three options: Status and DVB-S2: Inputs Status DVB-S2 Ethernet 5.1.1 Status Menu It contains four options, ASI1, ASI2, TUNER and IP IN, to show the status of signal... -
Page 10: Ethernet Menu
DCH-5000P LNB 22KHz: activate the LNB 22 kHz control signal to the LNB: On or Off. <B> DISQEC: Can select OFF/Port A/Port B/Port C/Port D Note: please contact the local satellite operator for the satellite frequency and symbol rate. <A> Normally, 13V switches the LNB to receive Vertical/Left hand polarization while 18V receive Horizontal/Right hand. -
Page 11: Biss Menu
DCH-5000P 5.2.7. (B) The Ethernet menu is showed only if the IP streaming in/out board is installed and the TS/IP streaming board is set to “IP Out”. Refer to section 5.2.7. Outputs Decode Ethernet BISS ASI1 ASI2 5.2.1 BISS Menu Biss: It includes Biss Mode, Biss 1 Setup and Biss E Setup Biss Mode：Set Biss mode, can select OFF, Biss E or Biss 1... -
Page 12: Decoder
TS will be delivered to the ASI output port on the back panel. Program: under this sub menu, you will see all program names detected by DCH-5000P. The programs could be coming from ASI input, Tuner, TS/IP input or the internal CI de-encryption block. Use the < > or <... -
Page 13: Asi1
DCH-5000P C-xxxxx displays the program name which comes from the CI. A few seconds after the program being selected, the A/V signal will be delivered to the related connectors on the back panel. Video: You can configure the video parameters of programs in this submenu. Press the <ENTER>-key to confirm or press the <EXIT>-key to cancel. -
Page 14: Asi2
TS ID: you can configure the TS ID to mark the multiplexed TS. Default value is 1. Program List: press the <ENTER>-key to enter ‘Mux List’ sub-menu. It shows all programs detected by DCH-5000P. The programs could be come from ASI input, Tuner, TS/IP input or the internal CI de-encryption block. Use <... -
Page 15: Ethernet
DCH-5000P On ‘Mux List’ sub-menu, on the first row, all encrypted programs are labeled with a ‘$’ sign. All programs that are being selected to be re-multiplexed are labeled as ‘Pass’, otherwise, the un-selected programs are labeled as ‘Fobrid’. Use <ENTER>-key to selected or un-selected the program being shown. - Page 16 'Multicast IP' on the first row, the stream itself is Unicast. The IP address of receiver device (maybe PC with VLC) needed to be set to as the unicast address on DCH-5000P, please don't use DHCP to get a dynamic IP address for receiver device.
- Page 17 DCH-5000P sub-menu. There are 4 sub-menus: x-Multicast IP: Enter the IP address of the IP stream for the transport stream over IP output. You can also configure the IP stream output mode in Multicast or Unicast by setting Multicast IP address.
-
Page 18: System Menu
5.3.3 Unit Name The DCH-5000P allows you to edit the unit name which is displayed on the front panel LCD. Default name is ‘Digital TV Processor”. The unit name should not be longer than 20 characters in ASCII format. -
Page 19: Optional Function
DCH-5000P All the user configurable parameters will be set to the factory default settings, including IP address and the unit name. 5.3.6 Optional Function There are two submenus: External Board Type: Press <ENTER>-key to active the menu, use < > <... -
Page 20: Accessory List
DCH-5000P 6. Accessory list DCH-5000P-xx User Manual Power Cord RCA A/V Cable ASI Cable Beijing Jaeger Communication Electronic Technology Co.,Ltd. Pro Broadband Inc. Tel: +86 (0)10 6263 8833 Fax: +86 (0)10 6263 7776 website: www.pbi-china.com e-mail: mkt@pbicn.com This document and the information contained in it is the property of Pro Broadband Inc. and may be the subject of patents pending and granted. - Page 21 Beijing Jaeger Communication Electronic Technology Co., Ltd. Tel: +86-10-62475893 Fax: +86-10-62473278...
