MEGA ELECTRONICS LIMITED.,
Mega House, Grip Industrial Estate, Linton, Cambridge, CB21 4XN
Telephone: +44 (0) 1223 893900 Fax: +44 (0) 1223 893894
email: sales@megauk.com web: www.megauk.com

Note: Any inquiries related to photoplotter hardware or software should be addressed to an
authorized distributor. Photoplotter software is subject to copyright. All the information enclosed
here is subject to change due to constant innovation of the product. Date of the last change in this
document: June 17, 2011.

1. Brief description:

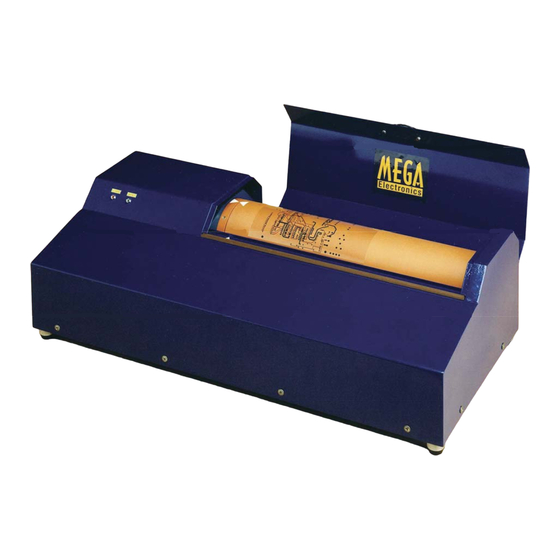

Photoplotter  FP‐8000/8000  XL  is  a  small,  raster,  low  cost  plotter  which  draws  image  on  film  by
means  of  laser  diode  light.  Film  itself  is  fixed  to  the  outer  surface  of  rotating  drum  by  means  of
masking  tape.  The  source  of  laser  diode  light  moves  step  by  step  along  the  rotating  drum.
Photoplotter is controlled by software installed on PC attached via its USB port (PC is not a part of
the  photoplotter  supply).  An  external,  universal  power  unit  is  used  to supply  needed  power (100‐
240V AC / 36V DC – 1.66A).
The  photoplotter  software  allows  to  read  input  files,  to  set  output  resolution  and  type  of  image
(negative, mirror, etc.) drawn on the film. When working with Gerber files, it is possible to check and
modify used apertures (D‐codes) and make simple film panelisation for Gerber data and associated
drill  data.  Viewing  of  Gerber  files  and  conversion  of  various  types  of  aperture  files  is  possible  in
freeware  program  ViewMate  (made  by  Pentalogix,  formerly  Lavenir),  which  is  attached  to  the
photoplotter software for your convenience (otherwise it may be downloaded from Pentalogix web
page: http://www.pentalogix.com/Download/download.html).
Photoplotter  is  driven  by  program  Run_photo_USB,  which  reads  in  hi‐resolution  bitmap  files  FPF,
(photoplotter  proprietary  file  format)  and  BMP.  From  this  reason,  if  you  work  with  Gerber  or
Postscript files, these files must be converted into one of these bitmap files format first. Gerber files
are  converted  by  program  Gerb2bitmap,  which  is  a  part  of  the  photoplotter  software,  while
Postscript files are converted by an external program, supplied as an option. Converter of Gerber
files  has  also  built‐in  converter  of  aperture  files  to  convert  various  aperture  format  into  one
standard format (Lavenir format is used as a standard aperture format). Aperture file conversion is
needed  only  when  working  with  standard  Gerber  format  RS‐274‐D.  There  is  no  need  to  convert
aperture  file  when  working  with  extended  Gerber  format  RS‐274‐X,  as  this  type  of  file  already
contains information on used apertures.
Various types of films may be used for this photoplotter, but all of them must be sensitive to light
wave length of 670 nm (red light). Thin films (0.1 mm) used by image setting machines as well as
standard  photoplotter  films  (0.18  mm)  can  be  used,  although  0.1mm  films  are  recommended  for
this model of the photoplotter. Films 0.1mm come either in rolls of various width and length, or in
pre‐cut sheets of several sizes. Film in roll is easy to tape on a small drum in photoplotter, as film
tends to bend automatically. There are several manufacturers of suitable films, like Kodak, Horsell,
Fuji, Agfa, Typon Graphic Systems, etc., while films have various names like EZR4, RD4, TR‐LR+. As
film light sensitivity differs with various films, several test plots may be needed to find suitable light
intensity. Films have to be wet processed (developed and stabilised) like any other films after lighted
in photoplotter. Film manufacturers recommend and usually supply chemicals to be used for their
films processing.
Photoplotter FP‐8000/8000 XL
Instruction manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the FP?8000 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mega FP?8000

  • Page 1 MEGA ELECTRONICS LIMITED.,   Mega House, Grip Industrial Estate, Linton, Cambridge, CB21 4XN   Telephone: +44 (0) 1223 893900 Fax: +44 (0) 1223 893894   email: sales@megauk.com web: www.megauk.com     Photoplotter FP‐8000/8000 XL  Instruction manual   Note: Any inquiries related to photoplotter hardware or software should be addressed to an  authorized distributor. Photoplotter software is subject to copyright. All the information enclosed  here is subject to change due to constant innovation of the product. Date of the last change in this  document: June 17, 2011.     1. Brief description:   Photoplotter  FP‐8000/8000  XL  is  a  small,  raster,  low  cost  plotter  which  draws  image  on  film  by  means  of  laser  diode  light.  Film  itself  is  fixed  to  the  outer  surface  of  rotating  drum  by  means  of ...
  • Page 2 The power switch is located on the left side of the plotter.   On the back side of the plotter the following items can be found: ‐power supply connector (label: Input 36V  2A) ‐computer USB cable connector (label: USB) ‐Label with serial number of the plotter (SN ………)   On the front or left side of the plotter the following items are located: ‐Yellow (or Red) LED indicating plotting  operation (label: Laser) ‐Green LED indicating power on (label: Power)     2. Technical parameters:   Maximum film size: FP 8000: 360 mm x 360 mm / 14" x 14" FP 8000 XL: 380 mm x 450 mm / 15" x 17,5"  Maximum photo‐plotting area: FP 8000: 340 mm x 320 mm     FP 8000 XL: 360 mm x 420 mm Plot resolution: (508, 1016, 1355, 1625, 2032, 2710, 4064, 8192) x 8600 dpi,  Plotting speed: approximately 13 mm of film width / minute for 1016 dpi Used light: Laser diode 670 nm  (red) Reads in image formats: Gerber (RS 274D, RS 274X), hi‐res BMP, Postscript (option) Reads in aperture  files: directly CAM350, GC‐CAM, IsoCAM, Lavenir, other formats like Pads, Eagle, OrCAD, Protel, PCAD reads  through built‐in converter. Photoplotter overall size: FP 8000: L x W x H (700x340x210)     FP 8000 XL: L x W x H (700x370x230) Photoplotter weight: FP 8000: approx. 25 kg (55 lbs) FP 8000  XL: approx. 26.5 kg (58 lbs) Power: an external power supply unit 100‐240V AC / 36V DC – 2.78A   Reversed (negative) & mirror plotting, film and drill panelisation, D‐code editing, output preview & print,  interactive or coordinates image positioning on film, glue/unglue image location, automatic positioning of  associated images on different layers.     Photoplotter software is supplied on CD with installation program.   Requires Pentium computer with at least Windows 2000 and USB port, 100 MB HD space minimum for  software and output files. The computer speed has influence on plotting time. Plotting files may be quite  large, in range of tens of MB, so extra space on hard disk may be required.     Warranty 1 (one) year on parts.  There is no expressed warranty on functionality of enclosed software whatsoever except warranty on CD  media.     Notes:   1)  Output resolution    The lowest resolution (508 & 1016 dpi) pay not be suitable for fine results.    1355 and 1625 dpi resolution is suitable for most plotting application    Use 2032 or 2710 dpi for plotting fine lines (but it takes longer time to plot)    2) ...
  • Page 3 How to prepare photoplotter:   3.1 Photoplotter software installation   Connect photoplotter with PC via USB cable supplied with the photoplotter. USB connector is located on the  back side of the photoplotter. The photoplotter does not need to be powered at this moment.   Computer  will  detect  new  connected  USB  device  (photoplotter)  and  will  run  new  hardware  installation  (Windows  procedure).  Do  not  use  an  Automatic  installation,  but  select  „  Install  from  list  or  location“  and  point to directory Install\Drivers\ located on installation CD and confirm.   After hardware installation you can install photoplotter software – go to directory Install on installation CD  supplied with the photoplotter and execute SETUP.exe.  Software starts to install on connected computer.   3.2 Power the photoplotter   Connect supplied power supply unit with the photoplotter – connector is located on the back side. Switch ...
  • Page 4 AUTO/MANUAL switch: Position of AUTO/MANUAL switch has impact against laser head behaviour. AUTO ‐ laser head moves to its starting position (left side of the drum) MANUAL ‐laser head moves 1 cm to the right  only   Before first data plotting, check the AUTO/MANUAL switch and set it to AUTO position. When you start the  plotter, laser head will move to its starting position (left side), after that you can start data plotting (laser  head will move from left to right side during the plotting). When the plotting is finished and the switch will  be in AUTO position, laser head will move back to its starting position and plotter will be ready again for  plotting. When the plotting is finished and the switch will be in MANUAL position, laser head will move 1 cm  to the right only and plotter will be ready again for plotting.     AUTO mode is suitable for single data plotting in the whole film width. MANUAL mode is suitable when you  want to plot 2 (or more) data ‐side by side (in drum axis direction). After first data plotting laser head moves  little to the right only (1 cm) and next plotting starts from this position.     If you turn power on after film is loaded, it may happen that laser light beam flashes shortly on the film at  the moment when power is turned on and electronic circuitry is reset. This may result in very small spot on  the film.     3.3 Place and tape film   Lift the photoplotter lid, so you have access to the outer surface of the drum. Rotate drum by hand (in any  direction) to point white arrow located on the left side of the drum to white arrow located on the left side of  drum holder. This is the outgoing position of the drum for photo‐plotting. The left top corner of photo‐ plotted area is then approximately 20 mm from the left edge of the drum on the horizontal line marked by  white arrow. Place film on the drum with its top edge approximately 20 mm behind the white mark on the  drum, hold it firm by hand and fix it to the drum by means of a masking tape along the top edge. Rotate  drum by one hand to be able to fix film‘s bottom edge, but make sure film is tight on drum surface. After film  is fixed to its position on the drum, rotate drum back to 1st initial position (both white arrows point to each  other). Close the lid.     NOTES:   It is a matter of practice to fix film properly on the drum surface.     Films used in this photoplotter are sensitive to light of 670 nm (red light). When working with film  (loading, unloading,…) use light dark green light. It is recommended to use dim light in room during  photo‐plotting. Make sure there are no other sources of light that may expose film, for example light  coming from monitor screen, when loading and unloading film. The film manufacturer can recommend  proper type of dark room safe light if needed.     Transparent films must be mounted with emulsion side on the drum surface. (Film in rolls used for image  setting machines has emulsion side on inner side and therefore it is easy to put it on photoplotter drum  properly). Emulsion side of the film has light grey colour, compare with dark colour of the other side.  ...
  • Page 5 3.4 Run photoplotter   Before  you  start  plotting,  make  sure  that  drum  is  in  its  initial  position  (white  arrow  on  the  left  side  of  the  drum should be aligned with white arrow on the top of the left holder of the drum). After you prepared your  data  for  plotting  on  connected  PC  using  photoplotter  software,  start  plotting  ‐see  further  info.  The  photoplotter  drum  starts  slowly  to  rotate.  After  drum  reaches  its  working  speed,  it  rotates  a  while  before  actual ...
  • Page 6 Viewmate directory contains program ViewMate. This program is made by PentaLogix (Lavenir) and is a free  of charge addition to the photoplotter software. It allows to view Gerber files and to convert aperture files  made in various PCB layout systems into one common file format (Lavenir‘s format of aperture file, extension  .env).  Installation  of  this  program  is  done  by  executing  ViewMate  Setup  in  directory  ViewMate  on  CD.  ViewMate can be expanded to full Gerber editor ViewMaster – contact photoplotter supplier or PentaLogix  directly (http://www.pentalogix.com).   4.2 Detailed programs description:   Program Gerb2Bitmap   This program reads in Gerber files and converts it into hi‐resolution bitmap file in proprietary format (FPF),  which can be then read into plotter control program (Run_photo_USB.exe) to be used for photo‐plotting. It  allows to view Gerber image as it appears on the film, edit D‐codes, panelise film and associated drill. It also  has  a  built‐in  converter  of  aperture  files  made  in  various  CAD  software  (Eagle,  Pads,  OrCad,  Protel,  P‐CAD,  etc.)  ...
  • Page 7 Please note, that plotted image is in plotting area rotated by 270 degree (or –90 degree) and mirrored from  some programming reasons. It means, X axis of the grey plotting area represents Y axis of the film loaded in  photoplotter (drum circumference), while Y axis of the grey plotting area represents X axis of the film loaded  in photoplotter (drum axis). At the same time the image is mirrored over the Y axis of the plotting area. This  has no impact on proper photo‐plotting, as the overall size of the plotted image is the same.     To avoid confusion with plot rotation on the film, this is the rule: horizontal line of the plotted image will be  vertical in plotter.     Command  Job‐Import  Master  Gerber  or  the  first  left  icon  loads  main  Gerber  file(s),  while  Job‐Import  Associated Gerber or „Gbr“ icon loads Gerber files associated with the master file. The master Gerber file(s)  can be located anywhere inside the plotting area, usually on layer (film) number 1 (default), while associated  Gerber files are automatically positioned under Master Gerber on different, specified layers (films). If Master  Gerber file is for example top side routing of the PCB, then Associated Gerber files are for example silkscreen,  soldermask or bottom side routing of the same board – they will be in same location as the Master image,  but on different layers (films), even when penalization is done. Several Master Gerber files (same or different)  can be loaded on one, same layer (film). Associated Gerber files are loaded into selected layer, which can be  selected in top right window     Active Layer.   Note: The meaning „Master Gerber “ and „Associated Gerber“ makes sense only in case of several artworks  (like Top side routing, Bottom side routing, Silkscreen, Soldermask, etc.) from the same board will be photo‐ plotted,  while  one  of  them  (Master)  will  be  panelised ...
  • Page 8 Aperture files can have various formats, depending on software where it was created. This program uses  Lavenir‘s format as a standard. Beside Lavenir‘s format (.env) can this program read directly several other  formats like CAM350, IsoCAM, GC‐CAM – other formats must be converted to one of them. The program has  built‐in DOS aperture converter made by Lavenir, which allows to convert most of the common aperture file  formats into Lavenir‘s format in an easy way.     Before loading aperture file, make sure it will be loaded on the same layer as corresponding Gerber file –  use Active Layer to set active layer.   Use Job – Import Apertures or „Apt“ icon to activate this apertures converter. A dialog window appears  where it is possible to choose aperture type of loaded aperture files and to define the loaded aperture file. If  loaded file has format of Lavenir, CAM350, GC‐CAM or IsoCAM , then it can be loaded directly, just choose  this aperture type. If loaded type is not listed under aperture type, use other apertures – it will bring up the  aperture converter  automatically. Note :  Similar,  new  Windows  version  of  this  converter  is  in  ViewMate  program  –  that  one  can  be  also  used  to  convert  aperture  files  to  Lavenir‘s  format.  ...
  • Page 9 This  method  is  used  when  there  is  a  problem  with  aperture  file  conversion,  or  user  does  not  have  any  aperture file generated by PCB design software, etc.   Please note, that loaded aperture file is always tied to loaded and active associated Gerber file. If Gerber  file is deleted (Edit – Delete Board or icon), the aperture file is also deleted.   A click on red rectangle in working area with right mouse button brings a small menu :   Set Active allows to set this image (board) active – only active board can be moved, deleted, ….. Move to  allows to move this image to desired location by typing in a new absolute coordinates Lock allows to glue this  image to its current location – it can be manipulated any more Unlock unglues this image – it is free to be  manipulated with Add Gerber on active layer allows to load Gerber file associated with this one on different  layer Add Aperture on active layer allows to load aperture file for Gerber file associated with this one on  selected layer     Use Job‐Preview or an icon to preview result of Gerber to bitmap conversion for selected layer. It is  possible to make holes (openings) in otherwise filled pads to make manual drilling easy – specify Hole Size  in Pads . As some pads, for example SMD do not have any holes, specify D‐codes without holes for these  pads. Similarly, to view created technological area defined under Preference‐Tech.Area , click on Tech.Area.     Use Job‐Export Photoplotter Bitmap to export converted Gerber image to hi‐res bitmap file in photoplotter  proprietary format (FPF). As in Preview, it is possible to make holes (openings) in otherwise filled pads to  make manual drilling easy – specify Hole Size in Pads . As some pads, for example SMD do not have any  holes, specify D‐codes without holes for these pads. Similarly, to export created technological area (robber  bend) defined under Preference‐Tech.Area , click on Tech.Area.    ...
  • Page 10   Use Job‐500 dpi Bitmap to generate BMP file (named Clip.bmp) for checking purpose – you can display it in  any bmp viewer (if nothing more, than Paint Brush in Windows will do that).  ...
  • Page 11 Gerb2bitmap COMMANDS OVERVIEW:   Icons (from left):   Import Master Gerber  Panelise Selection Board  Delete Selected Board  Preview  Export Gerber to Bitmap  Print Preview  View and Edit Aperture Table  Import Apertures  JOB  Job‐New starts a new plotting project – default situation when starting this program.   Job‐Open opens project file previously saved by command   Job‐Save or Save as. Job‐Save /Save as saves the current plotting project as it is in this program under its  own file format (.wpr). This allows to exit program and return back without losing any work previously done  with loading Gerber and aperture files, penalization, etc.,….   Job‐Close clears the plotting area and loaded data to allow to start another project   Job‐Print (or an icon) can print preview image for checking   Job‐Export Photoplotter Bitmap (or an icon) converts loaded Gerber data into hi‐resolution bitmap file for  selected plotting layer, with specified output resolution and saves it under specified name. User note  attached to the file may be here entered. (Export name). After executing OK program calculates new raster  data and displays it for checking. Please note that this operation may take some time, be patient.   Job‐Preview (or an icon) allows previewing image(s) as it look like on the plot for selected layer.   Job‐Import Master Gerber loads main (independent) Gerber file(s)   Job‐Import Associated Gerber loads Gerber file(s) associated with the Master file (soldermask, etc…) on  selected layer (film)  Job‐Import Apertures loads aperture file for selected layer (film)   Job‐Exit ends the program     EDIT:   Edit‐Insert Mark allows to insert a small Gerber image to the film – see Preference‐Mark   Edit‐Copy to Clipboard   Edit‐Delete Board (or an icon) deletes selected board image(s) and associated Gerber and aperture file. Edit‐ Lock All Boards glues images to their location in plotting area to prevent any shift or move.   Edit‐Unlock All Boards unglues all images, so they may be moved inside plotting area as needed. Edit‐ Relative move of Locked Boards allows to move glued images relatively to their current position in X and Y  coordinates. Please note, that Y coordinate has reverse polarity (positive value moves image vertically down).    ...
  • Page 13 Tools‐Panelize Drill  panelises drill for penalized film (only). The original Excellon drill file (.drl) has to be  selected, as well as a new (panelised) drill file name has to be specified. If offset between panelised Gerber  data and panelised drill data is required, then this can be also specified. After executing OK, program  calculates new drill data for panelised film – it may take some time, please be patient. Once it is done, it  displays panelised film including drill marks of new panelised drill data. Tools‐View Text File allows to view a  text file (for example aperture or Gerber file) Tools‐Convert Aperture allows to convert selected aperture file     PREFERENCE:   Preference – Memory Setting allows to specify computer memory size used for calculations. Recommended  size =RAM memory – 20MB. The more memory available,the faster calculation of bitmap.   Preference ‐Plotting Area Size allows operator to set max. Size of displayed plotting area   Preference – Data Format allows operator to set format of loaded Gerber file   Preference – Aperture Table or icon allows to view and edit D/codes of loaded aperture file   Preference – Units allows to set units of measurement   Preference ‐Mark allows to specify names and file path for various Mark ‐small Gerber images used  automatically on all plotting layers. They can be inserted to the board image by Edit‐Insert Mark.   Preference ‐Colours allows to define plotting layer names and their colours.  ...
  • Page 14 Preference  –  Tech.  Area   allows  to  set  parameters  for  so  called  robber  strip  ‐copper  strip  around  board  outline used for board manufacturing purposes                                     An example of “Tech. Area” – the robber strip    ...
  • Page 15 Program Run_Photo_USB This  program  controls  connected  photoplotter.  Reads  in  bitmap  files  in  FPF  (proprietary  photoplotter format) and standard BMP format, allows to calibrate photoplotter, pre‐set values for  intensity  of  laser  light  and  to  set  output  parameters  for  plotting  (plot  resolution,  negative  and/or  mirror plotting).   File ‐Open   (or  F3)  command  allows  to  read  in  input  file  generated  previously  in  Gerb2bitmap  program  (FPF  format) or Windows BMP format (see picture on the next page).  ...
  • Page 16 Selected  file  is  loaded  into  program  by  OK  button.  Loading  may  take  some  time,  depending  on  file  size.  If  loaded  file  size  is  smaller  than  14  MB,  than  its  image  is  displayed,  otherwise  a  message  „File  is  too  big  to  display, but plotting will be OK“ is displayed.  ...
  • Page 17 Please  note,  that  loaded  image  does  not  need  to  appear  correctly  in  both  axis,  usually  it  is  compressed  in  vertical direction to save space on the screen. You can drag bottom side of the dialog window to make image  look right, but keep in mind, that this image is here displayed only for your information.     When image is displayed, use Tools ‐Run photoplotter or button     A new dialog box appears, where it is possible to set plot output resolution, reversed (Negative) and mirrored  (Mirror) plotting. Time needed for plotting is shown automatically. Click on Plot will start the plotter.   The higher output resolution, the longer plotting time.    ...
  • Page 18 Setup ‐Setup Table   opens  dialog  window  for  plotter  setup  –  here  it  is  possible  to  define  adjusted  drum  diameter,  measured  inaccuracy values in both screw axis and drum rotation (circumference) directions as well as plot angle error  used for an automatic correction. This setup is unique for each photoplotter and that is why setup file (.phs)  is supplied with each photoplotter. Use Setup ‐Import file (.phs) to load this data into setup table. User may  modify this setting in setup table if needed and save it as a new file (.phs) using Save, as well as export it by  Setup ‐Export.   Drum Diameter is a real drum diameter plus approximately (0.8 x film thickness). As it is an exact drum  diameter, it is important to know the proper value – when this value is greater, the plotted line length in  drum circumference direction is shorter and vice versa. It may be necessary to modify this value a little bit, to  reflect different plotting conditions at the user site (temperature, humidity, film).     Angle Error represents a linear inaccuracy between the right angle plot and the real (non‐right angle) plot on  a line 360 mm long along drum axis. This is one half of vertical distance between corresponding horizontal  lines of the two films, measured 360 mm from the left 0 position, while one of the films is flipped upside  down.     Screw Error represents a linear inaccuracy of a screw in its axis direction for 300 mm distance.     Drum Linearity is measured inaccuracy for every 10 mm in drum rotation direction. If measured distance is  longer for given distance from the beginning (for example measured distance is 120.09mm from 120 mm  distance), then this positive difference is entered (0.09).   If measured distance is shorter for given distance (for example measured distance 119.92 for 120 mm  distance), then negative difference is entered (‐0.08). Software will then automatically compensate for  entered differences.  ...
  • Page 19 Tools ‐Generate Test Grid   Generates test plot file in shape of 10 mm line grid of specified dimensions (drum circumference and drum  axis direction) and defined line thickness. This plot file will be automatically plotted with resolution 1016 dpi.     Test plot can be used as a check plot, where plotter accuracy may be measured – any inaccuracies in drum  circumference or drum axis direction may be entered into setup table for related distance.   Plot size depends on values written in files Drum axis and Drum circumference.     The grid lines are plotted with thickness specified in field Line width. If Include setup table is checked, then  setup table will be automatically included at the bottom of the plot.     If serial number of the photoplotter is written in field S/N, then this info will be also included on the plot.       Click on OK to continue – software will automatically generate test plot file, which can be now plotted as any  other plot file.                  ...
  • Page 20                 Continue as with any other plot file – use Run photoplotter (Tools–Run Photoplotter or button)  ...
  • Page 21 Tools – Plot Light Bar Will plot several small images in one row, where every image is plotted with different intensity of light according to preset parameters. Light intensity starts with value entered in field Initial light on the first image. Light intensity automatically increases with every next image by value entered in filed Increment.
  • Page 22 How to work with program Run_photo_USB:     Use File ‐Open (or use F3) to read in an input file, either FPF or BMP.   If you select FPF bitmap, image will be previewed as you browse across a list of FPF file in given directory.  Also information on its resolution is displayed, as well as overall image size (+10mm on each side) and user  notes attached to that image.     Information  on  FPF  file  resolution,  image  size  and  user  notes  is  incorporated  into  FPF  file  automatically  in  Gerb2bitmap  program.  The  input  resolution  value  of  selected  FPF  image  will  be  automatically  entered  into  this program, so there is no need to do that manually (see further).    ...
  • Page 23 5. Brief, step by step guide for photoplotter software:   5.1   Load Gerber file(s) into Gerb2bitmap program. If you load Gerber file in standard format (RS274‐D), it  may  be  necessary  to  set  parameters  (units,  data  format,  colours,  ….).  To  load  Gerber  data  use  Job‐ Import Master Gerber or an icon. Loaded Gerber data will appear as a red rectangle in right top corner  – move it to top left corner of the grey (plotting) area by mouse (left button). At the same moment the  name of loaded Gerber file will appear in the table field under GERBER for layer No.1 (plotting layer).     As an example, you can load Gerber file supplied with this software (directory SAMPLES). File Rs274x1.gbr  and Rs274x2.gbr are Gerber files in extended format (RS274‐X) and therefore there is no need to convert  their  aperture  files.  File  Rs274_1.gbr  and  Rs274_2.gbr  are  Gerber  files  in  standard  format  (RS274‐D)  and  therefore ...
  • Page 24 5.4   Load bitmap file (.fpf) generated in program Gerb2bmp into program Run_photo_USB by command  File‐Open. Selected file is shown in preview window, displays the overall image dimension (note that  displayed image dimension is 10 mm larger on all sides) and any user note created when bitmap file was  created in Gerb2Bitmap program. It is also possible to load hi‐res BMP file by selecting this BMP type of  file instead of Photoplotter Bitmap (FPF), but without preview, user notes and overall image dimensions  – do not forget to specify BMP resolution in Input resolution field.   Loaded file will be displayed, unless the file is bigger than 14 MB. Note, that image axis X will become  axis Y on the film on photoplotter drum, while image axis Y will be the horizontal axis of the film in  photoplotter. Click on button Run photoplotter and specify desired resolution of the plot. If needed, you  can specify Negative or/and Mirrored image to be plotted. Click on Plot button starts plotting.     When photoplotter starts to run, it needs some time to speed up the drum rotation. After drum reaches his  working revolution, it rotates 30 times to make sure, the rotation is stabilized. After that plotter starts to plot  and indicates time left for plotting.  The front panel light labelled Laser lights to indicate plotting in progress.  When plotting is finished or interrupted (STOP button), laser head will return to the initial position and drum  will stop. Do not start plotting again, unless laser head has returned to its initial position.     6. How to make test films   Occasionally, it is needed to make test films, just to find out proper working conditions like light intensity or  plot accuracy.     ‐To make test film to find out proper light intensity   Use strip of film, approx. 100 mm wide and 300 mm long and tape it to the drum (longer side over  drum).   Use command Tools – Plot Light Bar, where you set parameters like initial light intensity, automatic  light intensity increment and number of test images. Click OK and plot will start. As a result there will  be a number of small images automatically generated by software which were plotted with light  intensity starting from the initial one and increasing with every image. Now it is easy to compare  images and define the best one, where black area is completely black, but very thin lines are still  clean and sharp, without grey surroundings (overexposed). Make one more test if necessary. Enter  value of light intensity of the best image for given output resolution into light table under Light.     ‐To make test film to check plot accuracy:     Use Setup‐Generate Test Grid Plot feature. This will generate raster plot in shape of 10 mm line grid  of specified dimensions (drum circumference and axis direction) and defined line thickness. Specify, if  you want to include parameters from Setup Table (they will be plotted in small size at the bottom of  the film). Plot two test films – they should be same when you mount them together. Rotate one of  them 90 degrees, flip one of them horizontally or vertically, they should be same.    ...
  • Page 25 a)   if overall dimension in drum circumference direction is wrong linearly (all or almost all grids in this  direction are little bit smaller or bigger), change Drum Diameter in Run_photo_USB program under  Setup‐Setup Table. If dimension is smaller, decrease diameter value, if dimension is bigger, increase  drum diameter. To estimate correct drum diameter use the following formula: multiply current drum  diameter with ratio of measured distance on 300mm and 300 (or any other distance). For example,  measured distance in drum circumference on 300 mm grid is 300.1, while current drum diameter is  157.45. New drum diameter will be 300.1/300 multiplied by 157.45 = 157.50 Please note that this drum  diameter is not real drum diameter, but little bit bigger, depending on film size.   b)   If overall dimension in drum axis direction is wrong linearly, change Screw Error value in Setup Table.  The value represents an error in dimension for 300 mm measured from 0 in drum axis direction. For  example value –0.05 means that overall dimension is 0.05mm shorter for 300 mm (measured dimension  for 300 mm is 299.95).   c)   If there are errors only in certain areas along the drum circumference direction, enter measured  differences in Drum Linearity table for every particular grid where error appears.   d)   If there are errors only in certain areas along the drum axis (screw) direction, enter measured  differences in Screw Linearity table for every particular grid where error appears.   e)   If lines drawn horizontally (in drum axis direction) are not perpendicular to lines in vertical direction  (drum circumference direction), measure the difference between ideal horizontal line and drawn  horizontal line at 300 mm distance from 0 and enter this value as Angle Error.       7.   Photoplotter Maintenance   There are no serviceable parts inside photoplotter. Keep drum clean and protect inner space of the plotter  from  falling  objects.  Keep  the  lid  closed  at  all  times  except  loading  and  unloading  film.  Use  basic  cleaning  chemicals and soft cloth to clean drum surface from sticky areas left behind by masking tape.  ...
  • Page 26 MAIN SWITCH POWER 24V / 2.5A DC DRUM MOTOR SCREW MOTOR LASER (PANEL LED) SCREW MICROSWITCH LASER (LASER HEAD) PHOTOPLOTTER 8000 DPI PCB TERMINALS -CABLE BLOCK DIAGRAM FP8000 & FP8000XL Photoplotter Insts(0611)
  • Page 27: Back View

    BACK VIEW Product Serial Number Main Switch VIEW (WITH LID OPEN) Auto/ Manual Switch Power Laser Main Switch Mega Electronics Ltd., Mega House, Grip Industrial Estate, Linton, Cambridge, United Kingdom. CB21 4XN  Telephone: +44 (0) 1223 893900  Fax: +44 (0) 1223 893894  Email: sales@megauk.com    web: www.megauk.com ...
