V-Track™ Automatic Long Range Vehicle ID System
Installation Guide
1.0
System Overview
The Keri V-Track™ System
both operate in the 900 MHz band. However, V-Track™ is much easier to install and far more tolerant of different vehicle
types and metal surroundings than the toll-authority type transponder. It is also far less expensive.
The V-Track™ Vehicle Identification System consists of a directional Exciter (EX-10 - consisting of an integrated
transmitter and antenna), which sends out a uniquely coded RF signal towards the vehicle. The Transponder (LRT-5) is
mounted on the vehicle's windshield. Once the Transponder enters the field and recognizes the coded signal, it "wakes up"
and transmits its ID number via a secure RF signal to a Receiver decoder (RXR-10). The Receiver can be located up to
100 feet (30M) away from the vehicle. The Receiver is supplied in a weatherproof enclosure for direct outdoor installation
or can be placed indoors, such as in a guardhouse, close to other electronic equipment. The Receiver outputs the decoded
data to an access control unit via standard data cabling. Systems are available that output data in either the standard Keri
MS format or in 26-bit Wiegand format. A second or exit lane can be added to the system by installing a second Exciter.
This Exciter is aimed down the exit lane in the same manner as the entrance lane's Exciter.
GATE
RXR-10
Receiver

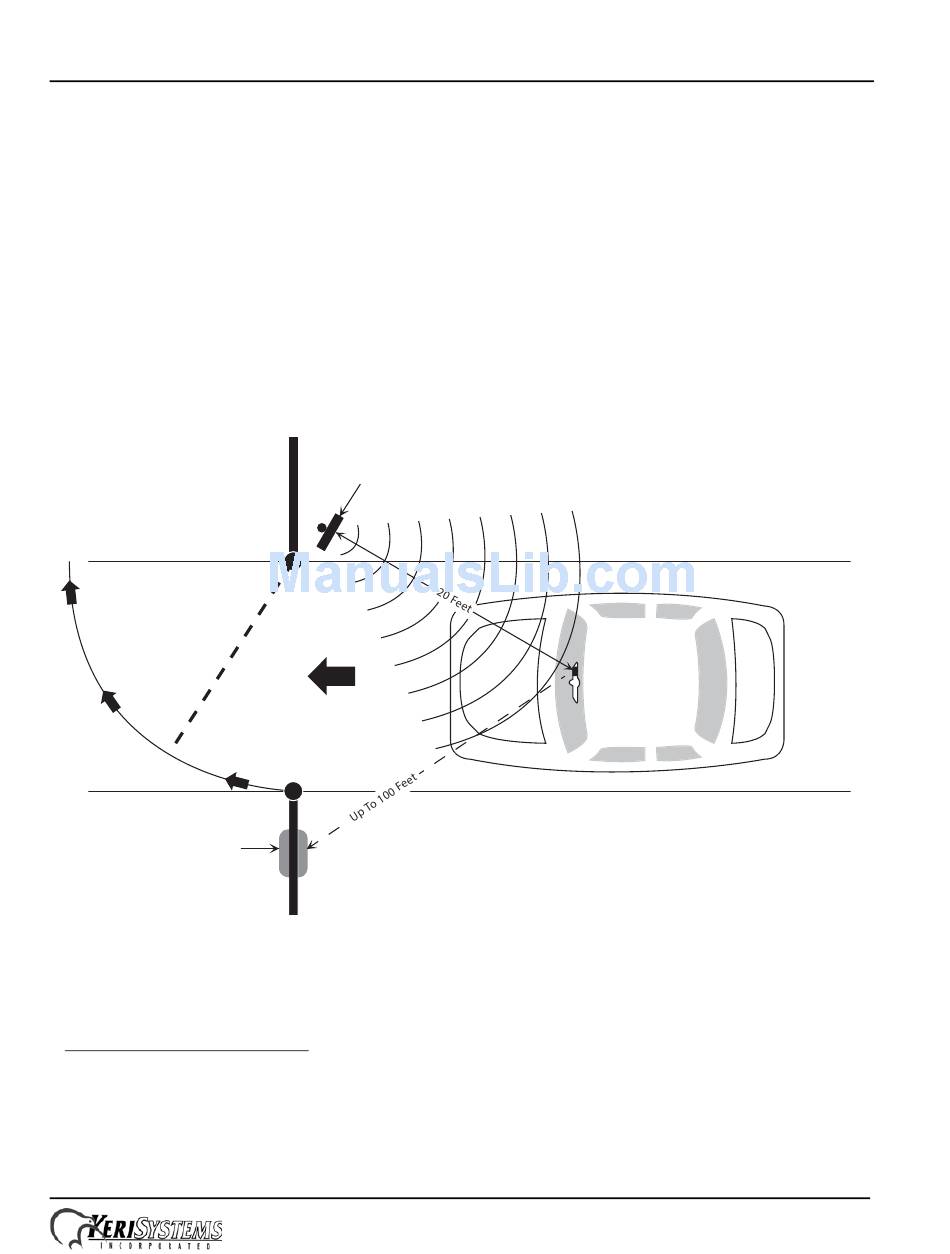

Figure 1: Basic, Single-Lane Gate Controller
Installation and setup is made simple and easy through the use of the LRT-5 Transponder. The LRT-5 is equipped with an
LED that flashes Red when in the coverage area of the Exciter. The flashing Red LED indicates that it is in the Exciter
field and is shipping data to the RXR-10 Receiver.
