AirTurn PED Operating Manual

Hands-free bluetooth controller for smart ready tablets and computers
Hide thumbs
Table of Contents

Advertisement

Quick Links

HANDS-FREE
BLUETOOTH CONTROLLER
for SMART READY TABLETS AND COMPUTERS
Operating Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PED and is the answer not in the manual?

Questions and answers

Summary of Contents for AirTurn PED

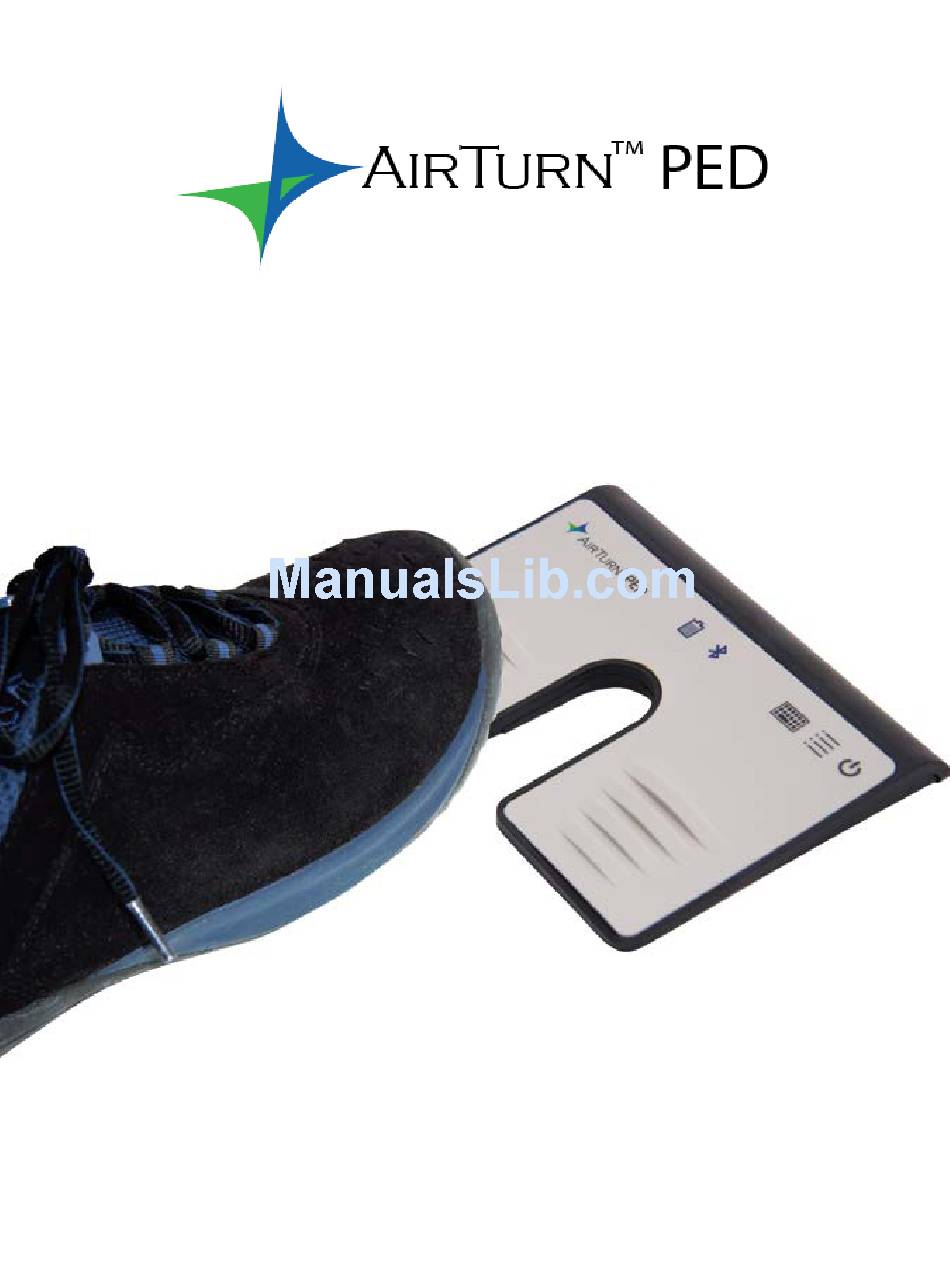

  • Page 1 HANDS-FREE BLUETOOTH CONTROLLER for SMART READY TABLETS AND COMPUTERS Operating Manual...

  • Page 3: Table Of Contents

    CONTENTS Before Turning on Your PED ..........4 Power ..................5 ON ..................5 OFF ..................5 Modes ..................6 Changing the MODE ............7 Connecting and Pairing ............7 Pairing in PED-APP-Direct MODE 1 ......... 8 Pairing in MODE 2-6 ............8 Reset Pairing ................

  • Page 4: Before Turning On Your Ped

    Most PCs and Macs equipped with Bluetooth 4.x and HID support are compatible. For older PC’s, AirTurn has Bluetooth 4.1 USB dongles that support connection to the PED. A compatible app is required. Apps are listed on the AirTurn website: http://airturn.com/apps There are two compatibility modes; PED-APP-Direct and HID.

  • Page 5: Power

    ON - Press and hold the Power Button on for one second and the LED’s flash. The blue LED will begin to blink 2 times per second until pairing is started. OFF - Press and hold the Power Button on the PED until the red and blue LEDs turn off.

  • Page 6: Modes

    MODES There are six modes available on your PED. Each mode sends a different signal for each pedal. The PED is set to MODE 2 by default. MODE 1: PED-APP-Direct. (Apple iOS only). Please check with the AirTurn website for more information on app availability: http://airturn.com/ped-app-direct...

  • Page 7: Changing The Mode

    Note: Once the MODE has been set, it will remain the same until it is changed following the above steps. CONNECTING AND PAIRING Once the PED is powered on, the blue LED will blink 2 times per second until pairing is started.

  • Page 8: Pairing In Ped-App-Direct Mode 1

    Open your computer’s Bluetooth Setup dialog: iOS – Select Settings>Bluetooth and turn on the Bluetooth if it is off. When the PED is discovered, it will appear in the list of devices. Tap on the selection. A dialog box will then appear.

  • Page 9: Reset Pairing

    When the PED connects, the blue LED will blink 3 times per second. Once paired, the blue LED will blink 1 time every three seconds. IMPORTANT: Do not try to connect in MODE 1 and any other MODE at the same time. MODE 1 only works in PED- APP-Direct MODE and MODES 2-6 only work when connected directly through the operating system setup.

  • Page 10: Virtual Keyboard In Ios

    To turn on the virtual keyboard, put the cursor into a text box and press the Keyboard Button on the PED. Both LEDs will flash once to signify that the button has been pressed. The button will only work in Modes 2-6. Virtual keyboard support for MODE 1 is automatic.

  • Page 11: Firmware Updates/Custom Modes

    This is helpful if there are many PED units in the same location. Your MAC address will always be the same so you can easily identify your unit. You will find your specific MAC address labeled on the bottom of your PED at the end of the serial number.

  • Page 12: Care Of Your Ped

    AirTurn, Inc., (“AirTurn”), warrants to the first consumer purchaser that the AirTurn PED, (the “Product”), when shipped in its original container, will be free from defective workmanship and materials, and agrees that it will, at its option, either repair the defect...

  • Page 13: Radio Information

    In no event shall AirTurn be liable, or in any way responsible, for any damages or defects in the Product which were caused by repairs or attempted repairs performed by anyone other than an authorized servicer, nor shall AirTurn be liable or in any way responsible for any incidental or consequential economic or property damage.
  • Page 14 AB0103. As a certified module BLE113 can be integrated to an end product without a need for additional MIC Japan certification of the end product. KCC (Korea) BLE113 has type certification in Korea with certification number KCC- CRM-BGT-BLE113. AirTurn holds unintended emissions testing on file for FCC/CE/Canada/Austrailia...

  • Page 15: Recycling And Disposal

    RMA from the support desk: support@airturn.com TRADEMARKS iPhone, iPod, iOS, iPad are trademarks of Apple, Inc. Android is a trademark of Google, Inc. Powerpoint, Word are trademarks of Microsoft AirTurn, PED and its respective logos are trademarks of AirTurn, Inc.
  • Page 16 PO Box 3359 Nederland, CO 80466 support@airturn.com www.airturn.com 888-247-1223...
