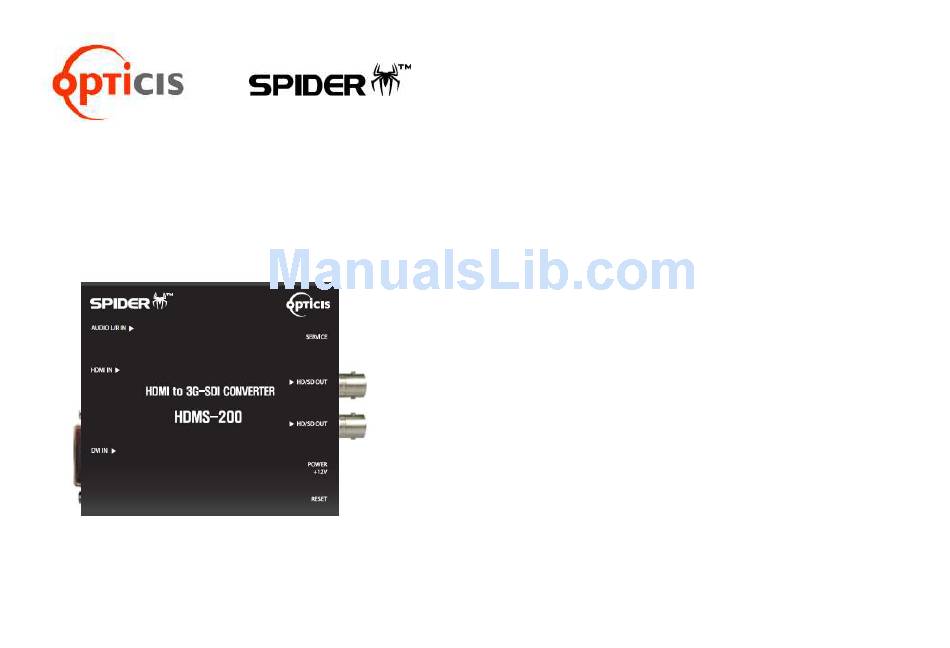

- Page 1 CONTENTS HDMI and DVI to 3G-SDI Video Converter, New HDMS-200 Contents Specification / Supporting resolution Installation Firmware update Warranty Information Troubleshooting User’s Manual 1-1 Contents Doc No. : OC-HD140307 / Rev1.1...
- Page 2 Specification Supporting resolution ITEM DESCRIPTION Input Signal HDMI, DVI Output Signal VIDEO RGB(444), YCbCr (444), YCbCr (422) Input format VIDEO YCbCr (422) Output format Input format Standard Analog Audio L/R AUDIO Power 5~24V DC Power Consumption 106.6 x 96 x 26.2 (mm) Dimension (WDH) Supporting resolution SMPTE...
- Page 3 Firmware update Installation STEP1 STEP1 Please “Off” D/P switch No.2 to set the firmware mode. Then, plug in the Plug the AC/DC adapter to AC inlet and connect to receptacle on the adaptor. product. STEP2 STEP2 (HDMI) Connect Service port of New HDMS-200 and PC using a download cable. Connect HDMI source to HDMI input port of HDMS-200 with HDM cable.
- Page 4 STEP7 STEP5 Please check the file and Click the Next button as below Click the Next button as below STEP6 STEP8 Click ①, Open of ‘Download to device’ to select directory and file (hex. Then, the firmware will be uploaded and click the Close button, if it’s completed. format) to be uploaded.
- Page 5 TICIS or its authorized resellers. If a product does not work as warranted during the applicable warranty period, OPTICIS shall, at its option and expense, repair the defective pr oduct or part, deliver to customer an equivalent product or part to replac 1.
- Page 6 8 Sungnam-daero, 331 beon-gil, Bundang-gu, Seongnam-si, Gyunggi-do, 463-844 South Korea Te l: +82 (31) 719-8033 Fax: +82 (31) 719-8032 www.opticis.com For order support, please contact your Distributor or Reseller. For technical support, check with the with the Opticis web site www.opticis.com contact techsupport@opticis.com...
