Summary of Contents for ISIC PCM4-H77

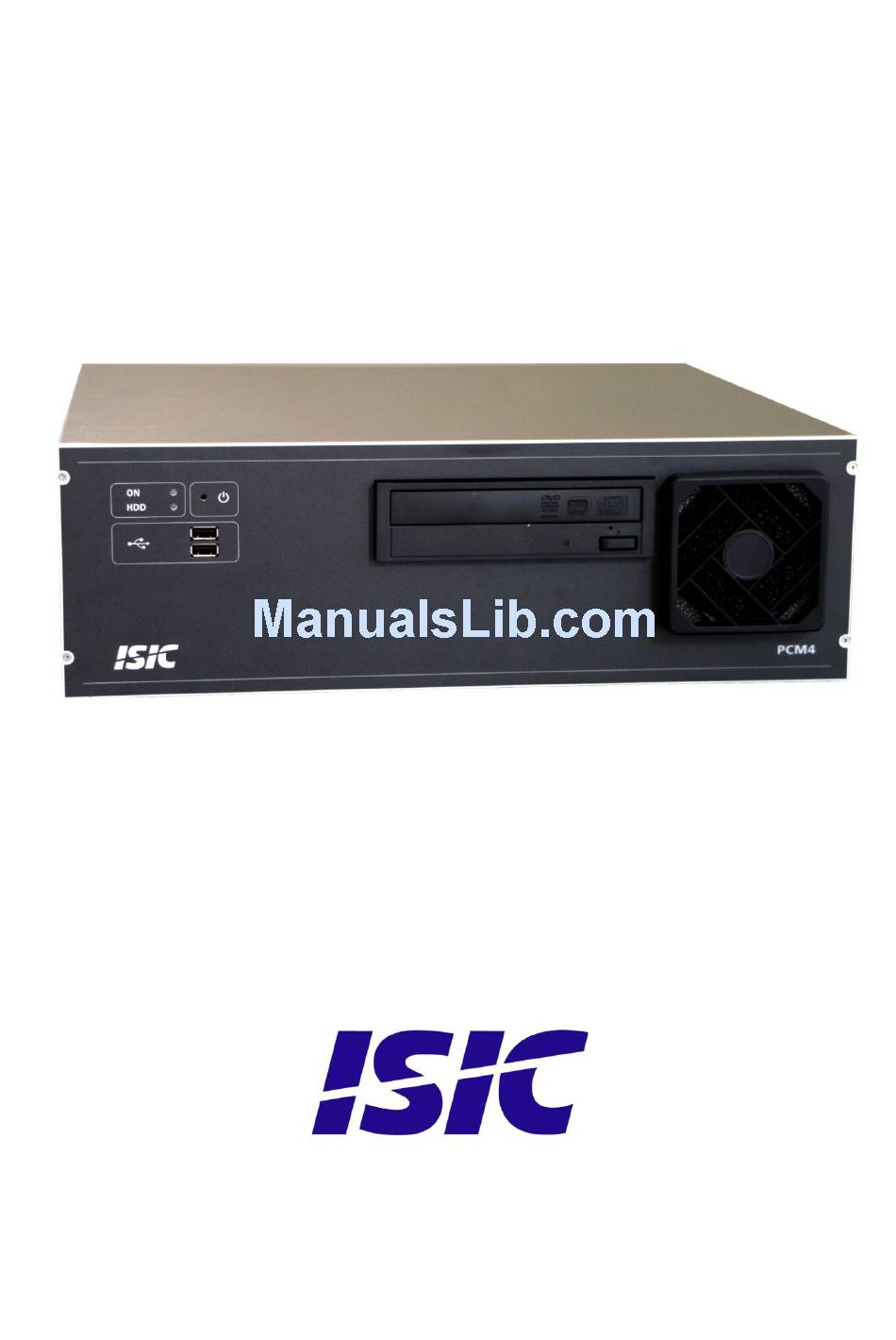

- Page 1 PCM4 manual H77 version...
- Page 2 Disclaimer ISIC A/S makes no representation or warranties with respect to the contents or use of this manual, and specifically disclaims any express or implied warranties of merchantability or fitness for any particular purpose. Further, ISIC A/S reserves the right to revise this publication and to make changes to its content at any time, without obligation to notify any person or entity of such revisions or changes.
- Page 3 ISIC PCM4 User Manual Congratulations on your purchase of ISIC PCM4. This short form manual is designed to get you started working with your new PCM4. It is not meant to cover all possible options or situations. For a more detailed description of the PCM4 motherboard, please read the fully comprehensive Main Board Manual obtainable on the CDROM.
-
Page 4: Table Of Contents
............................13 SERVICING THE UNIT ............................13 GENERAL NOTES ON USB ..........................13 ISIC INFO / SUPPORT ............................14 REVISION HISTORY ............................15 User Reference Manual, P/N:05902-000 Rev A Page 4... -
Page 5: General Considerations On Installation And Operation
General considerations on Installation and Operation The PCM4-H77 is designed to work at conditions according to IEC 60945. However, keeping the temperature and vibration level at a minimum will extend the life time of the product. ISIC recommend operating this product at normal room temperature (20-25 °C), with the lowest level of vibration and humidity. -

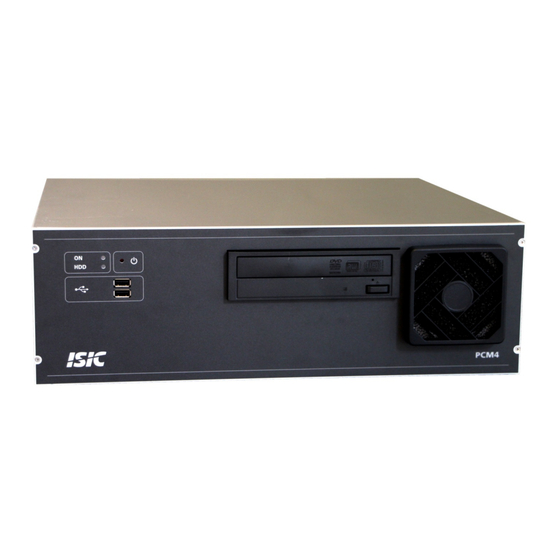

Page 6: Pcm4 H77 Overview
PCM4 H77 overview Front view PCM4-H77 Rear view PCM4-H77 Power ac See Motherboard Connection Overview (next page) Power DC: 24V DC Chassis User Reference Manual, P/N:05902-000 Rev A Page 6... -
Page 7: Motherboard Connection Overview
Motherboard connection overview Below is an overview of motherboard connections and pin-out of the same. User Reference Manual, P/N:05902-000 Rev A Page 7... -
Page 8: Installing Additional Expansion Cards
PCIe x 16 PCIe x 1 3 times PCI Blind bracket Slot screw ATTENTION - This marine computer is covered by ISIC warranty, and any alterations may render marine certificate and warranty invalid User Reference Manual, P/N:05902-000 Rev A Page 8... -
Page 9: Technical Specifications
PCM4-H77 - Approvals CE Mark: EN61000-6-2 & EN61000-6-4 Marine: IACS E10 rev. 5 & IEC 60945 Ed. 4 For latest marine class approvals – see www.isic-systems.com Type Approvals: PCM4-H77 - Dimensions Basic Version: 420 x 132 (3U) x 380 mm Brackets: Mounting-angles - Optional 19”... -
Page 10: Mechanical Dimensions
Mechanical dimensions Cover = 420,5 User Reference Manual, P/N:05902-000 Rev A Page 10... - Page 11 Cabinet with 19” brackets and rails. 462,5 482,6 = 19'' 420,5 4 piece ø8 User Reference Manual, P/N:05902-000 Rev A Page 11...
-
Page 12: Mounting Positions
The PCM4 is equipped with two LED’s, located on the case front. Having a versio n without the ISIC HPC option (Heater Power Control), the upper LED is used to simply indicate if the system is on or off, while the lower LED indicated Hard Di sk activity. -
Page 13: Troubleshooting
Servi cing the unit In case that the unit st ill fails after following the troubleshooting send the unit to ISIC for repair. There are no u le parts inside. ser serviceab 12 General notes on USB In the USB specification a max power consumption of 500mA on each USB port is specified. -
Page 14: Isic Info / Support
13 ISIC info / Support In case you have inquiri es or probl ems with your DuraMO N, you hav e a number of possibilities to get support. ompany name: ISIC A/S ead office: Edwin Ra hrs Vej 54 DK – 8220... -
Page 15: Revision History
14 Revision history Rev A Jan 2013 Release User Reference Manual, P/N:05902-000 Rev A Page 15... - Page 16 Edwin Rahrs Vej 54 DK-8220 Brabrand Denmark Web: http://www.isic-systems. Email: service@isic-systems.com User Reference Manual, P/N:05902-000 Rev A Page 16...
