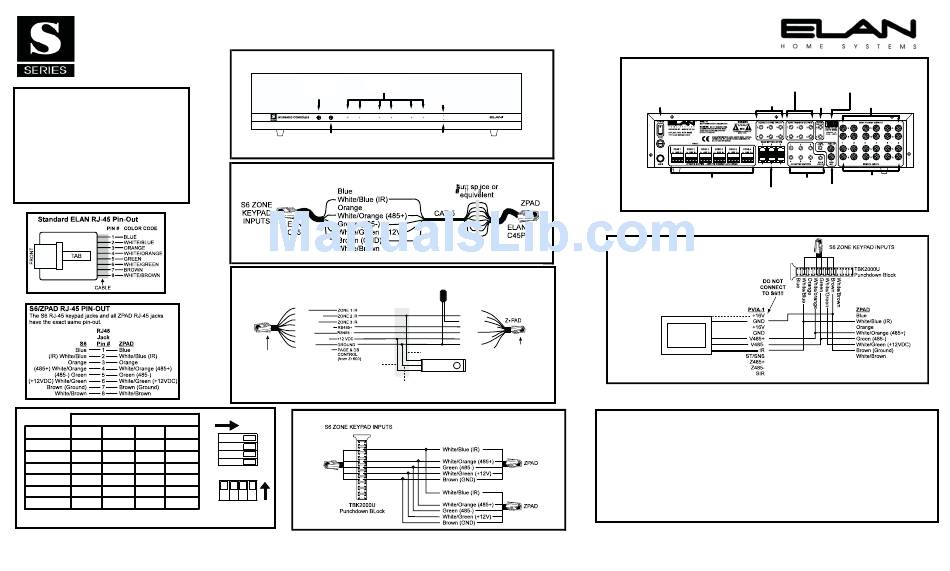

Elan SYSTEM6 Quick Reference Manual

SYSTEM6 QUICK REFERENCE GUIDE
IMPORTANT NOTE
VSE's, ZPADS, & IR
Each ZONE KEYPAD INPUT RJ45 jack on the S6
provides 12VDC@300mA. You may choose to
load each INPUT with any combination of ZPADS,
IR Receivers, or VSEs as long as the total current
consumption DOES NOT EXCEED 300mA.
ZPADS (w/ IR Tube) = 65mA
Z025 = 85mA
VSE = 40mA
Additional IR Receivers = 10mA
DIP S witch #
S ys 6 ZONE 1 2 3 4
1
DOWN DOWN UP DOWN
DOWN UP
2 DOWN UP
3 UP DOWN DOWN
DOWN
4 DOWN UP DOWN UP
5 DOWN UP UP DOWN
DOWN
6 UP UP UP
Figure 7
NOTE: If more than one ZPAD is to be installed in a single
zone, all wiring should be paralleled and both ZPADS
should be assigned the same Zone ID.
S6 Front Panel Adjustments and Status Indicators
Music-on-Hold Zone ON / OFF
Status LEDs
Volume Level
Adjustment
Page/Doorbell
Volume Level
Adjustment
System6 Keypad Input -- Straight Through W/ ELAN Keypads
Connecting IR receivers and Emitters
into Keypad Wiring
Parallel or us e
T B K 2000
punchdown block
Sy ste m 6 BLUE
WHITE/ BLUE
O RA NG E
WHITE/ O RA NG E
G REEN
WHITE/ G REEN
BRO WN
WHITE/ BRO WN
C45P RJ-45
Interface cable
+12V
(S tripe)
G R OUND
Z200/Z250 Connecting Multiple Keypads in a Single Zone
DOWN
4
3
2
1
S6KP/Z100
1 2 3 4 UP
Power LED
IR Activity
Indicator
LED
Local IR E mitter in
parallel with ZPAD
BLUE
WHITE/ BLUE
O RA NG E
WHITE/ O RA NG E
G REEN
WHITE/ G REEN
BRO WN
C45P RJ-45
WHITE/ BRO WN
IR
Interface cable
IR2020
Rear Panel -- Connections Overview
Zone Trigger Outputs
Source Status Inputs
Power Switch
Modular Speaker Connectors IR Emitter Outputs
Zone Keypad/VIA! Inputs
Connecting VIA! Touch Screens
to the System6
NOT E : US E C AT 5 OR 18/2
F OR P OWE R . S E E P V IA1
MANUAL F OR DE TAILS
V IA!
IMPORTANT DESIGN NOTES:
1. The S6 internal amplifier is ALWAYS VARIABLE! Volume commands
are IR controlled. There must be an IR keypad, VIA!, or IR receiver con-
ected to each Zone Input to control Volume.
2. RCA Preouts are provided for subzone applications. Use an external
amplifer and Volume Control for subzones requiring separate Volume
functions. Set preouts to fixed and connect preouts to auxiliary amp.
3. S6 can be controlled from any ELAN keypad, IR receiver, or VIA!
Zone Preamp
Output Selector
Zone Preamp
System
Trigger Outputs Outputs
Source Inputs
Page/Doorbell/
Music on Hold
(Z600)
P/N 9900305 REV: A
