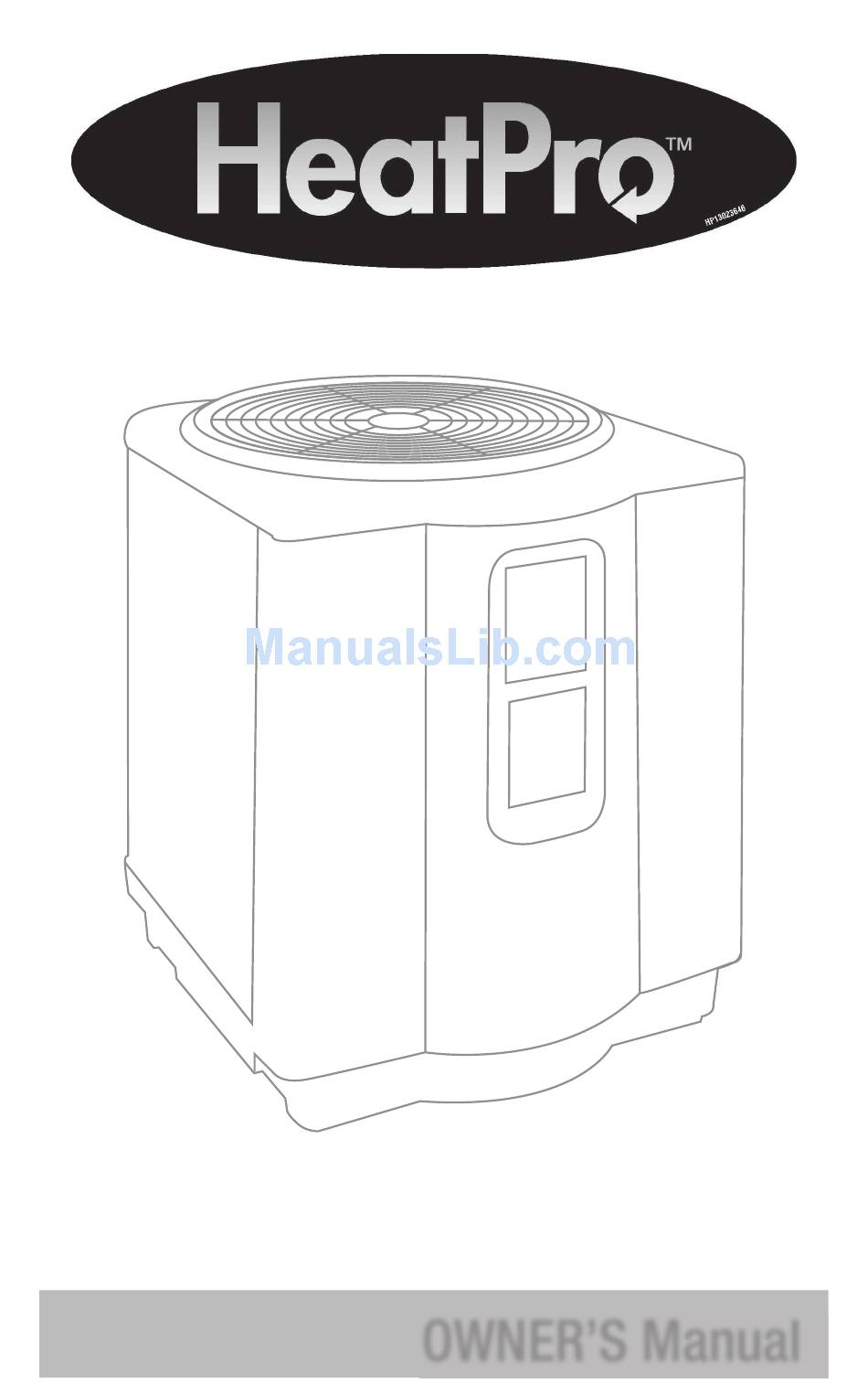

Page 1 OWNER’S Manual PRINTED IN CANADA 10/2009...
Page 3: Table Of Contents
Table of contents Introduction General Safety Instructions Installation Instructions Location Water piping Electrical Bonding Bonding and plumbing step-by-step instructions Using an External Controller Electrical Connections Wiring Diagram Service Analyzer Control Operation Caring for your Pool Heater Initial Startup Meaning of Display Codes Troubleshooting Requesting Assistance or Service Maintenance...
Page 4: Introduction
Thank you for buying a HEATPRO pool heat pump. The HEATPRO pool heat pump is a self-contained unit designed speciﬁ cally for pool heating. Each component has been selected with care to achieve a high- quality product in an effort to exceed all industry standards.
Page 5 Please read carefully Record your model’s information Please complete and mail in the ownership registration card provided with this guide. The return address is displayed on the front of your registration card. Simply mail it as you would a postcard. The card helps us notify you about any new information about your heater.
Page 6: General Safety Instructions
General Safety Instructions We care for our customers We have provided important safety messages in this manual and on your heater. Always read and obey all safety messages. IMPORTANT The IMPORTANT sign calls attention to a note that provides important information or information essential to the completion of a task.
Page 7 CAUTION All electrical connections must be done by a qualiﬁ ed electrician and according to the local electrical codes. Always cut off the unit’s main power whenever the access panel is open or removed. Always install the machine outdoors (unless otherwise approved by the manufacturer), while respecting the minimal clearances needed for proper operation and heating.
Page 8: Installation Instructions
The pool heat pump is designed for outdoor installation and should not be installed in a fully enclosed area, such as a shed, garage, etc.
Page 9: Water Piping
Electrical CAUTION The wiring of your pool heat pump should be performed by a qualiﬁ ed electrician in accordance with local requirements. A properly-sized breaker and copper wire must be used.
Page 10: Bonding
Bonding CAUTION Because all metals have different electrical potentials, all metal and electrical components of the pool system must be bonded together. This includes the metal framework of the pool, the light, the pump, the ﬁ lter (if made out of metal), the heater, any automatic chlorine generator, and any other metal or electrical equipment.
Page 11 Bonding and Plumbing diagram Fig. 2 Chemical feeder Heat Pump Fig. 3 OWNER’S MANUAL...
Page 12: Using An External Controller
Using an External Controller To connect the electronic board in order to control it remotely, use the P_S terminals on the right side of the board. Next, access the P_S menu and se- lect the desired mode. In internal mode, POOL or SPA mode can be adjusted by using this menu.
Page 13: Electrical Connections
Electrical Connections WARNING The installation of the pool heater should be performed by a certiﬁ ed electrician. To connect the electricity, you must unscrew the ﬁ ve screws of the front panel, then slide the electric cable through the knock out located on the left or the right side of the base, and then insert it in the control box.
Page 14: Wiring Diagram
Wiring Diagram OWNER’S MANUAL...
Page 15: Service Analyzer Control
Service Analyzer Control The control panel is factory set to display the temperature in Fahrenheit degrees. Celsius or Fahrenheit mode Heating mode Compressor ( ) Temperature or fan ( ) running and parameter display Heating mode To raise the desired temperature or to Access to change parameters...
Page 16: Operation
Operation To increase the temperature Push the SET key until you see POL or SPA. The programmed temperature will be displayed. Press the UP arrow to increase the temperature setting one degree at a time. To lower the temperature Proceed as explained above using the down arrow To select the pool or spa mode The unit can keep two temperature settings in memory: one for pool mode (max: 95°F/35°C), and the other for spa mode (max: 104°F/40°C).
Page 17: Caring For Your Pool Heater
Caring for your Pool Heater How to protect your pool heater OWNER’S MANUAL...
Page 18: Initial Startup
Initial Startup IMPORTANT Before starting the pool heater for the ﬁ rst time, it is important to verify that the breaker is in the ON position. Also make sure that the water circulates freely and that the pool pump is activited. Then, you will need to set the water temperature you desire.
Page 19: Meaning Of Display Codes
Meaning of Display Codes Service Analyzer Codes Most problems will be detected by the service analyzer and a code will be displayed on the digital display of your heater. Display Meaning of codes The desired programmed temperature point is lower than 60°F (15°C).
Page 20: Troubleshooting
Troubleshooting The pool heater is not running. Heat pump control set to OFF. Raise temperature set point above 60°F (15°C). Desired water temperature Unit will automatically restart is reached. when the water temperature goes below the set point. Main breaker is tripped. Reset main breaker and restart heat pump.
Page 21 There is no display and the fan is not running, but the compressor is running. Ask your electrician to verify your heat pump’s power supply by checking over the L1 and L2 connections in the unit’s service box. There is water around the unit. While your pool heater is in the To check if the water really is a heating mode, a large quantity...
Page 22: Requesting Assistance Or Service
Requesting Assistance or Service IMPORTANT All service will be handled by an Authorized Service Center. Warranty may be voided if service is not done by an Authorized Service Representative. Do not return the heater to your dealer as they do not provide service. Before calling for assistance or service, please check the “Troubleshooting”...
Page 23: Maintenance
Maintenance Dirt can accumulate on the evaporator. You can easily remove it by using a non-pressured water spray without damaging the small aluminum ﬁ ns. The cleaning of the plastic cabinet can be done with the help of a brush and soap. Winterizing First, you must turn the breaker off.
Page 24: Hayward ® Heat Pump Pool Heater Limited Warranty
Hayward Heat Pump Pool Heater ® Limited Warranty The HAYWARD heat pump pool heater is warranted to be free of defects in materials and workmanship for a period of two (2) years for parts and (1) one year for labor. In the state of Florida, warranty labor is covered for (2) years. This warranty is applicable to the original location and owner only and is not transferable.
Page 25: International Warranty
International Warranty The HAYWARD heat pump pool heater is warranted to be free of defects in materials and workmanship for a period of one (1) year. The compressor is warranted for two (2) years, and the titanium tube component of the heat ex- changer has a ten (10) year warranty.
Page 26: Notes
Notes OWNER’S MANUAL...
