iLiving ILG-958 User Manual

Portable fireplace
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

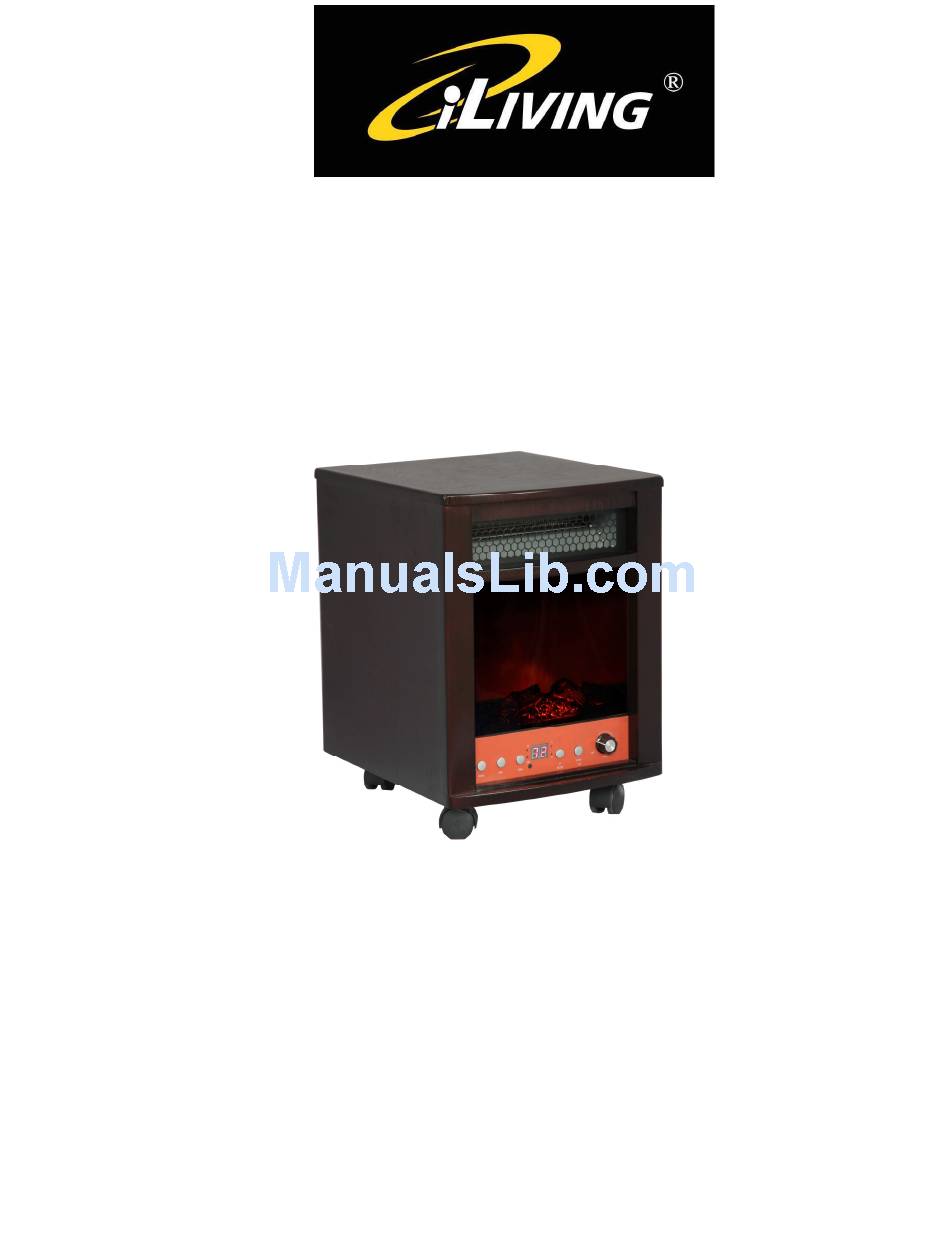

ILG-958
Portable Fireplace
User's Manual
FOR INDOOR USE ONLY
120VAC 15 AMP DEDICATED CIRCUIT
Carefully and thoroughly read this manual before using the portable fireplace for the first
time. We advise to keep this manual for regular review and future reference. This
fireplace is intended for residential use.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ILG-958 and is the answer not in the manual?

Questions and answers

Summary of Contents for iLiving ILG-958

  • Page 1 ILG-958 Portable Fireplace User’s Manual FOR INDOOR USE ONLY 120VAC 15 AMP DEDICATED CIRCUIT Carefully and thoroughly read this manual before using the portable fireplace for the first time. We advise to keep this manual for regular review and future reference. This...

  • Page 2: Use Caution

    The iLIVING fireplace is built in wood housing and is equipped with nylon caster wheels for easy mobility. Its highly efficient filter can be maintained and cleaned by simply rinsing with warm water.

  • Page 3: Fireplace Specifications

    Nickel-Chrome Filament, and exits as heated air from the Diathermanous Copper Plate constructed on the front of the unit. The iLIVING fireplace ideally heats a room of 800 to 900 square feet, but can be used to heat up a single room size up to 1000 square meters, depending on the ambient temperature, layout of the room, and insulation level.

  • Page 4: Operating Instructions

    1. First, check the carton to make sure there are no obvious damages that may have occurred during shipping. 2. Open the iLIVING fireplace packaging and remove the unit by sliding it from the box. You may want to gently and cautiously turn the entire box upside down letting the fireplace slowly slide out.
  • Page 5 1) Plug the power cord directly into a conventional 120V 15 amp outlet and press the MASTER POWER switch on the rear of the portable fireplace. Then press the POWER button on the front control panel or on the remote to start the unit. The LED display will show the default value as F/22 Function Display (Note: If the ambient temperature (the temperature in the area around the fireplace) is greater than the...
  • Page 6 5 seconds later the value switches to ambient temperature 4) Again, the default set temperature displayed on the LED display is 72 F. By pressing the TEMP button, the LED display will switch to the temperature status and flash. You must press the HI/LOW/UP button or F/DOWN button once again within (5) seconds to set the desired temperature.

  • Page 7: Care, Maintenance, And Storage

    7) The iLIVING fireplace can be turned off by pressing the POWER button. DO NOT TURN OFF THE MASTER POWER SWITCH ON THE REAR OF THE FIREPLACE OR UNPLUG THE FIREPLACE UNTIL THE FAN SHUTS DOWN. If the fireplace is left on using the TIME function, there will be (5) second sound alert to let you know that the time is expiring.

  • Page 8: Troubleshooting

    filter is removed, run warm water through and over the filter to remove dirt and dust. Shake all water residues from the filter and replace it back in the fireplace. (Note: A mild soap can be applied to assist in removing dirt and dust from the filter) If the fireplace is not to be used for an extended period of time, it can be stored away.

  • Page 9: Questions And Answers

    SOLUTION: First, check to make sure the power cord is not damaged, is plugged in, and the outlet has power. Secondly, check to make sure the control panel is not damaged. If the control panel display continues to be inoperable, contact the manufacturer for further troubleshooting. 6.
  • Page 10 Once the fireplace is turned on, how long will it take to heat my room? This fireplace can heat up to 1,000 square feet. Generally speaking, it takes minutes to heat a room. Please remember that with any type of heating process, there are many variables such as size of the room, how well the room is insulated, how many doors &...
  • Page 11 Can I use an extension cord, surge protector, or power strip with my fireplace? No. The iLIVING fireplace is designed to plug directly into a grounded 120V 15 Amp or higher circuit receptacle. Never use with an extension cord or relocatable power tap (outlet/power strip).
  • Page 12 1-866-610-1383. Prior to your call, we encourage you to visit our service related website www.ilivingusa.com for troubleshooting tips and possible service instructions if needed. iLIVING USA 777 JACKSON STREET SAN FRANCISCO, CA 94133 TEL: 866-610-1383 EMAIL:...
