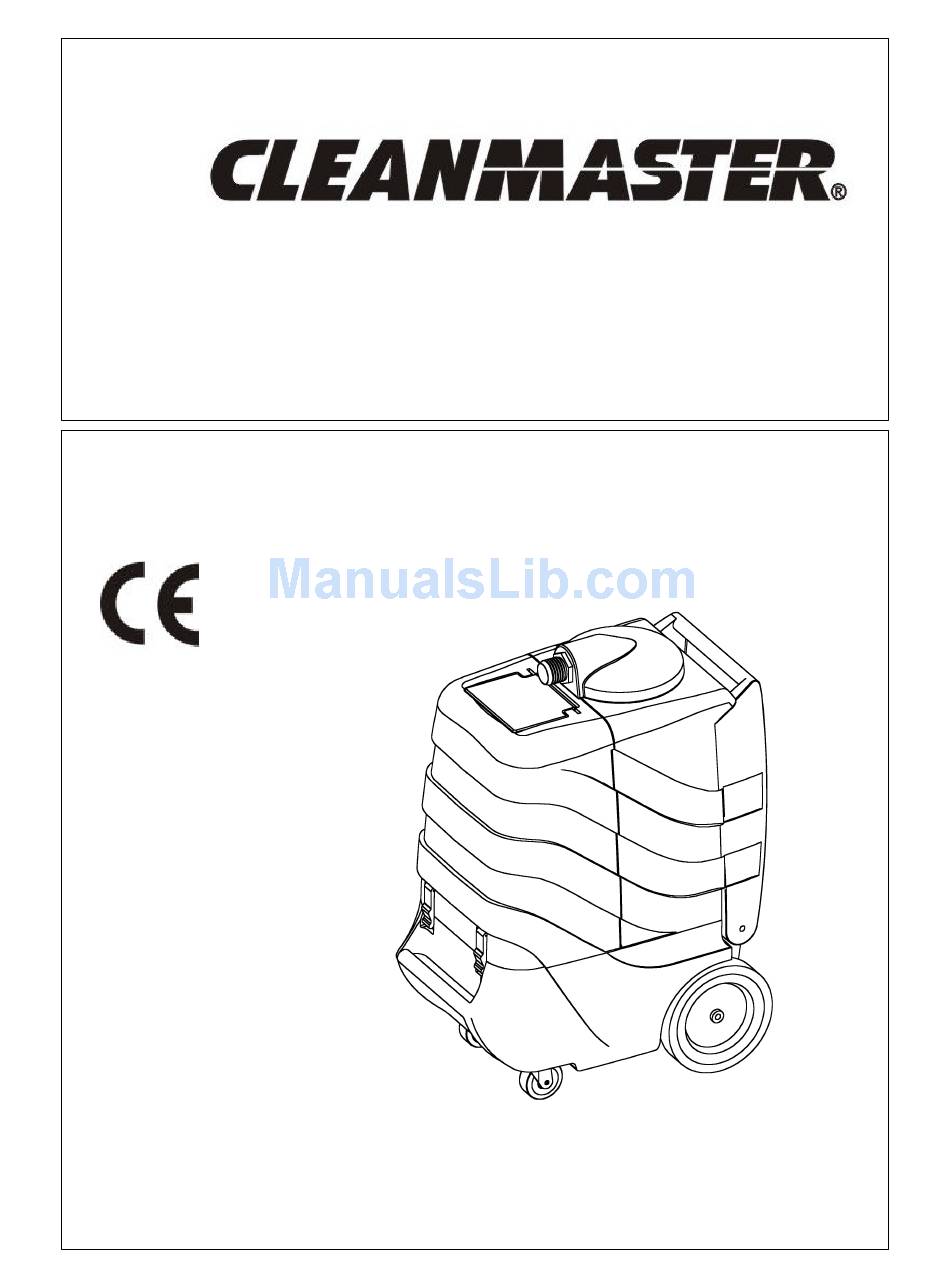

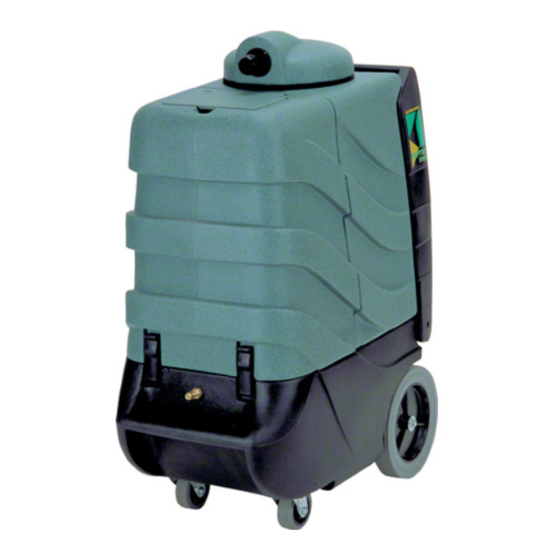

- Page 1 Raptor 230H Carpet And Upholstery Cleaner Model No.: Operator and Parts Manual 100-652-230 11 gal Extractor CLEANMASTER 11015 47 AVENUE WEST MUKILTEO WA 98275 U.S.A. FAX: 1-800-426-4225 MNL36456-E3H-CE WEBSITE: www.cleanmaster.com CUSTOMER SERVICE: 1-425-775-7276 Rev. 00 (04-01)
-
Page 2: Table Of Contents
OPERATION This manual is furnished with each new model. It MACHINE DATA provides necessary operation and maintenance instructions and an illustrated parts list. Please fill out at time of installation for future reference. Read this manual completely and understand the machine before operating or servicing it. -
Page 3: Safety Precautions
OPERATION 4. Before leaving or servicing machine: SAFETY PRECAUTIONS – Turn off machine. Unplug cord from wall outlet. – 5. When servicing machine: This machine is intended for commercial use. It is designed to wet clean carpet and upholstery in a –... -
Page 4: Machine Components
OPERATION MACHINE COMPONENTS 1. Recovery Tank 8. Circuit Breakers 2. Solution Tank 9. Power Cords 3. Recovery Tank Lid 10. Empty-Out Nozzle 4. Solution Tank Lid 11. Vacuum Hose Connector 5. Vacuum Switches 12. Latches 6. Pump Switch 13. Recovery Tank Drain 7. -
Page 5: Machine Operation
OPERATION ATTENTION: If using powdered cleaning 2. Take carpet cleaning wand in hand and squeeze chemicals, mix prior to adding. valve trigger while moving the tool in short forward and backward strokes. (Figure 6). NOTE: If desired, water alone achieves excellent cleaning results. -
Page 6: Draining Tanks
OPERATION 1. Operate accessory tool as normal (Figure 8). DRAINING SOLUTION TANK NOTE: Before cleaning upholstery, always check 1. Remove empty-out nozzle from its storage cleaning instructions sewn in furniture by bracket (Figure 10) and attach to end of solution manufacturer. -
Page 7: Machine Maintenance
OPERATION MACHINE MAINTENANCE MONTHLY MAINTENANCE (Every 80 Hours of Operation) 1. Lubricate wheels with water resistant oil. To keep machine in good working condition, simply 2. Inspect machine for water leaks and loose follow machine’s daily, weekly and monthly hardware. maintenance procedures. -
Page 8: Trouble Shooting
OPERATION TROUBLE SHOOTING PROBLEM CAUSE SOLUTION Machine does not operate. Faulty switches or wiring. Contact Service Center. Faulty power cord. Contact Service Center. Building circuit breaker tripped. Reset Breaker. Heater does not heat. Faulty switch or wiring. Contact service center. Solution pump does not operate. -
Page 9: Specifications
OPERATION SPECIFICATIONS Model 230H CE LENGTH 711 mm (28 in) WIDTH 450 mm (17.7 in) HEIGHT 1016 mm (40 in) WEIGHT 67 Kg (148lbs) SOLUTION TANK CAPACITY 41 L (11 gal) RECOVERY TANK CAPACITY 38L (10 gal) SOLUTION PUMP 240 V, 20.68 bar (300psi), 1.0 A VACUUM MOTORS 2 –... -
Page 10: Electrical Diagram
ELECTRICAL DIAGRAM RAPTOR 230H 120 V WIRING DIAGRAM 36456-E3H-Raptor CE (04-01) -
Page 11: Parts List
PARTS LIST RAPTOR 230H TANK GROUP 36456-E3H-Raptor CE (04-01) -
Page 12: Parts List
PARTS LIST RAPTOR 230H TANK GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. B-17.2 8-32 X 1/2 PHXSS G-03.19 O-RING,VITON 2-020 BLKHD B-21 10-32 X 5/16 PHXSS J-48CLNMSTR LID, SOLUTION GRNGRANITE CM B-23 10-32 X 1/2 PHXSS J-49GRNGRNT LID,MEGA/E3 ROTO GREEN GRANITE B-23.7... - Page 13 PARTS LIST RAPTOR 230H BASE GROUP 36456-E3H-Raptor CE (04-01)
-
Page 14: Base Group
PARTS LIST RAPTOR 230H BASE GROUP PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. B-01 4-40 X 1/4 PHXSS • KNOB, 2/3-WAY VALVE G-25.1(5) G-25.1A B-09.1 6-32 X 3/8 PHXSS G-37 VALVE,VAC SHUT OFF DUAL B-10 6-32 X 1/2 PHXSS... - Page 15 PARTS LIST PUMP 300 PSI BREAKDOWN VOLTAGE AND HERTZ IN USAGE AREA ITEMS PART # DESCRIPTION 100V 50/60 HZ 110V 60HZ 220V 50HZ CE 220V 60HZ SL-28.400 PUMP,300PSI 1/4HP AC CMP 110V 110 CAM SL-28.400CE PUMP,300PSI 1/4HPAC CMP W/IPX 220VCE SL-28.410 PUMP,300PSI 1/4HP AC CMP 100V116CAM 50/60HZ SL-28.425...
-
Page 16: Options
OPTIONS 20258 ECONO FLOOR TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. • F-09 B-24.1 10-32 X 3/4 PHXZINC Q/C 1/4" PLUG BR SHUT OFF B-26.57 10-32 X 1 3/8 PHX ZINC G-23 VALVE, KNGSTN STD S BND • H-37 B-28.03 NUT, 10-32 NYLOK ZINK... - Page 17 OPTIONS LP/20208; HP/20216 FLOOR TOOL PART # DESCRIPTION QTY. PART # DESCRIPTION QTY. B-24.1 10-32 X 3/4 PHXZINC G-23.5 VALVE,KNSTN HP "S" BEND B-26.57 10-32 X 1 3/8 PHX ZINC H-02.5 BODY, TEE JET 1/4 BRASS B-28.03 NUT, 10-32 NYLOK ZINK H-03 CAP NUT, TEE JET BRASS •...
- Page 18 OPTIONS 20078A HAND TOOL PART # Description QTY. PART # Description QTY. B-05.5 4-40 X 7/8 PHXZINC GR-2-006N70 O-RING,2-006 BUNA 70DR B-07.5 NUT, 4-40 HEX ZINC NYLOK GR-2-011N70 O-RING,2-011 BUNA 70DR B-11.5 6-32 X 1 PHXZINC GR-2-013N70 O-RING,2-013 BUNA 70DR B-14.6 NUT, 6-32 HEX ZINC NYLOK H-03.5...
-
Page 19: Warranty Policy
WARRANTY POLICY PARTS ONLY – STANDARD REPLACEMENT POLICY For the first 12 months from the date of original purchase, in the event that a part believed to be under warranty fails, simply call Cleanmaster to obtain a Return Authorization, ship the part freight prepaid to Cleanmaster and, Cleanmaster will either repair or replace the part at no charge if it is determined that failure was a manufacturing defect. - Page 20 WARRANTY Cleanmaster warrants the Raptor Cleaning Machine against defects in material and workmanship under normal use and service. Cleanmaster, hereby, extends a limited three-year warranty on the polyethylene machine housing of the Raptor against cracking or leaking and a one-year warranty on the rest of the machine against manufacturing defect or workmanship subject to the terms and conditions that follow.
- Page 21 WARRANTY Cleanmaster warrants the Raptor Cleaning Machine against defects in material and workmanship under normal use and service. Cleanmaster, hereby, extends a limited three-year warranty on the polyethylene machine housing of the Raptor against cracking or leaking and a one-year warranty on the rest of the machine against manufacturing defect or workmanship subject to the terms and conditions that follow.
