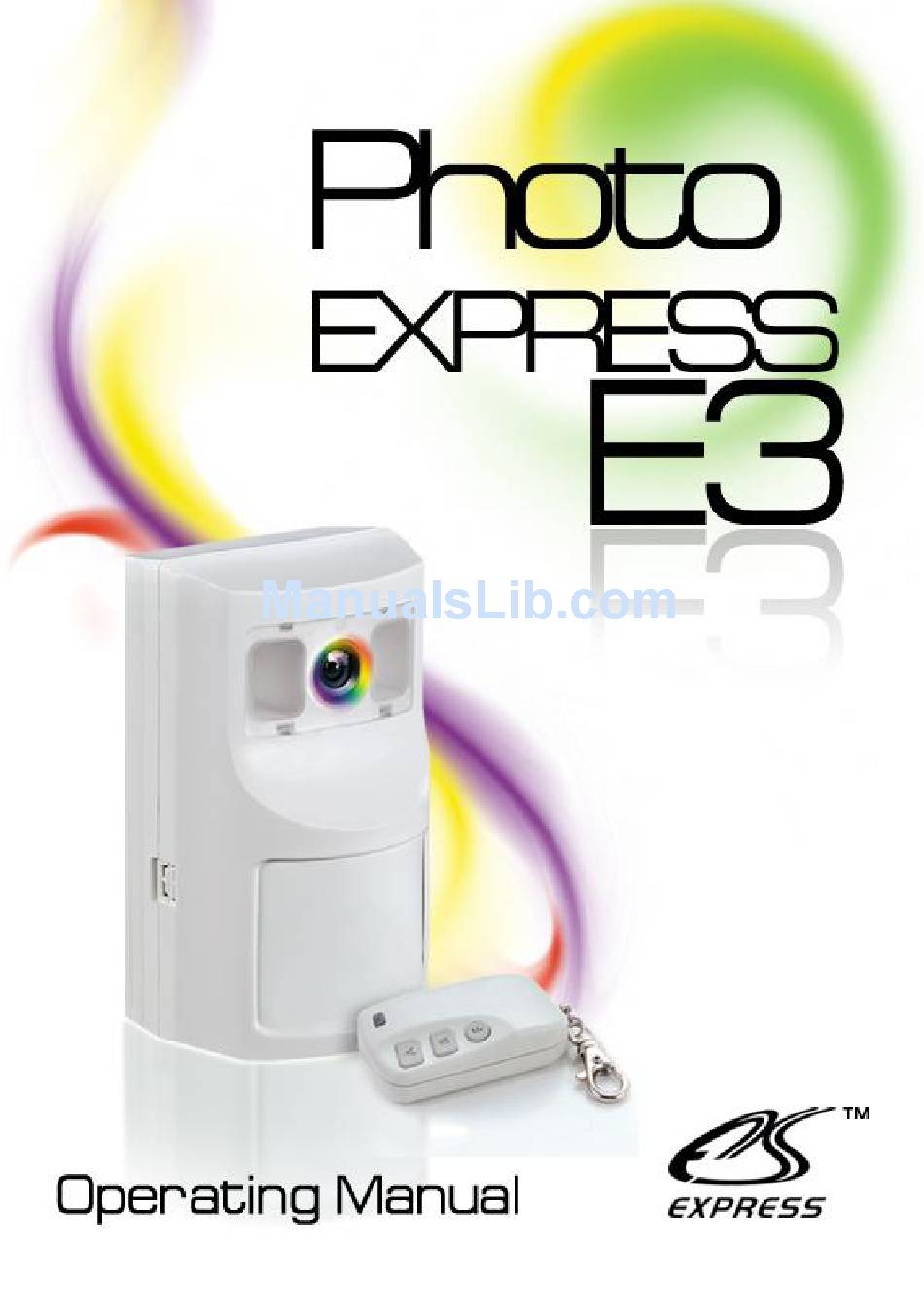

Alpha Asenal EXPRESS E3 Operating Manual

Gsm motion detector
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
3

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EXPRESS E3 and is the answer not in the manual?

Questions and answers

Summary of Contents for Alpha Asenal EXPRESS E3

  • Page 2: Table Of Contents

    GSM MOTION DETECTOR EXPRESS E3 OPERATING MANUAL CONTENTS DESCRIPTION AND FUNCTION Purpose Technical specifications Motion Detector package contents Motion Detector structural design Keychain Remote Control structural design Device set-up and operation SET-UP PROCEDURE Preparing the device for operation Setting up the Motion Detector...
  • Page 3 Your opinion is important to us. This Operating Manual was specifically written in order to cover all aspects of EXPRESS E3 installation and operation.

  • Page 4: Description And Function

    DESCRIPTION AND FUNCTION Purpose This EXPRESS E3 GSM Motion Detector (further referred to as Motion Detector) was specifically designed to detect penetration of a protected zone and to transmit notification via a call and SMS text message to a GSM standard telephone; also to photograph the penetrated protected zone and transmit an E-mail via GPRS.

  • Page 5: Motion Detector Package Contents

    Motion Detector package contents Motion Detector package contents in accordance with chart 2. Chart 2 - Motion Detector contents Description Quantity GSM Motion Detector EXPRESS E3 AA Batteries LR6 1.5v User manual Keychain (RC) Remote Control BN-3S Motion Detector design structure Structurally the Motion Detector consists of a main body base, a front cover, a rear lid (removable), detector circuit board and GSM module circuit board (refer to fig.

  • Page 6: Keychain Remote Control Structural Design

    Fig. 2 Motion Detector structural design with rear lid removed. Keychain Remote Control structural design The Keychain Remote Control structural design consists of a base, a cover, button unit (3 button) and a light diode (refer to fig. 3). Inside the Keychain Remote Control is a CR2032 Lithium 3v battery. In order to replace the power source, it is necessary to remove the screw, lift the cover, remove the depleted battery and then, observing polarity, install a new battery.
  • Page 7 -requests remaining Motion Detector SIM card balance and transmits an SMS to the handheld mobile device; -auto reset to armed mode; -auto detection of telephone number for remaining Motion Detector SIM card balance and of GPRS* settings; -disarm alarm mode via a telephone call after triggered alarm. *Footnote- for mobile providers T-Mobile, AT&T, Orange &...

  • Page 8: Set-Up Procedure

    Notifications The Motion Detector transmits an armed/ disarmed status SMS message to “1SMS” (the 1st notification telephone number, refer to chart 4) as recorded in the SIM card memory and a triggered alarm SMS notification to the telephone numbers designated at “1SMS” – “6SMS” (figs. 4-6). Additionally, the telephone number designated at “1SMS”...

  • Page 9: Setting Up The Motion Detector

    Setting up the Motion Detector At the initial power up using a new or an erased/ reformatted SIM card (see 2.4), the Motion Detector will create an entry in accordance with chart 4. Motion Detector settings 1-26 are stored in the SIM card memory and settings 27-31 are stored in the memory of the Motion Detector device.
  • Page 10 2- Only determines detection zone & emits short audio tone; SMS not sent & calls not placed. 3- Only calls placed to 1sms...6sms ArmDelay Arming delay in seconds Parameter should between 15-250 sec. NotDelay Notification delay, after Parameter should triggered alarm, in order between 0-250 sec.

  • Page 11: Entering The Programming Mode

    Settings User name for the mobile Up to 30 characters of text stored in operator using the Latin alphabet device memory Settings User password for mobile Up to 30 characters of text stored in operator using the Latin alphabet device memory Entering the programming mode In order to access the Motion Detector programming mode, execute these following steps in...

  • Page 12: Erasing The Phonebook And Sms Messages

    For a span of 3 minutes, the Motion Detector stands by to receive SMS notification(s) containing setting changes, inquiries from Remote Controls and incoming calls. At the conclusion of which, the Motion Detector will return to "Disarmed" mode and will transmit an SMS notification containing the settings to the primary telephone number.

  • Page 13: Adjusting The Settings

    Fig. 8 Settings and values SMS After transmitting an SMS containing settings and values, the Motion Detector resets to the "Disarmed" mode. Set-up verification 1. Press the "A" button on the Remote Control. The indicator diode will flash yellow, then red and the Motion Detector device will emit a single confirmation beep.

  • Page 14: Adding A Telephone Number For Notification Messages

    4. Wait for the SIM card to register on the network. During the registration process, the "GSM" light diode will continue to flash. At the completion of the registration cycle, the "GSM" light diode will flash once every five seconds and will emit 3 tones.

  • Page 15: Erasing Notification Message Telephone Numbers

    Erasing notification message telephone numbers In order erase a telephone number from the notification list, perform the following operation. 1. Access the Motion Detector programming mode (see 2.3). 2. Send an SMS to the Motion Detector telephone number containing the following text (text is entered without the angle brackets): “2)000”- to erase the second notification telephone number, “3)000”- to erase the third notification telephone number, etc..

  • Page 16: Arming And Disarming The Motion Detector Device

    Fig. 10 Examples of improper installation The wall on which the Motion Detector is mounted should not be subject to vibration. The Motion Detector should be kept at a distance from high voltage electrical wiring. The presence of objects in the protected zone, such as furniture, screens, plants, etc., might create "blind spots", possibly hindering the detection of human presence.
  • Page 17 If a notification delay is designated (see chart 4, cell 20), then the Motion Detector will wait out the designated delay and then start the notifications. If the notification delay is set at 0-20 seconds, the Motion Detector will without any further delay, start the notifications, due to the notification delay compensating for the time required for the GSM module to power up and the SIM card to register with the mobile network.

  • Page 18: Troubleshooting

    Troubleshooting Chart 5 – Troubleshooting Issue Possible reason Solution No sound beeps and GSM light 1. Batteries incorrectly 1. Remove & properly re-insert the diode flashes on the Motion installed; batteries, check polarity; Detector after installing batteries 2. Dead batteries. 2.

  • Page 19: Contact Information

    Contact Information ALPHA ARSENAL, LLC 104-20 Queens Blvd., Ste 1B Forest Hills, NY 11375, US T/F: +1.718.440.3281 +1.718.355.9281 Skype: alpha.arsenal E-mail: info@alpha-safe.com support@alpha-safe.com Website: www.alpha-safe.com Warranty Coverage The warranty period is one year from date of purchase. During the Warranty period, the manufacturer will repair, exchange, adjust, or replace at its discretion, any defective product.
  • Page 20 FOR NOTES...
