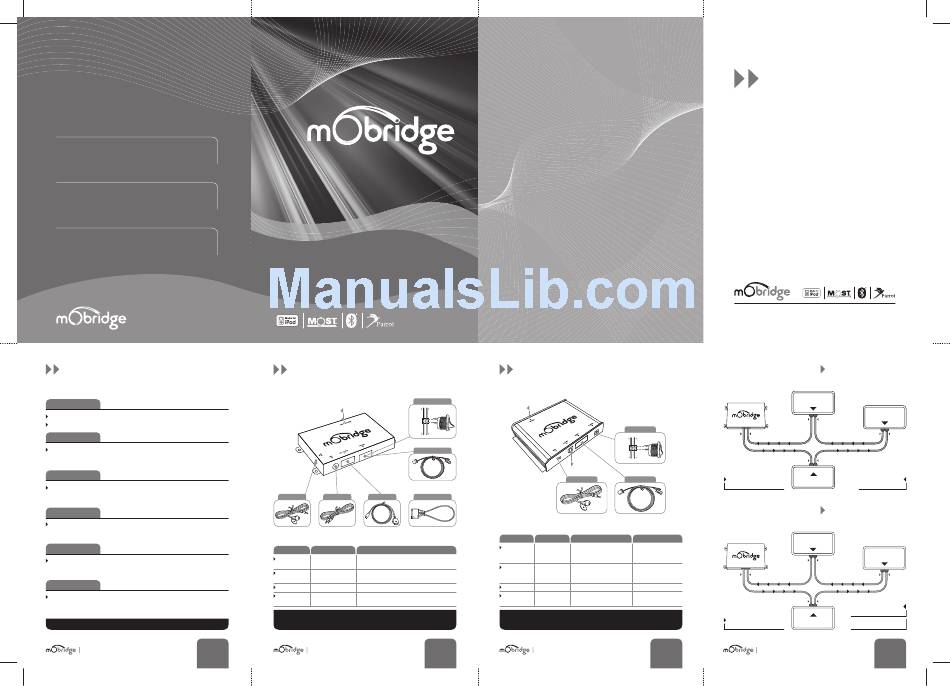

Mobridge A2010 Installation Manual

NORTH AMERICA
Address 3053 Fillmore St Unit 222 San Francisco California 94123
Phone 1-888-766-2743
Inquiries sales@mobridge-usa.com
ASIA-PACIFIC
Address 2/88 Northgate Drv Thomastown Melbourne VIC 3074
Phone +61 3 9013 9758
Inquiries sales@mobridge.com.au
EUROPE
Address Marconiweg 15 3899 BR, Zeewolde The Netherlands
Phone +31 36 521 84 31
Inquiries sales@mobridge-eu.com
www.mobridgeinc.com

Programming

the car for mObridge products:
AUDI
A2010 – no coding is required
ABT2010/M1000-M-BT1/DA1 – MMI software should be updated to 3360 to 4200 (YYYY)
BMW
A2010/ABT2010/M1000-M-BT1/DA1 – ALL BMW vehicles are required to be
"coded" - ie have CD Changer enabled in the vehicle. This requires some knowledge
and access to Autologic diagnostic tool.
LAND ROVER
A2011/ABT2011/M1000-M-BT1/DA1 – Generally no programming is required
but in some cases (e.g. no device was connected onto the optical ring) it is
needed to enable a Bluetooth with service computer.
MERCEDES BENZ
A2010/ABT2010/M1000-M-BT1/DA1 – Generally no programming is required
but in some cases (e.g. no device was connected onto the optical ring) it is
needed to enable a Bluetooth/CD Changer with StarDiagnose tool.
MINI
A2010/ABT2010/M1000-M-BT1/DA1 – ALL BMW vehicles are required to be
"coded" - ie have Bluetooth/CD Changer enabled in the vehicle. This requires
some knowledge and access to Autologic diagnostic tool.
PORSCHE
A2010/ABT2010/M1000-M-BT1/DA1 – Generally it is needed to enable a Bluetooth/
CD Changer with the PIWIS service computer but in rare cases the PCM accept
the mObridge without this enabling process.
PLEASE NOTE PROGRAMMING VARIES BY REGION
01
2010 FIBERDYNE SYSTEMS PTY LTD
MOST Installation Guide
iPod & Bluetooth Installation Instruction Manual
A2010/11 ABT2010/11 XMD-A2010
| |
Package Content & Electrical Installation
BYPASS SWITCH
1 BLACK 2 RED
MEMORY CARD
3 BLUE 4 WHITE
SEE CHART BELOW
MOST
MOST Network
connection
MICROPHONE AUX iPod OPTICAL LOOP
Microphone for Connection to Connection to iPod Optical Loop for
ABT2010 only AUX source ABT2010 only
WIRE | COLOUR DESCRIPTION USE IN A2010/11 I ABT2010/11 I XMD-A2010
1 | Black GND Ground (Battery --)
(Battery - GND) Terminal 31 Klemme 31 / Kl.30
2 | Red Constant 12V Power (B+ constant)
Terminal 30 Klemme 30 / Kl.30
3 | Blue varies Not used
4 | White bypass or "Valet" MOST
"valet" input bypass switch
Please Note When Servicing Your Vehicle You must set the mode selector switch to service mode
(bypass CD Changer) postion otherwise the service computer may detect an unknown device in the
fiber optic system which can lead to errors reported.
02
2010 FIBERDYNE SYSTEMS PTY LTD
M1000-M-BT1 M1000-M-DA1
|
Package Content & Electrical Installation
USB | SD
BYPASS SWITCH
1 BLACK 2 RED
3 BLUE 4 WHITE
TOSLINK
for M1000-M-DA1 SEE CHART BELOW
MICROPHONE MOST
Microphone MOST Network
for M1000-M-BT1 connection
WIRE | COLOUR DESCRIPTION USE IN M1000-M-DA1 USE IN M1000-M-BT1
1 | Black GND Ground (Battery --) Ground (Battery --)
(Battery - GND) Terminal 31 Terminal 31
Klemme 31 / Kl.30 Klemme 31 / Kl.30
2 | Red Constant 12V Power (B+ constant) Power (B+ constant)
Terminal 30 Terminal 31
Klemme 30 / Kl.30 Klemme 31 / Kl.30
3 | Blue varies Remote Amp Trigger Output Not used
4 | White bypass or "Valet" MOST bypass switch "Valet" MOST
"valet" input bypass switch
Please Note When Servicing Your Vehicle You must set the mode selector switch to service mode
(bypass CD Changer) postion otherwise the service computer may detect an unknown device in the
fiber optic system which can lead to errors reported.
03
2010 FIBERDYNE SYSTEMS PTY LTD

Introduction

mObridge A2010/A2011 iPod solution emulates a CD Changer and uses
CD Changer controls to access off-board audio sources including iPod
and AUX devices. If your car is not already equipped with a CD Changer,
it may be necessary to have the car programmed by your dealer in
order to use the mObridge A2010/A2011 with it. CD Changer retention
is not supported.
mObridge ABT2010/ABT2011 iPod and Bluetooth solution is an A2010/
A2011 plus the additional functionality of Bluetooth hands-free
connection in vehicle, by emulating the Bluetooth controls already
featured. If you car is not already equipped with a Bluetooth system, it
may be necessary to have the car programmed by your dealer in order
to use the mObridge ABT2010/ABT2011 with it. CD Changer retention
is not supported.
mObridge M1000-M-BT1 Bluetooth solution emulates the Bluetooth
controls featured in the vehicle. If you car is not already equipped with
a Bluetooth system, it may be necessary to have the car programmed
by your dealer in order to use the mObridge M1000-M-BT1.
mObridge M1000-M-DA1 Digital Pre-Amp offers digital signal directly
into an aftermarket sound processor via TOSLINK, it maybe necessary to
have the car programmed for Factory amplifier by your dealer in order
to use the mObridge M1000-M-DA1.
For system setup please see: mObridge WIZARD Guide
2010 Fiberdyne Systems Pty Ltd

Installation Notes AUDI

Please see: Audi vehicle compatibility chart for application guide.
MAIN MMI
CONTROL UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT OUT LIGHT IN LIGHT'S DIRECTION OF TRAVEL LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
CD CHANGER *
LIGHT IN & OUT OPTIONAL EQUIPMENT
Arrows point in the direction of the light. TV Tuner, Navigation etc

Installation Notes BMW

Please see: BMV vehicle compatibility chart for application guide.
HEAD UNIT
OR CCC UNIT
OTHER MOST
DEVICES*
LIGHT OUT LIGHT IN
LIGHT'S DIRECTION OF TRAVEL
LIGHT OUT LIGHT IN LIGHT OUT LIGHT IN
Also what you see
LIGHT IN LIGHT OUT
*
OPTIONAL EQUIPMENT
TV Tuner, Navigation etc
LIGHT IN & OUT CD CHANGER**
** has to be "looped out" of the MOST
Arrows point in the direction of the light. ring if iPod functionality is required.
04
2010 FIBERDYNE SYSTEMS PTY LTD
