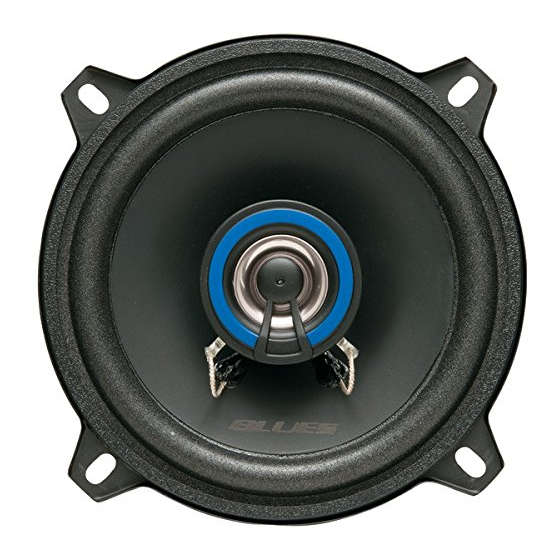

BLUES CAR AUDIO

BX-52

BX-65

BX-57

BX-69

BC-65 Component

OWNER'S MANUAL

Please read through this manual to familiarize yourself with your new

speakers. Should your Blues Speakers ever require service, you will

need to have the original dated receipt.

Table of Contents

Need help?

Do you have a question about the BX-52 and is the answer not in the manual?

Questions and answers

Summary of Contents for Blues car audio BX-52

Page 1 BLUES CAR AUDIO BX-52 BX-65 BX-57 BX-69 BC-65 Component OWNER’S MANUAL Please read through this manual to familiarize yourself with your new speakers. Should your Blues Speakers ever require service, you will need to have the original dated receipt.
Page 2 CAR AUDIO INTRODUCTION Thank you for purchasing this Blues speakers system. Whether you are replacing or upgrading your vehicles factory speakers your new Blues speakers, when used as described, will deliver great sound and provide years of dependable service in your car, truck, RV or mini-van. We have taken numerous measures in quality control to ensure that your product arrives in top condition, and will perform to your satisfaction.
Page 3 HIGHLIGHTED FEATURES • Black high gloss, warp-resistant, low-resonance steel baskets sized for OEM fit in most vehicles • Low distortion polypropylene coated woofer cones for improved low end response and weather resistance • Balanced output Mylar Tweeters for improved high frequency response •...
Page 4 BASIC INSTALLATION STEPS Door mounting Step 1. Remove existing speaker Step 2. Position new speaker and align BX52/BX62 with existing mounting holes /BC65 To radio or amplifier Step 3. Attach positive (+) and negative (-) speaker terminals. Be sure to observe proper polarity when connecting the wires.
Page 5 INSTALLATION EXAMPLES Your Blues coaxial speakers are designed as direct replacements for stock factory speakers. Some basic installation examples are shown below. For custom installations seek professional help from a car audio/electronics dealer. CAUTION Before installing these speakers, check the vehicle’s manual for location of important vehicle equipment such as airbags, CO systems, fuel systems, and electrical systems in the vehicle.
Page 6 SPECIFICATIONS FOR BLUES COAXIAL SPEAKERS Model BX-52 BX-65 BX-57 BX-69 Size/Type 5.25" (130mm) 6.5" (165mm) 5x7" 6x9" (in/mm) (126x180mm) (152x230mm) Continuous Power Handling (watts) Peak Power 200W 240W 240W 280W (watts) Frequency Response 127Hz~20kHz 94Hz~20kHz 79Hz~20kHz 78Hz~20kHz (Hz) Nominal Impedance...
Page 7 SPECIFICATIONS FOR BLUES BC65 COMPONENTS Model BC-65 Mid BC-65 Tweeter Size/Type 6.5” (165mm) Mid 1” (25mm) Tweeter (in/mm) Continuous Power 60W* 60W* Handling (watts) Peak Power 240W 240W (watts) Frequency Response 94Hz~20kHz 2.5k~20KHz (Hz) Nominal Impedance 4 ohms 4 ohms (ohms) Sensitivity 87.8db...
Page 8 LIMITED WARRANTY POLICY Blues Audio USA, Inc. offers limited warranty on Blues products under normal use on the following terms: Blues Audio USA Speakers are to be free of defects in material and workmanship for a period of one (1) year. This warranty applies only to Blues products sold to consumers by Authorized Blues Audio Dealers in the United States of America.

This manual is also suitable for:

Bx-65Bx-57Bx-69Bc-65
