Summary of Contents for Rosco STSK7316

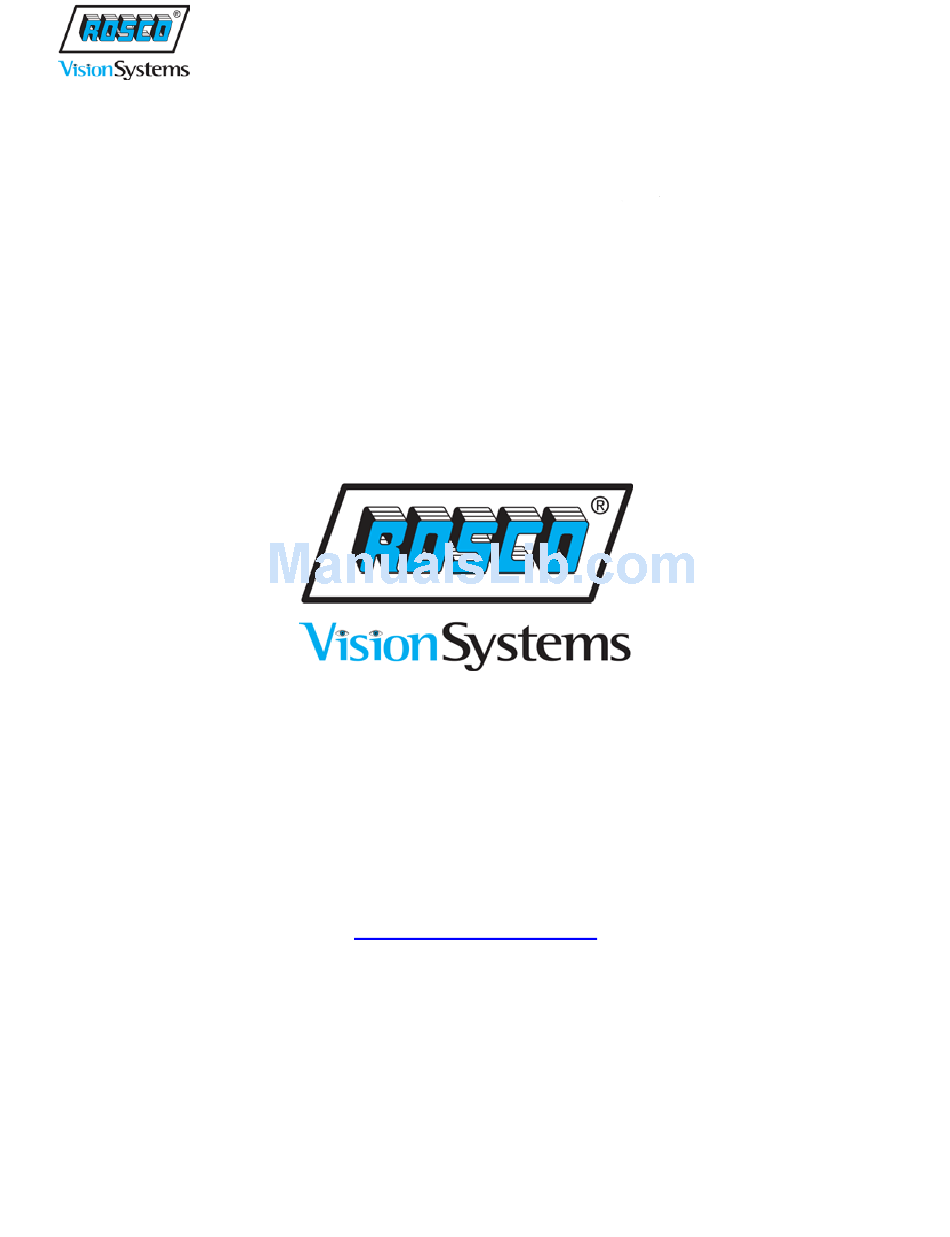

- Page 1 FORKLIFT CAMERA SYSTEM INSTALLATION & OPERATING INSTRUCTIONS KIT# STSK7316 ROSCO INC. 90-21 144 PLACE, JAMAICA, NEW YORK 11435 WWW.ROSCOVISION.COM Version 1.0 ©2013 Rosco® Vision Systems, All Rights Reserved Specifications and details are subject to change without prior notice.
-
Page 2: Table Of Contents
TABLE OF CONTENTS FEATURES ........................ 3 KIT CONTENTS ......................3 INSTALLATION ......................4 MONITOR ........................4 MONITOR INSTALLATION DIAGRAM ................5 WIRING DIAGRAM ......................6 WIRING .......................... 7 CAMERA ......................... 8 CAMERA INSTALLATION DIAGRAM ................9 MONITOR FUNCTIONS ....................10 MONITOR SET UP ...................... -
Page 3: Features
FEATURES MONITOR • Heavy Duty Aluminum Housing • 7 Inch Wide WVGA Bright Display • Waterproof (Indoor & Outdoor) • Up to 4 Camera Inputs • Split Screen Function CAMERA • Rugged Shock Resistant Metal Housing • Stainless Steel Bracket •... -
Page 4: Installation
INSTALLATION MONITOR Locate a suitable position for monitor, using caution to make sure that the operator’s forward field of vision is not obstructed. Recommended mounting is overhead, utilizing the included U-Bracket with backing plate and hardware, as shown in these examples:... -
Page 5: Monitor Installation Diagram
MONITOR INSTALLATION DIAGRAM... -
Page 6: Wiring Diagram
WIRING DIAGRAM After installing the Monitor, connect it to Video Input/Power Harness as shown. The connect Power Cable to the battery or Voltage Converter (see next section). Secure the wires and activate the Monitor. Connect the Camera 1 trigger wire as desired (for example, to reverse gear or backup lights/alarm circuit). -
Page 7: Wiring
WIRING Connect STSK7316 Power Wire (RED) to 12-24VDC source as provided on the vehicle. Note that FORKLIFT may be equipped with a Voltage Converter as shown here: + 12VDC INPUT POWER TO CAMERA SYSTEM... -
Page 8: Camera
CAMERA With the Camera powered but not permanently installed, move it around to locate a suitable position, either within the Forklift frame or in an area not susceptible to damage, which will provide a clear view of the desired area. Recommended mounting is high on the frame. Using the universal camera mounting brackets and hardware, install the camera and fasten securely as shown in these examples: Secure all cables with tie-wraps or as otherwise necessary. -
Page 9: Camera Installation Diagram
CAMERA INSTALLATION DIAGRAM... -
Page 10: Monitor Functions
MONITOR FUNCTIONS MONITOR FUNCTION BUTTONS NAME DESCRIPTION LCD Screen 7” Wide VGA (800x480) LCD Display Automatic Dimmer Sensor Sensor to control LCD brightness (Day/Night) Dimmer Button Press to set up dimmer function: Day/Night/Auto Press to select and change split screens: Full, 2, 3, 4 MODE Button Move Button (down) Press to move down menu options... - Page 11 1. POWER When the ignition is switched on, the monitor will be in standby mode, and the Standby LED will be lit. The trigger wire will be energized when the vehicle shifts into reverse gear, and the image captured by the selected camera will appear on the monitor.
-
Page 12: Monitor Set Up
MONITOR SET UP Press to increase/decrease the Volume level (0 – 100) Press the MENU button once and set MARKER SETUP option ON or OFF. Press to accept. Press the MENU button twice to set desired Camera Views (MIRROR or NORMAL) Press button to select Camera (CAM 1, CAM 2, CAM 3, and CAM 4) Press... -
Page 13: Troubleshooting
TROUBLESHOOTING SYMPTOM CAUSE REMEDY No Power Power Cable Check the voltage & fuse in the power cable No Image Camera Check the voltage in the camera cable, secure connector Monitor Check the reverse trigger wire connection, re-secure camera input connector. Extension Cable Check for cable damage and secure the connector. -
Page 14: Technical Specifications
PRODUCT NAME: 7” COLOR WATERPROOF MONITOR FEATURE DESCRIPTION ROSCO’s STSM207 7”Color Waterproof Monitor display live videos as selected by Forklift operator. The monitor has 7 inch WVGA (800x480) Wide LCD Panel which accepts 4-Camera Input view with 2, 3, 4 Split Screen Function. -
Page 15: Stsc107 Camera Specifications
STSC107 CAMERA SPECIFICATIONS ROSCO PART NUMBER: STSC107 PRODUCT NAME: COLOR CAMERA FEATURE DESCRIPTION STSC107 Color Camera provides views of areas behind the Forklift operator. The camera provides up to a 30-foot range view and a 145° diagonal field of vision. Mount the camera universally to the back side of the vehicle, and adjust the camera mount to view and use it as a backup camera. -
Page 16: Spare Parts List
SPARE PARTS LIST ROSCO P/N DESCRIPTION STSK7316 COMPLETE FORKLIFT CAMERA SYSTEM KIT STSM207 COMPLETE MONITOR KIT, CONTAINS ALL OF THE MONITOR PARTS BELOW STSM207MO MONITOR,7"WATERPROOF LCD MON OPT, 4 CAM STSU1001 U BRACKET, MONITOR MOUNT WITH THUMB SCREWS (4) STSH338 BARREL CONNECTOR, FUSE &... -
Page 17: Commercial Warranty
During the warranty period, we agree to provide a replacement for (or at our option, repair) the ROSCO product and/or any one or more component parts of a ROSCO product which malfunctions under normal use and service.
