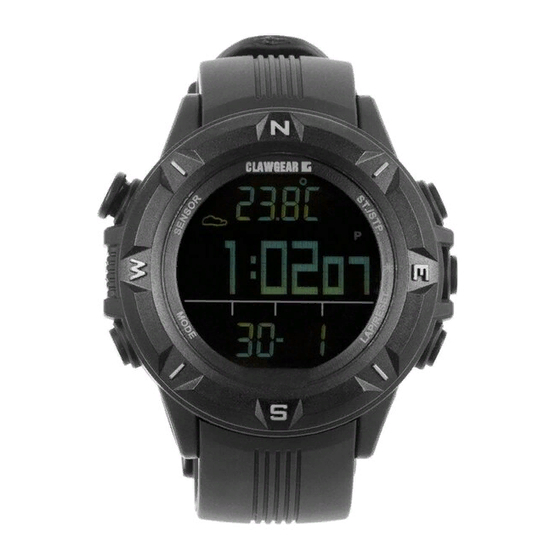

Clawgear Mission Sensor Instruction Manual
  1. Manuals
  2. Brands
  3. Clawgear Manuals
  4. Watch
  5. Mission Sensor
  6. Instruction manual

Clawgear Mission Sensor Instruction Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Instruction Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Mission Sensor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clawgear Mission Sensor

  • Page 1 Instruction Manual...
  • Page 2 www.clawgear.com...
  • Page 3 1.0 Introduction • Thank you for purchasing this Watch. Your Watch • Your Watch is carefully designed and produced for outdoor features electronic sensors, which measures and shows activities. In order to utilize the features, it is advisable to the outdoor conditions: weather forecast, temperature, read the following instructions before using the Watch.
  • Page 4 2.0 Buttons and Its Functions - Model A and Model B Mode Button [M] • To select among the Current Time, Daily Alarm, Chronograph, Timer and Dual Time modes. • To select among the setting items in setting display. Sensor Button [SR] (Model B ), Sensor Button [SR] / EL Button[EL] (Model A) •...
  • Page 5 2.0 Buttons and Its Functions - Model A and Model B Sensor Sensor Light Start/Stop Start/Stop [SR ] [EL] [SR ] [S/S] [S/S] Light [EL] Mode Mode Lap/R eset Lap/R eset [L/R ] [L/R ] Model A Model B...
  • Page 6 3.0 Major Function Modes -Timekeeping Mode and Sensor Mode Compasee Mode Daily Alarm Mode Chronograph Mode Current Time Mode [SR] [SR] [SR] [SR] Track Mode Altimeter Mode Timer Mode Barometer Mode Dual Time Mode Sensor Mode Timekeeping Mode [SR]...
  • Page 7 4.0 Current Time Mode - Functional Display Functional Display • The Current Time Mode includes 4 kinds of functional displays: day of week • Day of Week display weather forcast • Current Time display • Date current time • Weather Forcast •...
  • Page 8 4.2 Current Time Mode - Setting the Current Time d i g i ts h a ve b e e n How to Set the Current Time se l e cte d ( fl a sh i n g ) •...
  • Page 9 4.1 Current Time Mode - Weather Forecast Feature Weather Forecast Feature • A special feature of the Watch is the coming weather predicting function. It works by analyzing the changes of the past air pressure. How to Indicate the Coming Weather Cloudy Sunny •...
  • Page 10 5.0 Daily Alarm Mode - Daily Alarm 1, Daily Alarm 2 Daily Alarm 1 and Daily Alarm 2 • The Watch includes two daily alarms: Daily Alarm 1 and Daily Alarm 2. The Daily Alarm 1 and Daily Alarm 2 are working independently.
  • Page 11 5.1 Daily Alarm Mode - Setting the Alarm How to Set the Alarm 1 and Alarm 2 digits have been • To select the setting display, hold the [M] button for selected (flashing) about 2 seconds in the Alarm 1 (2) Display, then the digits have been selected will flashing.
  • Page 12 6.1 Chronograph Mode - Recording and Recalling Lap Time How to Record Lap Time • The chronograph can measure elapsed time without the lap time will the digits the lap stopping the counting - lap time. freeze for 10 is running number seconds •...
  • Page 13 6.0 Chronograph Mode - Start/Stop the Chronograph Chronograph Mode • The Watch includes a function to measure elapsed time, accumulative elapsed time and lap times - Chronograph Total Mode. Time minutes hours • The display shows an 'All Zeros' display when the chronograph is selected the first time or it is reset.
  • Page 14 7.0 Timer Mode - Countdown Timer and the Quick-Set-value Countdown Timer • The Watch includes a countdown timer feature: the Timer Mode. the time from which the timer • The Timer starts counting from the preset value to zero will countdown (hour, minute and second) and stops at zero.
  • Page 15 7.1 Timer Mode - Setting the Count Down Timer How to Set the Count Down Timer digits have been selected (flashing) • To select the setting display, hold the [M] button for 2 seconds, and the digits have been selected will flashing. •...
  • Page 16 8.0 Dual Time Mode - Dual Time and Setting the Dual Time Dual Time Mode digits have been • The Watch includes a function to show the time of a selected (flashing) second time zone - Dual Time Mode. • The second digit of the dual time synchronizes with the Current Time.
  • Page 17 7.2 Timer Mode - Using the Timer How to Use the Timer digits start • When the Timer is set, press the [S/S] button to start the counting timer. Press the [S/S] button once again to stop the [S/S] timer. Timer Alarm Sound •...
  • Page 18 9.0 Altimeter Mode - Temperature and History Display Functional Display current temperature • Altimeter mode includes two functional displays: altitude [S/S] current value or altitude tendency, which are shown in the attitude middle of display. current • The top line shows the temperature and bottom line time shows the time.
  • Page 19 9.1 Altimeter Mode - Setting the Altimeter How to Set the Altitude and Sea level pressure 2 seconds • To select the setting display, hold the [M] button for 2 seconds, the word “SET” and the flashing value of altitude will appear. Altimeter Display Done display •...
  • Page 20 11.0 Barometer Mode - Temperature and History Display Functional Display current temperature • Barometer mode includes two functional displays: current [S/S] pressure value or sea level pressure tendency, which pressure are shown in the middle of display. current • The top line shows the temperature and bottom line time shows the time.
  • Page 21 10.0 Track Mode How to Measure the Relative Altitude current • The Watch can measure relative altitude. For example, function is ON temperature it can measure the ascending or decending altitude between the starting point and the finish point of a trail. [L/R] [L/R] •...
  • Page 22 11.1 Barometer Mode - Setting the Pressure How to Set the Barometer 2 seconds • To select the setting display, hold the [M] button for 2 seconds, the word “SET” and the flashing value of pressure will appear. Barometer Display Done display •...
  • Page 23 12.0 Compass Mode - Precautions Precautions for using the Compass • Keep your Watch away from magnets or any appliances which may contain magnetic objects such as mobile navigation direction phones, speakers, motors and etc. compass direction • The Watch, like most magnetic compass, points to the magnetic north which is slightly different from the true north.
  • Page 24 12.2 Compass Mode - Compass Mode Compass Mode • In the Compass Mode, the top row of the display shows the bearing direction. • The middle row of the display shows the compass direction. • The bottom row of the display shows the current time in hour and minute.
  • Page 25 12.1 Compass Mode - Compass Directions and Bearing Directions The Direction of an Object 0° angular • The direction of an object from a point can be specified difference 0° object D object D in either compass directions or bearing directions. 315°...
  • Page 26 12.3 Compass Mode - Applications of the Compass Check your position by Backward Bearing Directions • Spot two distant identifiable landmarks like mountains, light-house, fort or building from yourcurrent position, for mountain A example the mountains A and B. • Check out the backward bearing directions of mountains A and B from your current position, for example 135°...
  • Page 27 12.4 Compass Mode - Magnetic Declination What is Magnetic Dection • The Magnetic North Pole is slightly different from the True North Pole. Ture North Magnetic • The Watch, like most magnetic compass, points to the North Magnetic North Pole. On the contrary, everything measured Magnetic Magnetic on a map is related to the True North Pole.
  • Page 28 12.6 Compass Mode - Magnetic Declination at Major Cities Country/Place Major City Declination Country/Place Major City Declination Afghanistan Kabul Netherlands Amsterdam Australia Canberra +12E New Zealand Wellington +22E Austria Vienna Norway Oslo Bahrain Manama Pakistan Islamabad Bangladesh Dhaka Philippines Manila Belgium Brussels Portugal...
  • Page 29 12.5 Compass Mode - Magnetic Declination Compensation magnetic Magnetic Declination Compensation ture north ture magnetic declination 0 ° • To compensate for an object's bearing, either subtract north °W bearing westerly (W) magnetic declination or add easterly(E) ° magnetic declination with the magnetic bearing. object B •...
  • Page 30 12.7 Calibrating Mode - Calibration the Compass When to Calibrate the Compass • The Watch has to employ a compass calibration in one of the following conditions: 1) The Watch is being used for the first time, 2) The battery is replaced, 3) The bearing direction digits are flashing, Compass Mode 4) The compass is used in a location that is apart from...
  • Page 31 12.8 Calibrating the compass - Compass Rotation Calibration Mode Rotation Calibration Display • To select the Rotation Calibration Display, hold the [M] button in the Compass Mode. • To start rotation calibration, press [S/S] button once. • Start turning the watch (keep your watch horizontally) in the same direction.
  • Page 32 13.0 Low Battery Indication & Battery Replacement Low Battery Detection • When the battery-low indicator appears on the display, it means that the capacity of the battery is low. It is recommended to replace the battery with a new CR2032 battery. •...
  • Page 33 12.9 Calibrating the compass - Magnetic Declination Mode Magnetic Declination Mode • Check the coming section "Magnetic Declination at Major Cities" to choose the magnetic declination of the city which is close to your current position. The angle will be input into the Watch during the calibration. •...

  • Page 34: Power Saving Mode

    14.0 Power Saving Mode Power Saving Mode • This Watch has a Power Saving Function which can turn off the LCD display so that the battery can last longer. • In the Power Saving Mode, the watch function is still working normally.

  • Page 35: Specifications

    15.0 Specifications Time Sound Current Time Mode • Normal Time with month, day, day of week, hour, • Last 10 minutes beeps once per minute minute and second display • Last 1 minutes beeps once per 10 seconds Time System •...
  • Page 36 15.0 Specifications Display Compass Mode • Graphical display for altitude tendency Resolution Track Mode • 1° Display Display • Track altitude difference • Cardinal direction in scrolling matrix • User selectable on/off Backlight • Show max/min altitude, max/min temperature, • Electro - Luminescent (EL) backlight accumulated altitude ascent/descent along the track.
