Samsung GT-E2202 User Manual

GT-E2202

user manual

• Some content may differ from your device depending on the region
or service provider.
• Third party services may be terminated or interrupted at any time,
and Samsung makes no representation or warranty that any
content or service will remain available for any period of time.
• This product includes certain free/open source software. The exact
terms of the licences, disclaimers, acknowledgements and notices
are available on the Samsung's website opensource.samsung.com.
www.samsung.com
Printed in Korea
GH68-37821A
English (EU). 11/2012. Rev. 1.0
Charging the battery
To electric socket
1. Plug the small end of the charger into the
multipurpose jack of the device, and plug the large
end of the charger into an electric socket.
2. After fully charging, disconnect the device from the
charger. First unplug the charger from the device,
and then unplug it from the electric socket.
• Use only Samsung-approved chargers,
batteries, and cables. Unapproved chargers
or cables can cause battery to explode or
damage the device.
• Do not remove the battery before removing
the charger. This may damage the device.
To save energy, unplug the charger when not
in use. The charger does not have a power
switch, so you must unplug the charger from the
electric socket when not in use to avoid wasting
power. The device should remain close to the
electric socket while charging.
Making or answering a call
• To make a call, enter a phone number and press
[ ].
• To end a call, press [ ].
• To call a recently dialled number, press [ ] to select
a number, and press [ ] again to dial the number.
• To make a call using the phonebook, press < Menu>
→ Contacts, select a contact and press [ ].
• To answer an incoming call, press [ ].
Sending and viewing messages
<Menu> → Messages
Sending messages
1. Press Create message.
2. Press < Options> → Add recipients → Contact
list to open the phonebook.
3. Select a contact.
Or, enter a contact number.
4. Scroll down and enter a text message.
See "Entering text".
5. To attach files with the message, press < Options>
→ Add multimedia and select files.
6. Press < Options> → Send.
Using the alarm
<Menu> → Organiser → Alarms
Setting alarms
1. Select an empty alarm location.
2. Enter details and press < Save>.
Stopping alarms
When an alarm rings,
• Press < Confirm> to stop the alarm.
• Press < Snooze> to silence the alarm for the snooze
period.
Deleting alarms
Select an item and set Alarm activation to Off.

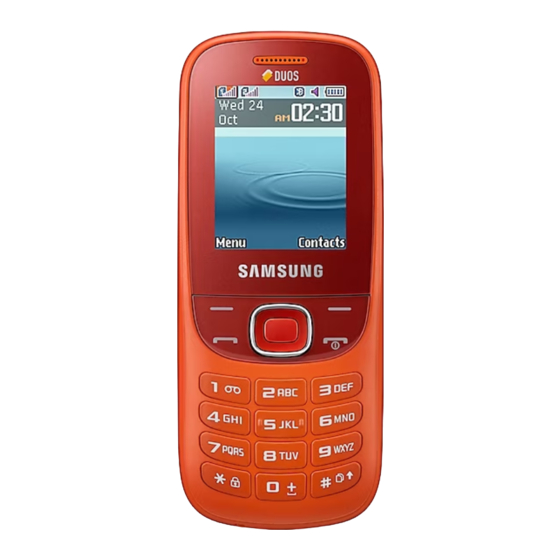

Device layout
6
1
2 7
3
8
4
9
5
Inserting a memory card (optional)
The device accepts memory cards with maximum
capacities of 16 GB. Depending on the memory card
manufacturer and type, some memory cards may not be
compatible with the device.
Memory card
Insert the memory card as shown in the drawing.
• Formatting the memory card on a computer
might cause incompatibility with your device.
Format the memory card only on the device.
• Frequent writing and erasing of data will
shorten the lifespan of memory cards.
• Do not use sharp tools to remove the memory
card from the device.
Viewing messages
Press Inbox and select a message to read.
Managing contacts
Save data, such as names, phone numbers and
personal information in the device memory or SIM card.
<Menu> → Contacts
Users can change the memory location by
pressing Management → Save new contacts
to and selecting a memory location.
Adding new contacts
1. Press Create contact → a memory location (if
necessary).
2. Select a number type (if necessary).
3. Enter contact information and press the Confirm
button.
Editing contacts
1. Press Contact list, select a contact, and press the
Confirm button.
2. Edit items and press the Confirm button to save.
Managing calendar
<Menu> → Organiser → Calendar
Creating events
1. Press < Options> → Create.
2. Enter details of the event and press the Confirm
button.
Viewing events
Select a date.
Listening to the FM radio
<Menu> → Applications → FM Radio
Activating the FM radio
1. Plug a headset into the device.
2. Press the Confirm button to turn on the FM radio.
3. Press < Yes> to start automatic tuning.
Users may be asked to start automatic tuning when
accessing the FM radio for the first time.
1 6
Navigation button Softkeys
From the Home screen, Perform actions indicated at
access user-defined menus; the bottom of the display
In the Menu screen, scroll
7
through menu options
Power button
Pre-defined menus might
differ, depending on the Turn the device on or off
service provider (press and hold); End a call;
In the Menu screen, cancel
2
an input and return to the
Dial button
Home screen
Make or answer a call; From
8
the Home screen, retrieve
recently dialled, missed, or Confirm button
From the Home screen,
received numbers
access the Menu screen; In
3
the Menu screen, select the
Voicemail button highlighted menu option, or
From the Home screen, confirm an input
access voicemails (press The key might perform
differently, depending on
and hold)
the region
4
9
Keypad lock button
From the Home screen, lock SIM card selection button
or unlock the keypad (press From the Home screen,
and hold) switch between networks
(press and hold)
5
Alphanumeric buttons
Turning the device on or off
Turning the device on
Press and hold [ ], and then enter the PIN and press
<OK>, if necessary.
Turning the device off
Press and hold [ ].
If the battery is fully discharged or removed from
the device, the time and date will be reset.
Accessing menus
To access the device's menus or options,
Navigation
Scroll to each menu.
button
Confirm button Launch a menu or an application.
<Menu> Open the Menu screen.
<Back> Return to the previous screen.
Close the menu or application and
[ ]
return to the Home screen.
• When you access a menu requiring the PIN2,
you must enter the PIN2 supplied by the SIM
card. For details, contact your service provider.
• Samsung is not responsible for any loss of
passwords or private information or other
damage caused by illegal software.
Deleting contacts
Press Contact list, select a contact, and press
<Options> → Delete.
Using the camera
<Menu> → Camera
Taking photos
1. Aim the lens at the subject and make any
adjustments by pressing <Options>.
2. Press the Confirm button to take a photo. Photos
are saved automatically.
Recording videos
1. Press < Options> → Camcorder.
2. Aim the lens at the subject and make any
adjustments by pressing <Options>.
3. Press the Confirm button to start recording.
Stop> to end recording. Videos are saved
4. Press <
automatically.
4. Control the FM radio using the following buttons:
Buttons Function
Confirm button Turn the FM radio on or off.
• Left/Right: Fine-tune the
Navigation
frequency.
button
• Up/Down: Adjust the volume.
Adding radio stations to the favourites list
1. Plug a headset into the device.
2. Press < Options> → Add to Favourites.
3. Assign a button and press < Select>.
Using the Bluetooth feature
<Menu> → Applications → Bluetooth
Turning on the Bluetooth feature
1. Press < Options> → Settings and set Activation
to On.
2. Set My phone's visibility to allow other devices to
search for the device.
The device displays the following status indicators at the top
of the screen:
Icon Description Icon Description
No SIM card Normal profile
activated
No signal
Silent profile
activated
Signal strength 1
Bluetooth feature
GPRS network
activated
connected
Alarm activated
Battery power level
FM radio on
Call in progress
Roaming (outside
Call diverting
of normal service
activated
area)
New text message
Memory card
(SMS)
inserted
New multimedia
message (MMS)
1. The icon may vary depending
on the SIM card setting.
SOS message
feature activated
Entering text
Changing the text input mode
Change to uppercase, lowercase, or
Press [ ]
switch to number mode.
Switch between T9 and ABC mode.
Press and Depending on the region, users might
hold [ ] be able to use an input mode for specific
language.
Press [ ] Switch to symbol mode.
Press and Select an input mode or change the input
hold [ ] language.
T9 mode
1. Press the appropriate alphanumeric buttons to enter
an entire word.
2. When the word displays correctly, press [ 0] to insert
a space. If the word does not display, press the
Navigation button up or down to select an alternate
word.
Viewing photos and videos
From the Home screen, press <Menu> → My files →
Images or Videos and select an item to view.
Listening to music
<Menu> → Music
Buttons Function
Confirm button Play, pause, or resume music.
• Left: Skip backwards (press); Scan
backwards in a file (press and
hold).
Navigation
button • Right: Skip forwards (press); Scan
forwards in a file (press and hold).
• Up/Down: Adjust the volume.
Finding and pairing with other Bluetooth devices
1. Press Search for new devices to find other
Bluetooth devices.
2. Select a device.
3. Press < Yes> to match the PIN between the devices.
4. When the other device accepts the connection,
pairing is complete.
Users might have to enter a PIN, depending on
the device.
Turning off the Bluetooth feature
Select <Options> → Settings and set Activation to Off.
Sending data using the Bluetooth feature
1. Select items to send from one of the device's
applications.
2. Press < Options> → Send via → Bluetooth.
Customising the device
Settings control how applications and functions operate.
Change them to customise the device. Appearances,
sound profiles, call actions, and many more can be
customised.
Installing the SIM cards and battery
1. Remove the back cover and insert the SIM cards.
Back cover SIM cards
Do not bend or twist the back cover excessively.
Doing so may damage the cover.
2. Insert the battery and replace the back cover.
Battery
ABC mode
Press an appropriate alphanumeric button until the
character appears on the display.
Number mode
Press an appropriate alphanumeric button to enter a
number.
Symbol mode
Press an appropriate alphanumeric button to enter a
symbol.
Other features for text input
Press the
Navigation Move the cursor.
button
Press <Clear> Delete characters one by one.
Press and hold
Delete characters quickly.
<Clear>
Press [0] Insert a space.
Press [1] Enter punctuation marks.
Browsing the web
<Menu> → Browser
Browser for the first time,
• When users access
users might be prompt to create an Internet
profile.
• The browser may not support some WAP
sites.
Navigating webpages
Buttons Function
Navigation
Scroll up or down on a web page.
button
Confirm button Select an item.
<Back> Return to the previous page.
<Menu> → Settings
Menu Description
SIM Cards
Change the SIM card settings.
Management
Change the alert type, ringtone,
Profiles
volume, etc.
Alter wallpaper, theme, brightness,
Display
etc.
Change the time and date of the
Time and date
device.
Phone Change the device language, etc.
Applications Set application settings.
Security Set locks or change passwords.
PC Set connection settings with a
connections
computer.
Network Change network profiles settings.
Clear memory, manage the memory
Memory card, or set the default memory
location.
Reset Reset the device.
