Summary of Contents for Kyocera 85221

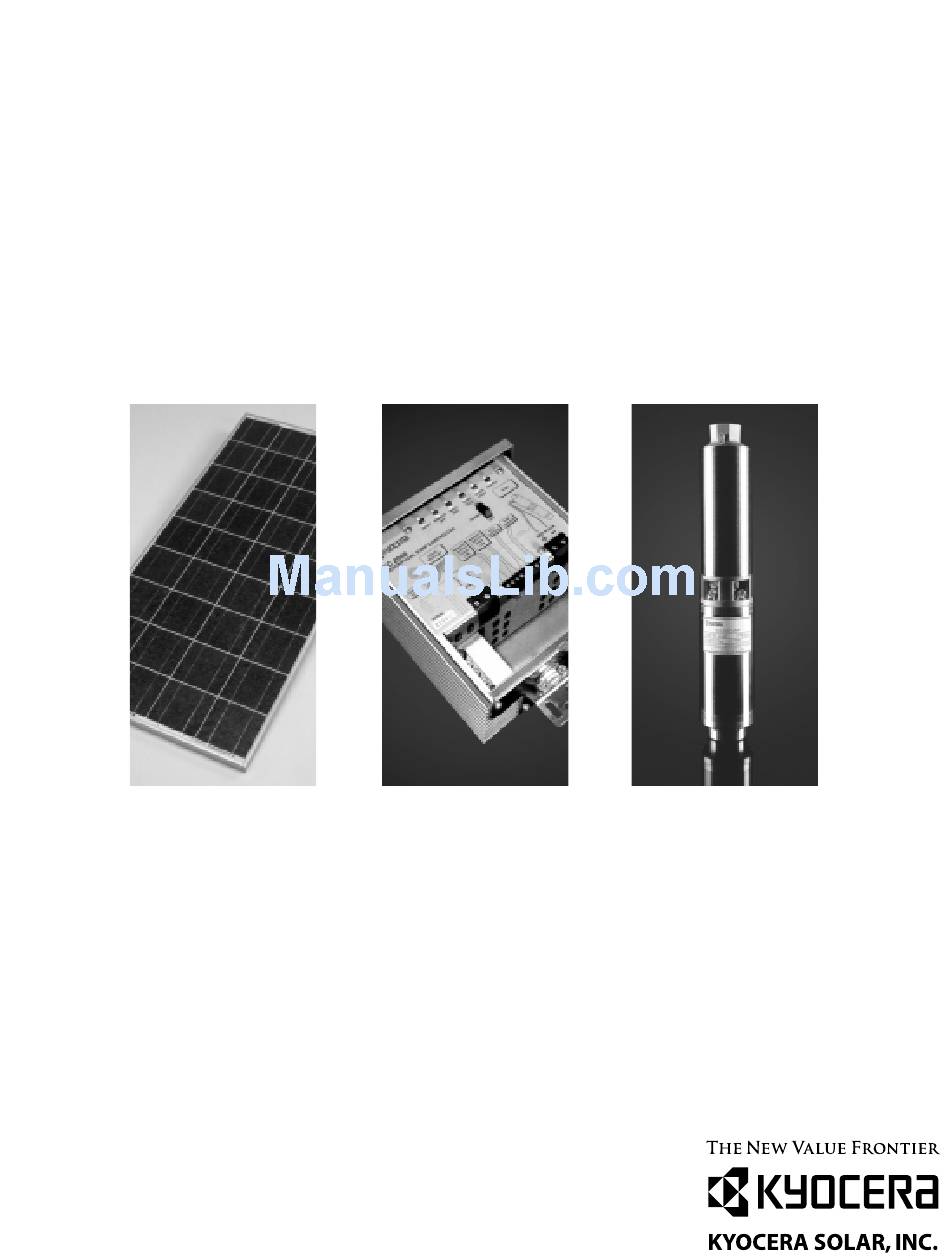

- Page 1 Solar Water Pumping Products Catalog...
- Page 2 SD 6 -35 PUMP Maximum Pump Voltage: 30 Volts Maximum Total Dynamic Head: 35 Meters (115 Feet) Flow at Full Depth: 6.0 lpm (1.6 gpm) SC 500 SERIES Flows Up To: 73.8 lpm (19.5 gpm) Depths Up To: 90.0 meters (295.0 feet) CC 2000 CONTROLLER...
-
Page 3: Table Of Contents
G r e e t i n g s Greetings Thank you for your interest in Kyocera solar electric water pumping systems and products. Water pumping and solar power are natural partners that create economic solutions for any remote water delivery application. Kyocera Solar, Inc., with more than 18 years experience and thousands of pumps and controllers in service around the globe, is the premier solar pumping system manufacturer. -
Page 4: Sd Diaphragm Pumps
Model SD 3-70 ........ -
Page 5: Cd 300 Diaphragm Pump Controller
C D 3 0 0 D i a p h ra g m P u m p C o n t r o l l e r The CD 300 pump controller is designed to connect solar modules to Kyocera Solar’s SD series submersible diaphragm pumps. The controller provides current or voltage boosting combined with true Maximum Power Point Tracking (MPPT) of the solar modules. -
Page 6: Sc Centrifugal Pumps
SC Series Submersible Water Pumps Water Delivery up to 43 gpm /162 lpm, Pumping Range 0-525 feet / 0-160 meters Brushless, Permanent Magnet Motor with Multi-Stage Centrifugal Pump End Corrosion-Resistant, Permanently Lubricated and Maintenance Free The Kyocera SC Series of submersible solar pumps are high quality, maintenance-free, DC powered pumps designed specifically for water delivery in remote locations. -
Page 7: Cc 2000 Centrifugal Pump Controller
C C 2 0 0 0 C e n t r i f u ga l P u m p C o n t r o l l e r The CC 2000 pump controller is designed to connect solar modules to Kyocera Solar’s SC series submersible motors and centrifugal pumps. -
Page 8: Kyocera Solar Modules And Interconnects Multi-Contact (Mc) Connectors
Kyocera Solar Modules and Interconnects / MC Connectors Kyocera Solar Modules High efficiency multicrystal modules Consistent, reliable time proven products Cell efficiency over 14% UL listed 6 inch cell modules Low iron, tempered glass, EVA encapsulant and anodized aluminum frame construction 25 year output warranty Model Rated Power (Watts) -
Page 9: Balance Of System
B a l a n c e o f S y s t e m Trackers Passive trackers can increase water delivery by 50% or more Adjustable single-axis passive solar tracker follows the sun by heated liquid flowing between east and west sealed canisters Unirac Tracker 200 - 2.5 in. -
Page 10: Ss Series Water Sensor
SS Series Water Sensor Non-corrosive, dry run production sensor: Glass and plastic construction (see page 10) Compatible with CD 300 and CC 2000 controllers only One sensor required per well or tank application Sensor provided with three lengths of attached cable (75’, 150’, 250’) SS-75 Water Sensor . -
Page 11: Float Switch
B a l a n c e o f S y s t e m SD Series Splice Kit Used for splicing pump cable #10 AWG - 12 AWG (4.0 mm Includes butt splices and adhesive lined shrink tube SD Series Splice Kit ....................P/N 85946 SC Series Splice Kit Used for splicing pump cable #6 AWG - 12 AWG (4.0 mm... -
Page 12: Sd Pump Sizing (For Approximation Purposes Only)
Designing a Solar Pumping System There are many aspects of designing a solar pumping system. This guide provides the information to correctly select a pump, controller, sensors, solar array, wiring, and pipe. The process is broken down into the following steps: STEP 1 - Estimate the amount of water needed per day (~GPM x 360). - Page 13 S D P u m p S i z i n g SD 12-30 PERFORMANCE GRAPH 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 NOTE: 1. SD series systems require a CD 300 Pump Controller to provide the performance as shown. 2.
- Page 14 SD 12-30 PERFORMANCE GRAPH 1000 2000 3000 4000 5000 6000 7000 8000 9000 10000 11000 12000 NOTE: 1. SD series systems require a CD 300 Pump Controller to provide the performance as shown. 2. Single, 12 Volt module systems require CD 300 Pump Controller to operate at full power. 3.
- Page 15 S D P u m p S i z i n g SD 6-35 PERFORMANCE GRAPH 1000 2000 3000 4000 5000 6000 NOTE: 1. SD series systems require a CD 300 Pump Controller to provide the performance as shown. 2. Single, 12 Volt module systems require CD 300 Pump Controller to operate at full power. 3.
- Page 16 SD 3-70 PERFORMANCE GRAPH 1000 1500 2000 2500 3000 3500 NOTE: 1. SD series systems require a CD 300 Pump Controller to provide the performance as shown. 2. Single, 12 Volt module systems require CD 300 Pump Controller to operate at full power. 3.
- Page 17 S D P u m p S i z i n g Canada and USA Sun Hours On Tilt (S.H.O.T.) Maps Latitude 70° 65° 60° 55° 50° 45° 40° 35° 30° 25° 20° 140° W Latitude 70° 65° 60° 55° 50°...
-
Page 18: Warranty And Return Information
Warranty Performance Every product offered is fully guaranteed by the manufacturer.The complete warranty detail of each product is available upon request.The manufacturer’s warranty sets the terms and conditions for repair or replacement of non-conforming material. Kyocera Solar, Inc. offers no coverage beyond the manufacturer’s explicit warranty. Kyocera Solar,Inc.is not responsible for any incidental or consequential damage to persons,property,or other loss or injury resulting from a defect or improper use or installation. - Page 20 7812 East Acoma Drive Scottsdale, AZ 85260 USA 480.951.6330 FAX: 480.951.6329 800.544.6466 www.kyocerasolar.com...
